(Carbon steel + non-asbestos emulsion paper + carbon steel ) Exhaust Gasket Sheet

  • 200-499 Kilograms
    $1.73
  • 500-999 Kilograms
    $1.68
  • >=1000 Kilograms
    $1.59
Material:
Paper Metal Graphite
Shape:
Flat Gasket
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Samples - $1.00 /Kilogram, 1 Kilogram (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Bright Pearl
Model Number:
BP1070
Standard or Nonstandard:
Standard
color:
Gray, Black, Red
thickness:
1.0-3.0mm
Used:
used in medium of engine oil, air and water, etc
Delivery Detail:
Shipped in 20 days after payment
Density:
2.1-2.2g/cm3
normal size:
500*1000,500*1500
Recovery:
>35%
Compressive Strength:
> 800 kgf/cm2
Tensile Strength:
> 70 kgf/cm2

Packaging & Delivery

Selling Units:
Single item
Single package size:
100X100X0.2 cm
Single gross weight:
4.0 kg
Package Type:
in wooden case of about 1000 kgs, 2000kgs net each,one 20' container can pack 20 to 27 ton.
Lead Time :
Quantity(Kilogram) 1 - 200 201 - 500 501 - 1000 >1000
Est. Time(days) 7 10 15 To be negotiated
Product Description

Cylinder Head Gasket Sheet

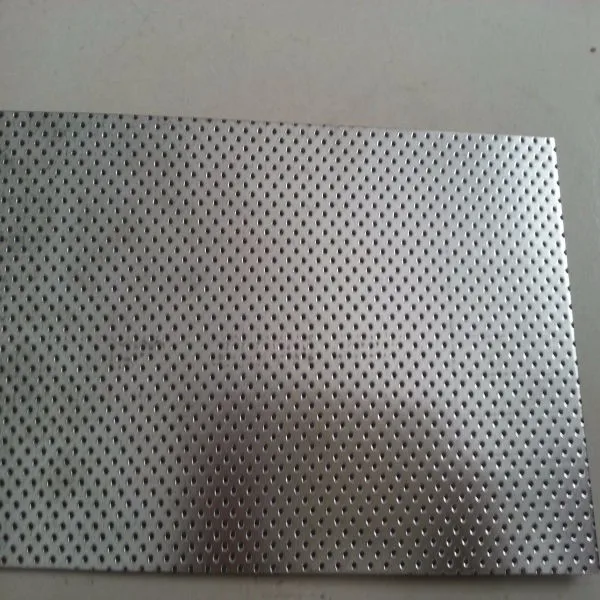

Manufactured from non-asbestos beater sheet with mechanically clinched to 0.18 ~ 0.25mm thick carbon steel tanged (perforated) metal sheet - 08F tinplate insert. It is best gasket material for motorcycle and automobile cylinder head gasket.


Available Size:
Thickness: 1.0mm ~ 3.0mm.
400mm x 1000mm, 500mm x 1000mm, 500mm x 1200mm, 500mm x 1500mm, 510mm x 1016mm, 510mm x 1530mm, 1000mm x 1000mm, 1000mm x 1500mm.
Color: Gray, Black.
The other size is optional or according to the requirements of customers.

Detailed Images

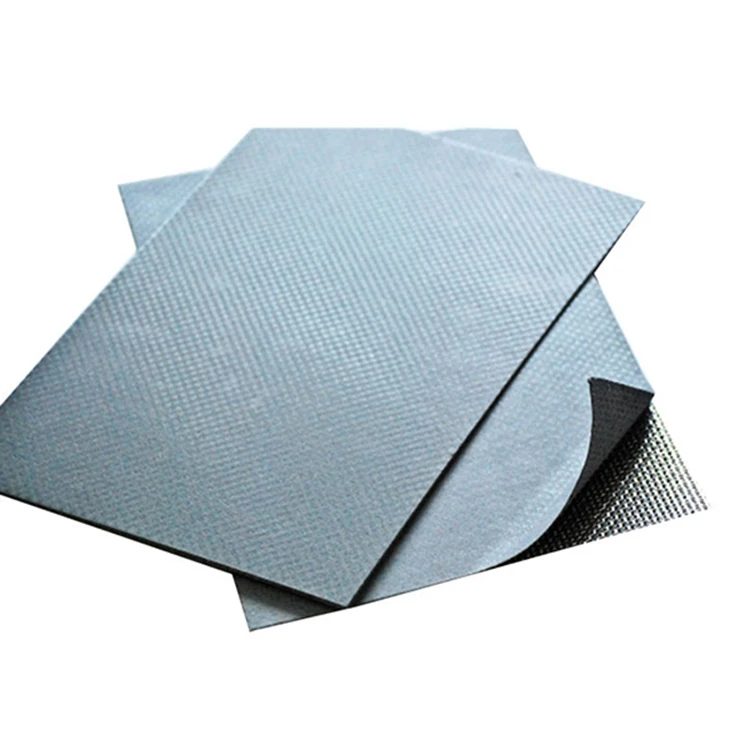

No-asbestos beater sheet + tinplate + no-asbestos beater sheet

Color: Gray, Black, Red, Green

Thickness: 1.0mm ~ 3.0mm
400mm x 1000mm, 500mm x 1000mm, 500mm x 1200mm, 500mm x 1500mm, 510mm x 1016mm, 1000mm x 1000mm.

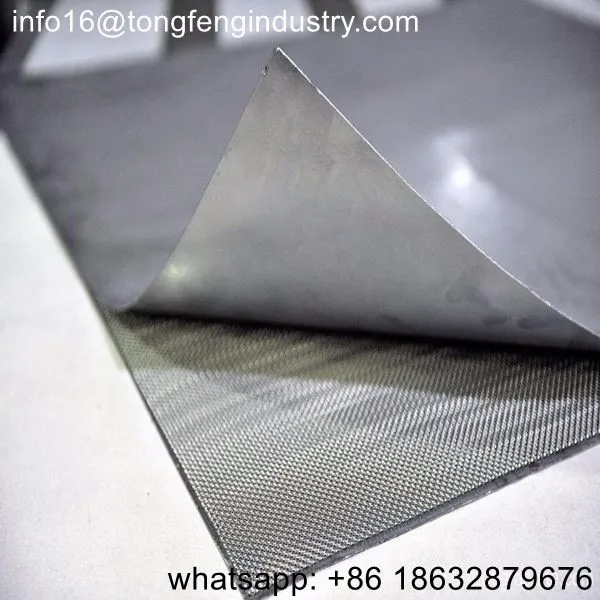

No-asbestos beater sheet + SS304/316 + no-asbestos beater sheet

Color: Gray, Black, Red, Green

Thickness: 1.0mm ~ 3.0mm
400mm x 1000mm, 500mm x 1000mm, 500mm x 1200mm, 500mm x 1500mm, 510mm x 1016mm, 1000mm x 1000mm.

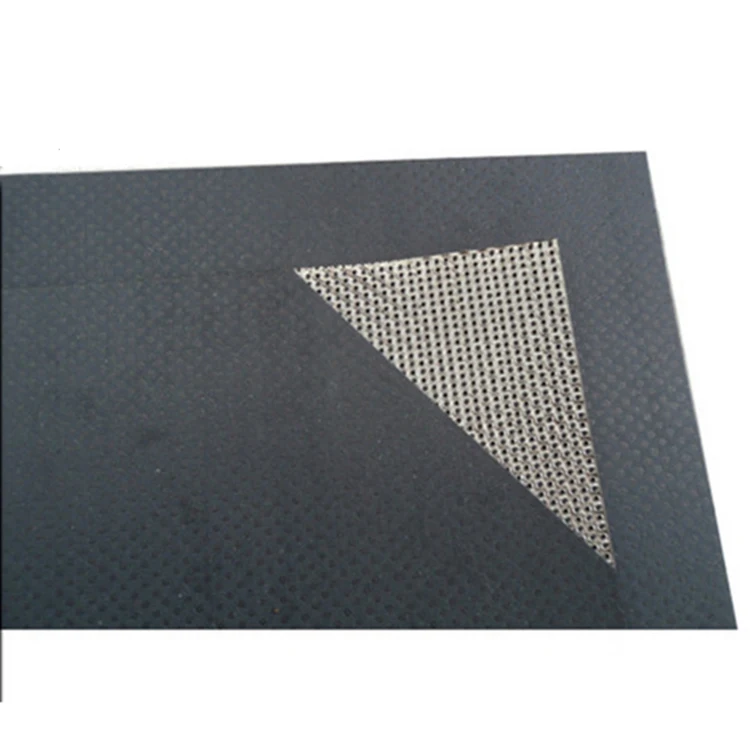

Exhaust Gasket Sheet

Carbon steel + non asbestos sheet + carbon steel.
Carbon steel + non asbestos sheet.
Carbon steel + flexible graphite sheet + carbon steel.

Size:

500mm*500mm*(1.2mm to 2.5mm),                   500mm*1000mm*(1.2mm to 2.5mm).

Reinforced non-asbestos Composite Sheet with Both Size Coating Graphite.


Thickness: 1.0mm ~ 3.0mm.
400mm x 1000mm, 500mm x 1000mm, 800mm x 1000mm, 1000mm x 1000mm.

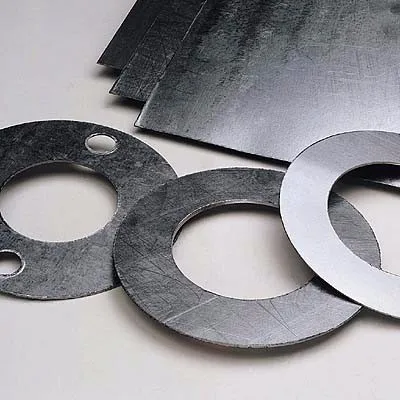

 Graphite composite sheet

Graphite sheet + SS304/316 + Graphite sheet

Graphite sheet +  tinplate       + Graphite sheet


Thickness: 1.0mm ~ 3.0mm.
400mm x 1000mm, 500mm x 1000mm, 800mm x 1000mm, 1000mm x 1000mm.

Packing & Delivery

Packing Details:in wooden case of about 1000 kgs, 2000kgs net each.

Delivery Details:15-20 days after received your payment.

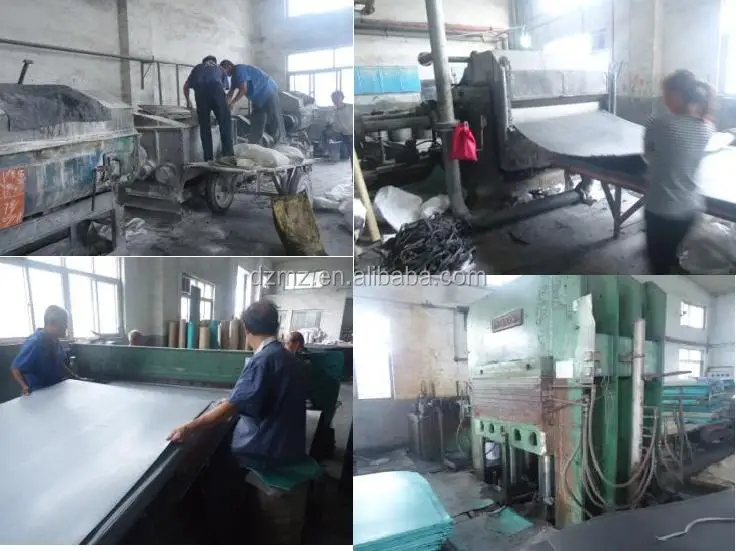

Our Company

 Hebei Fuyuan Sealing Materials Co., Ltd.is a modern high-technology enterprise specialized in production and sales of sealing and heat insulation material with an experience of more than twenty years. We are equipped with the most advanced and complete machines and test facilities to produce high quality various kinds sealing material.

Our featured products are "Bright Pearl" brand sealing material series products, mainly sealing gasket sheet, braided packing, Heat Insulation cloth, tape, rope, sight glass, etc.


FAQ

Q: Graphited or not on the sheet?

A: No problem, we can make it one side graphited or both side graphited.

Q: Steel Plate reinforced in the sheet?

A: No problem, common steel plate thickness: 0.18~~0.25mm.

Q: Printing logo available?

Yes, it is no problem, shown us the design of the printing, then we make new mould and print it on the sheet.

Q: Are you factory, or only a trading company?

A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei

Q:Could I get some samples, and how?

A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also ok(such as DHL).

Q: Can you give me some discount?

A: Usually the discount depends on the quantity. However we can discuss it.

Q: What's the payment terms?

A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
