0-5V low differential pressure transducer

  • 1-9 Pieces
    $172.00
  • 10-49 Pieces
    $157.00
  • 50-99 Pieces
    $150.00
  • >=100 Pieces
    $144.00
Accuracy:
±1%FS
Type:
Differential pressure transducer
Pressure Range:
0-25Pa to 0-250Pa
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Contact Supplier
Samples - $172.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
UTMOST
Model Number:
JD168
Output:
4-20mA/ 0-5V/ 0-10V
Fitting:
8mm Barbed port
Electrical connection:
1m cable

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
0.55 kg
Package Type:
Standard Carton package for export
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(days) 15 To be negotiated
Product Description

The core component of the JD168 series of differential pressure sensors is a capacitive pressure sensitive component, which consists of a stainless steel diaphragm and a fixed electrode. Its value changes with pressure. The sensor sensitive components and unique detection circuit carefully designed by our special patent technology ensure the good temperature performance and long-term stability of the product. JD168 differential pressure sensor/ transmitter can be used to measure differential pressure or gauge pressure, the output is 0-5V, 0-10V, 4-20mA, also can be customized to other output. JD168 has excellent performance and price ratio, widely used in HVAC, environmental pollution control, clean engineering, medical instrument and equipment, oven pressurization and furnace wind pressure control, natural gas, gas pipe network monitoring, downhole ventilation and power plant wind pressure monitoring and other fields.

Features

• Both positive and negative pressure ends can withstand an overload of at least 100KPa without damage
• Capacitive sensitive components with temperature compensation ensure excellent dynamic / static temperature     performance of the transmitter
• Real differential pressure transmitter, can work normally under static pressure up to 100KPa without affecting its     measurement accuracy
• Multiple pressure interfaces / output / installation options
• Miswired full protection

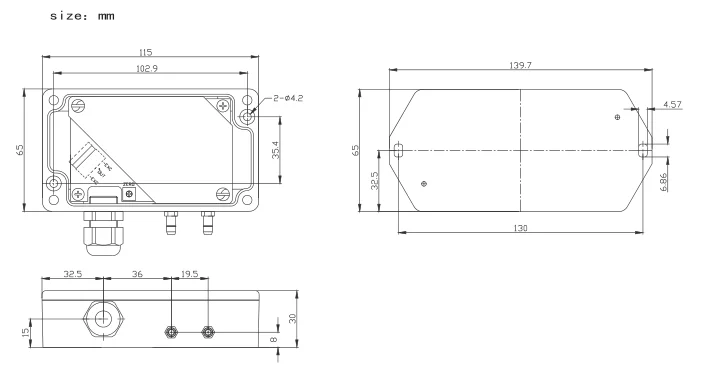

Dimensions

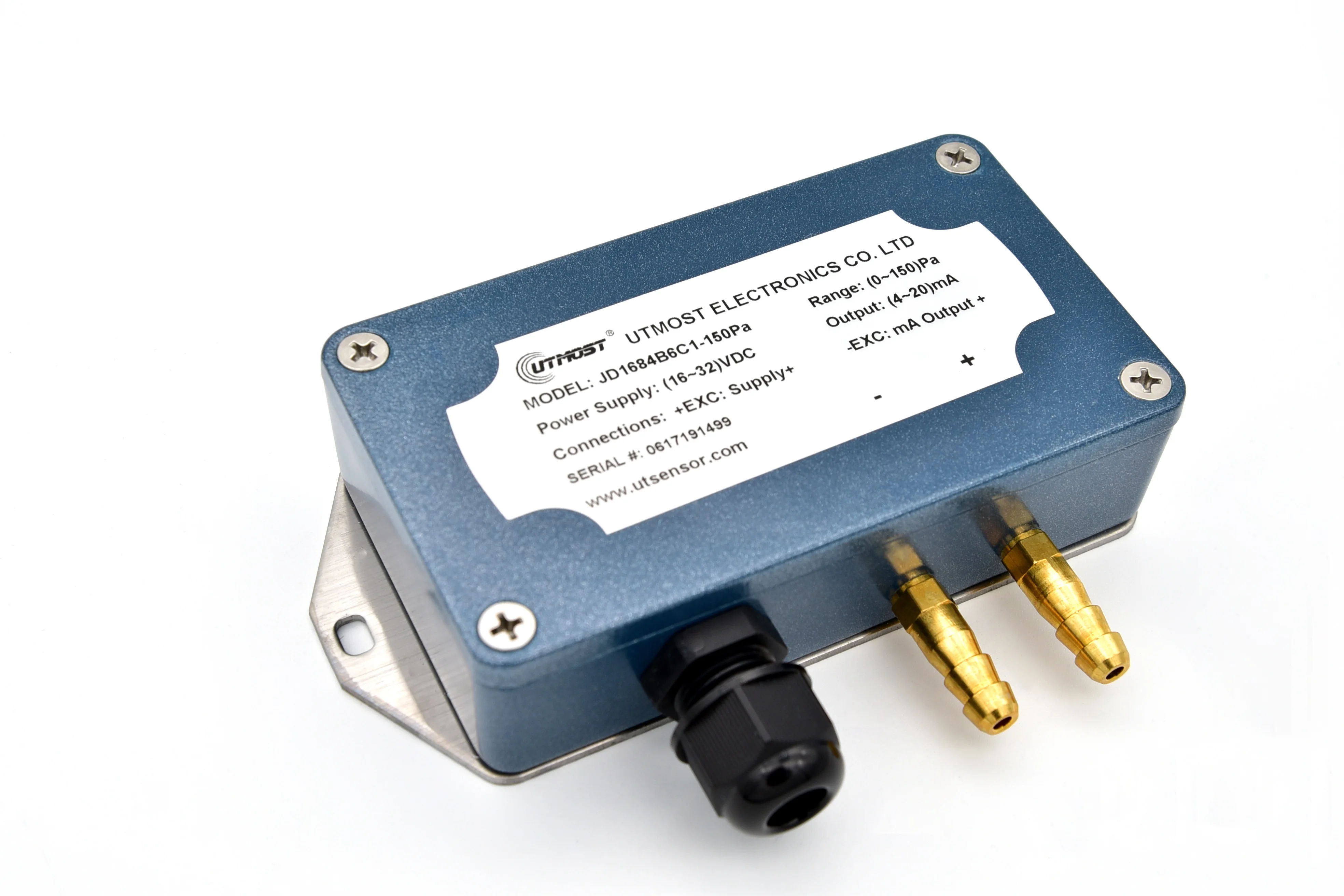

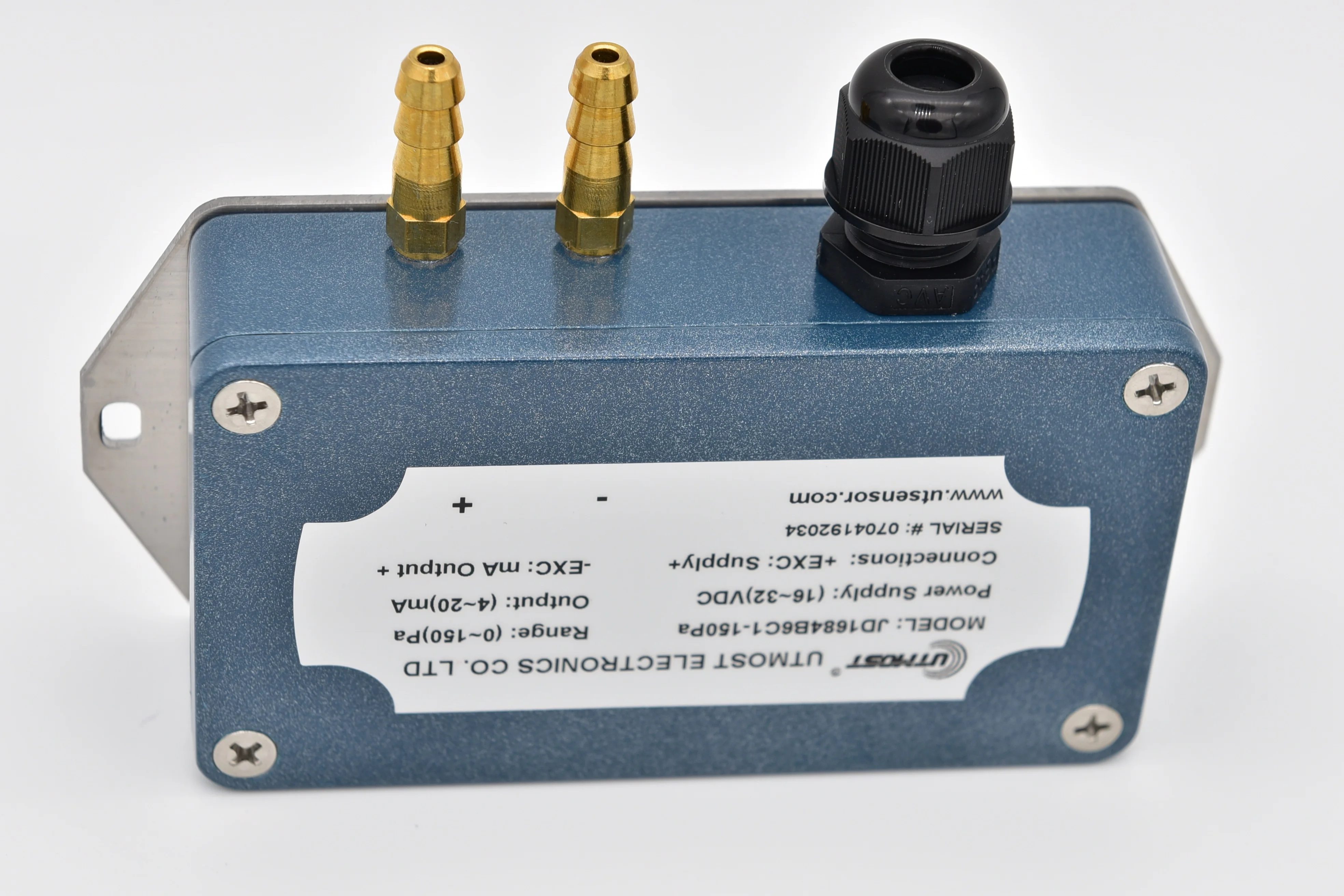

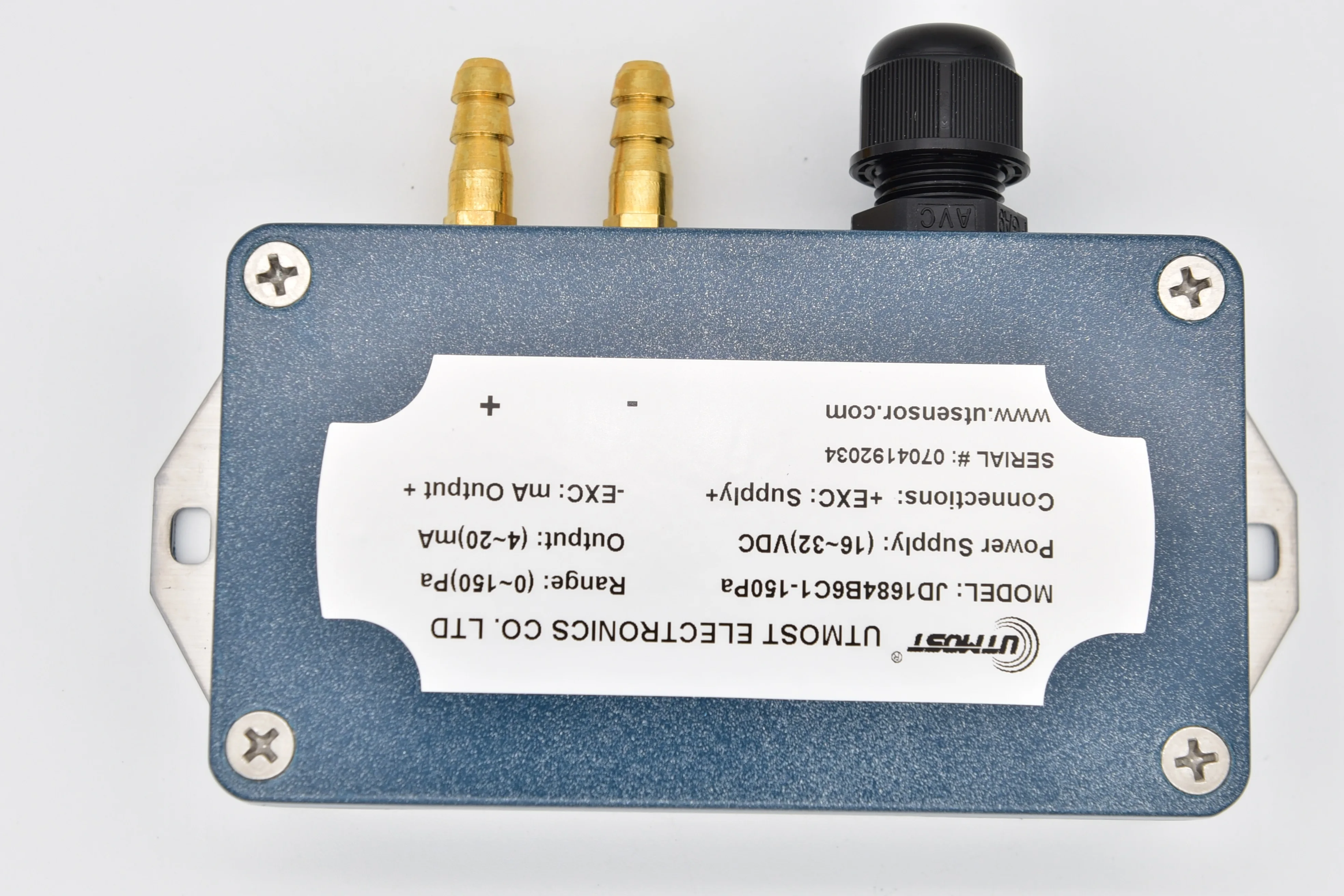

Product picture

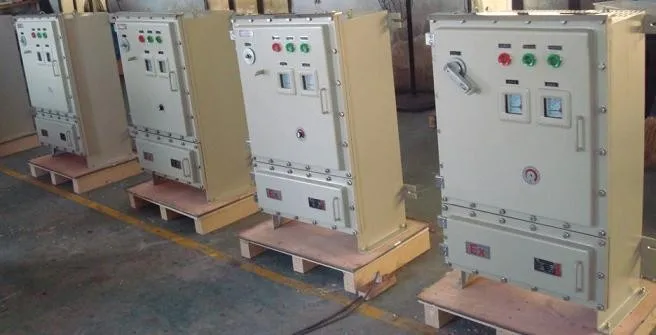

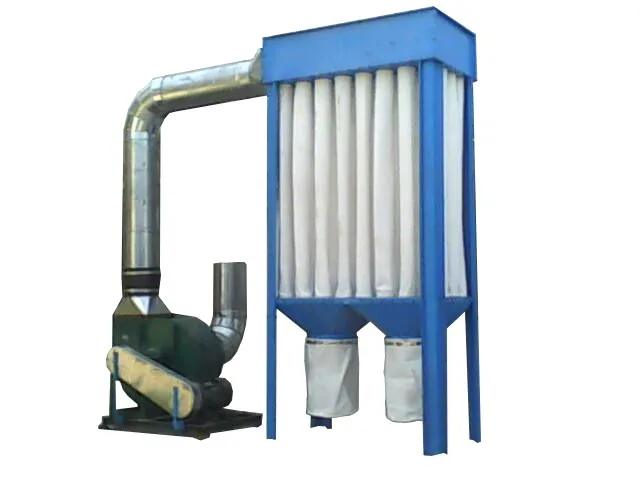

Application
Packing & Delivery

The courier charge is estimated cost, it maybe a little different with actual one.
So please discuss the courier charge with us firstly, please don't place order directly, thanks.
