0-5v output 360 degree motion sensor hall digital angle sensor P3022

Feedback Ratings
  • 1-9 Pieces
    $40.00
  • 10-49 Pieces
    $35.00
  • 50-99 Pieces
    $28.00
  • >=100 Pieces
    $26.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)
Contact Supplier
Samples - $40.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity

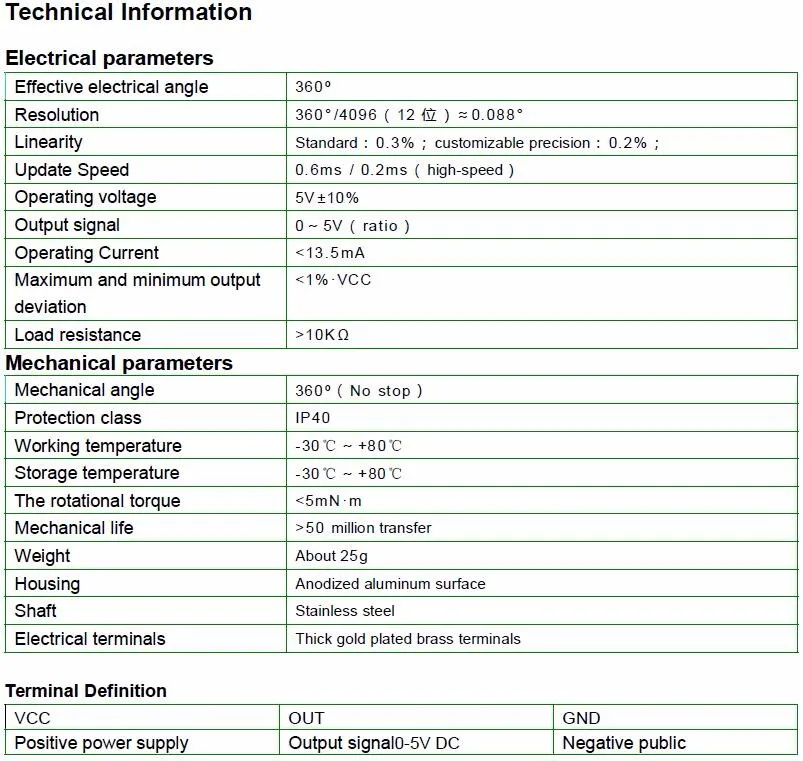

Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
P3022
Usage:
Magnetic Sensor
Theory:
Hall Sensor
Output:
Analog Sensor
Effective Electrical Angle:
360°
Resolution Ratio:
4096(12bits)
Output signal:
0~5V(ratio)
Operating Current(MAX):
<16mA
Protection class:
IP40
Shaft:
Stainless Steel
Resolution:
0.088°
Update Speed:
0.6ms / 0.2ms(high-speed)
Weight:
about 30g
Type:
Micro sensor

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X8X5 cm
Single gross weight:
0.2 kg
Package Type:
carton
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(days) 3 To be negotiated
Product Description

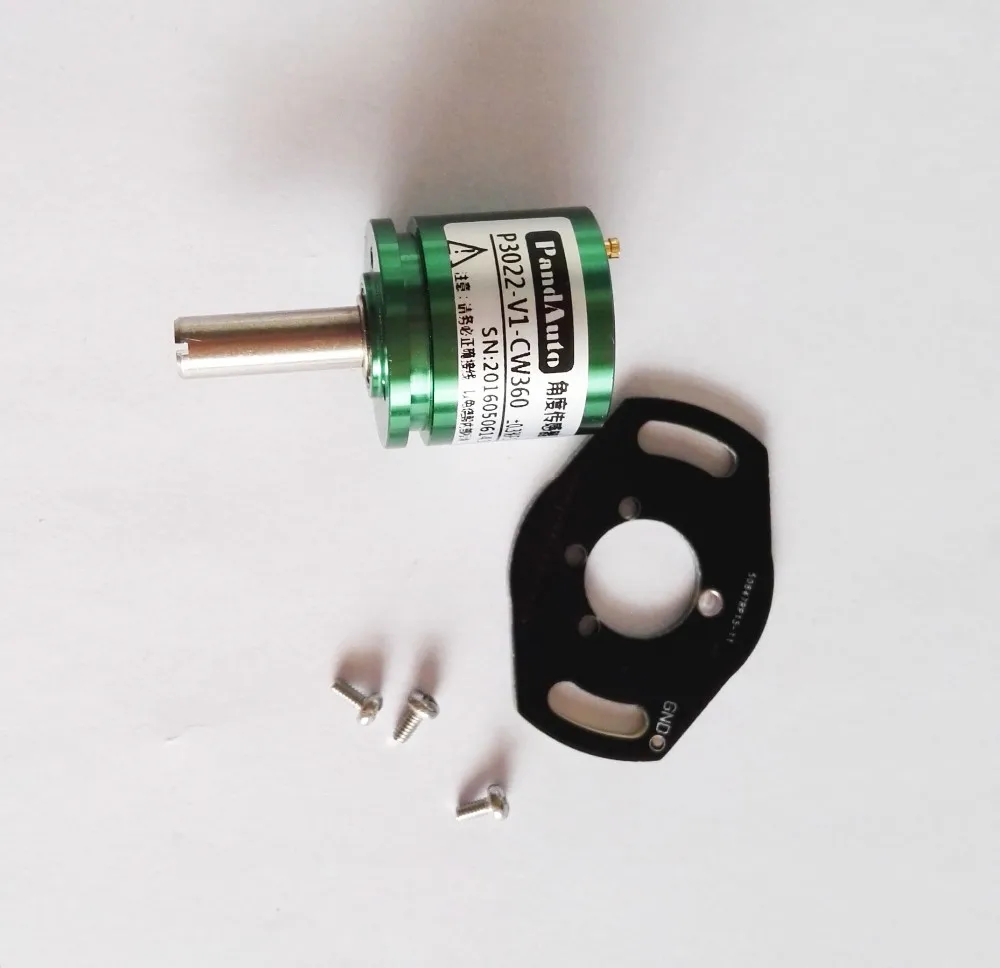

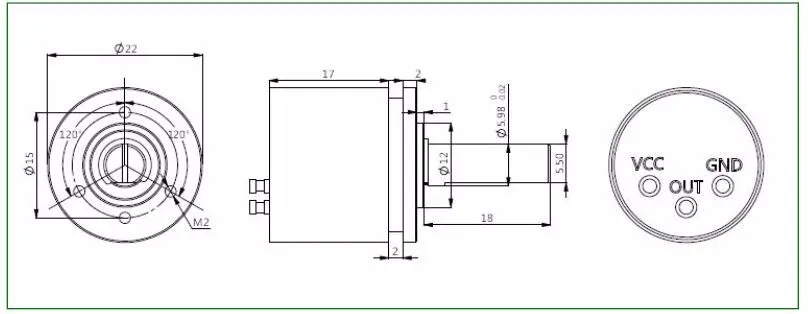

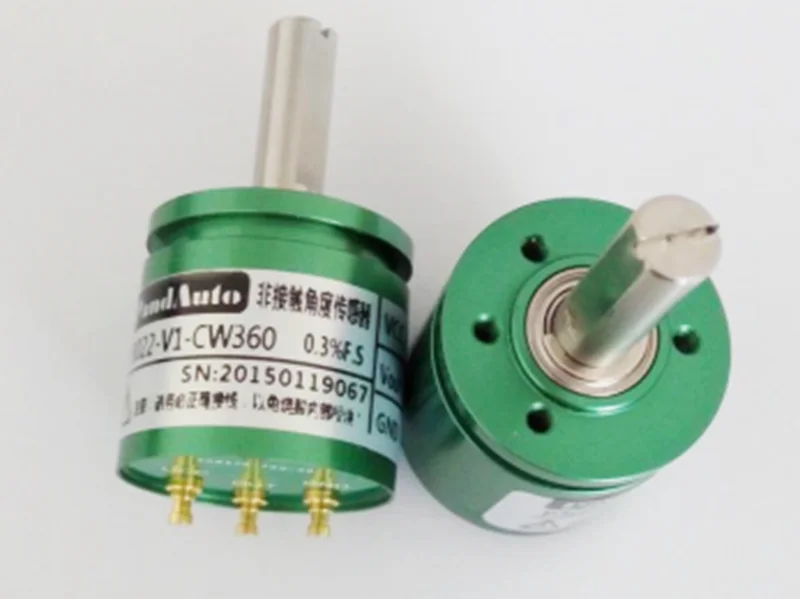

outer dia 22mm Micro hall sensor 360 degree hall angle sensor

P3022series of miniature non-contact angle sensor works through the principle of electromagnetic induction, the angle is converted to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3022 angle sensor outputs an electrical signal that is proportional to the rotational angle.

This series of products using hard aluminum alloy material shell; Hall-type non-contact technology, P3022 series angle sensor has the advantages of non-contact angle sensor, and the use of high-quality imported high quality stainless steel high speed bearing member, so that it reduced frictional resistance when measuring the minimum, not because of the wear surface measurement component caused decrease measurement accuracy, long service life theoretically unlimited; the product compact structure, small size, optional strong, high resolution, smooth rotation dynamic noise in addition to the excellent performance suitable for electromagnetic interference outside the water, oil, vibration, shock and other harsh industrial environment, is a cost-effective non-contact angle sensor.
Related product

GHS5208 Series Solid-Shaft Incremental Rotary Encoder

GHH80 Series Hollow-Shaft Incremental Rotary Encoder

CESI-S1000 draw wire linear position sensor

CAS60 Absolute Rotary encoder


PD30 series incremental rotary encoder kit Apply to DC motor

TM1474 Series Manual Wheel Pulse Generator Apply to CNC

Packing & Delivery

Packing Details  : carton packed for each encoder or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.

1. Rotary encoder pack box 2 layers.
2. All packed good
3. Encoder module disc in plastic box
4. Ziplock packed for flexible coupling
5. Rotary encoder packed well
6. Packed with good conditions with shipping mark.
Welcome To Factory
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-8 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
