1 carat synthetic diamond micro powder price

Feedback Ratings
  • 1000-9999 Carats
    US $0.13
  • 10000-99999 Carats
    US $0.12
  • 100000-499999 Carats
    US $0.10
  • >=500000 Carats
    US $0.09
1 batch = 1000 Carats
Quantity:
- + Carats available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order:: 1000 Carats)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
HNHONGXIANG
Model Number:
0-0.25 to 0-0.5grit
Material:
synthetic diamond
Usage:
polishing, making diamond tools
Abrasive Grain Sizes:
0-0.25 to 0-0.5grit
Product name:
diamond powder
mesh:
60000
Payment Terms:
Negotiate
Certificate:
ISO9001:2008
Application:
Polishing Workpiece
D50um:
0.11-0.20 um
Sample:
Paid sample
Manufacturer:
HNHONGXIANG

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
30X30X30 cm
Gross weight per batch:
0.4 kg
Package Type:

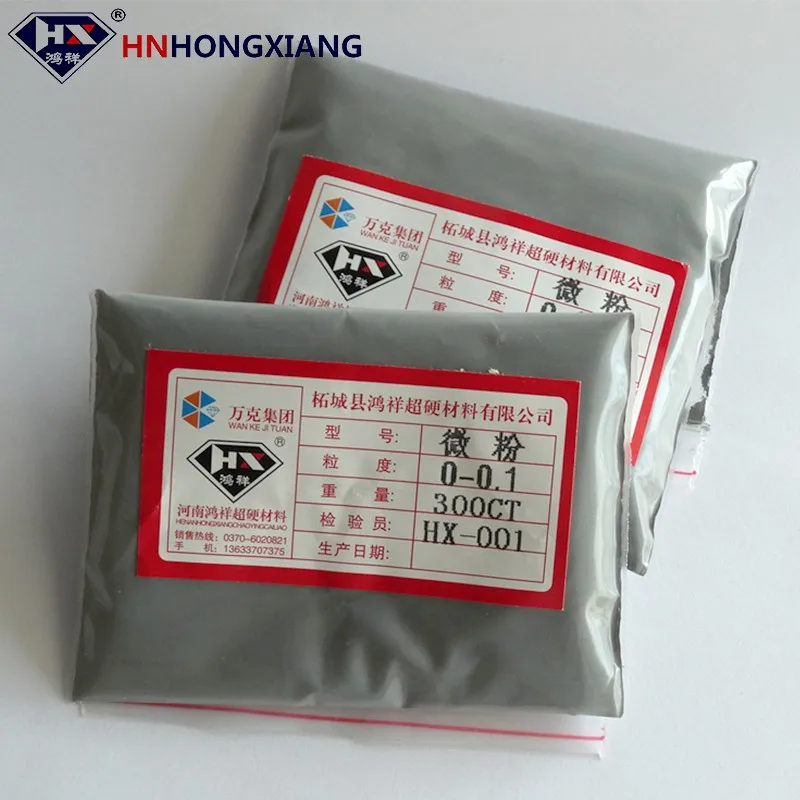

Package of HNHONGXIANG synthetic diamond powder: Bags in Carton
Lead Time :
Quantity(Carat) 1 - 1000 >1000
Est. Time(day) 15 To be negotiated
Product Description

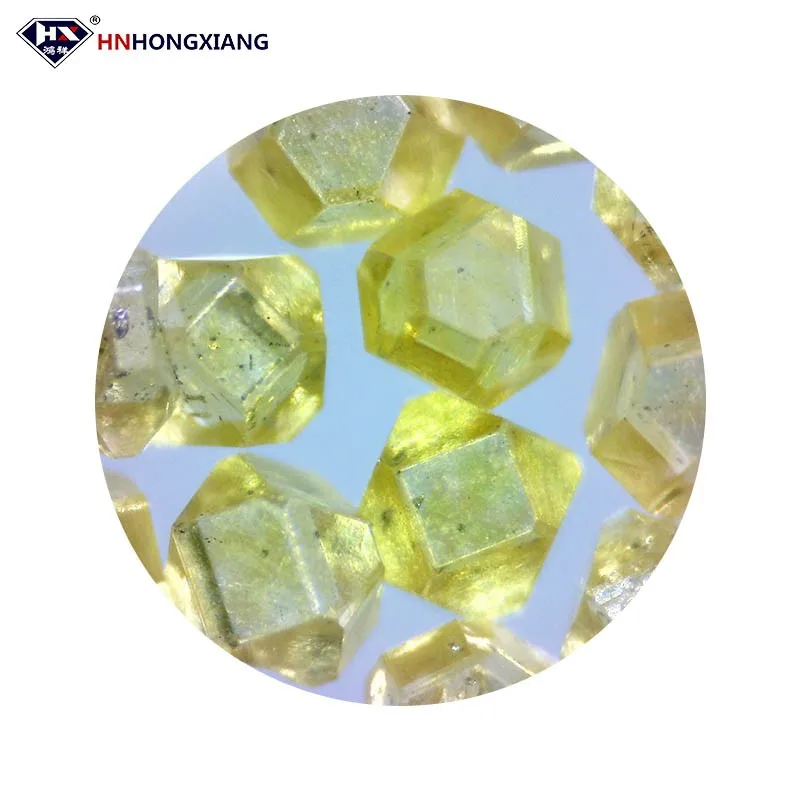

Monocrystalline diamond powder

Monocrystalline diamond powder select large size diamond particles as a raw material, after crushing, integer, purification, purification, separation, drying, particle size analysis, produced by technology. Monocrystalline diamond powder is yellow or off-white powder, uniform size, high strength, low impurity content.

Polycrystalline diamond powder

Polycrystalline diamond powder is using a unique method of directional blasting prepared from graphite, high detonation velocity explosive shock wave directional blasting the metal accelerated flight fly sheet, graphite sheet impact resulting polycrystalline diamond into graphite. The structure is very similar to natural diamond, formed by an unsaturated bond, having good toughness.

PRODUCT SHOW
PRODUCT PARAMETER
Grit
Mesh
D50um
Grit
Mesh
D50um
Grit
Mesh
D50um
0-0.25
60000
0.11-0.20
2-6
6500
3.5~4.2
12-22
6500
15.0-17.0
0-0.5
30000
0.20-0.30
3-7
6500
4.4-5.0
15-25
6500
18.0-20.0
0-1
15000
0.6-0.8
4-8
6500
5.0-6.0
20-30
6500
20-23
0-2
13000
1.1-1.2
4-9
6500
6.1-6.5
22-36
6500
23-26
1-2
12000
1.1-1.3
5-10
6500
6.5-7.3
20-40
6500
26-29
1-3
10000
1.6-1.8
6-11
6500
7.3-8.3
30-40
6500
29-32
1-4
7000
1.9-2.1
8-12
6500
8.3-9.0
35-45
6500
32-36
1-5
6500
2.2-2.6
7-14
6500
9.1-10.5
36-54

37-43
2-4
6500
2.6-3.0
8-15
6500
10.0-12.0



2-5
6500
3.0-2.4
10-20
6500
12.5-15.5



REMARKS:

0-0.5 micron to 6-12 micron diamond micropowder for polishing;

10-15 microns to 22-36 microns for grinding;

12-22 micron is used for fine grinding;

PRODUCTION PROCESS

Production Process:

1. broken: The diamond is broken into irregular particles or crystals.

2. plastic surgery: Reshaping under the irregular shape.

3. sieve: The size of the product is screened by an electric forming sieve.

4. sorting: Through the diamond fine powder automatic sorting machine, the precision separation is again carried out.

5. purification: The impurities contained in the diamond are removed by pickling.

6. quality testing: The particle size of the product was detected by laser particle size analyzer.

7. dry: The diamond is dried by drying machine.

PRODUCT USE

Single crystal diamond micropowder

Single crystal diamond micropowder is suitable for the manufacture of electroplating products, grinding wheels and grinding wheels, and is used for polishing and engraving of high-grade stone, automotive glass, high-grade furniture, ceramics, hard alloys, magnetic materials, etc.

Polycrystalline diamond micropowder

Polycrystalline diamond micropowder is mainly used in ultra-fine processing of microchip optical crystals, super polishing of large silicon wafers, surface modification and other fields.

TRANSPORT &PACKAGE

Delivery & Packing

We will use carton package, and also can support your requirement if you need carton or other kind of package. of cause will add a little fees.We support express, air way, and by sea shipping.
Express like DHL, FedEx, TNT, UPS, EMS, etc.
Usually, we will arrange the shipping within 7-30 working days after we confirm the contract..

OUR COMPANY

HNHONGXIANG is a highly professional and experienced China synthetic diamond powder and diamond tools manufacturer.

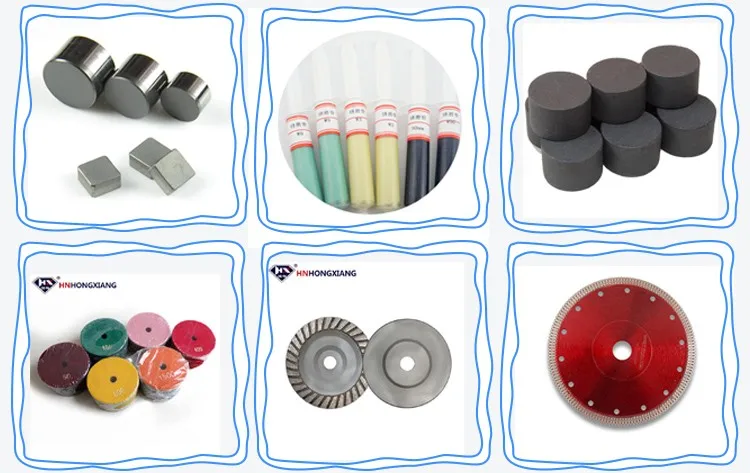

Main products are diamond powder and diamond tools, including synthetic diamond powder, diamond saw blades, diamond drills, diamond wheels, diamond polishing pads and so on
