100KPH High Speed Mid Drive Motor Electric Scooter

  • 1-199 Units
    $1,400.00
  • 200-999 Units
    $1,050.00
  • >=1000 Units
    $950.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
SIA
Model Number:
OEM-V1
Power:
6000W
Voltage:
>60v
Charging Time:
4 hours
Foldable:
No
Range Per Charge:
100km
Tire Size:
120-70-12 & 130-70-12
Item:
100KPH High Speed Mid Drive Motor Electric Scooter
Controller:
EM150S
Motor:
QS3000 Electric Mid Center Motor
Battery(V.Ah):
Lithium battery 72V 40Ah+Basic BMS
Charger:
72V 12A, charging time within 4 hours
Color:
Red, black, or customized
Packing Size:
2040mm X 1220mm x 630mm
Weight:
80kg(without battery)
Speed:
100km/h
Est. Range:
80-100km

Packaging & Delivery

Selling Units:
Single item
Single package size:
204X122X63 cm
Single gross weight:
145.0 kg
Package Type:
Carton and iron stand support
Lead Time :
45
Video Description

100KPH High Speed Mid Drive Motor Electric Scooter



Product Overviews

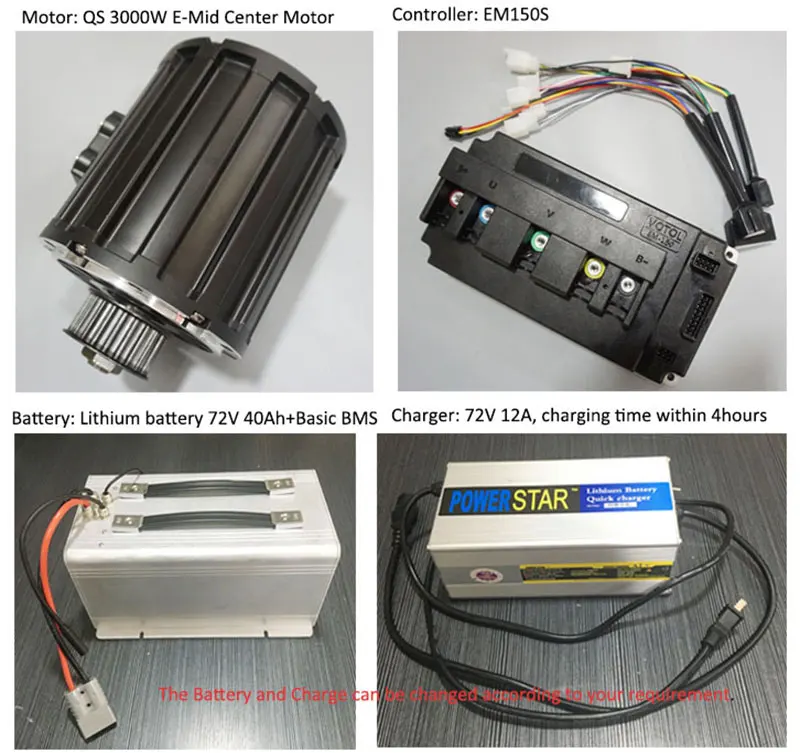

 Specifications:



Item

Configuration

Motor

QS3000 Electric Mid Center Motor

Controller

EM150S

Battery (V.Ah)

Lithium battery 72V 40Ah+Basic BMS

Charger

72V 12A, charging time within 4 hours

Speed

100km/h

Acceleration from 0 to 100km/h

6 seconds

Acceleration from 0 to 100m

5.8 seconds

Est. Range

80km~100km

Climbing angle

26 degree@30km/h

No-load rpm

3800rpm without flux weakening, 6000RPM with flux weakening

Max Torque

 approx 56N.m without Reduction ratio, approx 260N.m with 1:4.7 Reduction ratio

Peak Phase Current

450A

Peak Battery Current

180A (72V)



Pictures show





Configuration:



Configuration







RATED MOTOR POWER (W)

6000W

Peak Power

12000W

Loadage

200kg

Length

1835mm

Width

780mm

Height

1080mm

Axle distance /Wheelbase

1265mm

Front seat height

760mm

Rear seat height

860mm

Inner battery cabin

390mm*265mm*175mm

Wheel size

2.75-12

Front Tyre size

120/70-12

Rear Tyre size

130/70-12

Headlight

LED  3pcs 500lm

Rearview mirror

PP rearview mirror

Shelf

Aluminium alloy with printed surface rear armrest

Front shock absorber

715mm

Rear shock absorber

240mm

Color

Black, Red, White

Weight of e-scooter (without battery)

80kg

weight of battery

35kg

weight of package by steel support

35kg

Package Size (mm)

2040mm X 1220mm x 630mm

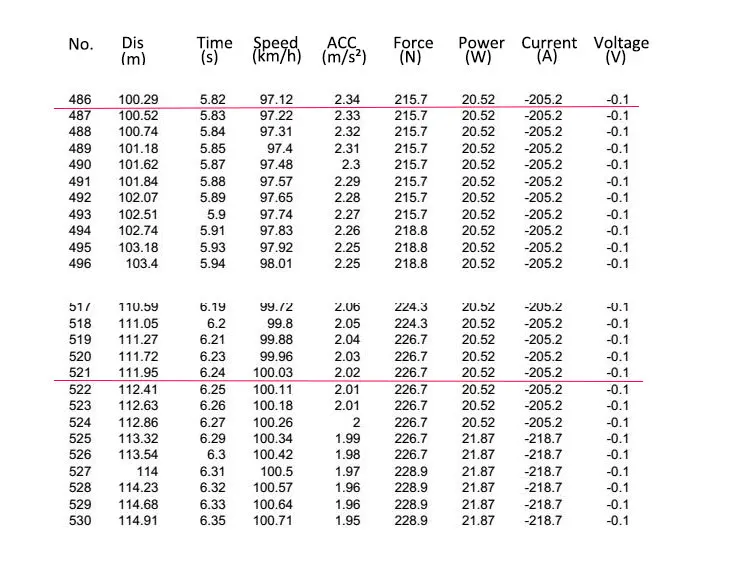

Test Report

  Test Report:

Price and terms

 Prices and terms:

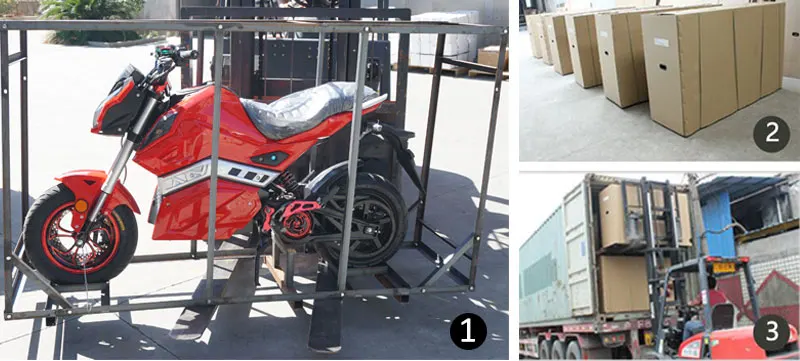

Packing

Packing:  Iron frame + Carton Packaging(2040*1220*630mm)
