100L-5000L beer making system micro brewery beer brewing equipment

FOB Reference Price:Get Latest Price
$7,000.00 - $120,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment, beer brewery
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
METO
Model Number:
100L-5000L
Processing Types:
Alcohol
Voltage:
According to the equipment
Power(W):
According to the equipment
Dimension(L*W*H):
According to the equipment
Weight:
According to the equipment
Certification:
CE ISO
Heated Way:
Electricity or Steam
Thickness:
Inner 3mm external 2mm
Control method:
Temperature and pressure
Material:
Stainless Steel or Red Copper
Insulation materials:
Pu foam insulation
Manhole Type:
Top/Side
jacketed beer fermenter:
single tank,single control
Mashing:
Decoction ,infusion
Title:
100L-5000L beer making system micro brewery beer brewing equipment
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
3 years
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export standard Wooden/Veneer case for LCL
Plastic film wrapped and steel frame fixing for FC
100L-5000L beer making system micro brewery beer brewing equipment
Port
QingDao
Product Description

100L-5000L beer making system micro brewery beer brewing equipment

• 100-5000L micro or commericial used brewery equipment are very popular among craft beer producing.
• Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste.
• Interpreter may be faced with polished brass, copper besides stainless steel.
• The whole set equipment is completely made of sus304. the brewhouse can be made of red copper for special request.
• The brewhouse can be designed as steam heating, electric heating and direct fire heating
according to customers' technological requirement.
• The glycol jacket of fermentation tanks adopts dimple jacket.
• The jackets are provided at tank body and conical bottom to effectively increase the cooling speed.
• And its heat exchanging area of jacket of different proportions can be allocated according to customers.

Brewhouse material: SUS304 stainless steel, half red copper, red copper can be choose as your like

SUS304 stainless steel

Inner thickness:3.0mm

Exteior thickness:2.0mm

Sanitary material

Half red copper

Take the advantage of SUS304 stainless steel and red copper

make it special

red copper

Inner thickness:3.0mm

Exteior thickness:1.5mm

Glorious appearance

500L Beer Brewing System(for reference)
Milling System
Components
Capacity
Specification
Grinding System
Miller
200KG/H
Double Roller,Noise<40db
Brewing System
Components
Capacity
Specification


Brewhouse System
Mash/Lauter tun
500L
Mashing Process:Decoction.Infusion.Multi-step infusion
Brew Kettle/Whirlpool Tank
500L
Heating sources: steam, electric, direct fire
Hot WaterTank
400L
Matereial: SUS304 stainless steel/ red copper
Heat exchanger
5SQM
Stainless steel plate


Fermentation System


Fermentation Tank


500L/1000L
Top manway/Side manway
Drying hop port to brew IPA
Dimple Plate Cooling jacket
Carbonation port to fill CO2
Yeast Adding Tank
5L
SUS304 Stainless Steel

Cooling System
Glycol Water tank
1500l
Equiped with PU level indicator
Chiller
5HP
UL/CE certified electric elements,Copeland compressor
Pump
3T

Cleaning System
Disinfection Tank
50L

SUS304 full welded
Alkali Tank
50L
Pump
3T
Control System
Control Cabinet
Manual PLC/HMI
Manual/Semi-automatic/Automatic




Optional
Auger System
Grain Case
Grist Hydrator
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller
Customized

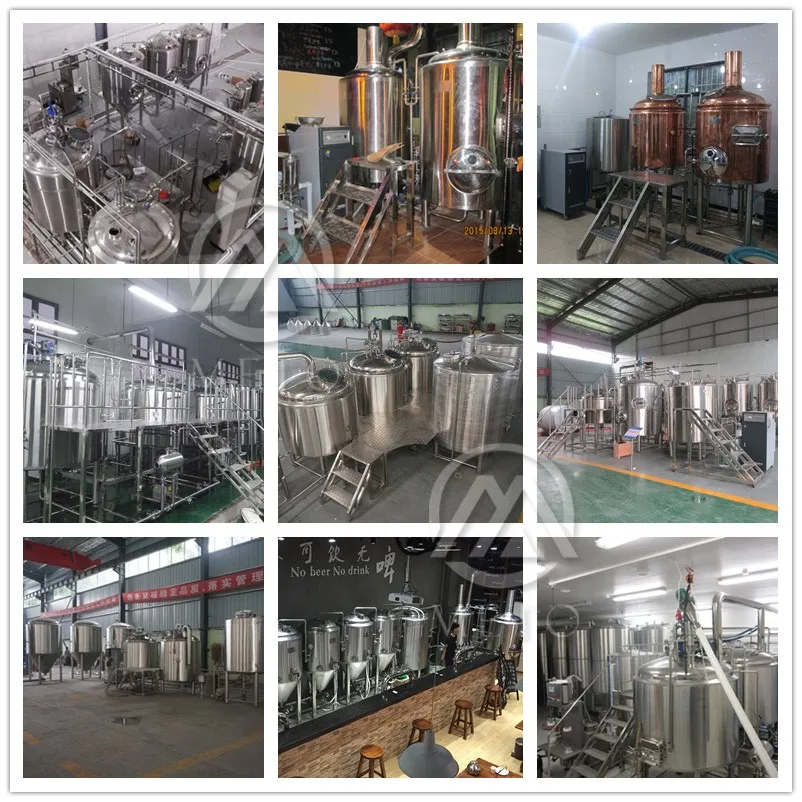

Part of Our Projects

Meto Brewery Equipment Technical Parameter:

 Tip: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter

Output/Brew
200L
300L
500L
600L
800L
1000L
Brew/Week
2~6
2~6
2~6
2~6
2~6
2~6
Output/Week
400~1200L
600~1800L
1000~3000L
1200~3600L
1600~4800L
2000~6000L
Electric Supply
3phase/380(220, 415,440…)v/50 (60)Hz
Single Phase/ 220(110, 240…)v/50(60)Hz
Heating Source
Electric/Steam
Area Request
>25M2
>30M2
>45M2
>50M2
>60M2
>70M2
Brew master
1
1
1
1
1
1
Details

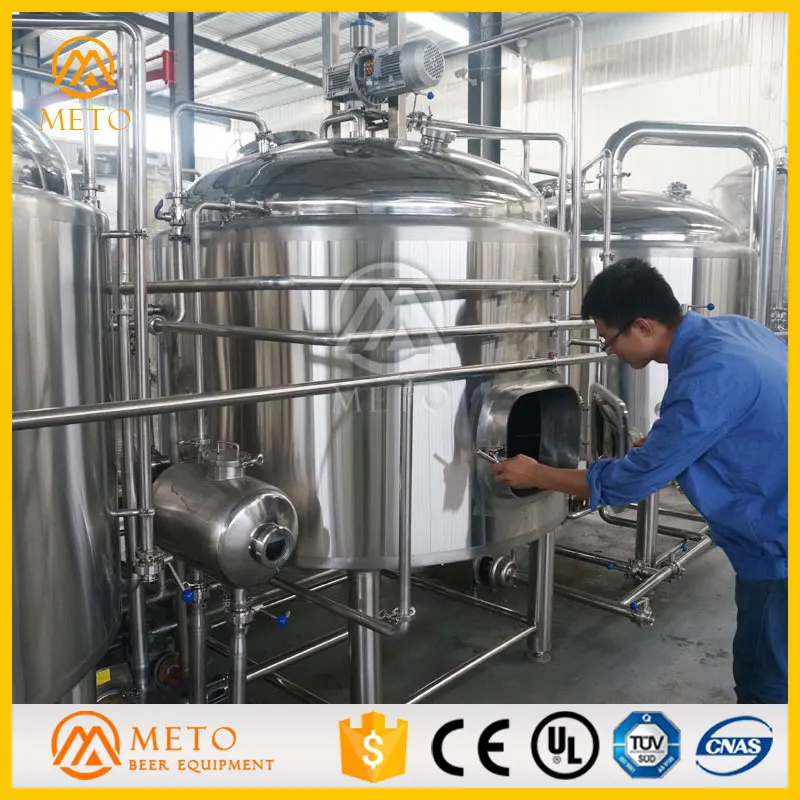

brewhouse inside

Sieve plate and rake knife


fermentation tank

 With cooling jacket: Dimpled plate on cone and side,thickness:1.5mm


Accessories

High quality and sanitary beer brewery equipment accessories. Detail is also important.

Different combinations for the brewhouse

Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun, hot water tank in various combinationes.

Fermenters with different manway

Side manway fermenter is expensive than top manway fermenter, but easy to operate and with better appearance.

Brewery Process
Our Service

1.Free consultation service before, during, and after sales;

2.Turnkey brewery projects plan and design services;
3.Layout plan in 3D or CAD drawings of your brewery;
4.Management of long distance shipping from seller's factory to named port or station by buyer;
5.Professional engineers going abroad for the installation,debugging,repairing,and training;
6.Provide three years complete warrantee for main parts and life-time maintenance service;The seller is responsible for the nature damage of the machinery in the warranty period except for man made damage All spare parts and wearing parts are attached with the machinery for free;
7.Brewing technology,brewing formula,can be offered available

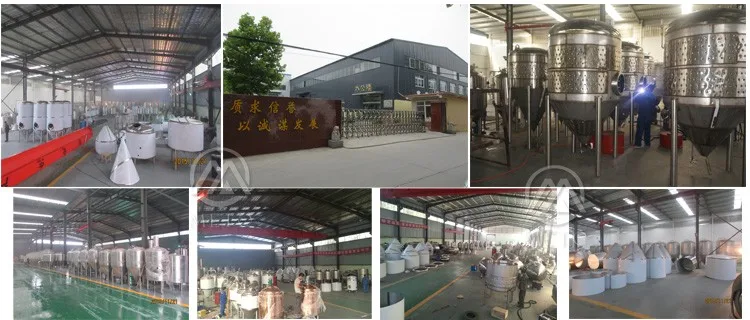

Company Information

METO are professional manufacturer in producing beer brewing equipment. We are specialized in professional design, manufacture, installation, commissioning of various beer equipments and supporting facilities. With advanced technology, good quality and after-sale service, our products have been highly praised by our customers from many countries.
