100L Home brewery for craft beer with professional functions

FOB Reference Price:Get Latest Price
$9,700.00 - $16,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
PB502M
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Maidilong
Processing Types:
Alcohol
Voltage:
380V or 220V or customized
Power(W):
7.2KW
Dimension(L*W*H):
4000*1000*2100mm
Weight:
425kgs
Certification:
ISO; CE; SGS; CSA
Warranty:
2 Years
After-sales Service Provided:
Free spare parts
Application:
Home Brewing
Function:
Brewing Beer Brewing Equipment
Product Name:
100L stainless steel home brewery
Brewing Volume Range:
50L-100L
Volume Design:
50L
Users:
Home brewer
Commercial occation:
Brew pubs
Exterior Thickness:
2mm
Heating Method:
Electricity
Control system:
PLC or manual
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. FCL: fixed by steel bracket with PE foam, plastic wrap.
2. LCL: packed in wooden case, plastic wrap.
3. Customized package is also available.
Port
Ningbo or Shanghai

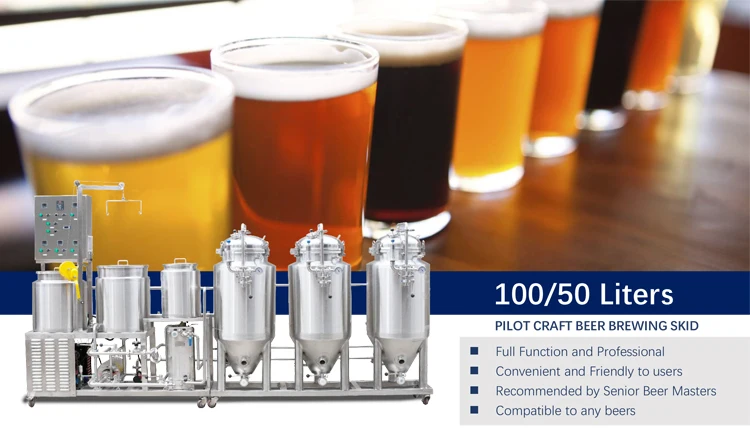

Professional System
Brew Your Idea
What Is This

This skid is designed for pilot and small quantity craft beer brewing.

It is integrated with complete professional functions of mashing, wort lautering, wort boiling, whirlpool, temperature control, pressure control, process control, fermentation.

Main parts are of food grade stainless steel 304 conform to ASTM standard. With this skid, the user can make various kinds of craft beers.

General technical requirements

- Using 304 stainless steel material conform to ASTM standard.
- Medium contact surface to be sanitary polished at Ra≤4μm and passivated.
- Construction with TIG welding.
- All pipe lines and vessels should pass tightness and pressure test before delivery.
- Nozzles, inlets, outlets and connections should be sealed before delivery.
- All medium connections are Tri Clamps.

- Electrical components are from CCC certified and/or CE, CSA certified manufacturers.

Functions

Wort Production

This system uses a 4 in 1 wort kettle to finish the whole wort production process. Inside it, there is a Temperature Probe, a Heating Element, a Filter Barrel with axis and cover.

It has inlet/Outlet at the center bottom and tangent inlet/outlet at the wall.
- Temperature Probe transfers the signal to control cabinet for precise temperature management.
- The Heating Element is applied for mashing and boiling heating.
- The Filter Barrel separates the grain and wort, also easy to wash grain when it is raised up by the lifter. Also, it is fixed by an axis stably.
- Water and wort can be circulated via the inlets and outlets, it not only enables whirlpool sediment but also can make mashing sufficiently.
- A specially designed lifter is applied for lifting the grain for washing and barrel cleaning.
- The pump can do all the works including hot water pumping, water and wort circulation, wort whirlpool and sediment, wort transmission to fermenters, fermenter washing and cleaning.

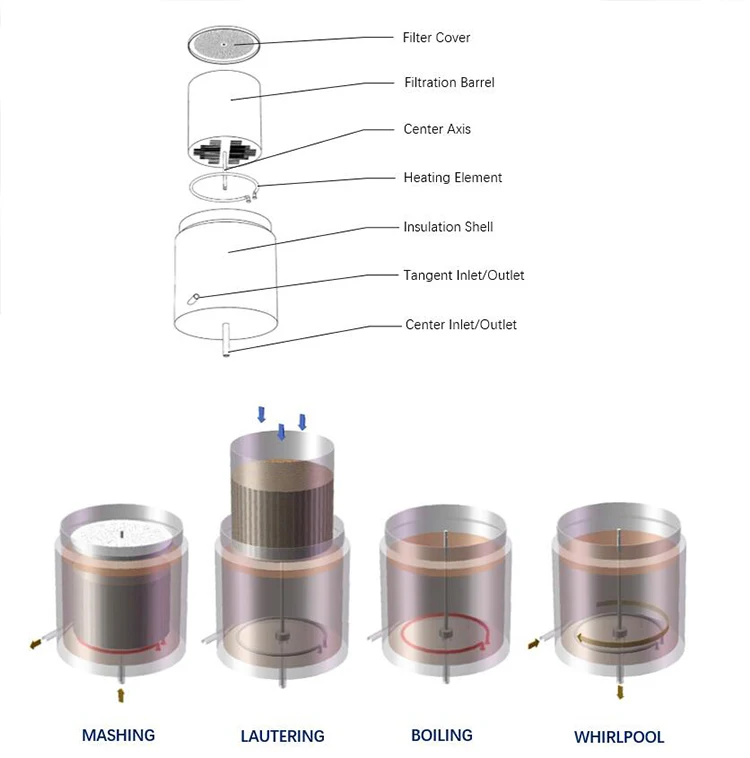

The following shoots illustrates the principle of the mashing functions

Mashing Step
Lauter and Sparging
Boiling
Whirlpool and Sediment
Fill the malt into the filter barrel and fix the filter cover. While heating the wort, circulate the wort with the pump. The wort is pumped out from tangent outlet and jet via center inlet. In this case the mashing is more efficient.
Rise up the filter barrel with the lifter, the wort will drop down via sieve. Then add hot water to sparge, the barrel can be removed after Lauter operation.
Cover the tun cap and start to boil wort, this can be operated on control panel.
Circulate the wort with the pump, the wort is pumped out from center outlet and jet via tangent inlet, a whirlpool will be produced.

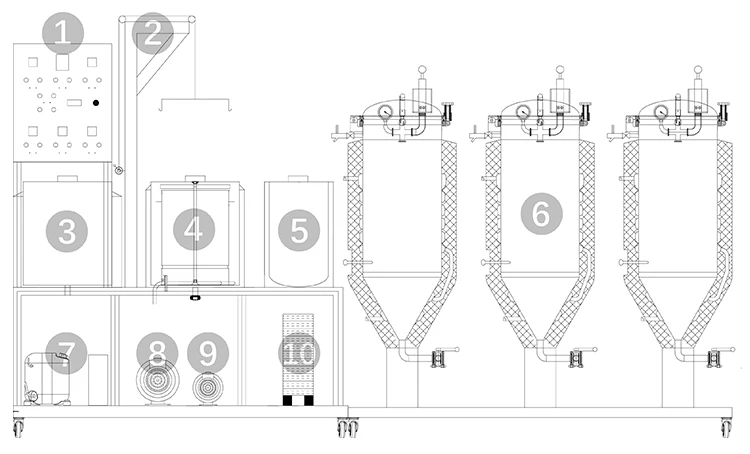

Main Parts
1.
Control Panel
All temperature control, pump & valve control.
6.
Fermentation Vessel
Jacket Chilling and PU foam insulated.
2.
Rotational Lifter
7.
Chiller
Tecumseh brand compressor.
3.
Glycol Tank
Inside coil cooling, PU foam insulated.
8.
Wort Pump
Multi-Function for wort and water.
4.
4 in 1 Wort Kettle
Glass Wool insulated
9.
Glycol Pump
5.
Hot Water Tank
Inside heating Element, PU foam insulated
10.
Plate Heat Exchanger
Two Stages
Main Models
Model
PB501M
PB501SE
PB502M
PB502SE
PB1001M
PB1001SE
Wort Kettle
50L
50L
50L
50L
100L
100L
Glycol Tank
50L
50L
50L
50L
120L
120L
Hot Water Tank
50L
50L
50L
50L
75L
75L
Fermentation Vessel
50L*3
50L*3
100L*3
100L*3
100L*3
100L*3
Control
Manual
Semi-auto
Manual
Semi-auto
Manual
Semi-auto
Plate Heat Exchanger
2 Square Meters with 2 stages.
Real Details

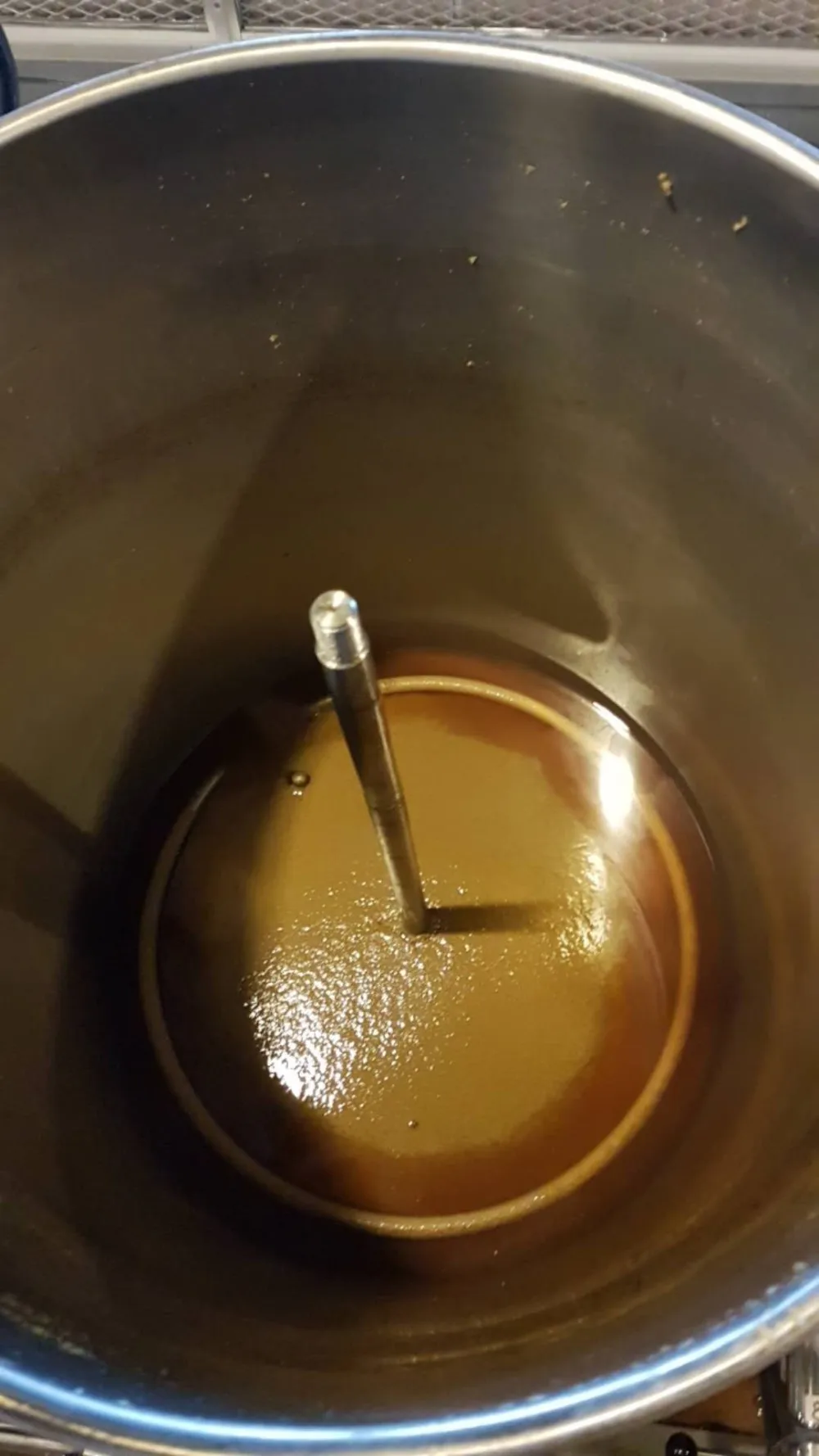

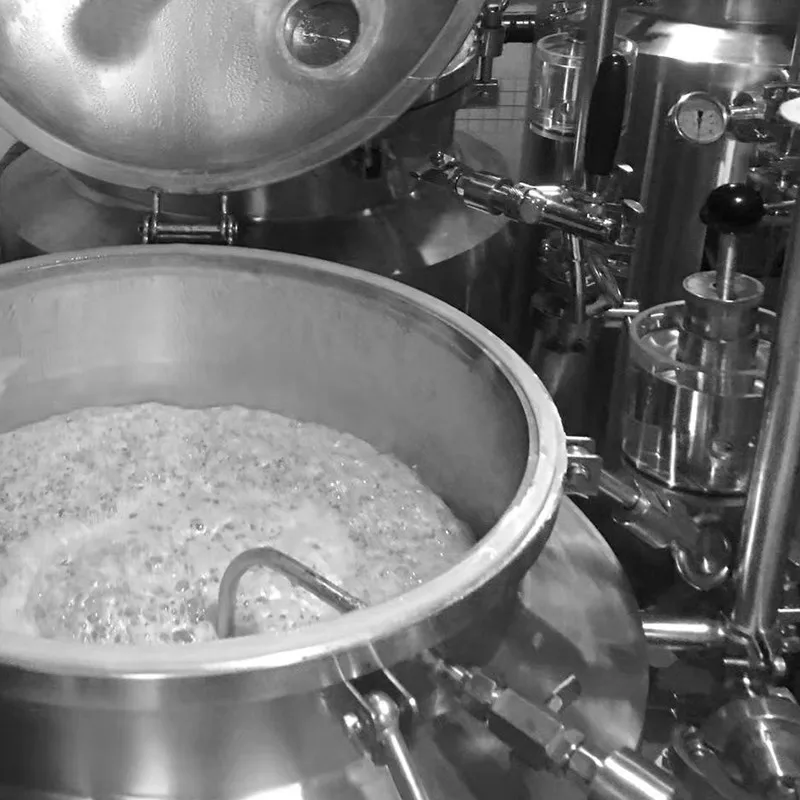

Mash Tun

Lauter barrel with faulse bottom

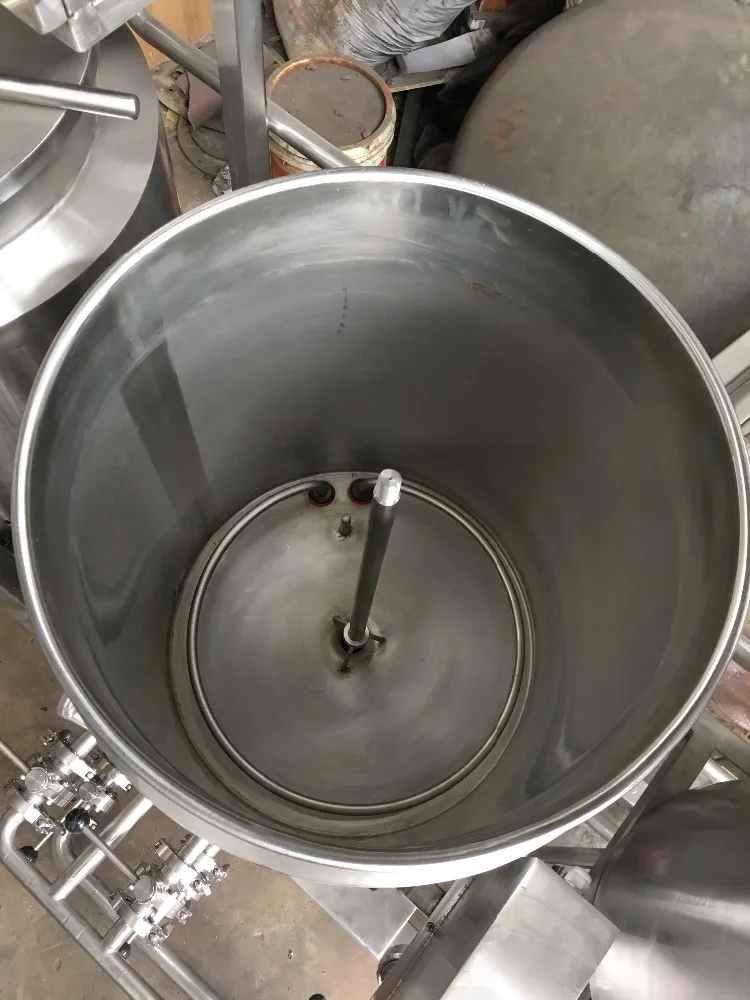

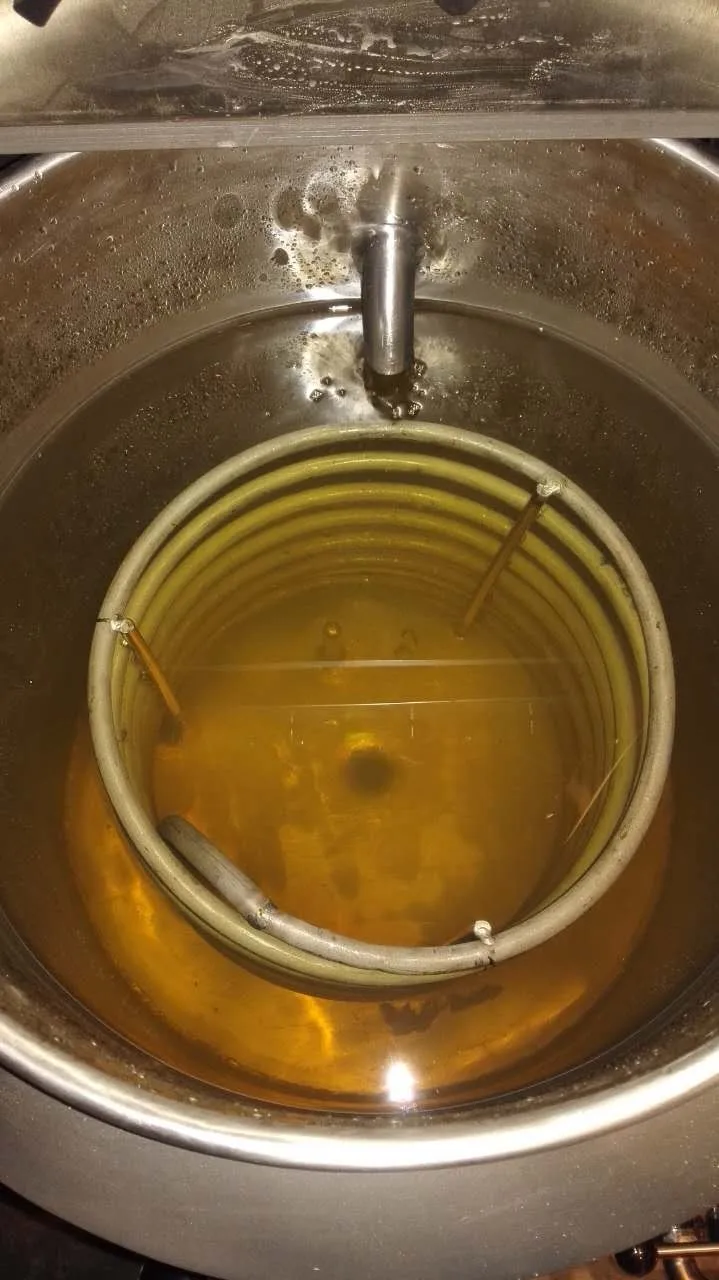

Kettle inside

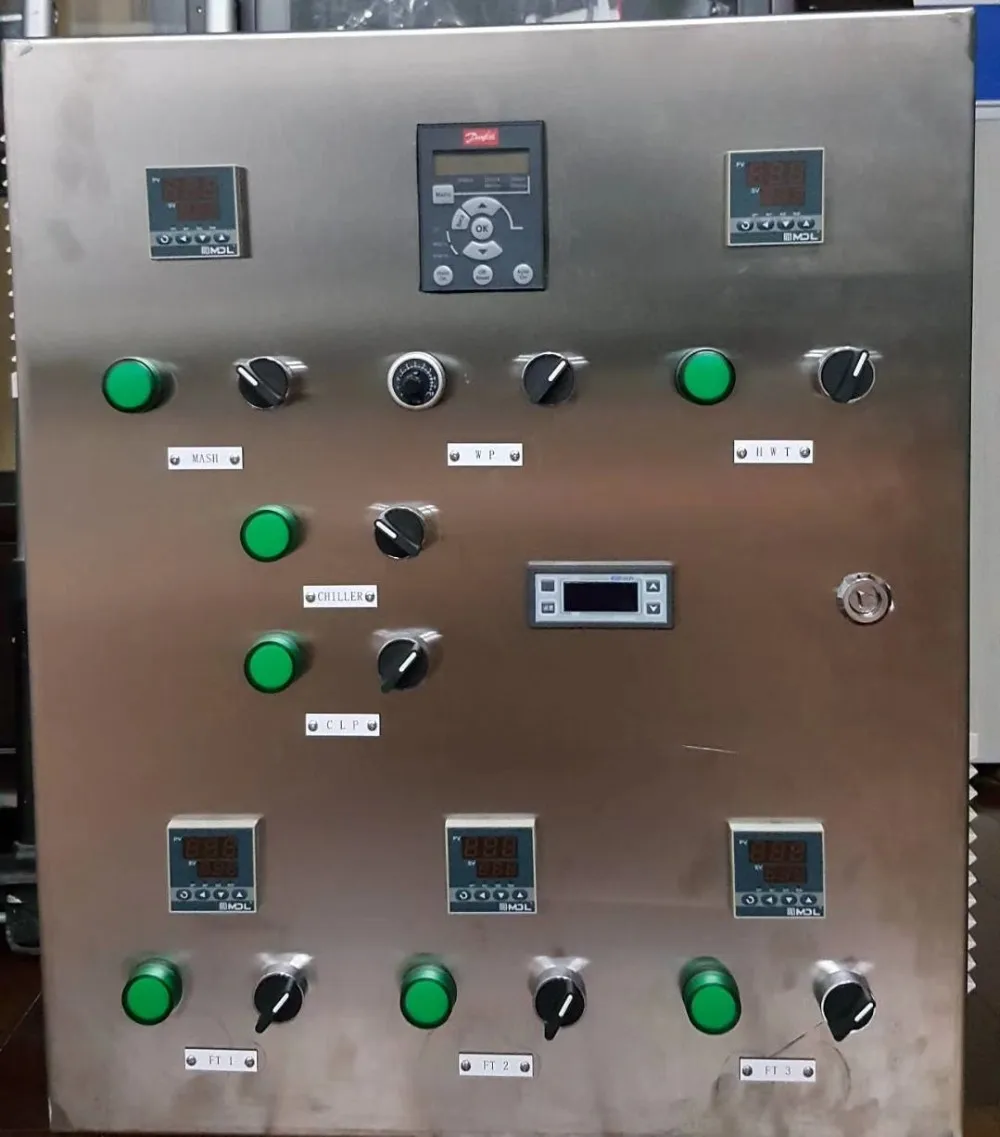

Control panel

Operation valves

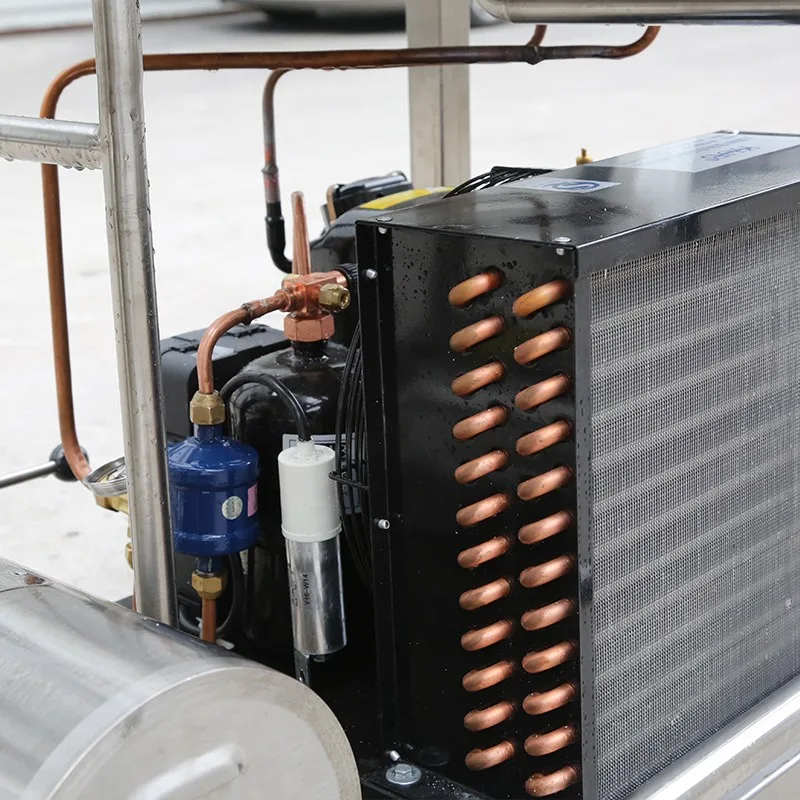

Top quality Chiller

Wort pump & Glycol Pump

Glycol tank inside

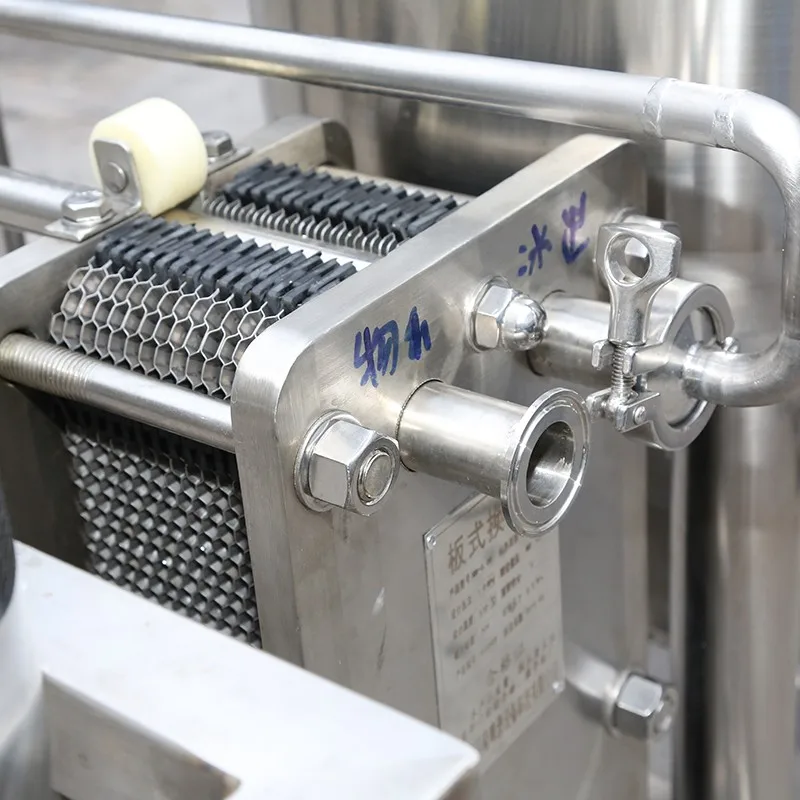

Two stages plate heat exchanger

Fermentation vessel - Pressure regulator, CO2 inlet, CIP pipe in one.

Fermentation Vessel - Sampling valve/Beer tap

Fermentation Vessel - Hopping hole.

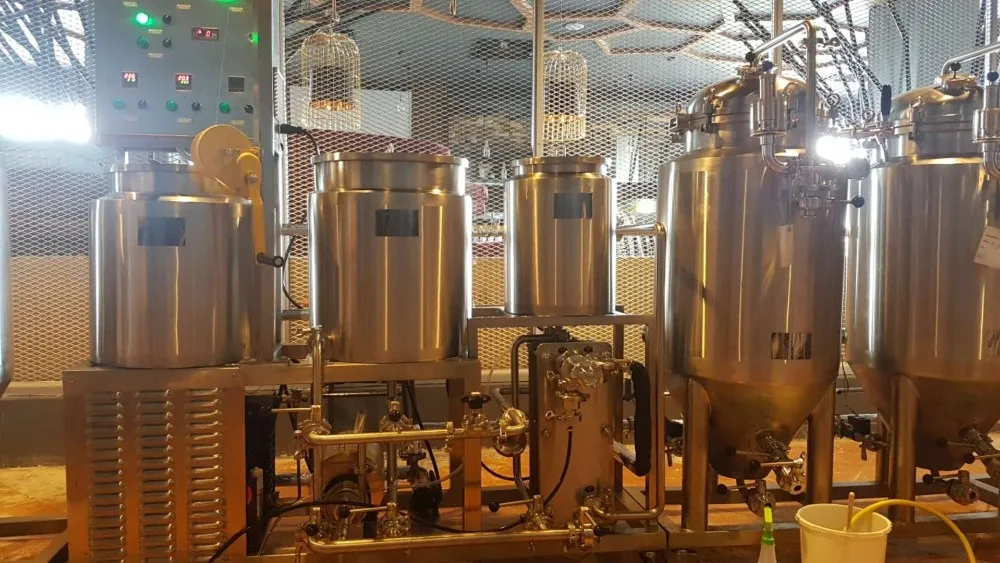

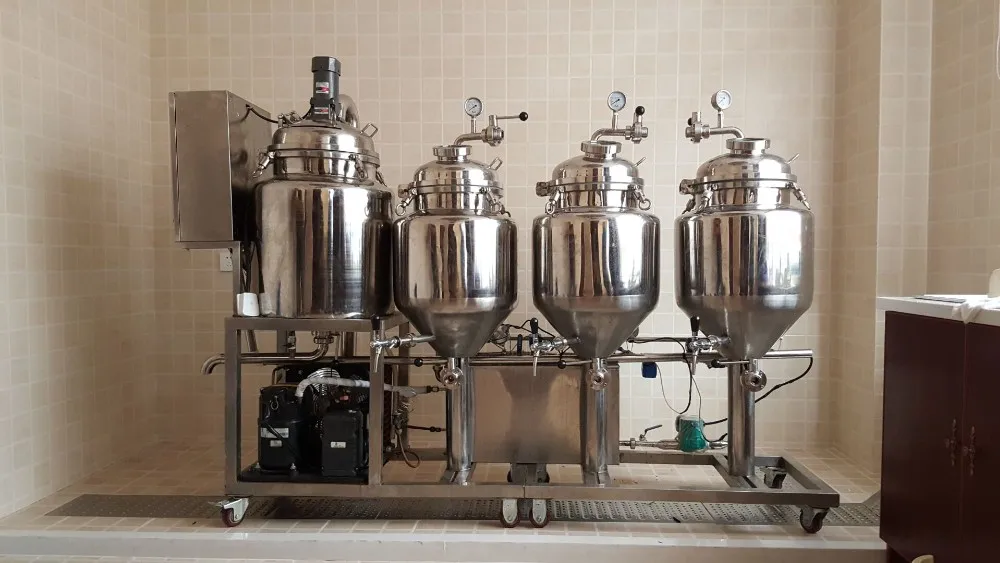

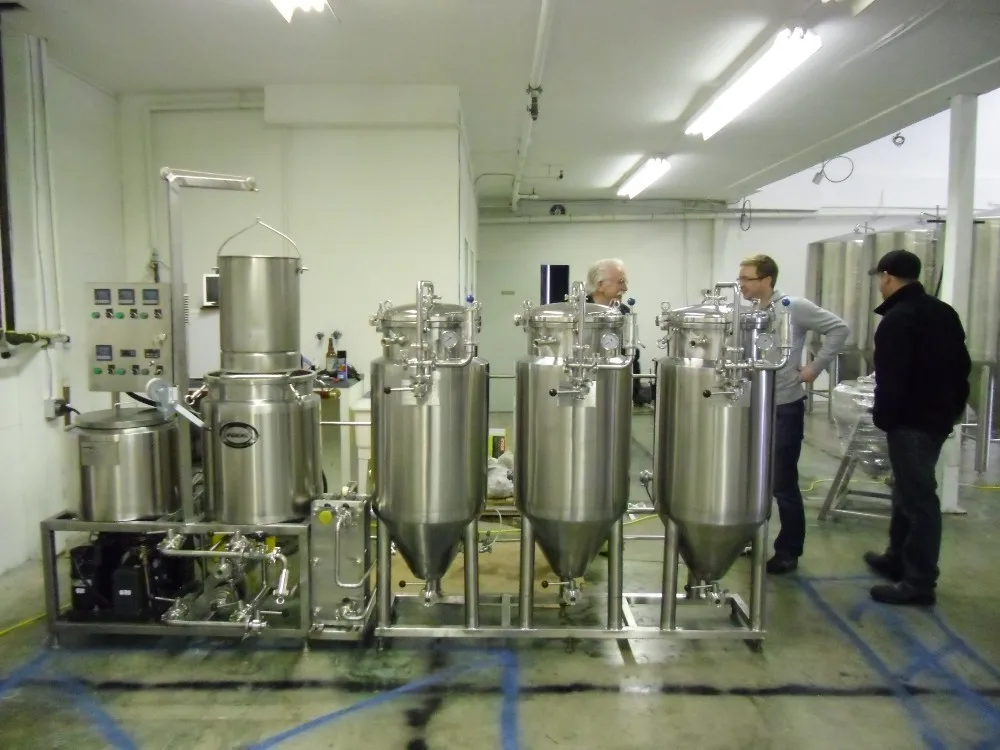

Photos From Users
