Field installation, commissioning and training, Engineers available to service machinery overseas
Stainless Steel 304
electric herms beer brewing system
Thickness of tank:
3mm for inner and 2mm for outer shell
turnkey or customized
Semi-automatic PLC siemens controller or Manual button control Panel
with all the valves and pumps
beer brewing equipment
10 Set/Sets per Month
Packaging & Delivery
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all equipments will be well fixed to the containers.
1 - 1
To be negotiated
• Mash/Lauter Tun with grist hydrator • Kettle/Whirlpool Tank with heating jacketed • Grant Tank • Stainless steel Platform • Plate Heat Exchanger • Sanitary Wort Pump x2; • Wort Oxygenator; • Semi-Auto Control Panel; • Interior surface to finish pickled and passivated • Exterior surface to brushed, #4 finish Or •Interior surface to polished to RA≤0.22μm •Exterior surface adapts satin polish. Method of Heating Ways: • Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer; • Electric: Use electric heaters in jacket to heat the medium in the jacket • Gas fired: Use gas burner at bottom to heat tank directly;
SPECIFICATIONS FOR A COMPLETE SET BEER BREWING EQUIPMENT
Grain Milling Unit
Grain rake with VFD Laser cutting V-wire False Bottom Easy clean and detachable sparging spray ring Multihole wort collect ring Anti-rinser
Steam Jacket heating on wall
Boil kettel/whirlpool tun
Steam Jacket on bottom Steam vent with condensate ring for kettle stack
Hot liquor tank
Steam Jacket heating
Glycol cooling jacket on cone and bottom Side or top manway CIP arm and CO2 blow off arm Germany import Kieselmann Mechanical relief valve Shockproof pressure gauge Rotating racking arm Dry hopping port Carbonation stone Sample valve and butterfly valves and so on.
Bright beer tank
Bright beer tank
Glycol cooling jacket on cone and bottom Side or top manway CIP arm and CO2 blow off arm Germany import Kieselmann Mechanical relief valve Shockproof pressure gauge Rotating racking arm Dry hopping port Carbonation stone Sight level
Sample valve and butterfly valve and so on.
Glycol Chilling Unit
Glycol Water Tank
Insulated conical top and sloped bottom
Cold Water Tank
Dimple plate on side wall
Brewing and fermetation process Controlling
Manual button control panel or PLC control with touch screen for special
Sterilization Tank Transfer&Control
electric heating element inside for Caustic tank
Hot Sale Products
300L/3BBL beer brewhouse
98.2% Response Rate
500L/5bbl brewery equipment
99.6% Response Rate
15bbl conical fermentor
89.0% Response Rate
2000L beer fermenter
91.8% Response Rate
1000L brewery equipment
93.1% Response Rate
2500L brewhouse equipment
86.9% Response Rate
Name: Malt milling system Brand: NFE Original: China Malt System: MILL MACHINE, FLEX AUGER, GRAIN BIN, GRIST HOPPER Mill Machine: 80-150kg/h, 300-500kg/h, 500-800kg/h, 800-1000kg/h Flex Auger: PPR material pipe, stainless steel auger, motor Grist Hopper, Grain bin

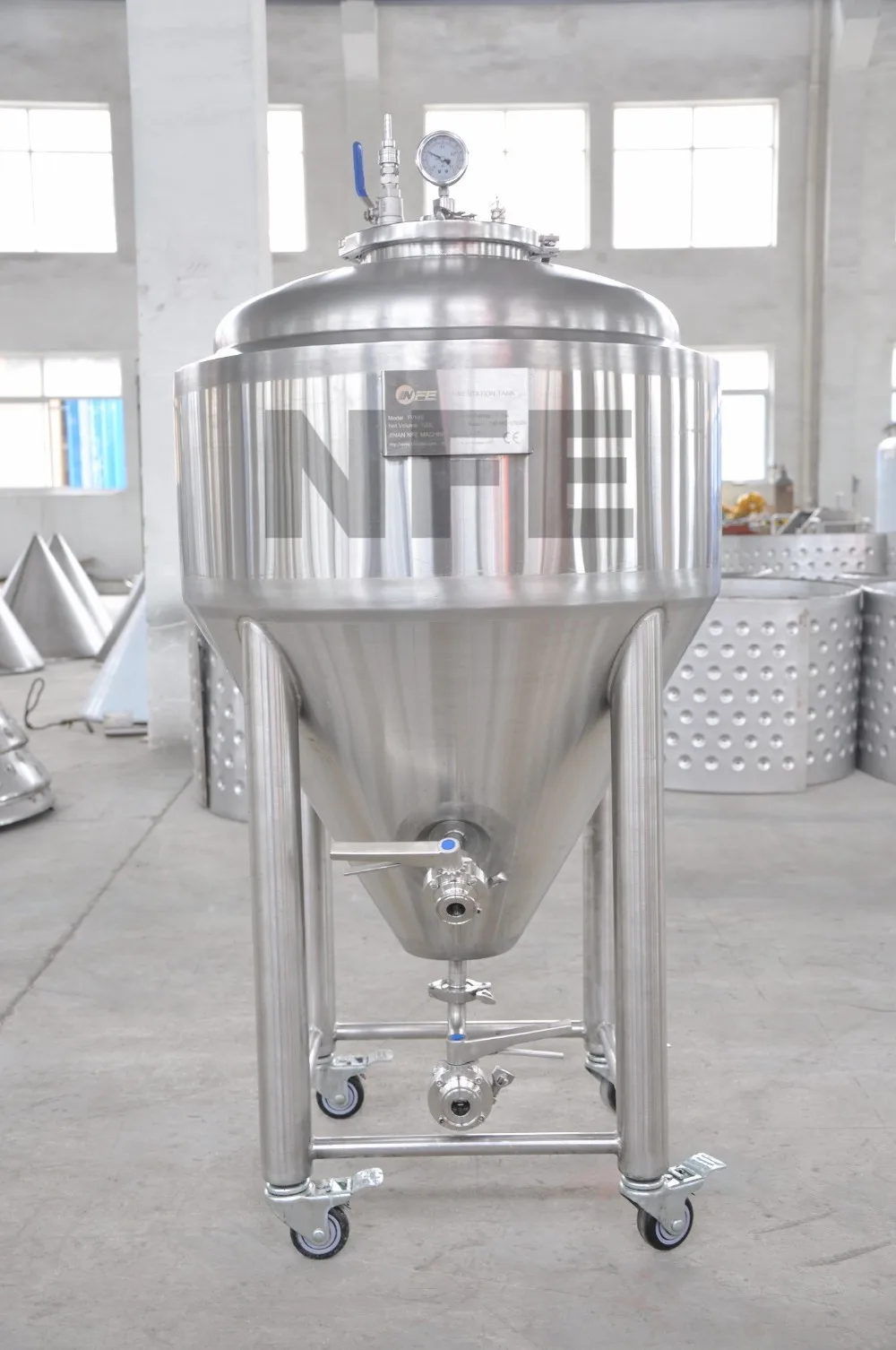

Name: Fermentation tank Brand: NFE Original: China
Fermentation tank : 100L-200HL
Main specification: 1. Stainless steel 304, side man way or top manway;
2. PU insulation, insulation thickness: 80-100mm; 3. Inside wall thickness: 3mm, outer shell thickness: 2mm; 4. CIP Rotary Spray Ball; 5. Relief valve, mechanical pressure regulating valve, sample valve, butterfly valves; 6. PT100 temperature sensor, with temperature controller; 7. 2 sections dimple plate cooling jacket( 1 on wall and 1 on cone); 8. Complete with associated valves and fittings;

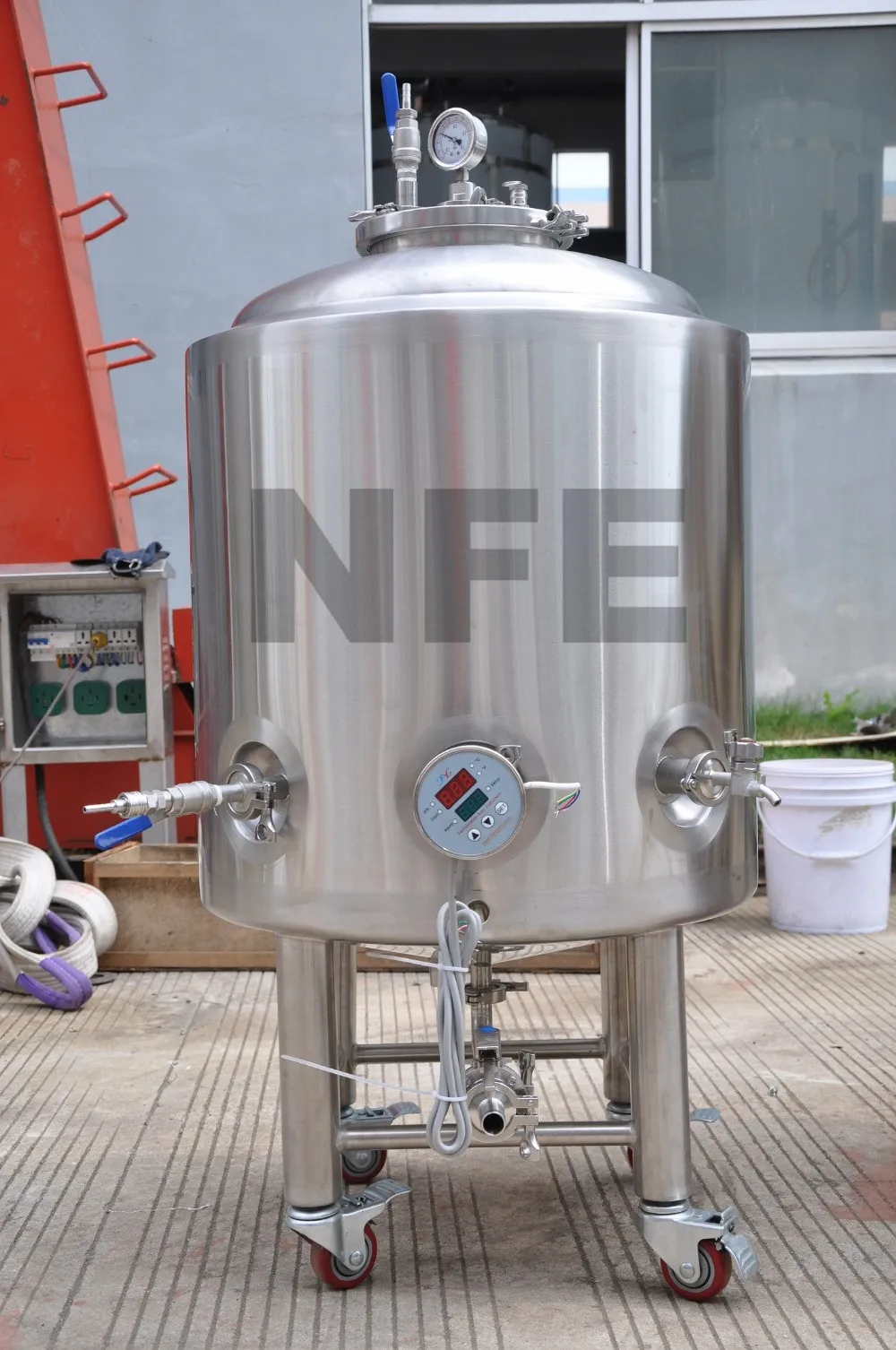

Name: Bright beer tank Brand: NFE Original:China
Bright beer tank : 100L-200HL
1. Sanitary Stainless steel 304, dome top head and dome bottom; 2. Surface brushed, welding line polish sanding light belt; 3. Polyurethane insulation, thickness: 80-100mm; Dimple plate cooling jacket
4. Inner body thickness 3mm, cladding thickness 2mm; 5. With rotary CIP spray balls and arm; 6. PT100temperature sensor; 7. Sample valve in the cylinder; 8. Carbonation stone; 9. Complete with associated valves and fittings.
Name: Glycol chiller
1. Wind cooling, 2. Environment friendly Freon R404A, 3. There is one smaller tank and one pump inside of chiller;
Name: CIP system
1. Sterilization tank;
2. Alkali liquor tank;
3. Sterilize vehicle;
4. CIP pump;
5. Pipes and valves;
6. Control box.

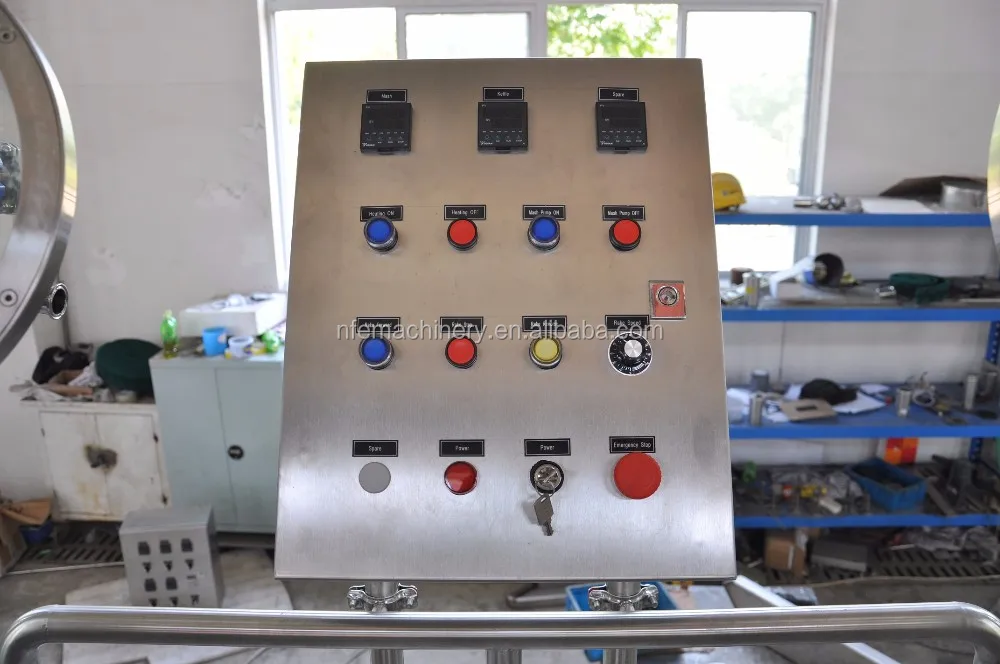

Name: Control system
Control system: manual button control or PLC control;
According to customer's requirement.
Packing & Delivery
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame 2. All accessories and spare parts will be packaged with seperated box. 3. After loaded into containers, all equipments will be well fixed to the containers.
We provide turnkey system, onsite installation service for brewery projects. We are preparing to supply technology service at any time, will offer equipment handbook, electrical appliance drawing and machinery drawing to customers with the equipment.
Welcome every customer interested in our products to visit our factory and discuss the related product details. Our bar has already prepared beer for you.
2016.10-- -2016 CBC Shanghai
2017.04----2017 CBC BrewExpo in Washtington DC, USA
2017.09----2017 Drinktec in Munich, German
100% Pressure & leak testing of all tanks, jackets, and hardpiping.
All eletronics and brewhouses pre-assembled and tested before shipping.
NFE Machinery Co., Ltd is one of the leading manufacturers of beer brewing equipment, beer packaging machine, stainless steel vessels in China. NFE brewing equipment is confidant to keep pace with fast changing of international brewing market. Beer brewing equipment includes brewhouse equipment, fermentation equipment, yeast propagation equipment and cooling equipment etc. Beer packaging line includes beer bottling line, beer canning line and beer kegs washer and fillers.
