10KVA High Frequency Online UPS Standard Backup

Feedback Ratings
US $458.00 / Unit | 20 Units (Min. Order)
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
24 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JEIDAR or OEM
Model Number:
BH100S-X
Phase:
Single Phase
Protection:
Overvoltage
Weight:
64KGS
Output Voltage:
200/208/220/230/240VAC
Type:
On-line
Application:
Instrumentation
Series:
BH-X Series
Transfer Time:
0ms
Wave Form:
Pure Sine Wave
UPS Structure:
Transformerless
Standards:
CE
Certification:
CE, TLC, Energy Saving Certification
Capacity:
10KVA/8KW
Battery Type:
Lead-acid Maintenance-free Battery

Packaging & Delivery

Selling Units:
Single item
Single package size:
68X38X75 cm
Single gross weight:
65.0 kg
Package Type:
Carton packing
Lead Time :
24



Product Description

1. High Performance Index

  • Latest HF switching power supply rectifier and PFC Technology. Input Power Factor 0.99, THDI≤3.5%
  • Wide Input Range from 160~300Vac on full load (100% Load, If Load is below 50%, it can be reached even equal or lower than 115Vac) On 3 Phase Model Input range is from 304 ~ 478 Vac.
  • Latest IGBT technology to achieve high overall efficiency up to 90%. Compatible with 220/230/240V and 50/60 Hz Grid Supply Systems.
  • Powerful overload ability with output short circuit protection technology: 1-3 KVA: 120% overloads for 1 minute.150% for 60ms transfer to bypass and alarm. 6-10KVA: 105-130% overload for 10 minutes,>130% overload for 60ms.
  • Can be connected with all kinds of generators to save customers costs.
  • Intelligent temperature compensator and low wave charger can extend battery lifetime.
  •  Intelligent temperature compensator and low wave charger can extend battery lifetime.
  • Intuitive dual LCD and LED display panels, which comprehensively and intuitively reflect the state of power
    system statuses, parameters, and other information. Users can modify and operate based on individual needs
    on these friendly displays.
  • 19’’ inch Rack Mount/Tower structure design. It can be compatible with standard communication cabinet to greatly save data room spaces.

2. Safe and Reliable

  • BH Series adapts UPS new controlling software technology to control UPS all processes to increase system reliability.
  • BH Series adapts sensitive peak current protection circuit to protect the system from damages due to short-circuit, cold load impacts.
  • 90% of system components are from international famous brands. Systems will fully tested for 24 hours before leaving the factory.



3. Various Optional Accessories



BH Series can use SNMP Network Adapter, RS485/Dry Contact, USB port, and EPO function to build up a remote control and monitoring system.



Product Pictures
6-10KS 01_.png

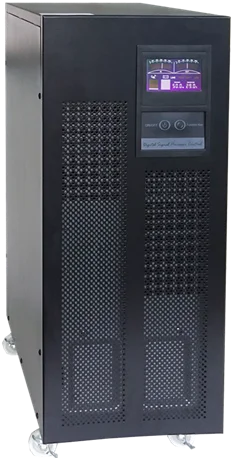

Overall View
6-10KL 01_.png

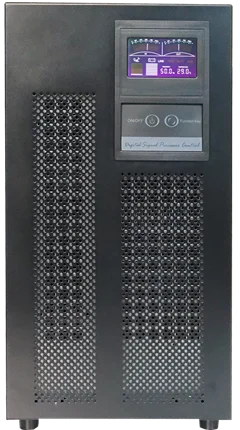

Front Panel View
Rear Panel View (Output Sockets can be changed)
Specifications

Product Model

BH100S-X

Capacity

10KVA/8KW(9KW optional)

Host Machine Specification

Parallel Redundancy

Available

Protections

Overload, Short-Circuit, Over Temp., Utility Power Voltage High/low, BAT Voltage High/low

Display

LCD/LED: UPS Status, INV Status, Bypass Status, BAT Status, BAT %, Load %, Fault Messages

Safety Standard

GB/T14715&EN62040-1

EMC standardEN 50091-1/2 & EN62040-2
Humidity
Storage Temperature-15 ~60℃ (Without BATs)
Working Temperature0-40℃
Noise(In 2 meters)< 50dB
Overall Efficiency (AC-AC )> 90%
AppearanceTower type
Manual Maintenance BypassOptional
AlarmAuto
MuteAuto

Rectifier Specification

Nominal Input Voltage

220Vac

Input Voltage Range

175-280Vac

Input Frequency Range

50 Hz±5%(45-65Hz) Auto Tracking

THDI

< 5%

Input PF

0.99

Output Specification

Output Voltage

220Vac

Output Power Factor

0.8/0.9 optional

Output Voltage Regulation

220Vac±1%(Static Load),220Vac±2%(50-0% Sudden Change),220Vac±3%(100-0% Sudden Change)

Output Freq.(Online Mode)

When 46Hz ≤Input Freq.≤ 54Hz,Input Freq.=Output Freq.;When Input Freq.<46Hz or >54Hz,Locked at 50Hz

Output Freq. (BAT Mode)

50Hz± 0.2%

Output Waveform

Pure Sine Wave

Distortion

<1%(Linear Full Load),<3%(100% Non-Linear Load)

Overload> 120%:More than 1 min
> 150%:300ms transfer to bypass
Crest Ratio3:1
Efficiency> 90%
Short-CircuitCircuit Auto Protection, Output Voltage/Current 0
Output AbnormalINV Output Auto-Locked Protection
Noise SuppressionEMI/RFI Wave filter
BAT LowShutdown Protection
Dynamic Response3% at full load,recovering in 20ms
Auto-RestartAvailable
Software ControlAvailable

Bypass Specification

Static Bypass Transfer Time

0ms

Static Bypass Range

80Vac± 5% ~285Vac±5%

Bypass -> INV Transfer Time2ms

Battery Specification

Battery Voltage

192Vdc

Charging Current

1A

Type

Sealed Lead Acid Maintenance Free

Communication Interface Parameters

Communication Interface

Rs232 (Std.)/SNMP/RS485/ Dry Contact (Optional Accessory)

Physical Parameters

Size mm(W×D×H)



500×240×616

Net Weight Kg

60

 Note:"S" stands for standard type (Battery Built-In), “L”stands for long run type, "RM" stands for Rack-Mount



Company Information



l         Established in 1993, Jeidar has been specialized in the research, manufacture, sales and services of UPS productions for more than 20 years.

l         Jeidar has been honored as national and Shenzhen High-tech enterprise recognized by Chinese Government.

l         Customers from various industries including finance, tax, securities, insurance, postal services, telecommunications, transportation, public security, electricity, education, military and other large users with trust and praise.


l         Jeidar UPS believes in advanced technology, high reliability and high availability, quality, cost-effective and outstanding service.

l         Strong and Innovative R&D Department to handle different types of UPS Projects. We are not just selling UPS; We are power supply solution provider.

l         Fast response service team. We are always ready to serve you.

l         Experienced Overseas Sales Department. Our team members are coming from all around the world (United Kingdom, United States) with high educational background (Masters, Cornell University, University of Southern California, etc.)

Customer Service.jpg

"Your Satisfaction, Our Motivation" is Jeidar commitment to all our customers. Customers can follow our official website and other social media platforms for technical supports, power solutions, and other related consulting with our Jeidar Power Specialists:

l         Comprehensive Project requirements and specification consulting

l         Installation Instructions

l         Technical Supports

l         Roadmap for specific customizations

Certifications

ISO90012008 2013.1-2015.2.jpg



TUV Certification


National High-Tech Enterprise Certification

 RP DT380V 10-60KVA).jpg

TLC Certification

Packaging & Shipping

Packaging: Standard Safety Export Wooden Transportation Package.
Delivery Date: 3 Weeks After Payment (Deposit) has been received deposit. Delivery Date will be varied according to actual order quantity and customizations.


Product Labels


Package Top View

BH20.30S.L BH20.30L(110V).JPG

Exteranal Packaging View


Carrier Delivery View
