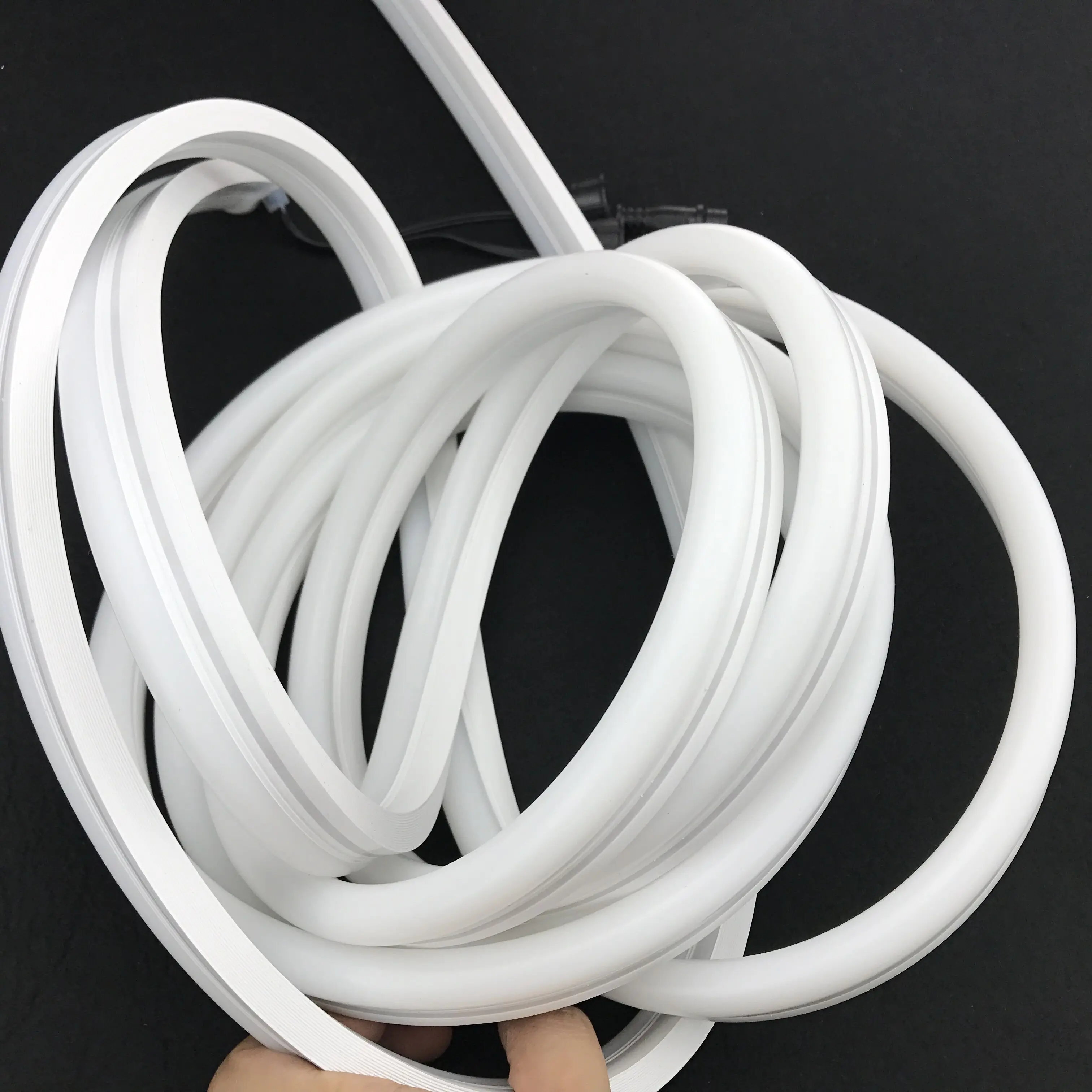

10mm*23mmm size,5m long/ 60pixels/m/ DC12V WS2815 addressable pixel rgb neon strip light;IP65;0.2m xConnect pigtails

$45.00 / Meter | 5 Meters (1 lot) (Min. Order)
1 batch = 5 Meters
Wattage:
Other
Emitting Color:
Changeable
Type:
Flex LED Strips
$45.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
RITA
Model Number:
RA-NEON-WS2815-60-IP67-DC12V-1023
Application:
HOTEL
Light Source:
LED
Certification:
CE, RoHS
Lamp Power:
72W
CRI (Ra>):
90
Input Voltage(V):
DC12V
Lamp Luminous Flux(lm):
22
Warranty(Year):
3-YEAR
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 60
Support Dimmer:
Yes

Packaging & Delivery

Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
1.8 kg
Package Type:
PVC plastic bag and carton
Picture Example:
package-img
Lead Time :
Quantity(Meters) 1 - 15000 >15000
Est. Time(days) 7 To be negotiated

We put our below pixel strip into the frosted silicon neon tube:



https://www.aliexpress.com/store/product/WS2815-DC12V-addressable-full-color-RGB-5050-LED-strip-60leds-m-5m-non-waterproof-IP33-WHITE/701799_32894488333.html?spm=2114.12010612.8148356.17.4b624492MpY3q8



Input voltage:..............DC12V

Power:.........................14.4watt/meter, 72watt/roll(5m);

LED resource:.............WS2815

https://www.aliexpress.com/store/product/WS2815-Intelligent-control-LED-integrated-light-source-DC12V-input-signal-break-point-continuous-transmission/701799_32870496653.html?spm=2114.12010612.8148356.1.2d744492rZLMNJ

Q'ty of LED: ...............60leds/meter,300leds/roll, each LED is separately controlled

IC Type: ......................WS2815 IC(IC built inside the 5050 smd rgb led)

Q'ty of IC: ....................60IC/meter (1 IC drives 1 led chip);

Pixels:..........................60/meter;

Pitch: ..........................16.66mm(1000/60);

Grey scale: ..................256;

Bits/color: ...................8-bits/color;24bit for 3colors

Product size: ................ 10mm*23mm

FPC color: ...................white pcb

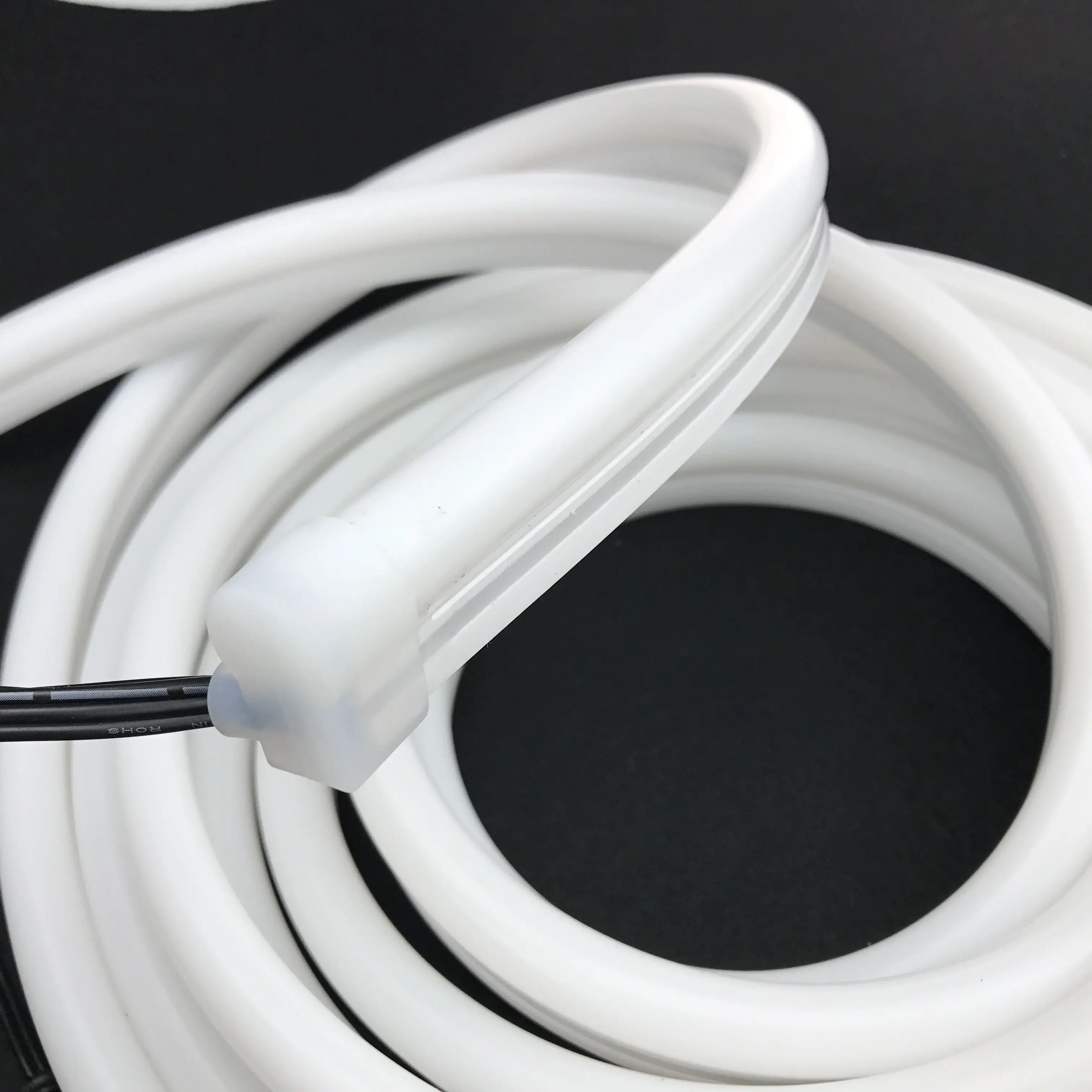

 Protection rate.............frosted silicon tube;IP65;neon type

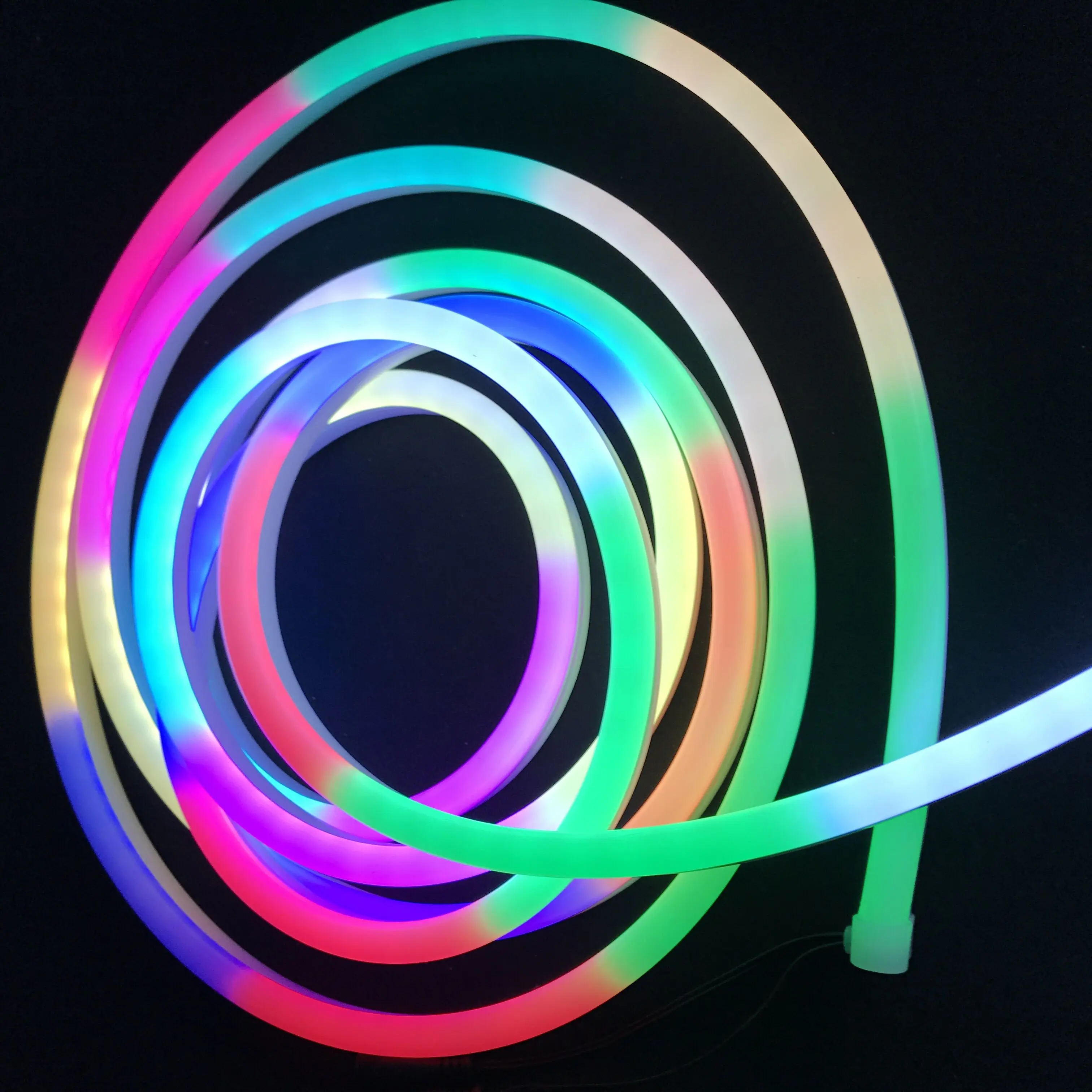

Colors: .........................Full color RGB, dream color changing;

Cuttable:.......................every LED is cuttable

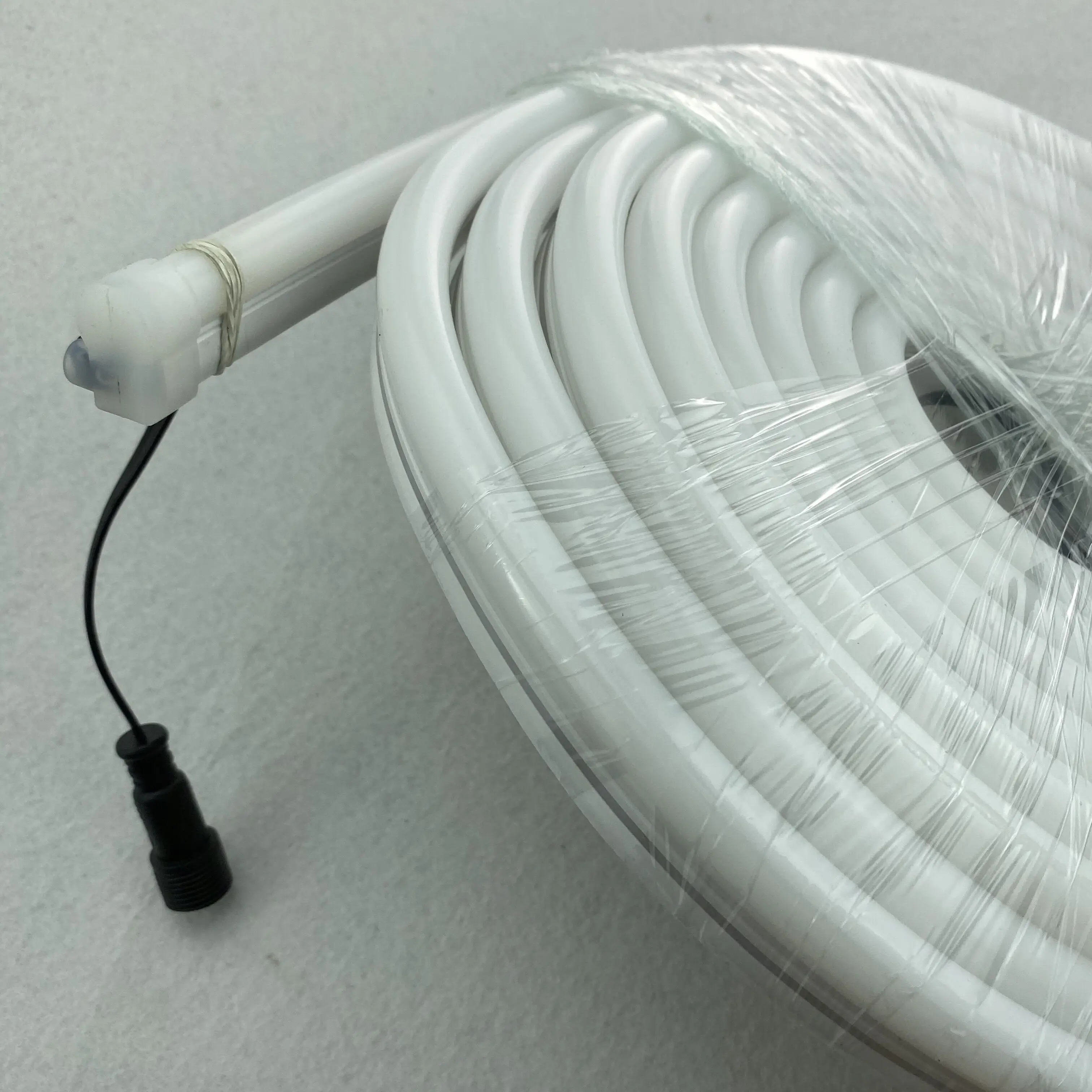

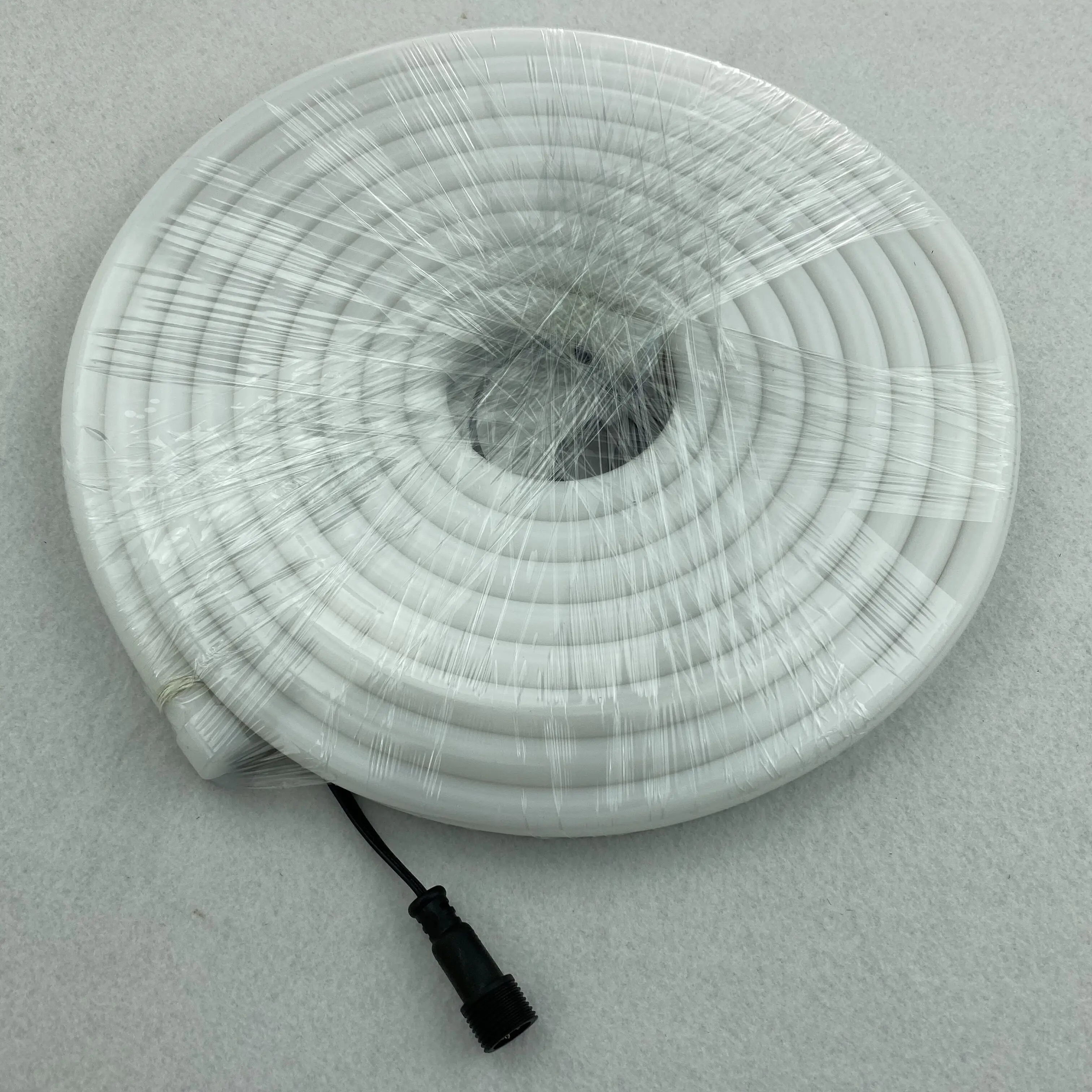

Package: ......................5meters/reel in anti-static bag



standard pinout diagram for our pixel lights:

Brown:- 5/12v +
Yellow/green: - Data
Blue: - earth/ -

Input end: male connector(screw end with bare pin)

Output end: female connector(with hole)



    storage temperature: -20°to 50°

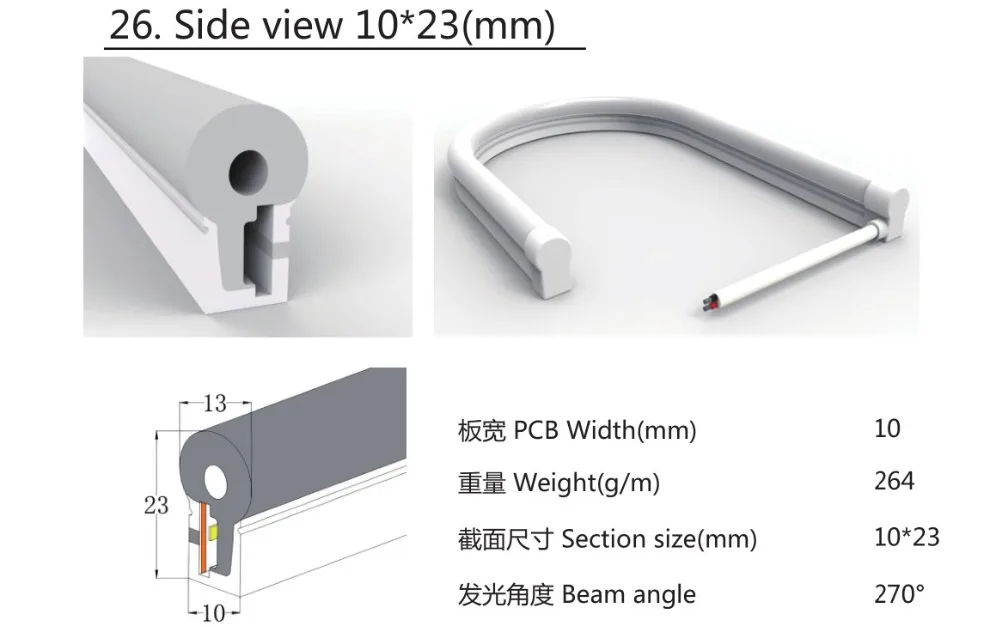

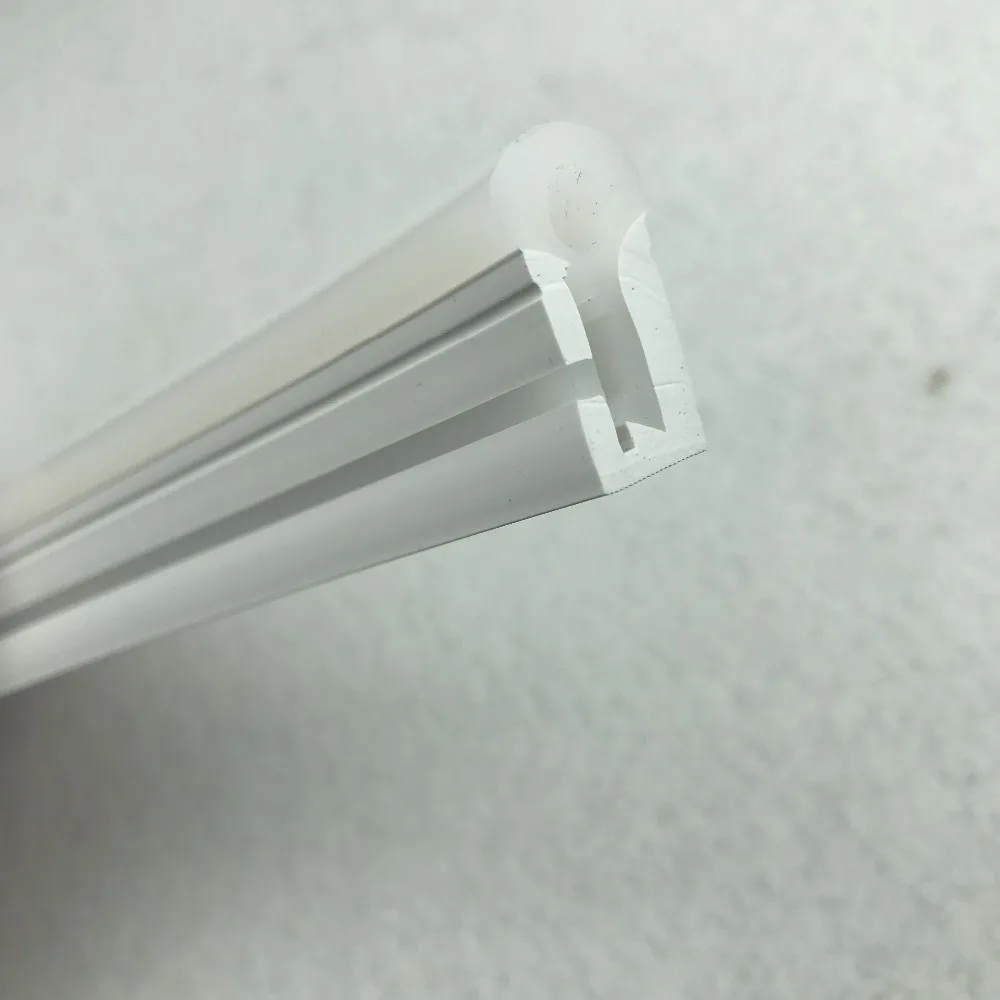

    neon size:10mm*23mm

    neon material:100% silicon ;very soft

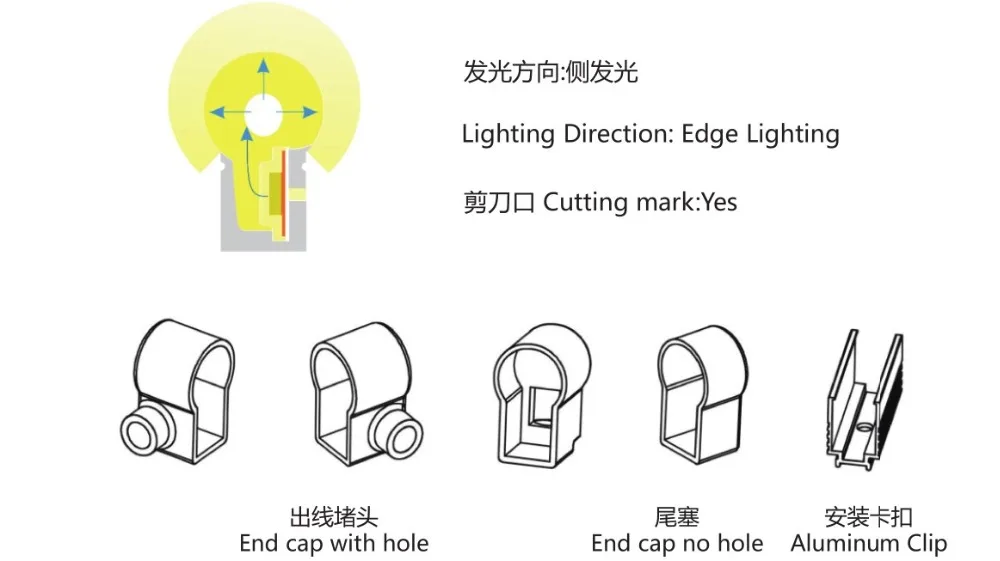

    beam angle: 270degree, side viewing

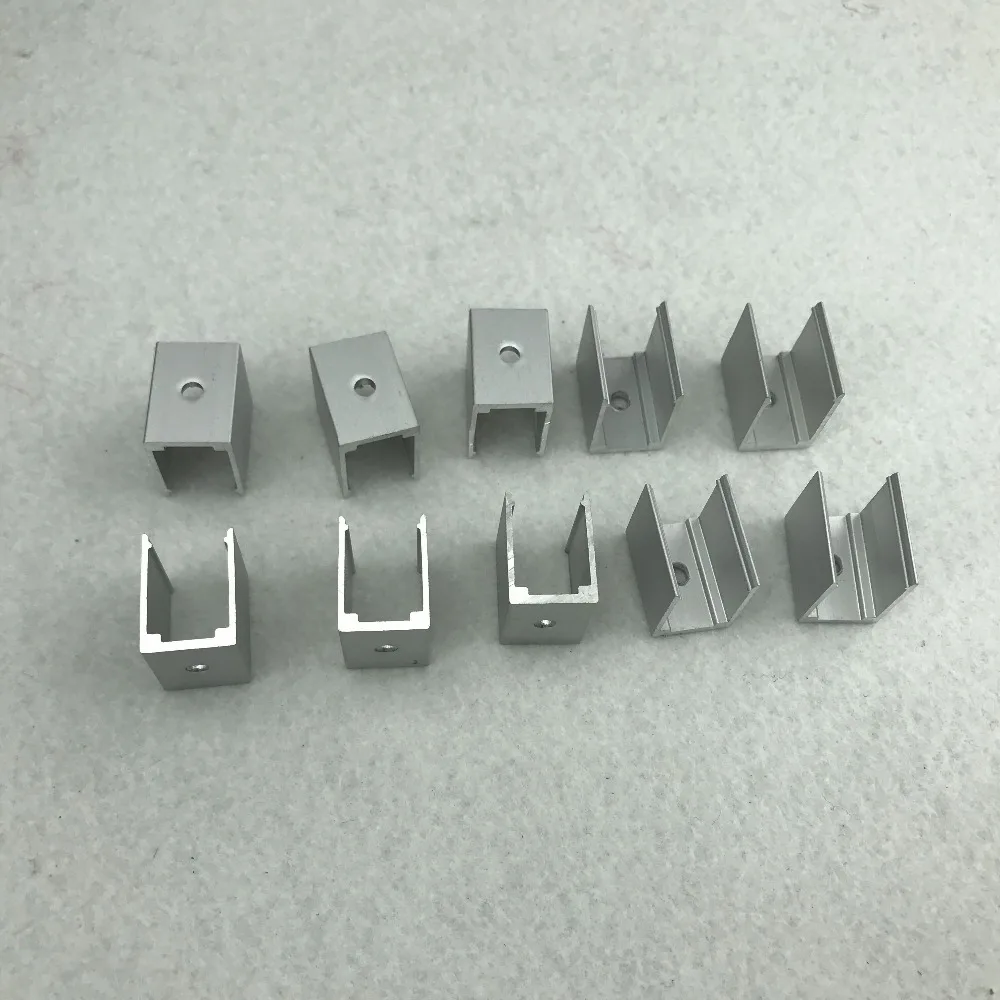

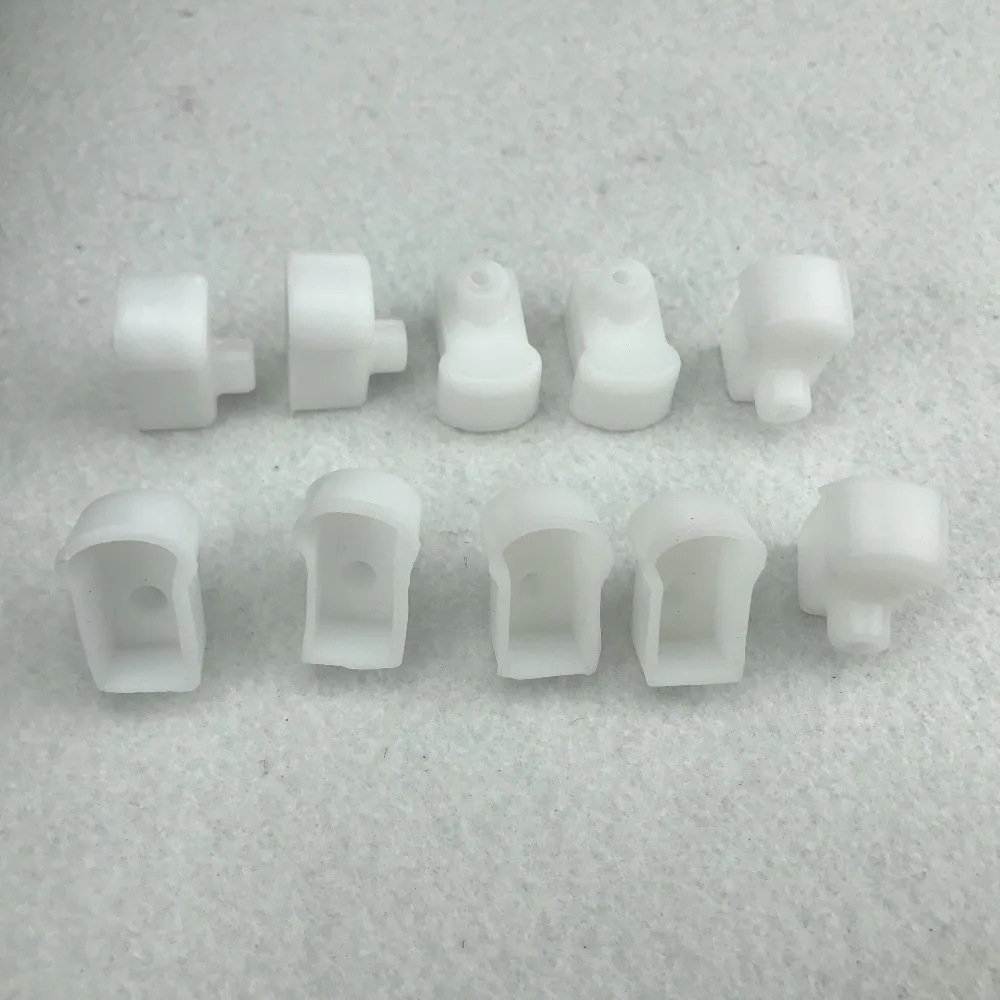

for each roll(50m),we will provide 5pcs of endcapwithhole,5pcs of endcapwithout hole and 5pcs of the aluminumclip
