110KW 150HP 380V Oil Injected AC Power Screw Air Compressor

$6,638.00 / Set | 1 Set (Min. Order)
Model Number:
BD-150
$6,638.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ZAKF
Dimension(L*W*H):
2300*1470*1840(mm)
Warranty:
One Year
Product Name:
Screw Air Compressor
Power:
110kw
No. of compression stage:
Single stage
Cooling method:
air Cooling
Pressure:
0.8/1.0/1.3MPA
Drive Method:
Direct
Electricity (stock):
380/3/50
Noice level:
75db
Condition:
New
Type:
Screw
Configuration:
Stationary
Power Source:
AC Power
Lubrication Style:
Lubricated
Mute:
Yes
After-sales Service Provided:
Engineers available to service machinery overseas
Voltage:
Customer's Requirement
Weight:
2100KG
Certification:
ISO9001, CE

Packaging & Delivery

Selling Units:
Single item
Single package size:
235X155X190 cm
Single gross weight:
2100.0 kg
Package Type:
110KW 150HP 380V Oil Injected AC Power Screw Air Compressor packing with wooden case
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 15 To be negotiated
About Us



Dongguan Jiubei Co., Ltd is the largest and most professional air compressor manufacturer in China. We created our own brand "ZAKF". Our products have ISO2000 and CE certification. They are widely used in different types of industries.Our products include : screw air compressor. Ultrafilters. Dryers.Receives.Drains.


ZAKF product advantages:

Bella --Jiubei:
ZAKF air compressor advantages

1.  we are air compressor factory, quality and deliver time is under control, compessor colour, logo, voltage, pressure , motor can customized.

2. Monthly output capacity is 1500set machine, Quality has been recognized by the market

3. All English Compressor data and manual .

4.  24hours After-sale service.

5.  our own factory, visit factory on anytime you want.

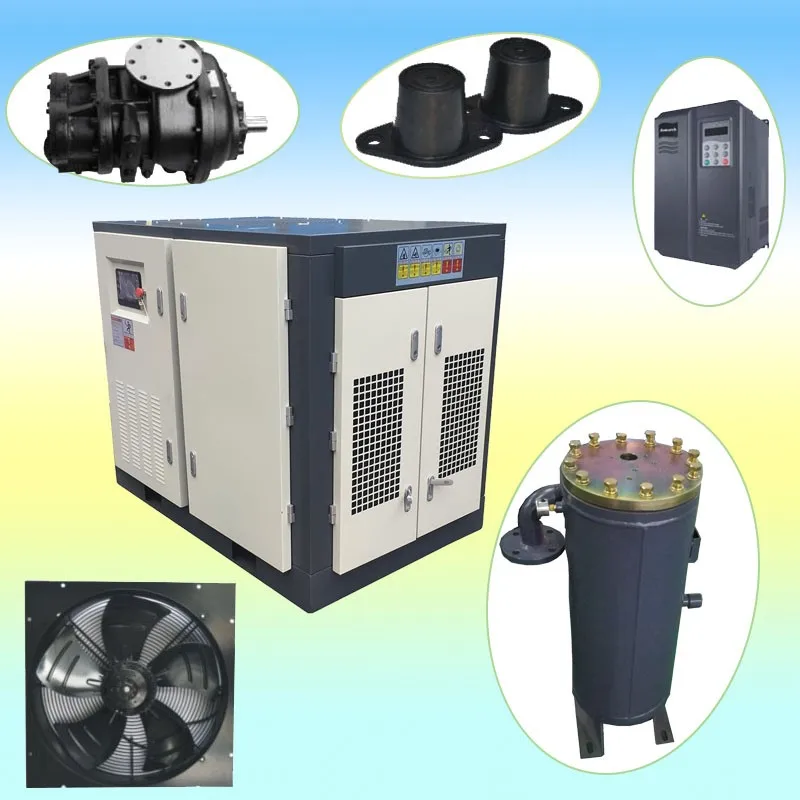

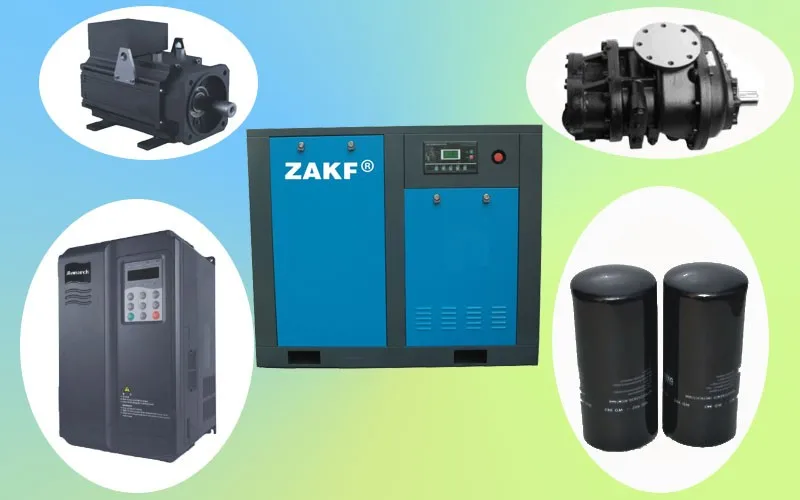

6.  Top quality spare parts
A.   Air filter: Donaldson air filter, Dust removal effect 99.99%, work good under bad enviroment
B.   Oil filter: Oil filter with glass fiber filter material with spin on type, the filtration effect is 20% higher than the conventional filter element
C.  Air / oil separator: Large-capacity design, high-quality air and oil separation, three time oil and gas separation, oil content below 2ppm
D.  Thermostat valve:  Prevent the temperature of the lubricant from being too high make oil emulsification or too low make oil carbon deposit, Guaranteed long-term use of lubricating oil and good sealing performance

7.  energy saving and environmental protection , especially the Inverter machine / Two stage machine, 50HP for example:
When the air demand becomes small, the air compressor frequency is automatically reduced, the power sequentially reduced 50HP to 40HP to 30HP,20hp....
When the air gas demand becomes larger, the frequency of the air compressor automatically increases, the power is sequentially increased 30HP to 40HP to  50HP...

8.  Inverter machine is good at Power saving, and Saving electricity bills, 37kw /50HP for example (energy saving 20% -25% )
37kw * 20% * 22hours one day * 312 days one year * us$ 0.15 kw/h (electricity cost) = us$ 7619.00 / year
our  inverter compressor machine can save us$ 7619.00 each year for you of the electricity cost

MODEL:150hp Direct Air cooling compressor Parameter
Free air deliver
19.8M3/Min
Discharge pressure
0.8MPa(a)
Motor power
110kw
Motor speed
2940r/min
Voltage/HZ
380V/50HZ
Motor protection grade/insulation grade
IP23/F
Driving method
Direct connection
Noise level
78 db(A)
Cooling method
Air cooling
Lubricant
90L
Outlet air carry lubricant oil
<=3 ppm
Starting method
Y-△
Air outlet pipe diameter
DN65
Temperature of cooled outlet compressed air
<=Ambient temperature+15℃
Dimension/weight
2300*1470*1840(mm)/2060KG
Product Description

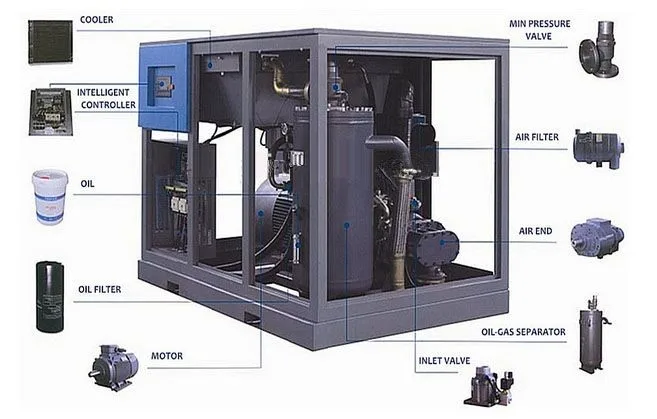

Detailed Images


Controlledby computer ,the stable and dependable air inlet control valve can make the air displacement and power consumption of the motor chang along with the air consumption,so as to save energy and electrity ,and reduce the operating cost

Domestic famous engines, are ensured to operate reliably and are 3% to 5% more efficient than competing machines.It has another two advantages,such as low consumption by saving energy and reliable and long lasting durability..


Domestic famous engines, with the advanced air flow control system,the inlet valve can be adjusted between 0 to 100%. By using the volume adjustment valve, the electric rotary screw air compressors will lose less pressure, balanced air supply and air consumption,and a longer service life.

Our Service



Pre-sales service.



Our company hammer at perfecting upstanding service, including presale, to save customer's worry.




After-sales service.


Because not only do we custom build the equipment to your requirements but our after-sales service is first class.

Certifications
Packing & Delivery
Packaging
Size
1380*850*1160(mm)
Weight
480KG



Packaging Details
The normal package is wooden box(Size: L*W*H).If container is too tigher,we will use pe film for packing or pack it according to customers special request.

We will according to the size of compressor to order the different wooden case.

shipping




Shipping method


By Sea,

By Truck,

By Train,

According to your demands.
Related Products
FAQ

Q1: Are you manufacturer or trade company?
  A1:We are manufacturer.


  Q2: What the exactly address of your factory?
  A2: Our company is located in 3F, building B, No.168, Dezheng East Road, Chang'An Town, Dongguan City, Guangdong Province, China

  Q3: Warranty terms of your machine?
  A3: One year warranty for the machine and technical support according to your needs.

  Q4: How about payment terms?
A4: 30% TT deposit + 70% TT before shipment,  50% TT deposit + 50% LC balance.

  Q5: How long will you take to arrange production?
  A5: If in stock, we will shipping it in 3 workdays; if no stock or have some special requests, like change the color or change 380V/50HZ to other electricity, we will delivery it in 15workdays.

  Q6: Can you accept OEM orders?
  A6: Yes, with professional design team, OEM orders are highly welcome.
