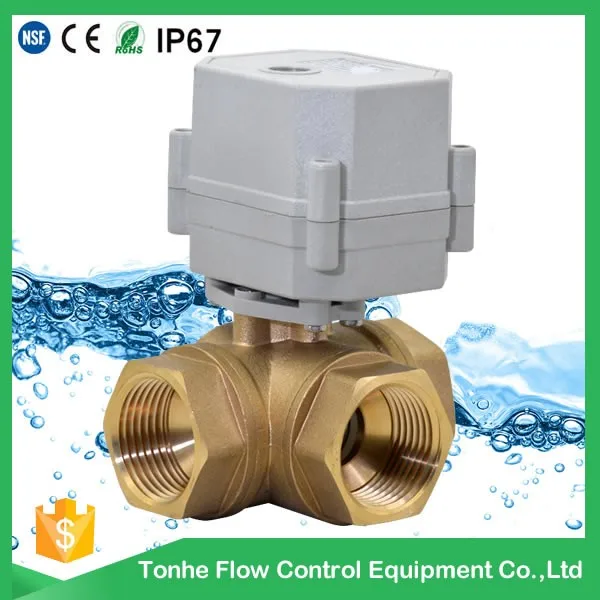

110V to 220V 3 Way 1/2" inch T bore motorized brass ball valve with Normally closed (T15-B3-C)

Feedback Ratings
  • 1-199 Pieces
    US $29.00
  • 200-499 Pieces
    US $28.00
  • >=500 Pieces
    US $27.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
6 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Medium Pressure
Power:
Electricity
Material:
Brass
Temperature of Media:
High Temperature
Media:
Water Gas Oil
Port Size:
1/2"(DN15)
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
T15-B3-C
Brand Name:
Tonhe
Application:
General
Actuator:
Grey color
wiring diagram:
CR202 wiring diagram
Working Voltage:
AC/DC110V-240V
Service life time:
100000 times
Sealing material:
FKM & PTFE
cable length:
0.5 meter
Open/close time:
less than 5S
Working Current:
less than 500mA
Actuator torque:
2N.M
certification:
EMC, LVD, ROHS, IP67

Packaging & Delivery

Selling Units:
Single item
Single package size:
14X8X9 cm
Single gross weight:
0.7 KG
Lead Time :
6
Company Information

2 way 3/4" inch normal closed motorized stainless steel ball valve AC/DC9-35V with manual override

110V to 220V 3 Way 1/2" inch T bore motorized brass ball valve with Normally closed (T15-B3-C)

A20-T15-B3-C

If you want to buy, we need to confirm the detail as follows:
1. If you need 3 way T port valve: Flow Direction A,B,C or D
2. Screw thread: BSP or NPT
T bore.png

CR202 WIRING.png

Product Description

Product Specification

.png





Product Photo Show

more-products-fetured-products2 way 3/4" inch normal closed motorized stainless steel ball valve AC/DC9-35V with manual override

CE-RoSH-2-way-12v-24v-dn20 (2).jpg

Our Services

Workshop Process

Packaging Details
