12-15KW Automatic Two Stations Shuttle High Frequency Welding and Cutting Machine

$11,499.00 - $13,499.00 / Unit | 1 Unit (Min. Order)
Model Number:
ZY-12KW-XCHT
$11,499.00
- +
available
ZY-15KW-XCHT
$13,499.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ZEUYA
Voltage:
110V/220V/380V/Customize
Condition:
New
Frequency:
27.12Mhz
Welding Area:
400*600MM
Dimensions:
2200*1450*2300MM
Usage:
Embossing Machine
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Online support, Video technical support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:
None
Weight (KG):
1500 KG
Power:
12-15KW
Weight:
1600KG
Machine Type:
cutting and welding machine for shoe
Manufacturer:
Yes
OEM:
Accept
Brand:
ZEUYA
Model:
High Frequency Welding and Cutting Machine ZY-12KW-XCTP
Function:
Welding and Packing
Operation Way:
Manual
ODM:
Accept

Packaging & Delivery

Selling Units:
Single item
Single package size:
880X90X100 cm
Single gross weight:
1500.000 kg
Package Type:
Strong Wooden Case
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 2 To be negotiated
Video Description
Machine Photos

Machine Principle:

High Frequency welding is using the high frequency electromagnetic waves to heat and soften the join of certain plastics which have chemical dipoles, such as PVC, PA and acetates. When a press/die descents to apply pressure on the surface of two pieces of material, the high frequency wave are passed through the die and table. The high frequency field causes the molecule to vibrate and generate heat from vibration. The process can be continuous and able to perform localized heating.

* Safety device- Anti-Spark System


When the current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by mis-operation is also prevented.



*Shuttle Working Station


Machine adopts with shuttle working station, one machine have two working station, when one working station is welding, and other one station can be prepared the material for welding. Greatly improve working efficiency.

* Easily Adjustable Tuner


Machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.

*AirTac Air System



Adopting famous brand AirTac air system, greatly make the machine pressure working precisely.

* TOSHIBA Oscillation Tube


Using TOSHIBA original imported oscillation tube, more powerful output power, stable and durable than other brand.

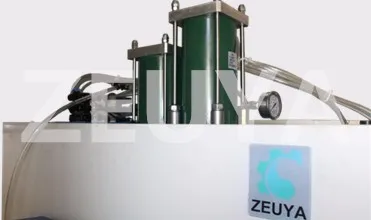

* 30 Ton Hydraulic Max Pressure Cylinder


Machine equipped with 30 Ton hydraulic max pressure cylinder, there are two pressure setting, first pressure setting for welding, and second is for cutting, so work-piece can be welded and cut off in same process.
Main Spare Parts
Hydraulic Cylinder
Taiwan JIUQUAN
Timer
Taiwan CKC
Temperature Controller
Japan OMRON
Contactor
Japan Fuji
Relay
Japan OMRON
Oscillation Tube
TOSHIBA
Anti-Spark Systerm
America NL-5557
Transformer
Copper Transformer
Model
ZY-12KW-XCHT
ZY-15KW-XCHT
Output Power
12000W
15000W
Voltage
380V 3P 50/60Hz
380V 3P 50/60Hz
Input Power
15KVA
18KVA
Frequency
27.12Mhz
27.12Mhz
Oscillation Tube
TOSHIBA E3130
TOSHIBA 8T85RB
Anti-Spark System
NL-5557
NL-5557
Max Pressure
30Ton
30Ton
Gap of Eletrode
160MM
160MM
Size of Mould Holder
400*600MM
400*600MM
Working Table Size
600*800MM
600*800MM
Machine Dimension
2200*1450*2300MM
2200*1450*2300MM
Machine Net Weight
1500KG
1700KG
Application

Final products done with HF welding:
Common products manufactured with HF welding method are tarpaulins, tents, ceilings, advertising outdoor banners, waterbeds, inflatable boats, drip and blood bags, tensile structures, conveyor belts, rain clothing, etc.

What materials can be HF welded:
The material most common in high frequency welding in PVC (something called simply vinyl) and PU (polyurethane). The material can be thick or thin, reinforced or coated. It cab also be plain, coloured or structure/patterned.


Polyvinyl chlorde (PVC) and polyurethanes (PU) are the most common thermoplastics that are weldable by HF also it is possible to perform HF welding on other types of material including naylon, PA, ABS, modified TOP, PETG, but particular attention should be pay on working parameters. HF welding is not suitable for PTFE, polycarbonte, polystyrne, polyethylene or polypropylene. Howereve, a special type of mixed fabrics have been produced recently, which have the capability to be HF welded.

Packing & Delivery

Packing:

Machine packing inside is plastic films and outside is fumigation wooden case.


Our wooden case is very strong,it can bear long time shipping on the sea.


And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.

Delivery:

For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.

The price show on our website just the machine EXW price, please contact us to confirm shipping cost before you place order.

Our Company

Shenzhen Zeuya Industry Co., Ltd. has been committed to R&D, production and sales of the plastic welding field ever since its establishment in 1995.

We are professional designer and manufacturer of High Frequency Welding Machine, Ultrasonic Plastic Welding Machine, Blister Forming Machine, Tube Sealing and Filling Machine and other Packing Machine with over 10 years.

We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.

Our Certificates

Since its inception, ZEUYA INDUSTRY has been devoted to optimization and integration of developing, producing, sealing, and application of technology of ultrasonic machinery. After almost twenty years of unremitting efforts, ZEUYA INDUSTRY with high quality products, excellent technical support and perfect after-sales service has established a good reputation among the customers, and also gains a number of provincial and national honnors.

FAQ

Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.


Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.


Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .


Pre-sale services:

1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:

1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.


2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

After-sales service:

1. Where to buy our products for 1 years warranty and life long maintenance.


2. 24-hours telephone service.


3. A large stock of components and parts, easily-worn parts.
