120L-900L Heavy Duty Bowl Vibratory Finishing Machine/Vibratory Deburring Machine/Vibratory Polishing Machine with Separation

FOB Reference Price:Get Latest Price
$500.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
VBS(A)
Lead Time:
Quantity(Sets) 1 - 2 3 - 5 >5
Est. Time(days) 10 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Lucky Bridge
After-sales Service Provided:
Free spare parts, Online support, Video technical support
Warranty:
2 Years
Application:
Deburring, Polishing, Descaling, Radiusing, Cleaning, Burnishing
Certification:
CE, ISO9001, SGS
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaged in the Wooden Box
Port
Shanghai, Ningbo
Lead Time :
Quantity(Sets) 1 - 2 3 - 5 >5
Est. Time(days) 10 15 To be negotiated
Product Description

LUCKY BRIDGE VIBRATORY BOWLS

                                                                                                      Provide better solution for finishing...

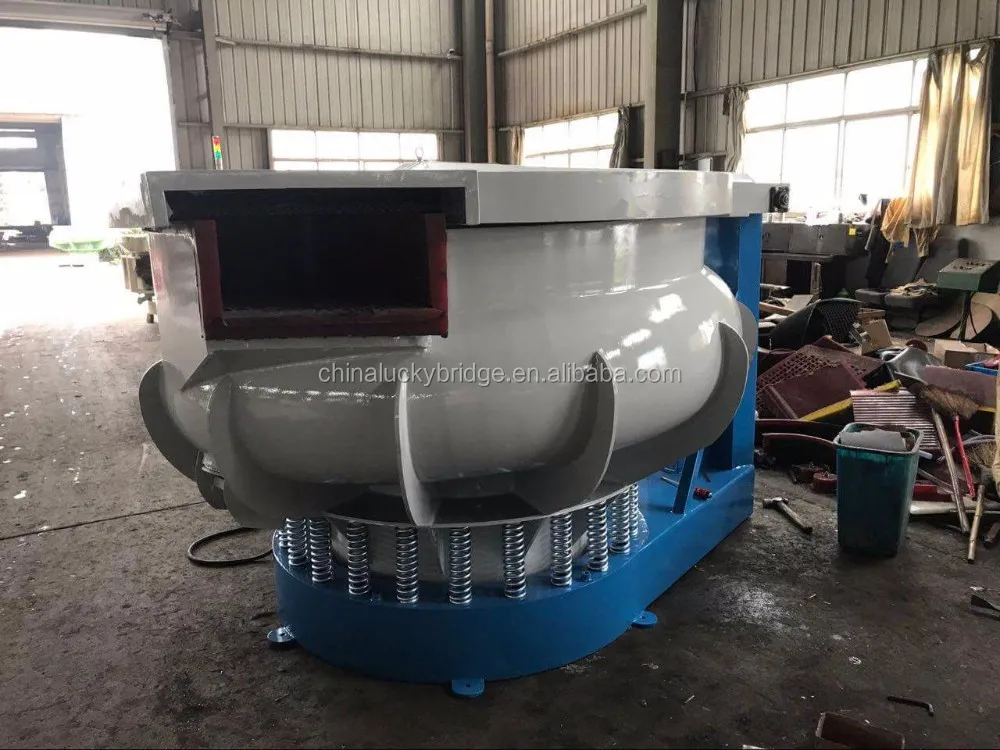

VBS(A) CURVED WALL WITH PARTS MEDIA SEPARATOR


                VIBRATORY FINISHING MACHINE    VIBRATORY DEBURRING MACHINE    VIBRATORY POLISHING MACHINE


KEY APPLICATION

The vibratory machine key application are processing parts made of metals, non-ferrous metals and non-metals. Besides, engineers use the process for burr and rust removal, metal parts edge rounding and mirror polishing. In addition, this process is popular especially for polishing of parts with complicate surface geometry and concave surface.
After processing, there is no damage on parts surface and no affect on parts dimensions. Also, surface roughness of parts can improve 1-2 degree. Vibratory machine is suitable to finish small to medium size parts in a larger batch quantity.

KEY FEATURES

Shallow incline of processing channel.
Manually insert-able separation gate or pneumatically activated separation flap option.
√ Convenient operation and reduced labor costs
Adjustable imbalance weights allow different finishing intensities.
Wear-resistant lining made from high quality PU.
Media unload plug with integrated effluent drain.

Detailed Images
Model
No.
Working
Capacity
L / Cu Ft.
Innner
Diameter
mm / Inches
Bowls
Depth
mm / Inches
Machine
Height
mm / Inches
Motor
Power
Kw
Shipping
Weight
KG / LBs
VBS(A)120
120 / 4.2
220 / 8.66
760 / 29.92
795 / 31.30
1.5
340 / 750
VBS(A)200
200 / 7.0
252 / 9.21
770 / 30.31
940 / 37.01
3.0
450 / 992
VBS(A)300
300 / 10.6
260 / 10.24
780 / 30.71
950 / 37.40
3.7
680 / 1500
VBS(A)600
600 / 21.1
390 / 15.35
960 / 37.80
1350 / 53.15
7.5
1560 / 3439
VBS(A)900
900 / 31.7
445 / 17.52
1220 / 48.03
1500 / 59.06
11.0
2600 / 5732

OPTIONAL FEATURES

★★★Speed Control Box (Variable Speed Motor, Emergency, Other Buttons)
★★Sound Proof Cover (120L/200L: Manual ≥300L: Pneumatic )
★★Separator Lever (Standard; Choose: Manual / Auto Functionality)
★Automatic Liquid System (Compound, Water)

Can be customised to suit user applications, ★ is popularity options.

RELATED MACHINES AND OPTIONS

300L Vibratory Finisher

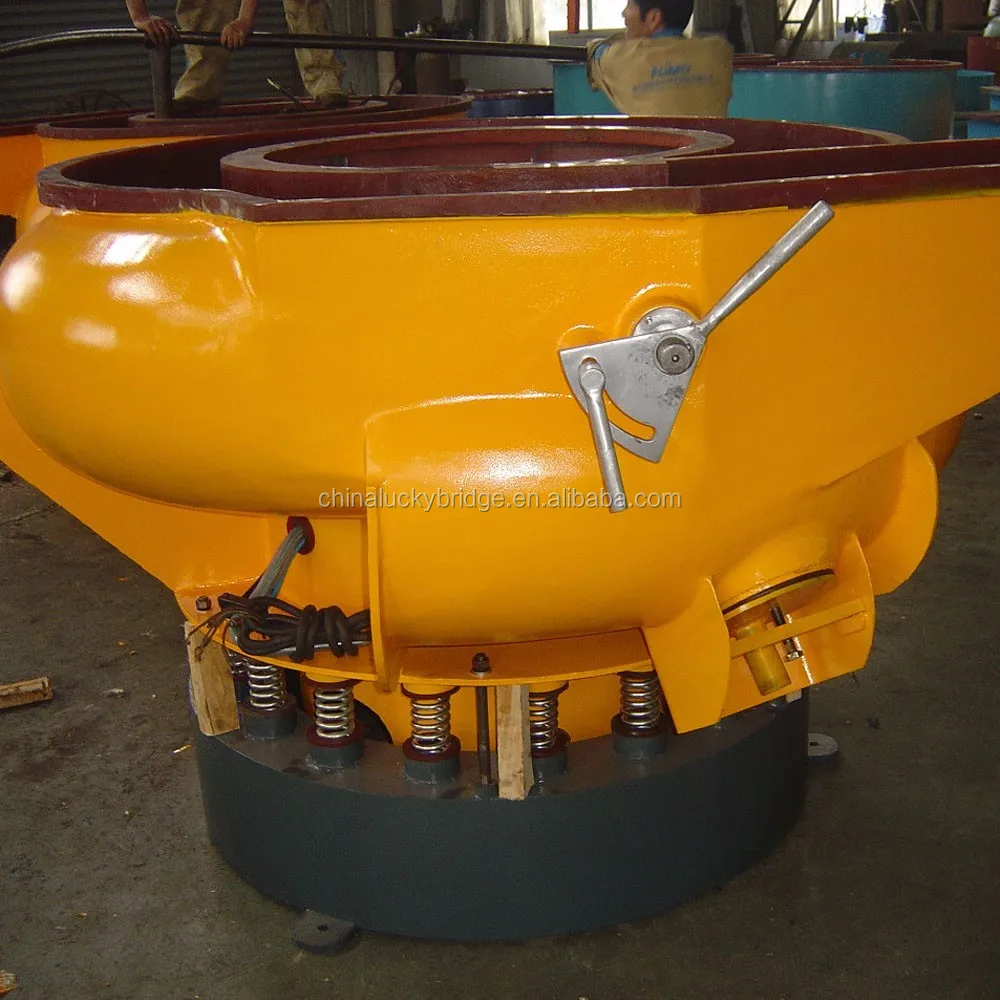

Manual Lever

Speed Control Box

600L Vibratory Finisher
Pneumatic Sound Proof Cover
Speed Control Box

900L Vibratory Finisher

Speed Control Box


Sound Proof Cover

Pneumatic Type

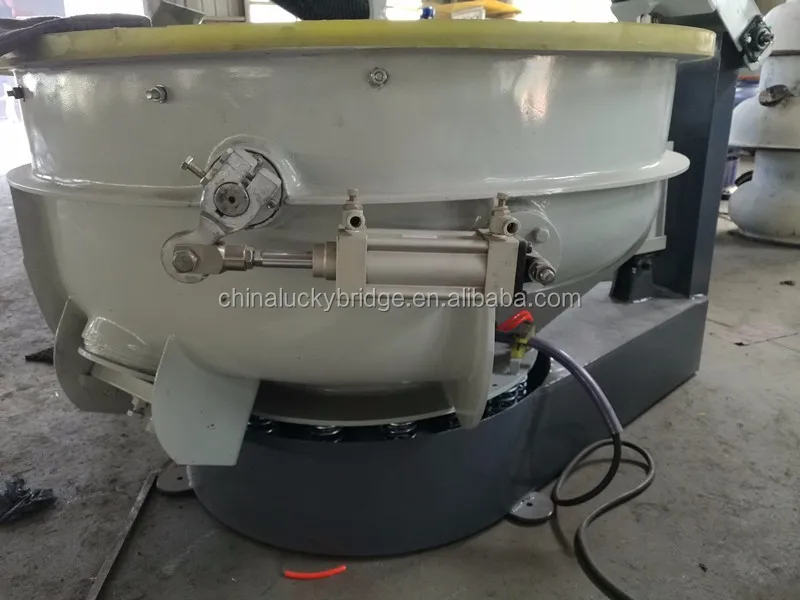

Pneumatic Separator

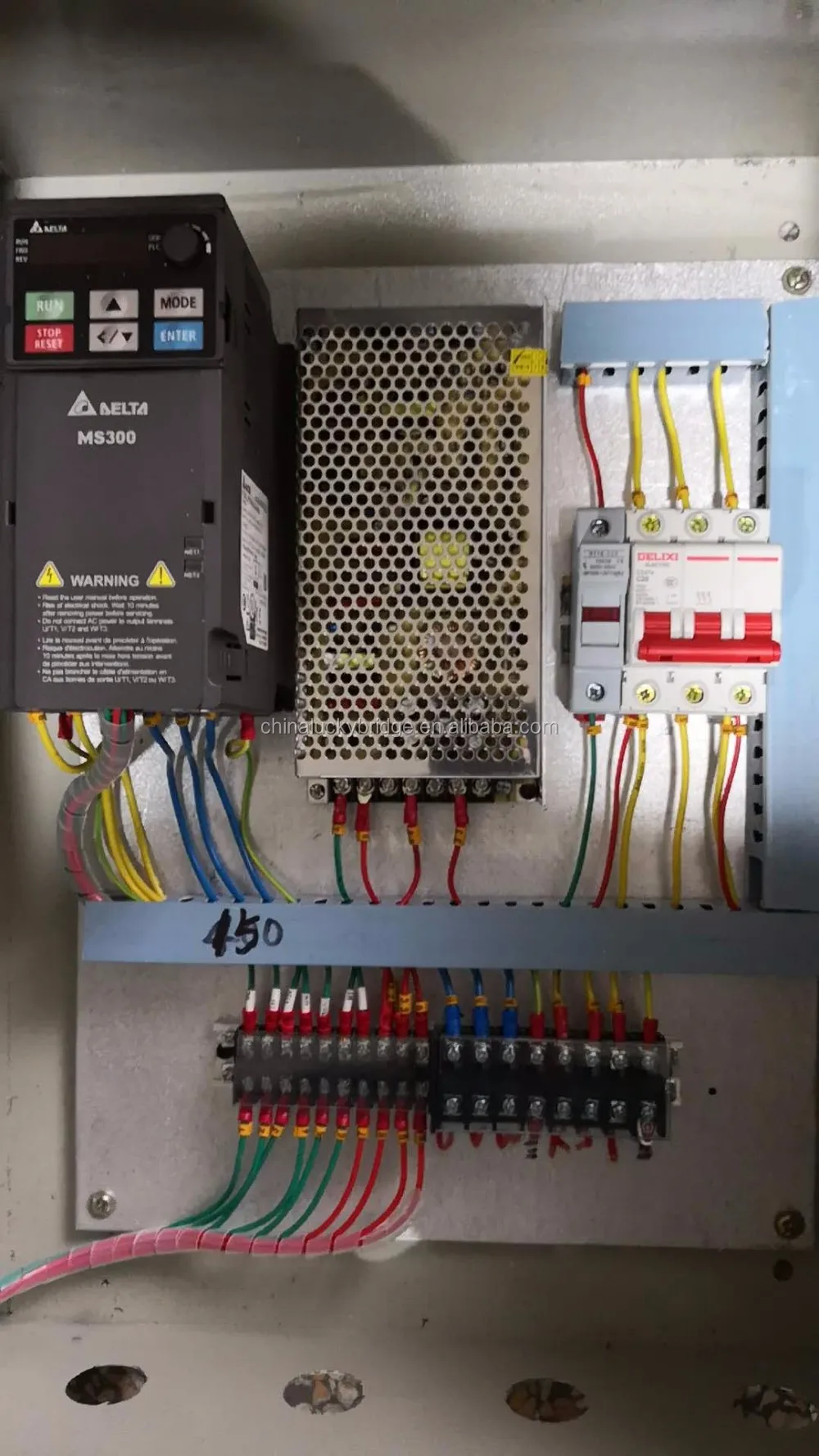

Speed Controller

Manual Separator

Auto Liquid System - Water Pipe

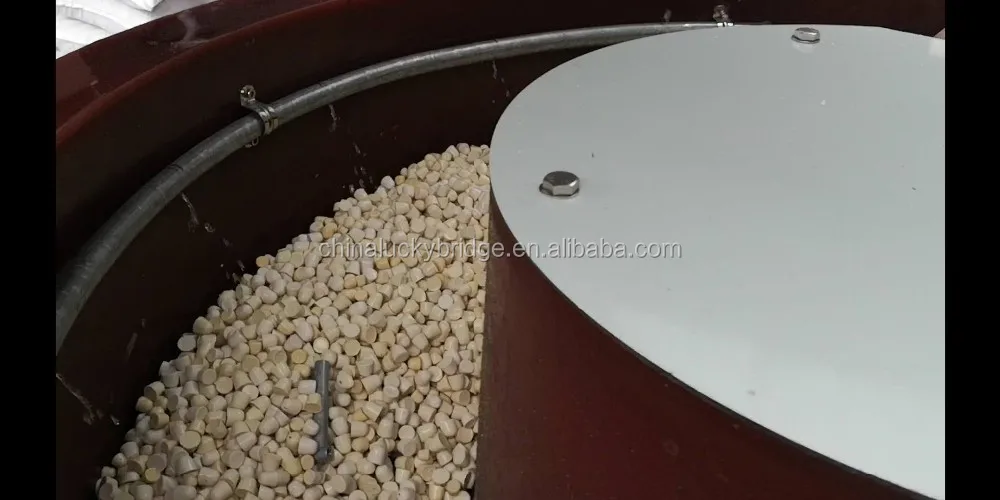

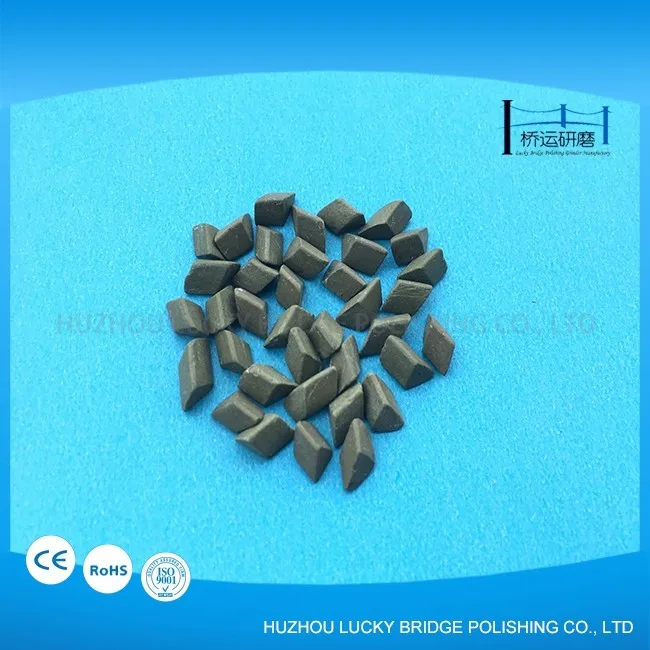

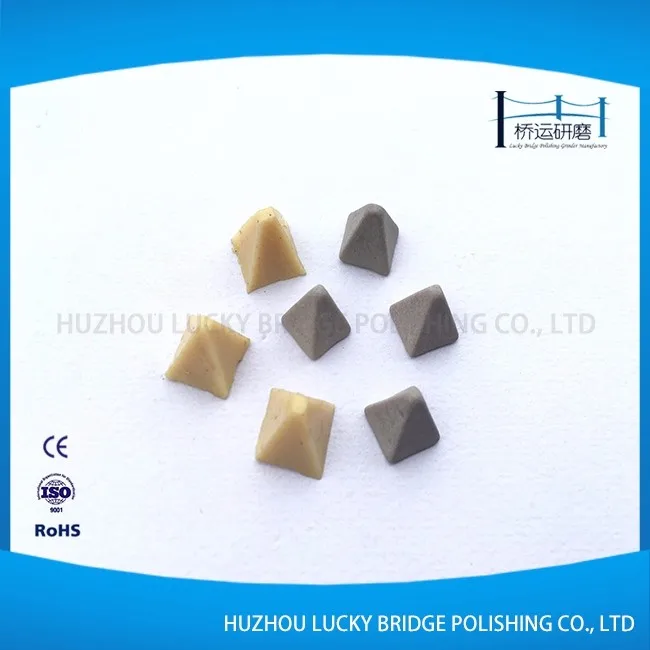

MASS FINISHING MEDIA SHOWS

Our medias are an important aspect of finishing, from plastic media, ceramic media, zirconia media, ect.

√ No matter how much you buy, we only provide high quality consumables. We ensure that you achieve the optimum results in the most cost-effective way.

PROVIDE FREE TRIAL

Complete the request → Post your sample → Engineers to review

Packing & Delivery

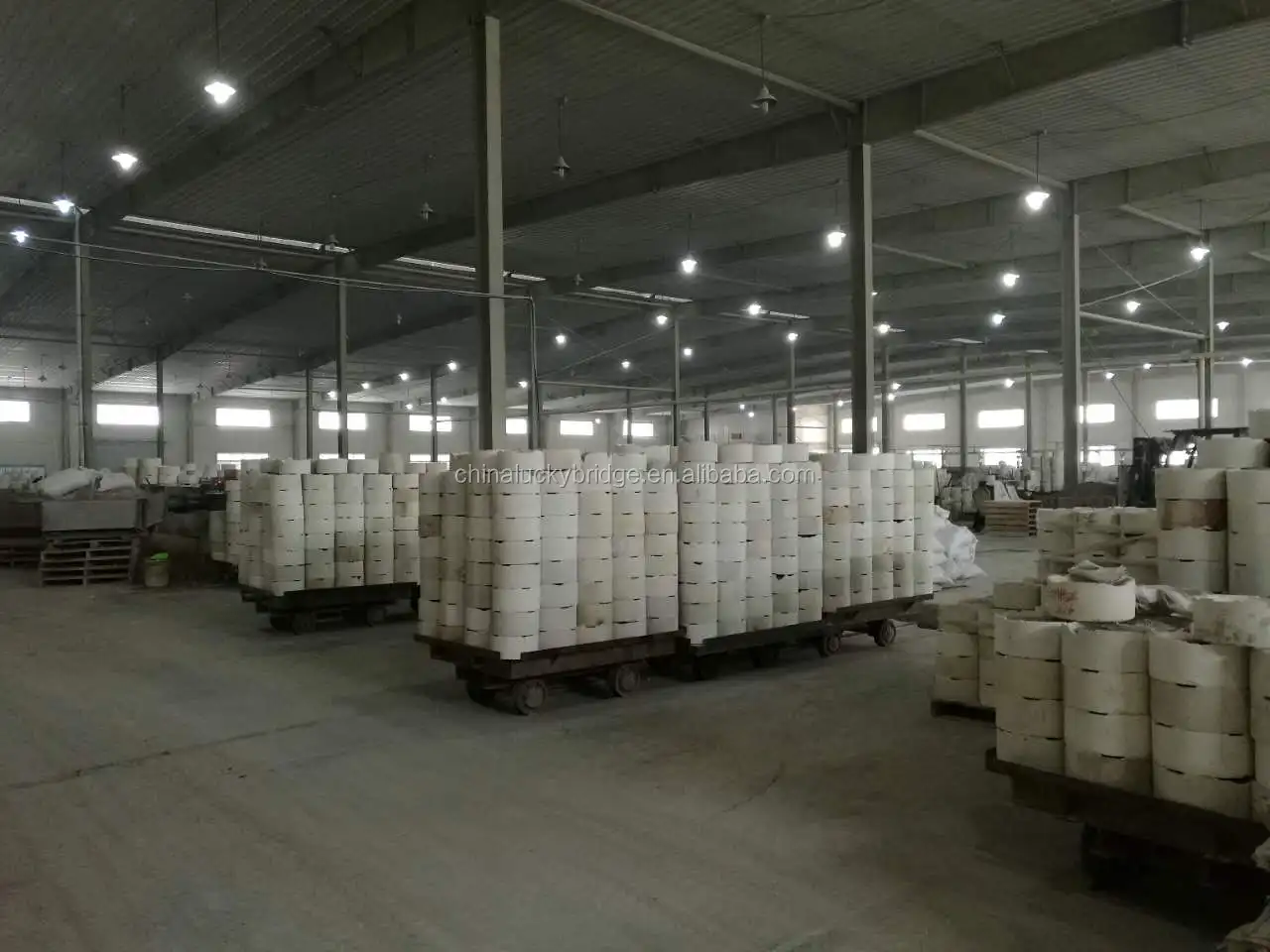

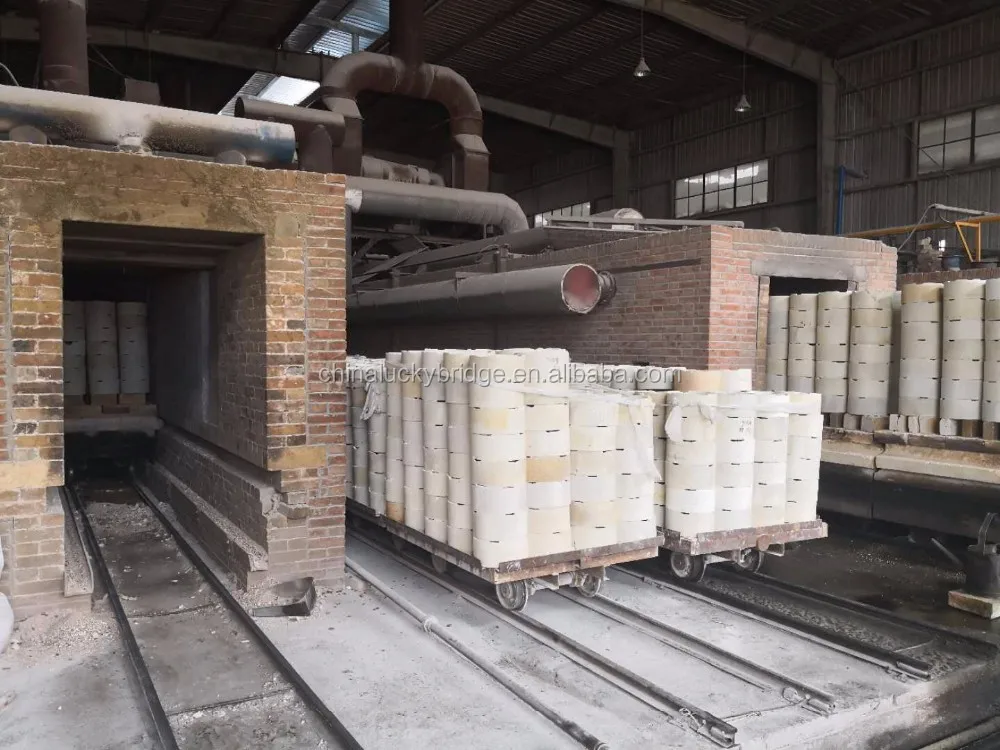

Why Lucky Bridge

Huzhou Lucky Bridge Co., Ltd established in the 1990s in one of the earliest surface treatment companies in China. We have our own factory that produces all kinds of surface treatment products, including vibratory finishing machine, centrifugal barrel machine, centrifugal disc machine, mass finishing media, etc. Because of the high-quality products and customized solutions, we have long-term cooperation with the world-famous brands of Chinese processing plants. Like Bosch, Apple, Saint-Gobain, Mahle, SIEMENS, Ingersoll Rand, BYD, Nissine, Medtronic ... ...

Huzhou Lucky Bridge Co., Ltd provide a complete and perfect solution when solving product surface treatment problems for our customers. We make the most reasonable choices for finishing machine, finishing media and finishing compound based on the material performance, structural shape, size, surface state and final surface requirement of the products. Mass Polishing ® will meet the customer's requirements for the surface treatment of different products and the technology provided can fully enable customers to obtain various processing effects.

The full application in many of the following areas is sufficient to prove that the complete surface treatment solution we provide has the best results: Automobile, Motorcycle, Bicycle, Textile machinery, General engineering, Magnetic material, Precision ceramic, Bearing, Sewing machine, Hardware, Medical instruments, Glasses, Jewelry, Aerospace, Gear, Tableware, Plastic, Hydraulic parts, Casting parts, Machined parts, Steel, Stainless steel, Aluminum alloy, Copper alloy, Titanium alloy, Nickel-titanium alloy, Zinc alloy... ...

Lucky Bridge Company has always been committed to providing customers with high-quality surface treatment products and advanced surface treatment processes. Over 25 years' surface treatment experience in the area, we have the lowest cost and best technology to our customers. We are proud of our professional advice, quality machine, fast technical delivery, and trusted after- sales service.
