12mm Dome PCB Waterproof Push Button Switch 250v

Feedback Ratings
  • 50-2499 Pieces
    US $1.00
  • >=2500 Pieces
    US $0.60
50 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Daier
Model Number:
DS-12B-L
Protection Level:
IP67
Max. Current:
2A
Max. Voltage:
36VDC
Item:
12mm Dome PCB Waterproof Push Button Switch 250v
Material:
Plastic
Function:
Latching Push Button Switch
Panel Size:
12mm
Button Color:
Red/ Green/Yellow/Blue/Black/White
IP Class:
IP67
Terminal:
Solder Terminal
Certificate:
CE, Rohs, CQC
OEM&ODM:
YES
Package:
50pcs/box

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
22X15X10 cm
Gross weight per batch:
1.0 KG
Package Type:
DS-12B-L 12mm Dome PCB Waterproof Push Button Switch 250v is 50pcs/box.
Lead Time :
Quantity(Piece) 1 - 999950 >999950
Est. Time(day) 7 To be negotiated
Product Description
Model
12mm Dome PCB Waterproof Push Button Switch 250v
Rating
2A 36VDC
Function
Latching Push Button Switch
Button Size
12mm
Buton Color Avaliable
Red/ Green/Yellow/Blue/Black/White

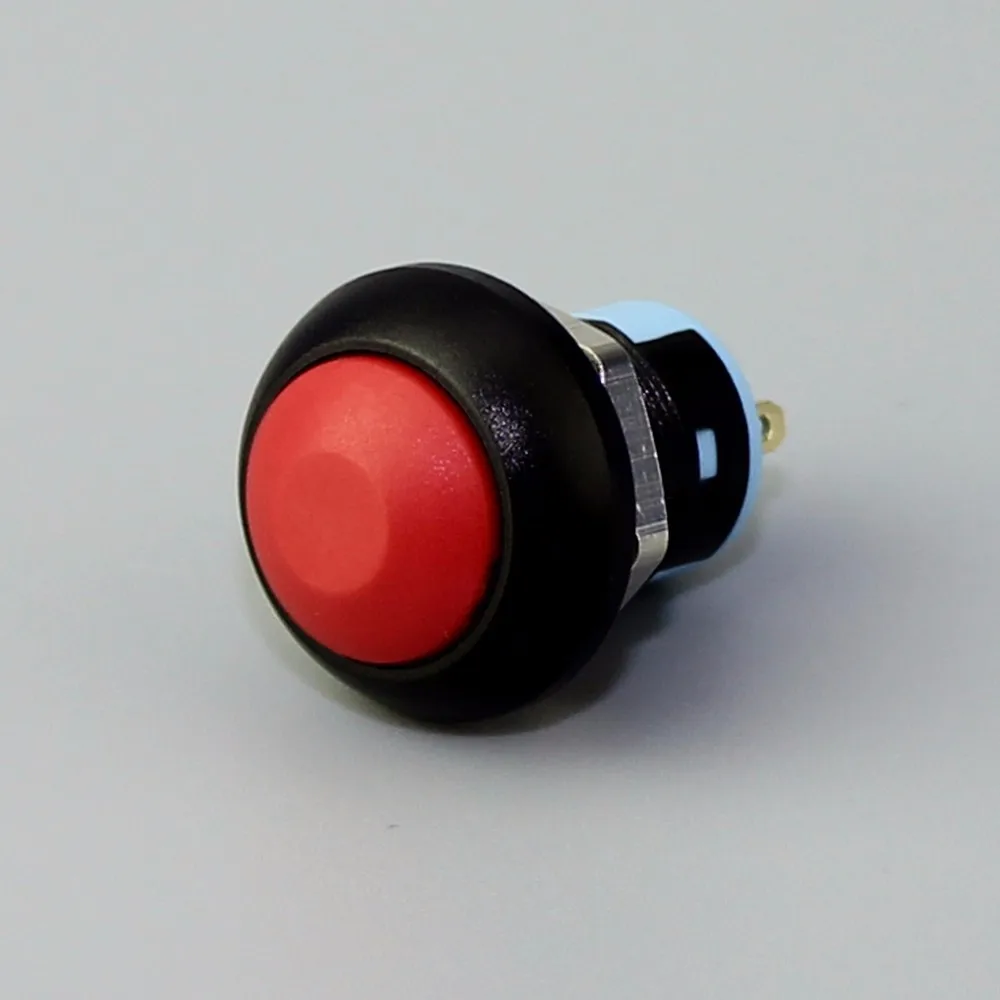

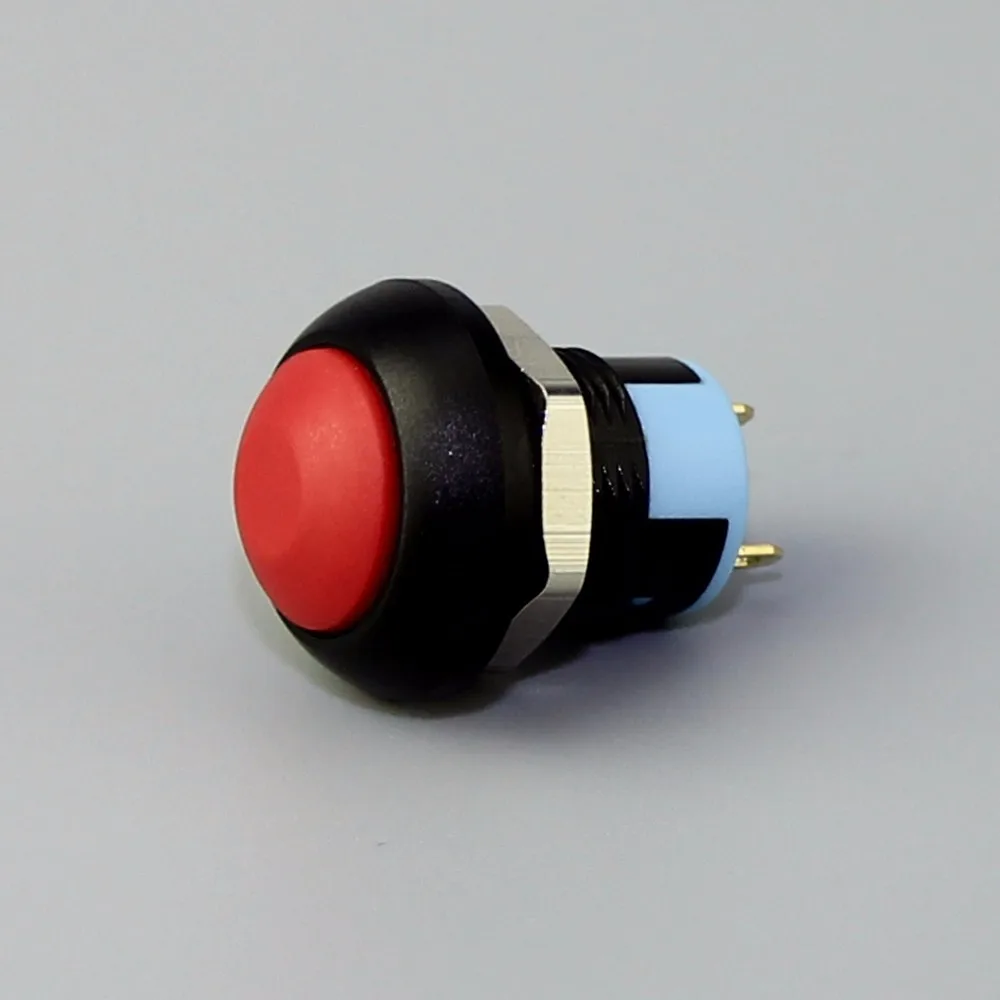

Product Show

DS-12B-L

Specifications:
1. Rating: 2A 36VDC
2. Electrical Life: 50,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000V AC RMS 50~60Hz
6. Operating Temperature:-40°C~+85°C
7. Function: 1NO Latching Push Button Switch

8. IP Class: IP67 protection

9. Operating Force: 5N Max


Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
