12mm Flat Button Latching Power Logo Metal Push Button Switch

Feedback Ratings
  • 50-999 Pieces
    US $1.90
  • >=1000 Pieces
    US $1.70
50 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Daier
Model Number:
GQ12F-10PL
Protection Level:
IP67
Max. Current:
2A
Max. Voltage:
36VDC
Item:
12mm Flat Button Latching Power Logo Metal Push Button Switch
Function:
Latching
Panel Size:
12mm
Button Shape:
Flat Button
IP Class:
IP67
Terminal Type:
Soldering Terminal
Certificate:
CE, Rohs, CQC
OEM&ODM:
YES
Package:
50pcs/box
Lamp color:
Red Green Yellow Blue White Orange

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
22X15X10 cm
Gross weight per batch:
1.2 KG
Package Type:
GQ12F-10PL 12mm Flat Button Latching Power Logo Metal Push Button Switch is 50pcs/box.
Lead Time :
7
Product Description
Model
12mm Flat Button Latching Power Logo Metal Push Button Switch
Rating
2A  36VDC
Function
Latching
Button Size
12mm
Led Lamp Color
Red Green Yellow Blue White Orange

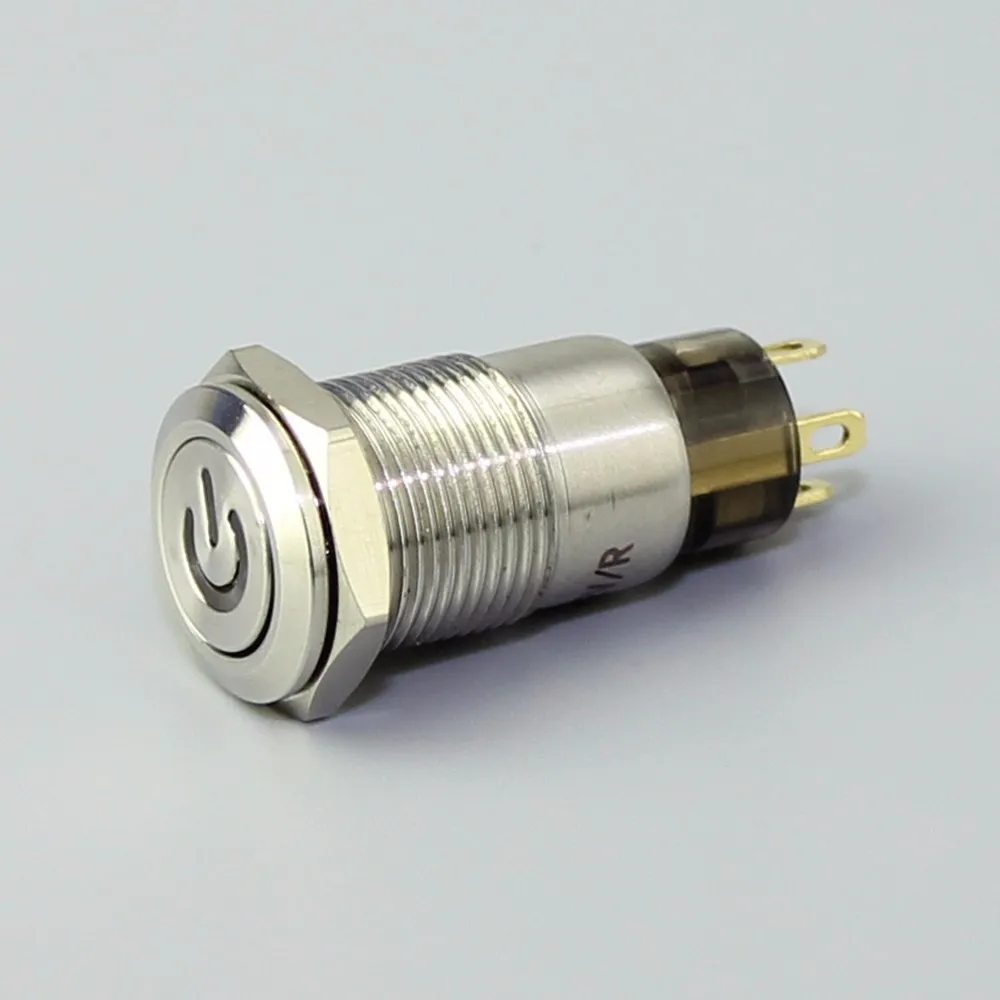

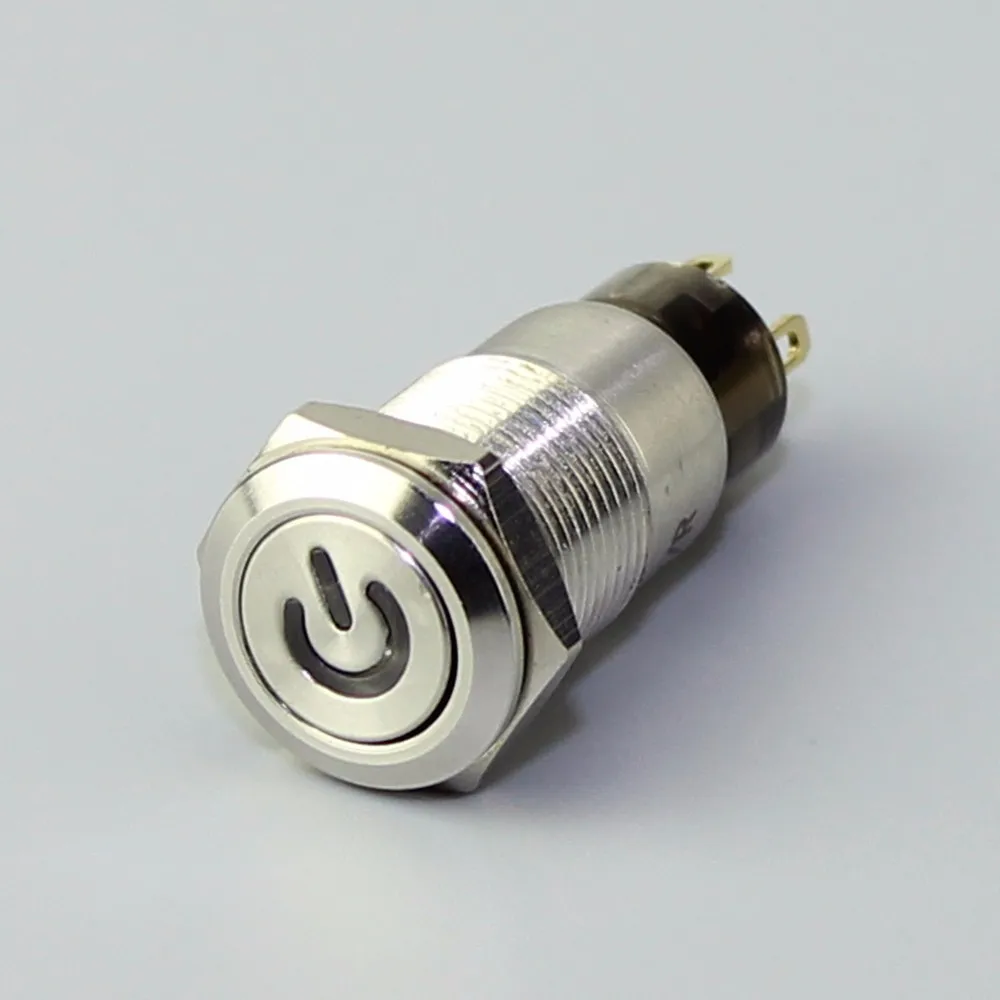

Product Show

GQ12F-10PL

Specifications:
1. Rating: 2A 36VDC
2. Electrical Life: 50,000cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000V RMS 50~60Hz
6. Operating Temperature:-40°C~+85°C
7. Function: Latching

8. IP Class: IP67 protection

9. Operating Force: 5N Max


Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
