13inch 8000W 273 50H V3 72V 10kW 10000W 20kW Peak Brushless DC Electric Scooter Wheel Hub Motor

$578.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
14 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
QSMOTOR
Model Number:
BLDC Motor
Usage:
Electric scooter/Motorcycle
Certification:
CCC, CE, ISO/TS
Type:
Gearless motor
Torque:
350N.m
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
IP54
Speed(RPM):
300rpm-1500rpm
Continuous Current(A):
138.8A
Output Power:
8000W
Voltage(V):
48V-144V
Efficiency:
85%-92%
Max. speed:
120km/h
Design:
BLDC Permanent Magnet Outer Rotor Motor
Color:
Black, White, Golden
Motor Manufacturer:
Taizhou Quanshun (QS) Motor Co., Ltd.

Packaging & Delivery

Selling Units:
Single item
Single package size:
43X43X43 cm
Single gross weight:
23.0 kg
Package Type:
QS Motor Standard export packing 1. polyfoam + carton box 2. Or according to customer's requirements
Picture Example:
package-img
package-img
Lead Time :
14

13inch 8000W 273 50H V3 72V 10kW 10000W 20kW Peak Brushless DC Electric Scooter Wheel Hub Motor



QS Motor Specification

  • Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
  • Brand: QS Motor,QSMOTOR
  • Motor Design: Double axle with 13inch moped Aluminum rim (integrated)
  • Rim size:13x3.5inch, Matching tire 130/60-13.
  • Magnet Height: 50mm, 16 pole pairs
  • Stator: Aluminmum Core
  • Rated Power: 8000W (could be 20kW peak in few seconds)
  • Rated Voltage: 96V as default (48V-144V, optional)
  • Speed: 120KPH as default (24-120KPH, optional)
  • kV: 6.0/9.0/13.0/14.9/18.0/19.4 etc.
  • Max Torque: approx 350N.m
  • Max Efficiency: 86-91%
  • Continuous Battery Current: 104A (96V)
  • Peak Battery Current: 210A (96V)
  • Suggest Peak Phase Current: 530-660A
  • Thermic Probe: KTY83/122 (as default, optional)
  • Working Temperature: 70-120℃ , peak 150 ℃
  • Brake type: Disc brake, PCD3*80mm-M8, CB 58mm(as default)
  • Drop-outs/Rear Fork Width for installation: 200mm
  • Dual Hall Set with waterproof connectors
  • 16mm² Cross Section of Phase Wire (not include insulation layer)
  • Hall Sensor Phasing angle: 120 degree
  • Waterproof Grade: IP54
  • Color: Black (as default), Yellow or White/Luminous (extra $5.0)
  • N.W./G.W.: 21.8kg/23.5kg   Package Dimension: 43cm*43cm*34cm/piece

PS. For delivery cost, please contact with us if it's not reasonable.

We will modify it after place the order on-line (before payment).

When place the order online, please leave the message about the KV and your E-mail address.

(For how to choose the KV, please feel free to contact with us. E-mail used for details confirm)

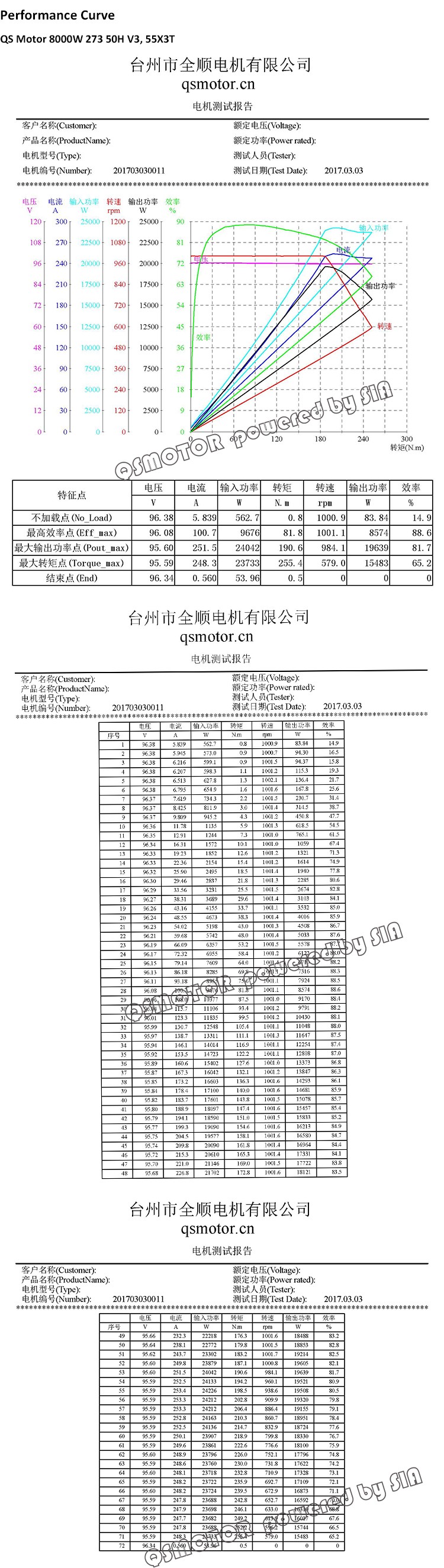

Performance Curve 1.jpg



More QS Motor Informaiton:

Optional Appearance, drawing, performance curve/test report are availablePlease refer to below hyperlink

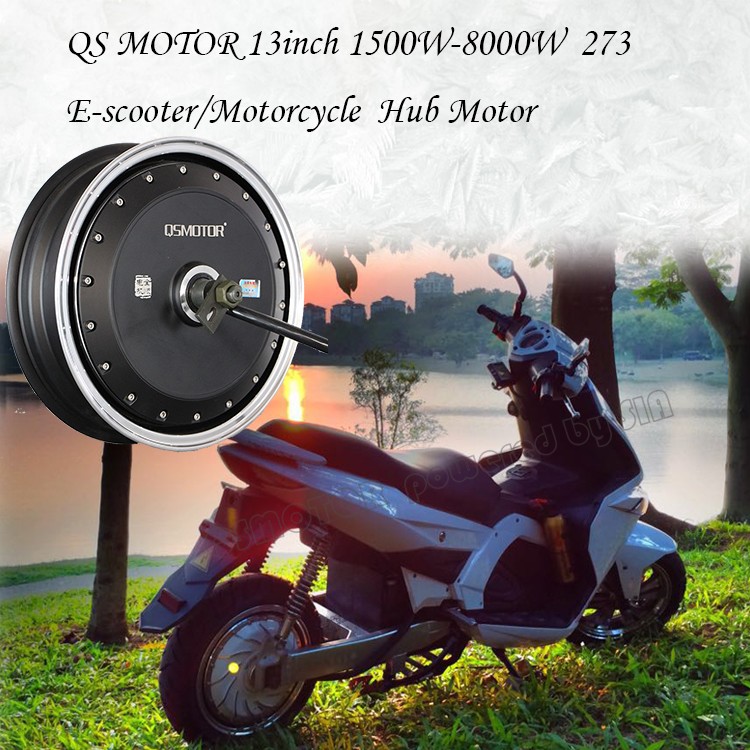

QS Motor 13inch 1500W~8000W 273 Electric Scooter Hub Motor

For more information, please feel free to contact with us.

13 273



No QS Motor, No Super EVs!
