140lm/watt 50Watt Led Street Light Source Module

  • 20-199 Sets
    $19.00
  • >=200 Sets
    $18.00
1 batch = 20 Sets
Emitting Color:
Cold White
- +
available
Warm White
- +
available
White
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
pcb circuit (Min. Order: 4000 Sets)
lens beam angle (Min. Order: 20000 Sets)
Contact Supplier
Samples - $20.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
DC 48V
Lamp Luminous Flux(lm):
7000
CRI (Ra>):
80
Working Temperature(℃):
-30 - 50
Working Lifetime(Hour):
50000
IP Rating:
IP67
Certification:
CCC, RoHS
Warranty(Year):
2
Place of Origin:
Guangdong, China
Brand Name:
SunshineOpto
Model Number:
SUN-SL72-3030-80X150
Beam Angle(°):
80x150
Application:
ROAD
Color Temperature(CCT):
Pure White
LED Light Source:
SMD3030
Lamp Luminous Efficiency(lm/w):
140
Lens Size:
250x74mm
Lens Angle:
80x150 degree
PCB size:
226x57.9mm
PCB circuit:
8 series 9 parallel
Match Led:
3030 led
Kit:
led lens +silicon gasket +pcb +leds+heat sink
Keyword:
50 watt led module

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
55X33X21 cm
Gross weight per batch:
20.0 kg
Package Type:
100pcs/Cartons
Lead Time :
Quantity(Set) 1 - 500 501 - 10000 >10000
Est. Time(days) 10 18 To be negotiated
Specification
Product Information
Module No
SUN-72H1-3030
Lens Angle
80x150 degree
Lens Size
250x74mm
PCB Size
226x57.9x1.5mm
PCB Circuit
8 series 9 parallel
Match led
3030 leds
Kits
led lens+silicon gasket+pcb+leds+heat sink

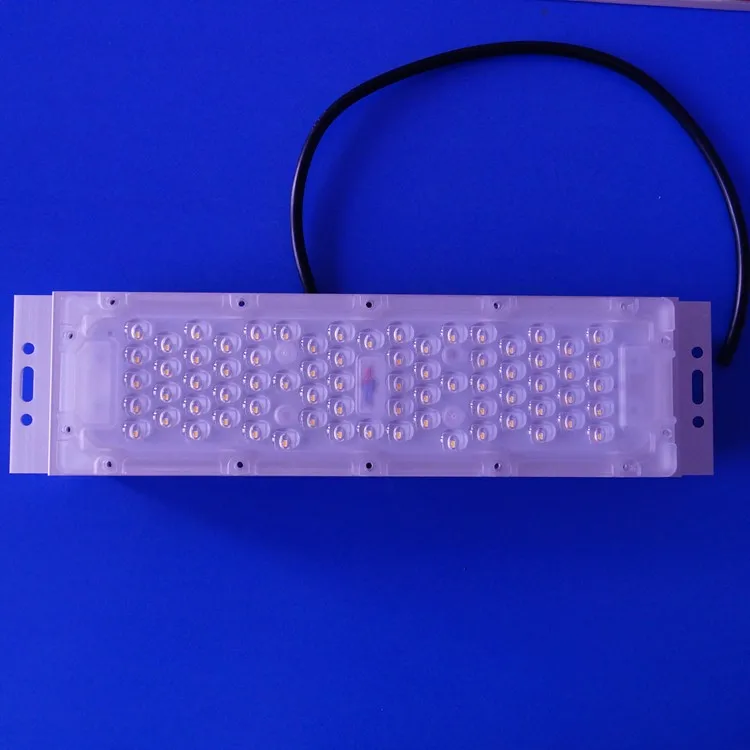

Product Description

PCB Board Details


PCB Size :226x57.9mm

PCB Circuit :8 series 9 parallel

Match Led :3030 led

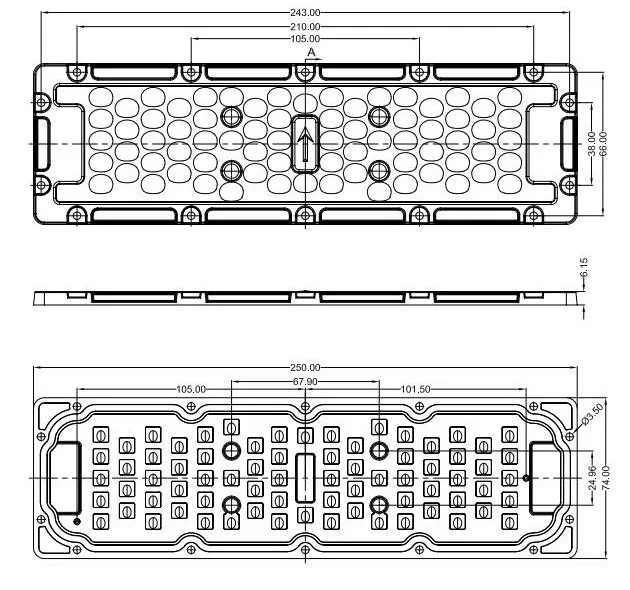

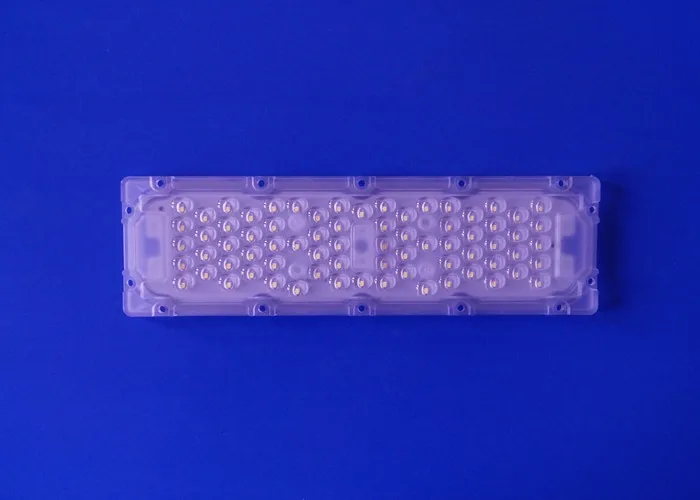

Led Lens Details


Lens Size :250x74mm

Lens Angle :80x150 degree

Lens material :optical grade PC

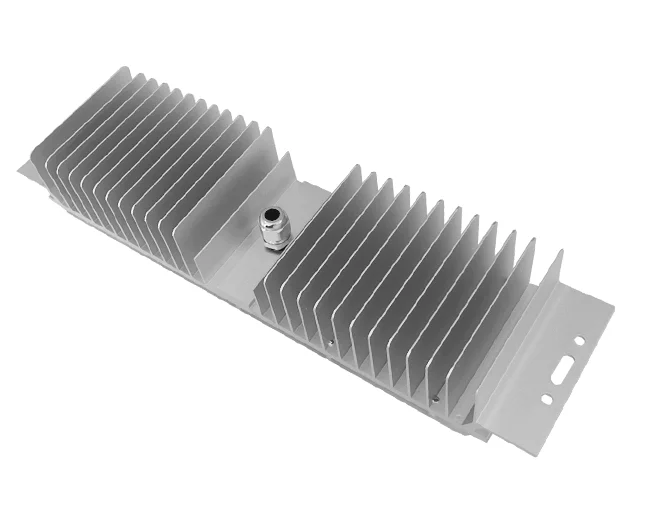

Aluminum Heat Sink Details


Heat sink Material :Aluminum
Size :300*75*40mm

With waterproof connector .


SMD Led Module
PH 3030 50W module
PH 5050 100W module
CR 3535 30W module
PH 3030 UFO module
60,90,80X150 degree
     30,60,90,80x150,       90x120 degree
120 degree
60,90,120 degree
For 64pcs 3030 leds
For 28pcs 5050 leds
For 30pcs 3535 leds
For 204pcs 3030/2835 leds

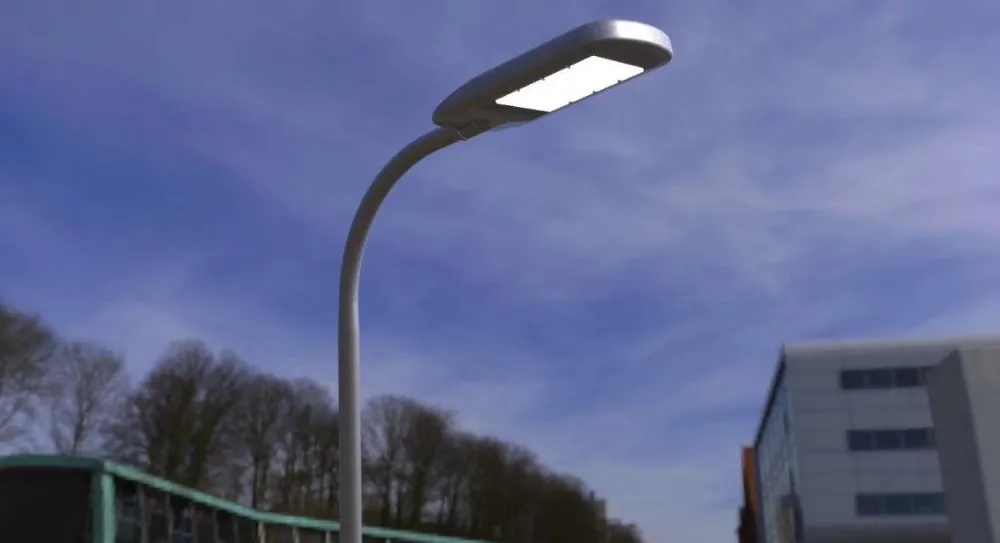

Applications
Shipping&Package
Certifications
FAQ

Q1. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q2. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q3: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.
