150W /m2 foil heating mat /underfloor heating mat

  • 2-29 Square Meters
    $54.00
  • 30-99 Square Meters
    $53.50
  • >=100 Square Meters
    $52.00
Material:
Other
$
- +
available
fluoropolymer inner insulation
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 3000 Square Meters)
Customized packaging (Min. Order: 3000 Square Meters)

More

Graphic customization (Min. Order: 3000 Square Meters) Less
Contact Supplier
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Color:
silver
Place of Origin:
Anhui, China
Brand Name:
Anbang
Model Number:
ABFDX-150-8.0
Type:
Floor Heating Parts
Floor Heating Part Type:
Floor Heating Mats
Insulation Material:
fluoropolymer inner insulation
Application:
kitchen,bathroom, bedroom, living room, indoor use
Size:
0.5 meter width, 2~24 meters length
Cable construction:
Twin Conductor
Cold lead:
2.5m length
Heating cable spacing:
80mm
Voltage:
110V ,230V
Temperature range:
0-65℃
Construction:
PTFE wire encased in aluminium foil
Approvals:
CE,RoHS,EAC,SGS,ISO9001,UL

Packaging & Delivery

Selling Units:
Single item
Single package size:
15.5X15.5X51.5 cm
Single gross weight:
0.800 kg
Package Type:
White box and export carton.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Square Meters) 1 - 30 31 - 100 101 - 200 >200
Est. Time(days) 5 10 15 To be negotiated
Video Description
Product Introduction

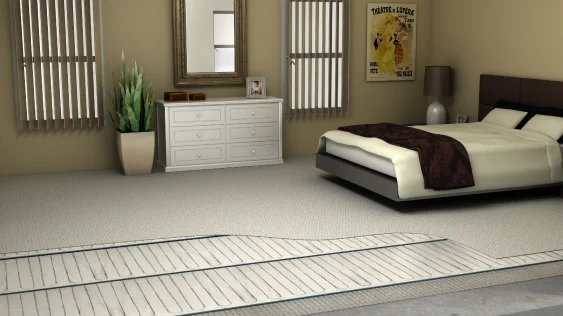

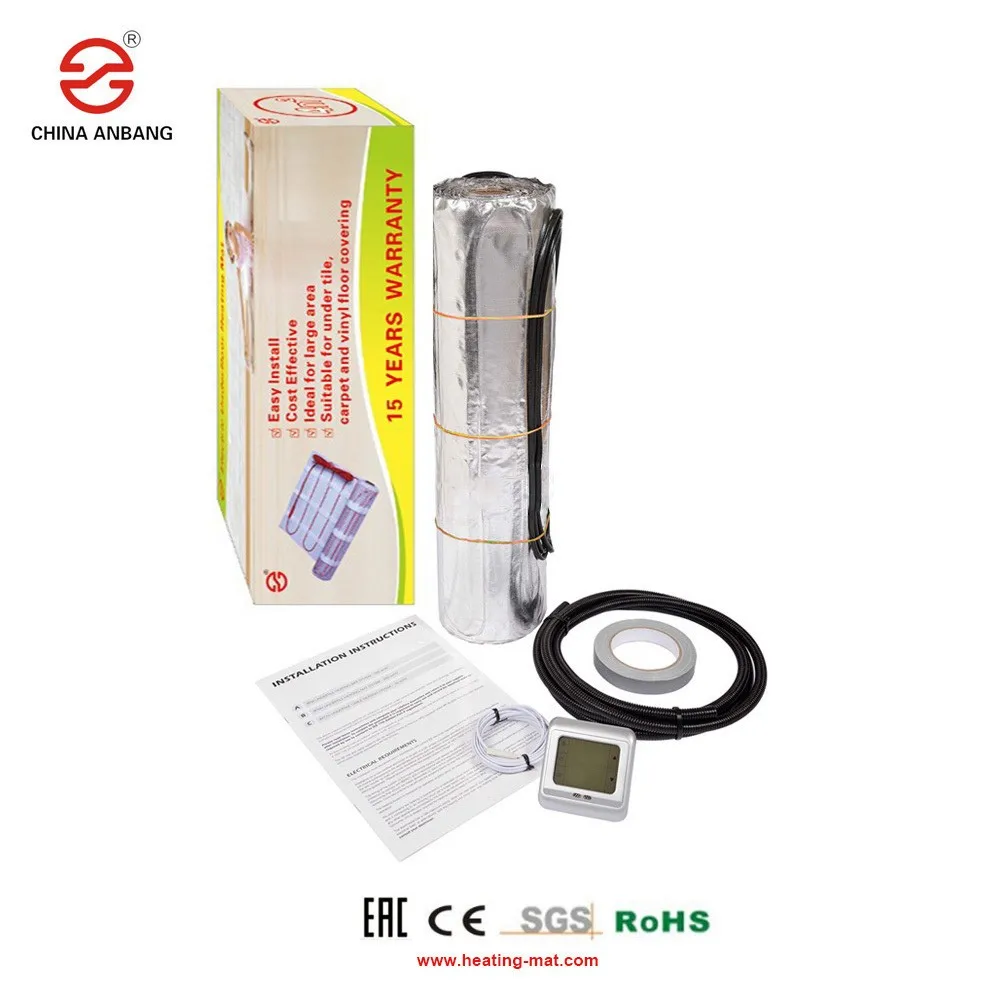

Aluminum Foil Heating Mat used for carpet/laminate

Anbang foil heating mat is a streamlined electric radiant floor heating system designed for using with laminate,engineered wood ,undercarpet and other floating floors.It can be conveniently installed under the floor finish in both dry and wet areas without the need for additional grounding.

Features

*Installed directly under floor finish;no self-levelling required

*Grounded flat aluminum foil won't raise floor levels

*Wire based system can be adapted to fit around objects

*Great for heating under carpets and floating floors such as laminate and hardwood

Product Parameters
ABFDX
Specification
Operating voltage
110V and 230V
Cold lead
2.5m
Temperature range
0-65℃
Heat resistance temperature
190℃
 Minimum working temperature
 -30℃
Power
12W/M
Construction
PTFE wire encased in aluminum foil
Shield
Al foil and Cu wire
Conductor
Solid heating core
Output rating
150w/m2
Heating cable Spacing
80mm
Warranty
15years
Standard power
can be customized
OEM service
Large order or long term cooperate relationship provide the customized service
Sample
Available. just tell us the specifications
Delivery time
Normally within 7-15 days, large order should be negotiated.
Services
Free design and installation guide
Application
Heating and thermal insulation indoor,floor heating system,electrical floor heating system
Approvals
CE,RoHS,EAC,SGS,ISO9001
Product Details Show
Specifications
Specifications
Power Output (W)
Mat size (m*m)
Area (m²)
Inner Box Size (cm)
Quantity per carton(pcs)
Carton Size (cm)
ABFDX-150-1.0
150
2*0.5
1.0




13.5*13.5*51.5




8pcs/ctns




55.5*28.5*53.5
ABFDX-150-1.5
225
3*0.5
1.5
ABFDX-150-2.0
300
4*0.5
2
ABFDX-150-2.5
375
5*0.5
2.5
ABFDX-150-3.0
450
6*0.5
3.0
ABFDX-150-3.5
525
7*0.5
3.5
ABFDX-150-4.0
600
8*0.5
4.0



16*16*51.5



6pcs/ctns



49.5*33.5*53.5
ABFDX-150-5.0
750
10*0.5
5.0
ABFDX-150-6.0
900
12*0.5
6.0
ABFDX-150-7.0
1050
14*0.5
7.0
ABFDX-150-8.0
1200
16*0.5
8.0
ABFDX-150-9.0
1350
18*0.5
9.0


18.5*18.5*51.5


4pcs/ctns


38.5*38.5*53.5
ABFDX-150-10.0
1500
20*0.5
10.0
ABFDX-150-11.0
1650
22*0.5
11.0
ABFDX-150-12.0
1800
24*0.5
12.0

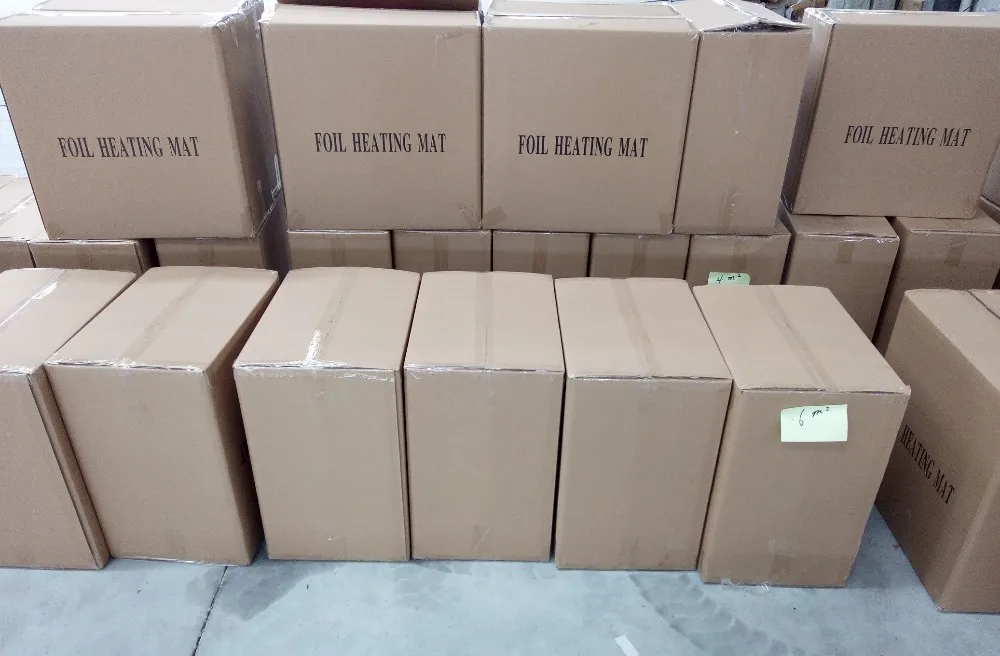

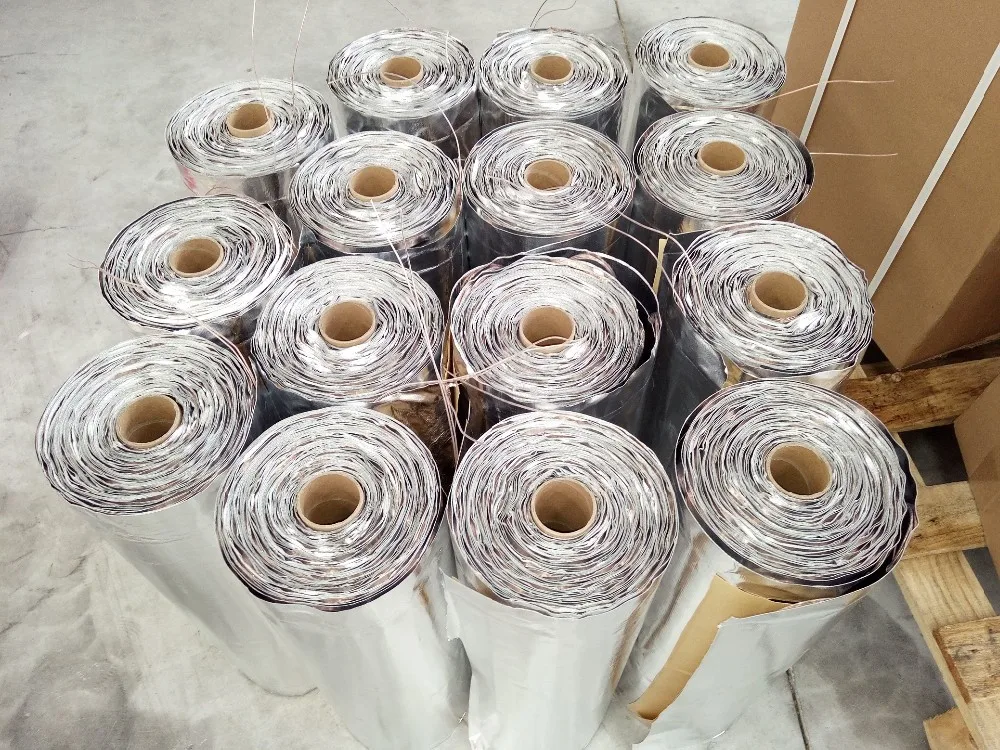

Product Packing
Why Choose us

A.Punctual delivery time:

We promise your order will punctual delivery to you

Sample delivery time within 2 days, the order product delivery time within 15days

Shipping notice and photos sent to you as soon as your order is shipped.


B.After sales service:

We Pay high Attention To Your Feed back after receive the goods.

We Provide 12 months warranty after goods arrive.

We Promise All Parts Available in life time use.

We Positively Revert Your Complain Within 48hours.


C.Professional Sales:

We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.

We Are A Sales Team, With All Technical Support From Engineer Team.


D.Product Logo:

We have professional engineers, and since the company was set up, we are professional in provide OEM and ODM service.

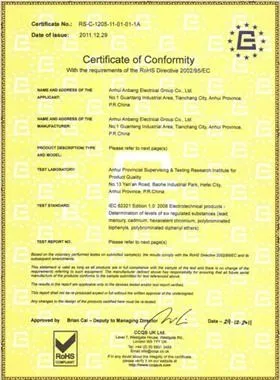

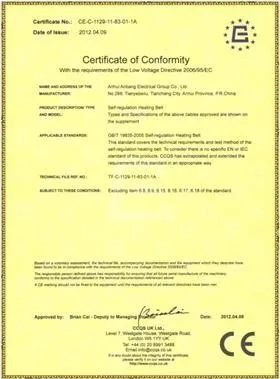

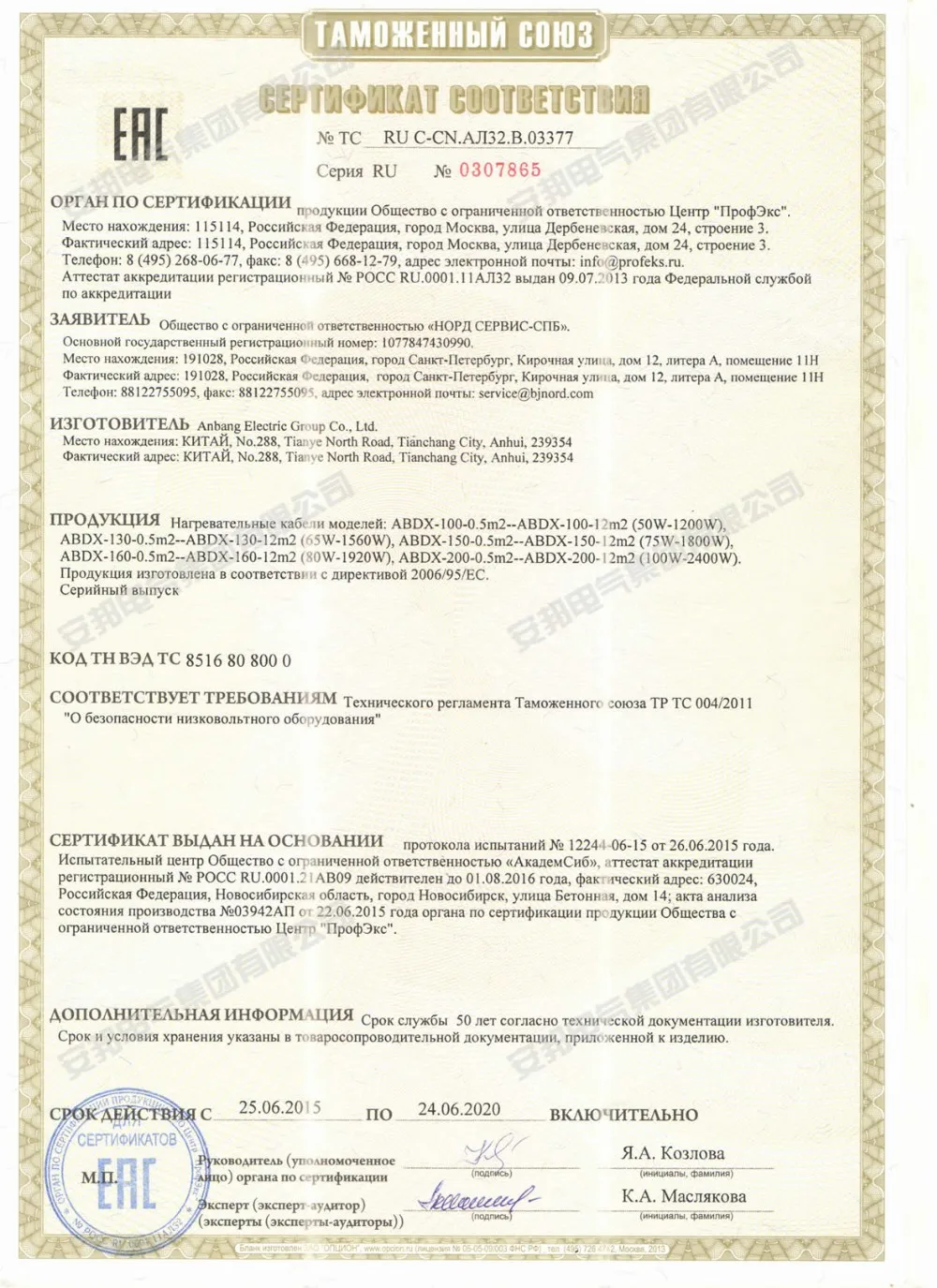

Certifications

Company Profile


Welcome to Anbang, built in 2004, Register capital to be a RMB103million. Anbang group is a professional production of various types of electric tracing cables enterprise, located in Tianchang City, Chuzhou, Anhui province, which is 110km far away from Nanjing Airport, Headquarters is located in Beijing world trade center. We are the leading enterprise in the field of electrical heating.


Our factory covers 63000 square meters and own more than 300 employees.Our enterprise through the ISO9001:2008 quality management system certification; ISO14000 environment management certification. The products have CE,ROHS,EMC certification,


We have advanced equipments, high technology and an excellent quality inspection system that strictly performs under the quality control of ISO9001. Our main products: electric heating cable; electric underfloor heating mats; self-regulation heating cable MI heating cable etc. are popular for indoor floor warm use and outdoor snow melting use; pipeline freeze protection. Our mainly markets for America, Europe, The Middle East and Asia neighboring countries.


The company has always attached importance to technical innovation and quality management, focus on the introduction of the outstanding talented person and the advanced equipment, now our products of high quality and because of its superior performance. We sincerely hope to establish business relations with customers from all over the world.



Frequently Asked Questions


1.Can I place a sample order first?

Yes, we will quote you different prices for small, medium and large quantity. You can order with different price for different quantity.


2.How to place the order?

Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.


3.What is the lead time for mass production after sample approved?

15 workdays after sample confirmed.


4.How to send us the products?

We usually use DHL, UPS, FedEX to ship samples. For bulk orders, we support shipping by air or by sea.


5.Can you do OEM and ODM for us?

Yes, we are professional in providing OEM and ODM service.We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions.


6.What is your trading term? And what payment way are accepted?

We always do FOB term, and you could make the payment by T/T, Paypal,Western Union.So just tell us which is easier to you. Then we will send you our bank details. Or as your requirements.
