15kw Three Phase Permanent Magnet Synchronous Motor

Feedback Ratings
  • 1-4 Pieces
    US $4219.00
  • >=5 Pieces
    US $4209.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
LS
Model Number:
LS-15KGM1
Type:
Motor
Rated Power:
15kw
Max Power:
17kw
Rated Voltage:
400v
Rated rotated speed:
170r/m
Top net weight:
200kg
Output Current:
AC
Start Torque:
1.58Nm
Rated Torque:
950.7Nm
generator:
3 phase permanent magnet synchronous generator
Service Life:
More the 20 years

Packaging & Delivery

Selling Units:
Single item
Single package size:
65X76X58 cm
Single gross weight:
278.0 KG
Package Type:
Wooden box packing
Lead Time :
15
Product Details

15kw Three Phase Permanent Magnet Synchronous Motor


Features

1.Our products adopt NdFeB as magnets, which is called the king of magnetic, to ensure the product is effective in 20 years

2.High electric conductivity coil: low capacity

3.Swirl design: peaceful, exquisite, light and handy

Product Parameters
Model
LS15KGM1
Rated Power(w)
15kw
Max Power(w)
 17kw
Rated Voltage(v)
400v
Rated rotated speed(r/m)
170r/m
Top net weight(kg)
200kg
Output Current
AC
Start Torque(N*M):
1.58Nm
Rated Torque(N*M):
950.7Nm
generator
3 phase permanent magnet synchronous generator
Insulation Class:
F
Service Life:
More Than 20 years
Bearing
HRB or for your order
Shaft Material
Iron
Shell Material
Carbon Steel
Permanent Magnet Material
Rare Earth NdFeB
Protection Grade
IP54
Lubrication
Lubrication Grease
Working temperature
-40℃ - 80 ℃

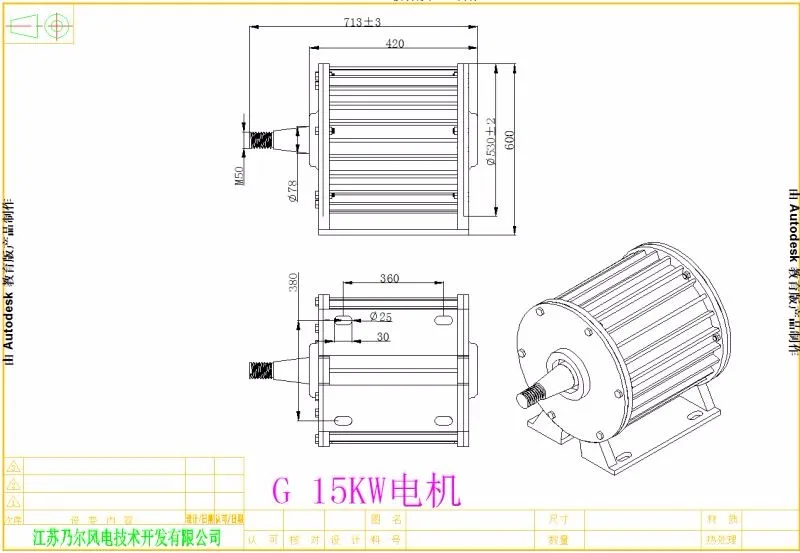

Structure Diagram
FAQ

1) What are the major components of a standalone wind energy system?

Ans.: A standalone wind energy system usually consists of a small wind turbine and its supporting structure (e.g. pole fixed in position by guywires), a charge controller and a battery bank If the loads demand AC supply, an inverter for converting DC to AC will be necessary

2) Are small wind turbines noisy?

Ans.: Small wind turbines usually have DC generators, and they need to rotate rather fast in order to produce sufficient output This causes a bit of noise when the wind is strong. Depending on the our special design, our turbines are quieter than the others

3)How can I connect small wind turbine to the AC distribution system of a building or a site?

Ans.: A grid-tie inverter with specifications meeting the guidelines given in the technical guidelines on grid connection of small scale renewable energy power systems and the requirements of the power company, is needed for converting DC output of the small wind turbine into AC for grid connection

4)Do I have to lower a small wind turbine when typhoon is approaching?

Ans.: If small wind turbine has a low survival wind speed, you may have to lower it when a typhoon is approaching On other hand, if survival wind speed is high and if the manufacturer suggests that there is no need to lower the turbine, then such kind of procedure will not be necessary
