1D 2D handheld Wireless IOS Android mini mobile Bluetooth barcode scanner

  • 1 - 99 Pieces
    $35.00
  • 100 - 999 Pieces
    $32.00
  • >=1000 Pieces
    $30.00
Model Number:
S05
Lead Time:
Quantity(Pieces) 1 - 50 51 - 500 >500
Est. Time(days) 3 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CCD, laser
Colour Depth:
32 Bit
Interface Type:
USB, bluetooth
Optical Resolution:
3mil
Scan Speed:
500 Scans/sec
Brand Name:
CMX
Place of Origin:
Guangdong, China (Mainland)
Product name:
barcode scanner
Battery:
Rechargeable Li-ion Battery 1000mah
Certificate:
CE, RoHS,FCC
Scanning range:
1D, 2D
Interface:
keyboard wedge, RS232, USB, bluetooth
Color:
Black
Anti-knock:
1.8m fall to cement
Warranty:
1 Year
Bluetotoh Interface Type:
bluetooth 4.0
Bit error rate:
1/5 million
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month barcode scanner
Packaging & Delivery
Packaging Details

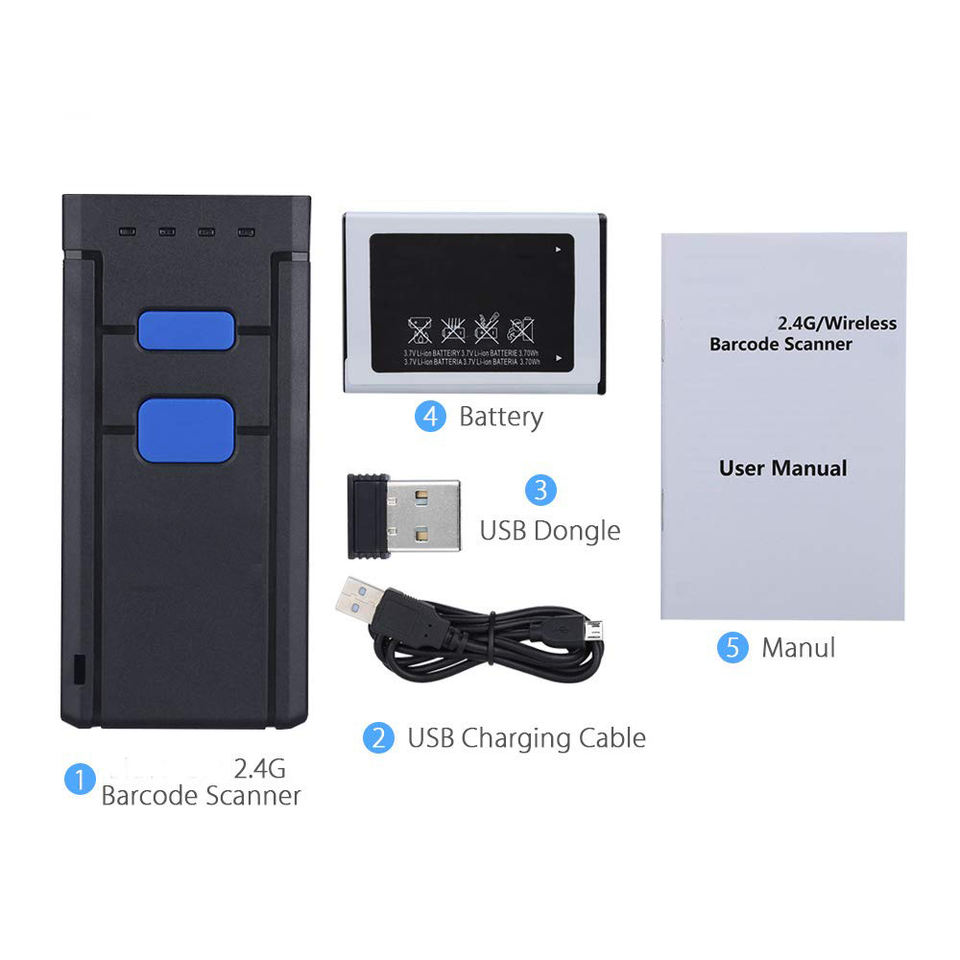

BS05 scanner+adapter+USB cable+hand strap+Manual+gift box
OEM/ODM is avaliable for barcode scanner
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 50 51 - 500 >500
Est. Time(days) 3 5 To be negotiated

1D 2D handheld Wireless IOS Android mini mobile Bluetooth barcode scanner

Product Description
Advantages of barcode scanner BS05

1.It is of great conviniece that the machine can be charged by USB or the any Andrews mobile phone data cable.



2.With imported parts,button lifetime up to 10 million times.The button can protect the machine by automatic sleep.(After 20 seconds or 1 minutes,the machine will sleep automaticly and the time can be set youself.)

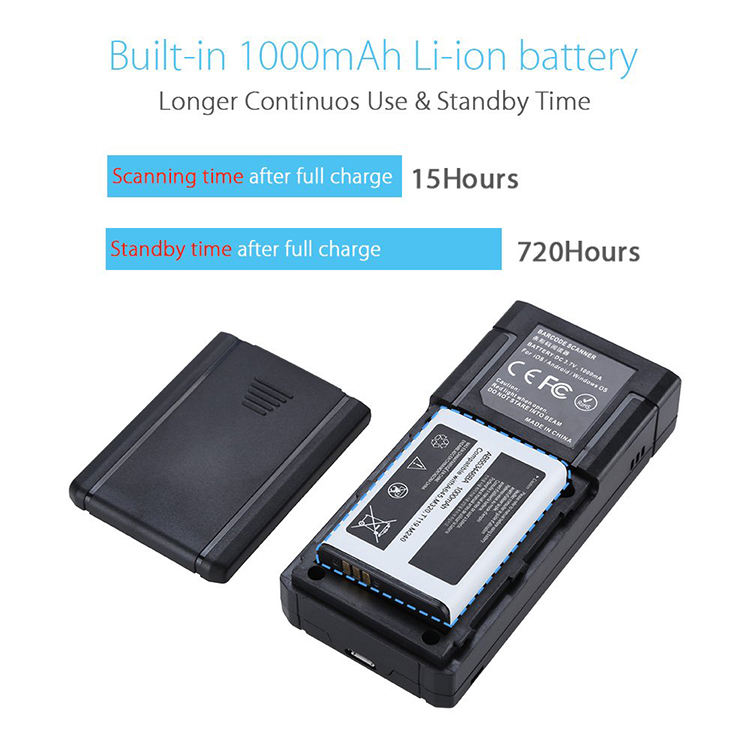

3.Equiped with a large capacity battery which can be filled in an hour.(Once charged,the battery can be standby 150 hours,or 72 hours of continuous work.)If you nwant to buy more batteries,please contect customer service.



4.Equiped with Bluetooth 4.0 receiver,if the connection suddenly done,a FLASH can save thousand of bar code information and upload to the receiver automaticly after it conneted to computer.When it connected to IOS phone,the phone can use the keyboard at the same time while the Android phone can’t use the keyboard.



BS05 barcode scanner application fields:

  • Independent Intellectual Property Rights
  • Portable
  • Three scanning modes: continuous mode, manual mode, auto close mode
  • Feedback by LED indicator and buzzer
  • Long working time for single charging
  • The tone of barcode reading can be changed through reading setup barcode
  • Built-in 16M memory can store more than ten thousand barcodes
  • Support Bluetooth SPP, HID
  • The transmit format, data editing and barcode type can be changed through reading setup barcode



Specification for BS05 barcode scanner :
Performance Parameter
Type CMX-BS05 portable bluetooth barcode scanner
Light SourceLaser/Visible red light 632nm LED
CPU ARM Cortex-M3,32-bit
colorBlack
PowerWorking current 100mA Standby current 30 mA
Barcode Types

1D:UPC/EAN/JAN.UPC/EAN with Supplemental,UCC/EAN 128,Code 39,MSI,Code11,

Code 39 Full ASCII,Code 39 Trioptic,CodeBar,Code93,Discrete2 of 5,IATA,RSS variants,

interleaved 2 of 5 and China post code,GS1 DataBar etc
          2D:QR code,Micro QR code,PDF417,Micro PDF417,Data matrix,Aztec,Maxi code ,

Hanxin code etc

Communication distance10 meters visual range,80 meters effective open distance
BluetoothBluetooth class 4. 0 virsion+EDR

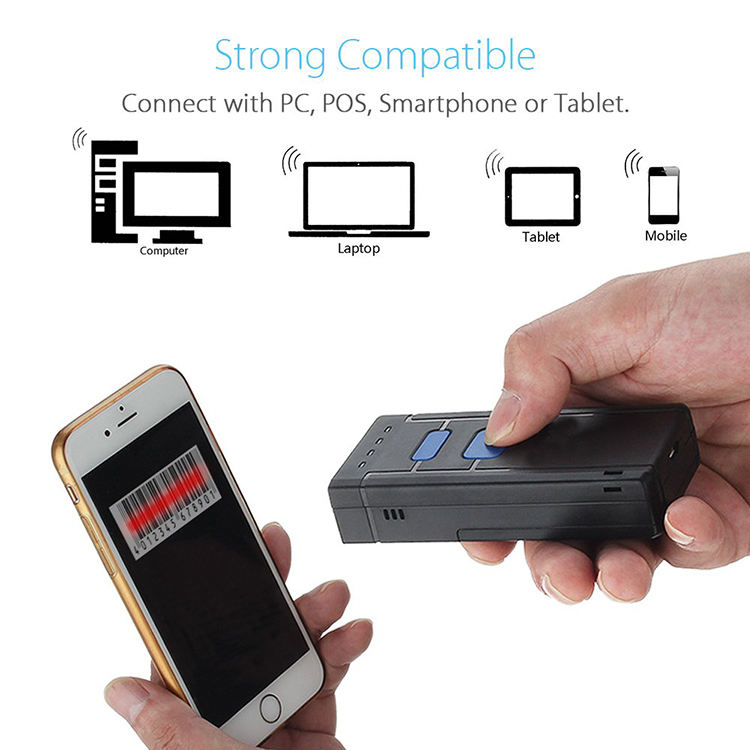

OS SupportedIOS,Android and Windows systems
Resolution4mil(0.102mm)@PCS 90%
Depth of scan field500mm@20mil/0.5mm,PCS90%
Decode error rateLess than 1/5 million
Scan angleYaw(Skew)60 º  Pitch 60 º
Cylinder Horizontal scanDiameter35mm
Scan speed500times/second
Mechanical and Electric Performance
Size(Length x Width x Height)100mm*46mm*21mm
Weight (except cable)150g(with battery)
IndicatorBeeper,indicator
BatteryDC 3.7V,1000mA Li-ion battery
Scanner materialEco-friendly,ABS
Charging Current450ma
Accessory List
Data lineMicro USB data line
Bluetooth adapter adapter for Bluetooth and 2.4G
Li-ion battery1000mah battery
Sling 1 piece
Operation Manual1 Piece
Environmental Parameter
Storage Temperature -40°C ~ 70°C
Working Temperature-15°C ~ '60°C
Relative Humidity0 ~ 95%
Drop test 2 meters fall into concrete for several times



Related Products
Related hot sell product:

PDA3506 Android6.0 with 3g, wifi, gps, nfc reader, bluetooth, camera, printer, 1D/2D scanner, IC card reader, Fingerprint reader, UHF reader optional.
PDA401 Android 6.0 with 4g,wifi,gps,nfc,bluetooth,camera,1D/2D scanner optional.
S06 barcode scanner wired wiress 1D 2D barcodes read optional.
CMX5806 2inch printer bluetooth support Android and IOS, USB support windows PC.Arabic Spanish multi-language printing.

Our Services



Company Information
Company Details and Certificate

Welcome to Shenzhen Chainmax Technology Co.,Ltd



We are a professional expert of POS hardware solution. Products range from all-in-one touch POS, thermal printer, barcode printer, Dot matrix printer, barcode scanner, pos machine, data terminal etc.which are widely used for retailing, restaurant, bank, lottery, transportation, logistic, and other applications. We have CE, FCC,RoHS and other required certifications.



We warmly welcome all inquiries for our existing product line, as well as new development and OEM projects. We at CMX guarantee to provide you with high-quality products at competitive prices with excellent after-sales service barcode scanner.





FAQ

1.Are you manufacturer?



Yes,we are manufacturer profession in thermal printer,pos machina,barcode scanner etc;



2.Would you provide SDK for me?



Yes,we offer free SDK if order sample barcode scanner.



3.What is the minimum order barcode scanner?

barcode scanner

one sample order is acceptable,if require OEM.We can confirm further.



4.What the after sale service barcode scanner?



a.Our all products will provide 1 year warranty.



b.if there is no Man-made problem,we will replace or repair for your freely.1% extra device and spare parts will be provided when bulk order barcode scanner



c.Professional engineers provide 7*24 online service



Welcome to contact us as below:
