1m Stroke Draw Wire Position Linear Sensor with 6 Digit Digital Meter Counter Display BL9648

  • 1-4 Sets
  • >=5 Sets
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Model Number:
Position Sensor
Optical Sensor
Digital Sensor
measuring distance:
pull speed:
operating temperature:
storage temperature:
-20~80 celsius
wire rope 0.6~1.2mm wire maximum load 16KG
voltage supply:
protection degree:
theory of infinite
Pushpull output with ABZ 3 signals
counter dimension:
96* 48 *115mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X10X10 cm
Single gross weight:
0.9 kg
Lead Time :
Product Description

draw wire position sensor distance measuring device

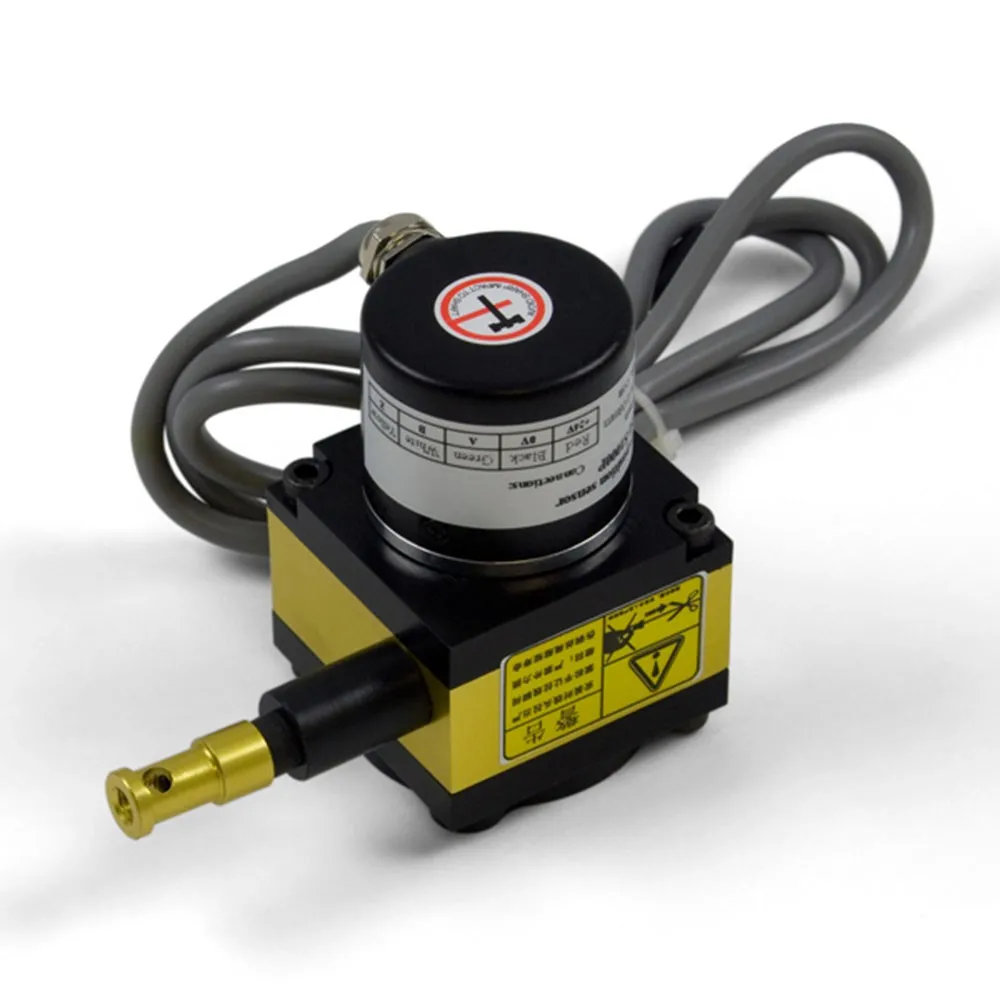

Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.
Application areas
Linear guide system, the direct determination of the guide element, such as: the length limit, gantry cranes, level measurement
Hydraulic system, with the piston-oriented systems or hydraulic cylinder, the displacement sensor deflection of these devices to collect data
Scalable systems, such as presses, lifts, bending machine, bending machine
Chains, cranes and cable winch to adjust, such as forklifts, stage equipment, lifts and cranes device.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Title goes here.

Measuring Range :0~1000mm
Detection method : Incremental encoder
Revolution:0.3mm/pulse Rope :wire rope 1mm, Plastic coated wire rope ,rope maximum load: 16KG
Supply Voltage :24V Dc
Signals output : Pushpull with A B Z 3 channels
Red=VCC, Black = 0V, Green = A, White = B, Yellow = Z

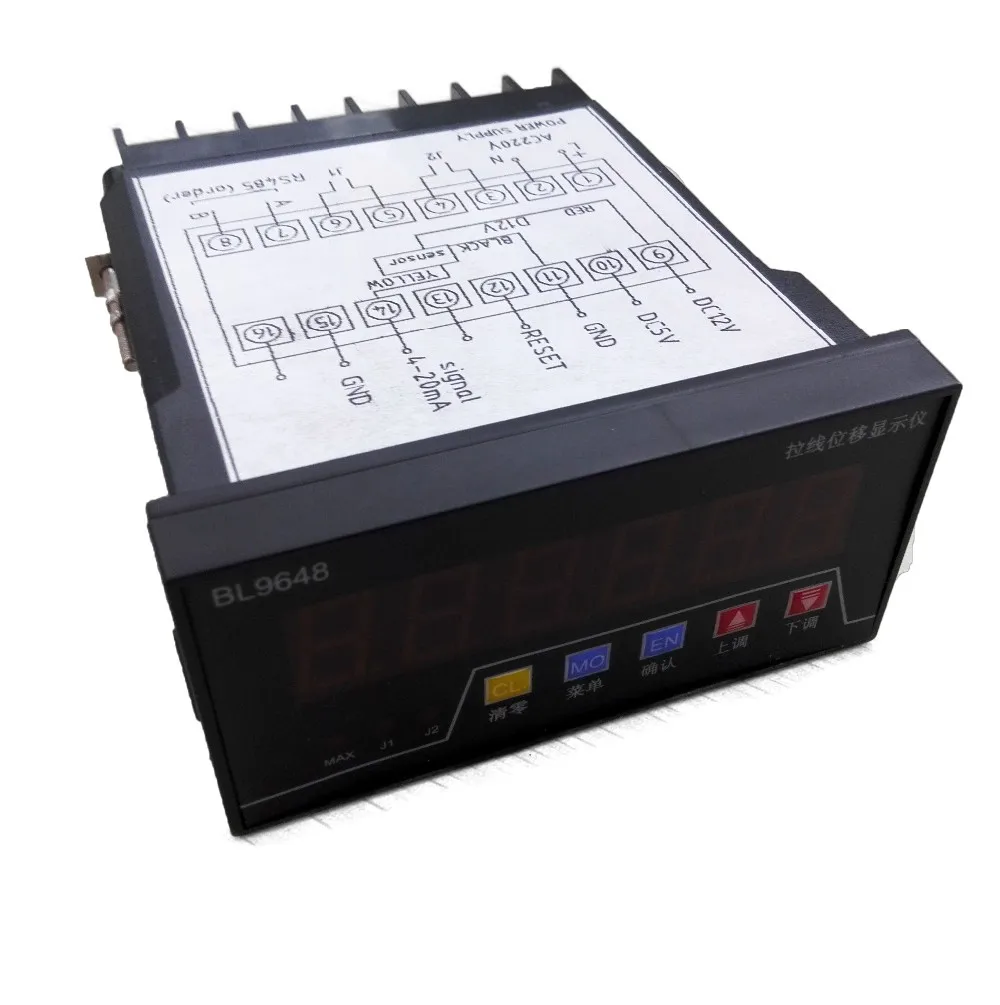

The counter display

standard 96 × 48 × 115mm, 0 .56 inches 6 digitals display
Enter the 4-20mA ,0-5v ,0-10k, 0-5k mv signals.
Power supply: 24VDC
Magnification range: 0.000 to 999.999
Display range: -999999 to 999999
Set zero with external switch control
Installation: Snap
Optional three kinds of relay output.
Set two controlled values, two relay outputs can be used for control or alarm. Calibration function: Set 9 calibration points, in order to achieve linear differential fill feature. Ratio can be set, determines the ratio between input signal and displayed value. can count / measure speed, via the internal parameter settings. Can automatically reset the time delay.

Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.

Factory Building

9# 302, No. 4361 Hutai Road, Baoshan District, Shanghai

*Please contact with us if you need other stroke range or output

Package Included:
1x position sensor +1x display
