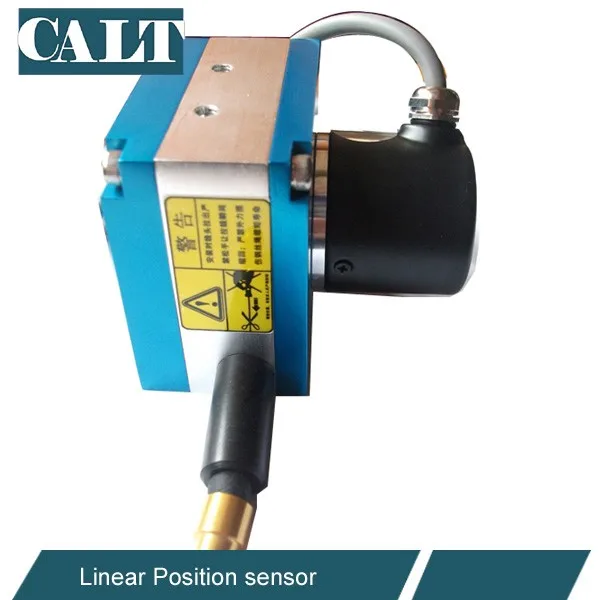

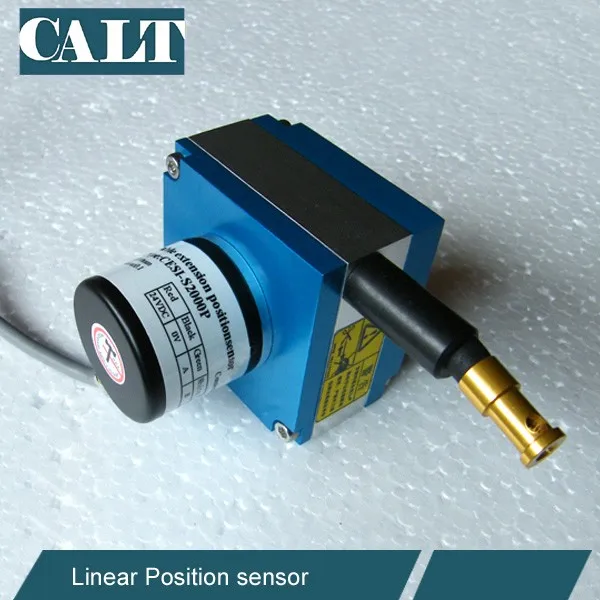

2 meter length high quality linear position sensor push pull cable transducer

  • 1-4 Pieces
    $142.00
  • 5-49 Pieces
    $132.00
  • >=50 Pieces
    $115.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
CALT
Model Number:
CESI-S2000P
Usage:
Position Sensor
Theory:
Resistance Sensor
Output:
Digital Sensor
Range:
0-2000mm
Output Signal:
ABZ in the phase
Detection Method:
Incremental Encoder
Resolution:
0.01,0.02,0.04,0.08 mm / plus
Supply Voltage:
10-30V DC, 5V
Operating temperature:
-20-80℃
Starting Torque:
<700g
Frequency response:
10K Hz to 50k Hz
Current consumption:
≤60mA
Speed:
1m/s

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X15X15 cm
Single gross weight:
2.0 kg
Lead Time :
5
Product Description

high quality linear position sensor rotary position transducer


*compact size, rugged construction, easy to install
*economic cost, and cost savings for customers
* Various signals output optional: push-pull, TTL, open collector and so on
*The cylinders, testing machines and other industry has achieved large-scale applications, reliability
Related Products

Solid shaft type GHS38 Series.

Widely used in automatic control, automatic measurement, as the angle and speed sensors.


ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water

Servo-motor Encoder GSM48 Series.

Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting.


Internal ASIC devices, high reliability, long life, strong anti-interference. Wide range of resolutions, and does not require signal conditioning.  With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL

Hollow Shaft Type GHH38 Series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Hollow Shaft Type GHH100 series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Manual Pulse Generator TM1469 series.

For CNC machine origin correction and signal split.


 Full plastic housing, high dielectric strength, the axis transfer switch and Oil Pollution Prevention seal design.

Draw-wire Position Sensor CESI series.

compact size, rugged construction, easy to install

economic cost, and cost savings for customers
Various signals output optional: push-pull, TTL, open collector and so on


The cylinders, testing machines and other industry has achieved large-scale applications, reliability

Our Factory
Packing & Delivery

Packing Details  : carton packed for each encoder or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.

1. Rotary encoder pack box 2 layers.
2. All packed good
3. Encoder module disc in plastic box
4. Ziplock packed for flexible coupling
5. Rotary encoder packed well
6. Packed with good conditions with shipping mark.
Welcome To Factory
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-8 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.


SERVICE:

ON LINE TALKING OR SEND YOUR REQUEST BY EMAIL DIRECTLY. WE WILL REPLY YOU WITHIN 24 HOURS.
