2000L for restaurant craft beer fermenter/unitank

FOB Reference Price:Get Latest Price
$5,150.00 - $5,250.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QH-2000L
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
QIHUI-Fermenter
Processing Types:
Alcohol
Voltage:
380V/3PH/50Hz
Power(W):
15-70Kw Depends
Dimension(L*W*H):
Capacity Request
Weight:
398kg
Certification:
CE ISO
Warranty:
5 Years
After-sales Service Provided:
Free spare parts, Engineers available to service machinery overseas
Product Name:
2000L for restaurant craft beer fermenter/unitank
Material:
Stainless Steel 304
Function:
Beer Fermenting
Keywords:
2000L Hotel Craft Beer Conical Fermenter
Application:
Brewpub, home, hotel, bar, restaurant
Control system:
Semi-automatic
Glycol cooling jacket:
Dimple cooling jacket
Bottom cone:
60 Degree
Insulation material:
Polyurethane
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
2000L for restaurant craft beer fermenter/unitank
1.LCL/FCL(20GP/40GP/40HQ)
2.Packed with plastic film in wooden case or fixed with iron frame
3.Up to export standard, suitable for delivery
4.Customer's requirements avaliable
Port
FOB Qingdao



2000L beer fermenter/unitank

Product Description

 Fermenters are also called CCT'S(Cylindrical Conical Tanks), FV's(Fermentation vessel), primary fermentor or unitanks as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

Our stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as over-pressure and under pressure valve, CIP arm, sanitary sample valve, manway, etc. The design of fermenters is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting&lagering capacity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.



Stainless steel conical beer fermenter tank are mostly used in microbreweries.

Our standard commercial conical fermenter with 60 degree bottom cone and side manhole.

The standard vacuum relief valve at 2 bar. We accept customization if you have any special requirements.



Detailed configurations list of 2000L Conical fermenter

1

Total capacity

2800L

2

Effective capacity

2000L

3

Tank size

D1560*H3165mm

4

Material

SUS304

5

Exterior shell

2mm

6

Dimple cooling jacket

1.5mm

7

Interior shell

3mm

8

Insulation material

Polyurethane

9

Insulation TH

80mm

10

Top type

Dished head

11

Manhole Type

Side Manhole

12

Manhole size

Oval manhole 530x430mm

13

Bottom cone

60 degree

14

CIP pipe Diameter

Φ32

15

CIP ball(1)

360º Rotating spray ball

16

Temperature sense

PT100 sensor

17

Thermowell  diameter

Φ10

18

Inner Polishing

0.2-0.4micron

19

Design pressure

0.3Mpa

20

Cooling type

Dimple cooling jacket

21

Cooling area

4.3m2

22

Cooling jacket inlet

DN20

23

Cooling jacket outlet

DN20

24

Pressure control

Mechanical pressure relief valve

25

Pressure gauge

1pc

26

Rotating Racking arm

Φ51

27

Sample port

Φ38

28

Drain outlet

Φ51

29

Safety valve (PVRV)

Φ51

30

Hops port

Φ102

31

CO2 exhaust port

Φ32

31

Carbonation port TC with stone

Options

32

Liquid level display

options

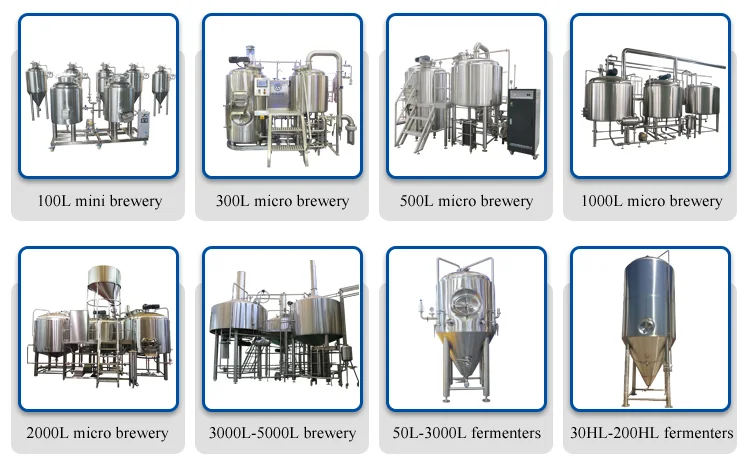

Details and more product
Buying Guides



1. Do you want to buy a whole set brewing equipment or seperate system,tanks or accessories?

2. If you want to buy whole set equipment, are you new hand or rich experienced brewer or engineer?

3. What kind of beer will you brew? ale or lager?

4. What capacity of brewing equipment do you want?

5. For Brewhouse, what vessel do you like? 2,3,4 vessel for your choose

6. what heating method do you like?

    A). We suggest that electric heating below 500L

    B). 500L-100HL steam heating/direct fire heating

7. For fermeenter, we have our standard design, customzied design avaliable.

    A). How many fermenters do you want?

    B). Do you want conbanation device for add CO2?

    C). Do you want hops adding port on top?

8. For brite tank, do you want to buy vertical or horizontal type?

    These are basic questions need to confirm with you first step, if you want to get the

    best quotation list and configuration, welcome to send an inquiry to me.

Payment Term&Payment



Payment: By Alibaba Trade Assurance, T/T or L/C

We strongly recommend Alibaba Trade Assurance!

30% deposit and 70% balance before shipment

Delivery time: 10-50 working days, subject to the capacity of the equipment

Terms of the delivery: FOB, CIF

MOQ: 1 Set



Packaging&Shippiing





1.LCL/FCL(20GP/40GP/40HQ)

2.Packed with plastic film in wooden case or fixed with iron frame

3.Up to export standard, suitable for delivery

4.Customer's requirements avaliable

Our service


1. Free consultation service. Technical support by phone, email or MSN/Skype around the clock.
2. Layout plan in 3D or CAD drawings of your brewery;
3. Professional engineers available to going abroad for the installation,debugging,and training.
4. Assisting purchased facilities by seller including bottling system, steam boiler, water treatment, etc.
5. Brewing technology,brewing formula,can be offered available
6. More spare parts are available to offered freely.



Guarantee:
1. Provide 5 years complete warrantee for tanks body and life-time maintenance service;
2. All of the accessories and auxuliaries facilities are guaranteed for one year;
3. We are responsible for the nature damage of the machinery in the warranty period except for

    man- made damage.
