200L Galvanized steel Non-pressure Solar Water Heater with Assistant Tank

  • 2-37 Sets
    $143.00
  • 38-93 Sets
    $125.00
  • >=94 Sets
    $122.00
Pressure:
Unpressurized
Heating System:
Thermosyphon (Passive)
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 38 Sets)
Customized packaging (Min. Order: 38 Sets)
Contact Supplier
Samples - $143.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Circulation Type:
Indirect / Closed Loop (Active)
Connection Type:
Direct-Plug
Installation:
Wall Mounted
Housing Material:
colour coated steel
Certification:
CE, solar keymark,CCC,ISO,SGS
Capacity:
200
Place of Origin:
Zhejiang, China
Brand Name:
LUCKY
Model Number:
JXNP -58/1800/20
Application:
Hot Water Using
Inner tank:
SUS304-2B Stainless Steel
Outer tank:
White Galvanized steel
Frame:
Galvanized Steel 1.5mm
Vacuum tube:
58mm/1800mm CU/ALN/SS
Tube Quantity:
20 tubes
Volume:
200L
Product name:
Solar water heater
Insulation material:
50mm Polyurethane Foam
Bracket Angle:
20°, 38°, 45°

Packaging & Delivery

Selling Units:
Single item
Single package size:
187X34X34 cm
Single gross weight:
65.0 kg
Package Type:
carton package for container, wooden box for samples
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 2 3 - 38 39 - 94 >94
Est. Time(days) 10 12 15 To be negotiated
Video Description
Product Description

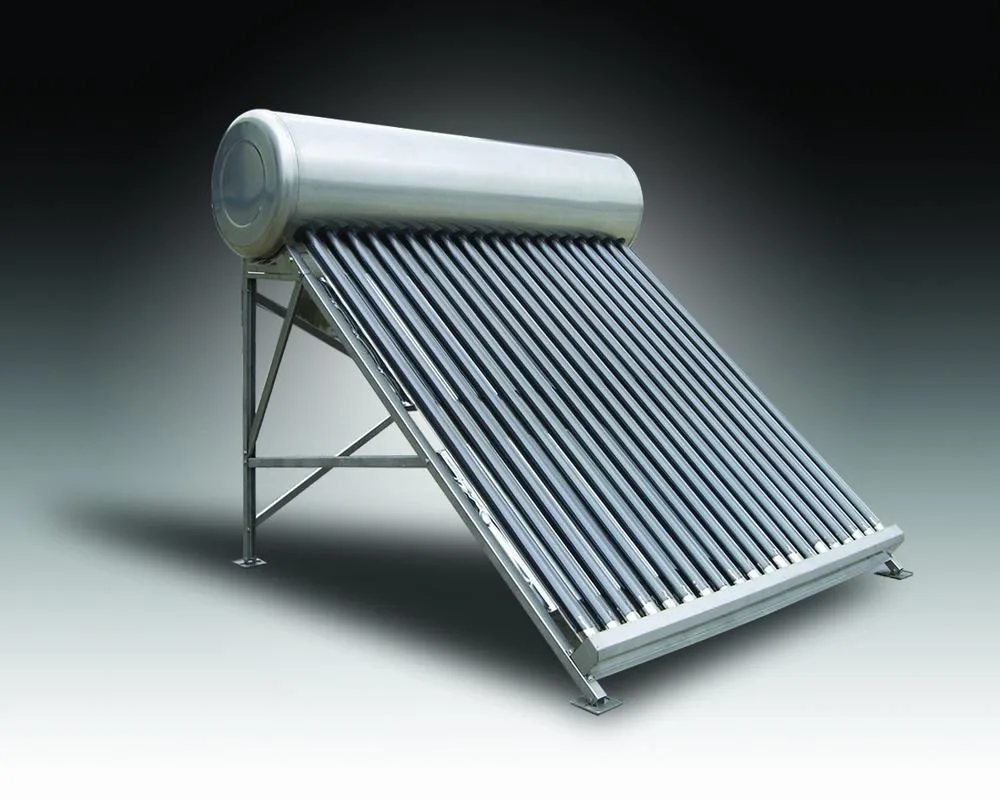

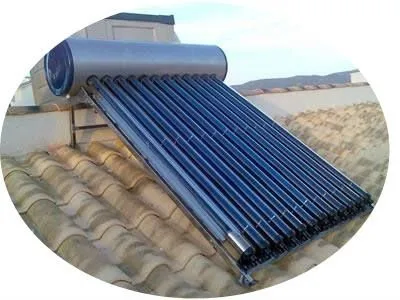

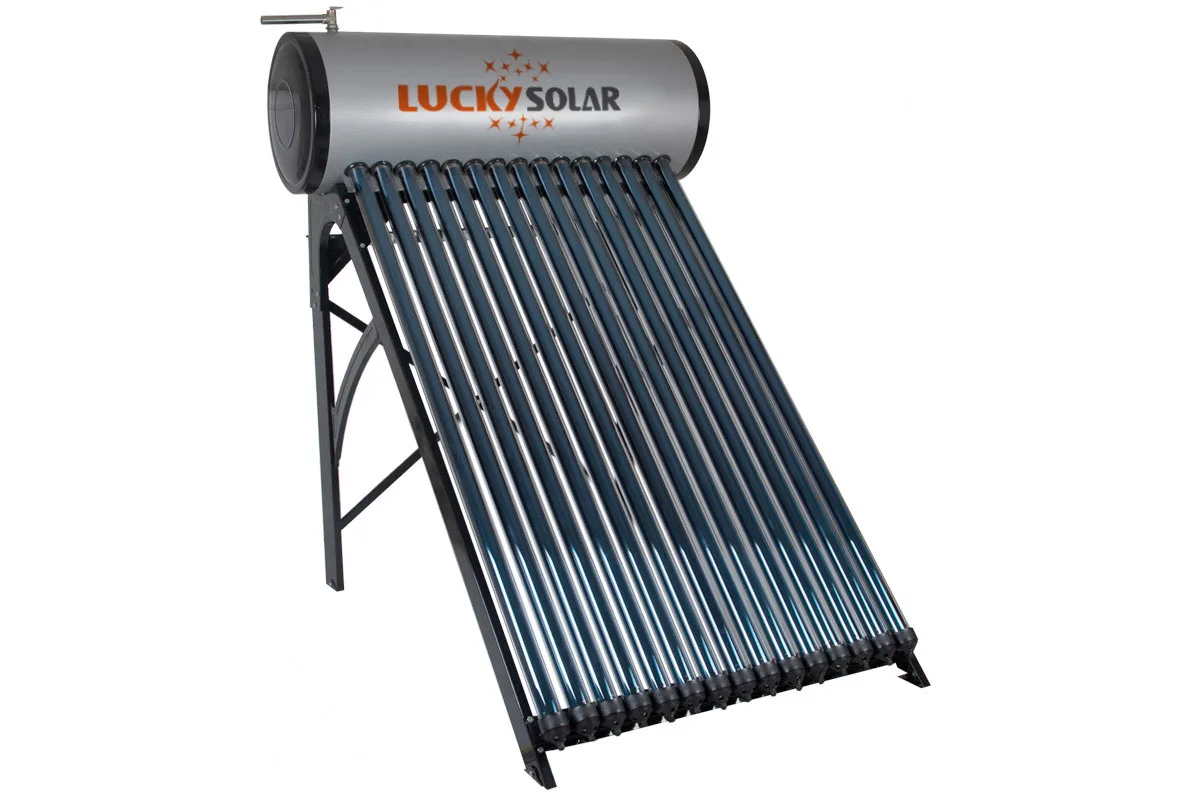

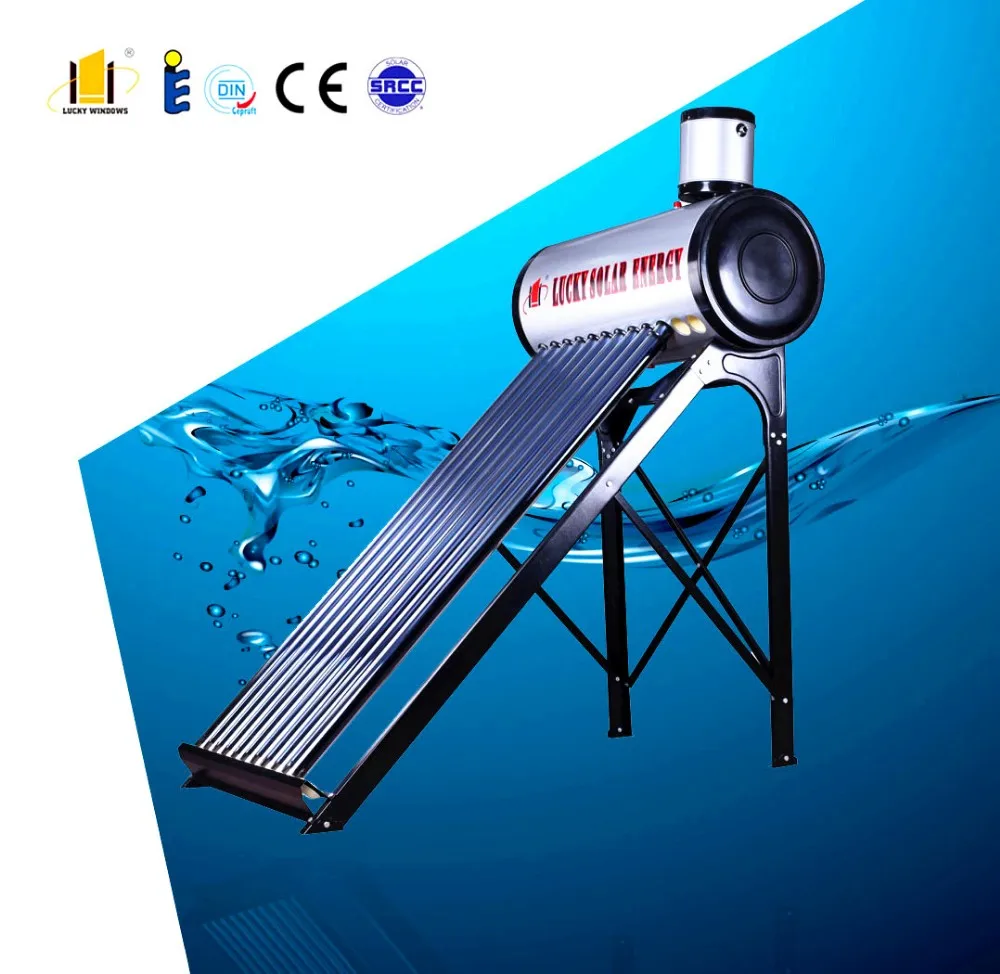

200L Galvanized steel Non-pressure Solar Water Heater with Assistant Tank:

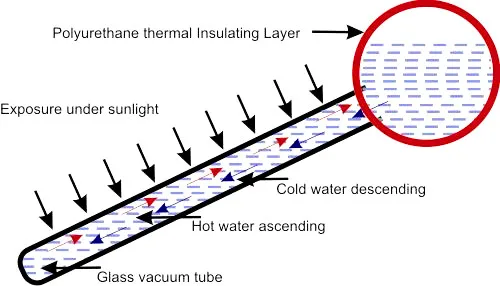

How it works:
The design of this type uses the all-glass evacuated solar collector tubes as the heat absorb element. The high vacuum degree of the clearance between the outer and inner tube can reduce the heat emission which caused by convection and conduction to a very low level. All-glass evacuated tube transfers sun energy into heat energy by high absorption rate and low emittance rate of layer films. Depend on the different density between the hot water and the cold water, a cycle created in the tube which hot water ascending and cold water descending status. Keeping natural circulation like this, the water in the tank will be heated.

Material & Characteristic:

1. Inner tank: SUS304-2B stainless steel
2. Outer tank: High quality color coated steel
3. Insulation: Polyurethane4. Frame: 1.5/1.8/2.0/2.5mm aluminum alloy

1. Beautiful appearance, steady structure, higher grads.
2. Inner and outside water tank shell all are welded by argon arc.
3. The tubes and frame are adjustable, power bearing is average, and can assure the vacuum tubes to use long time.

Material of out tank
High quality color coated steel
Material of inner tank
Food grade stainless steel 304-2B with Protective TIG welding.
Tank insulating layer
PUF Insulation 50/55/60 mm thickness with high density.
Welding
Argon arc welding

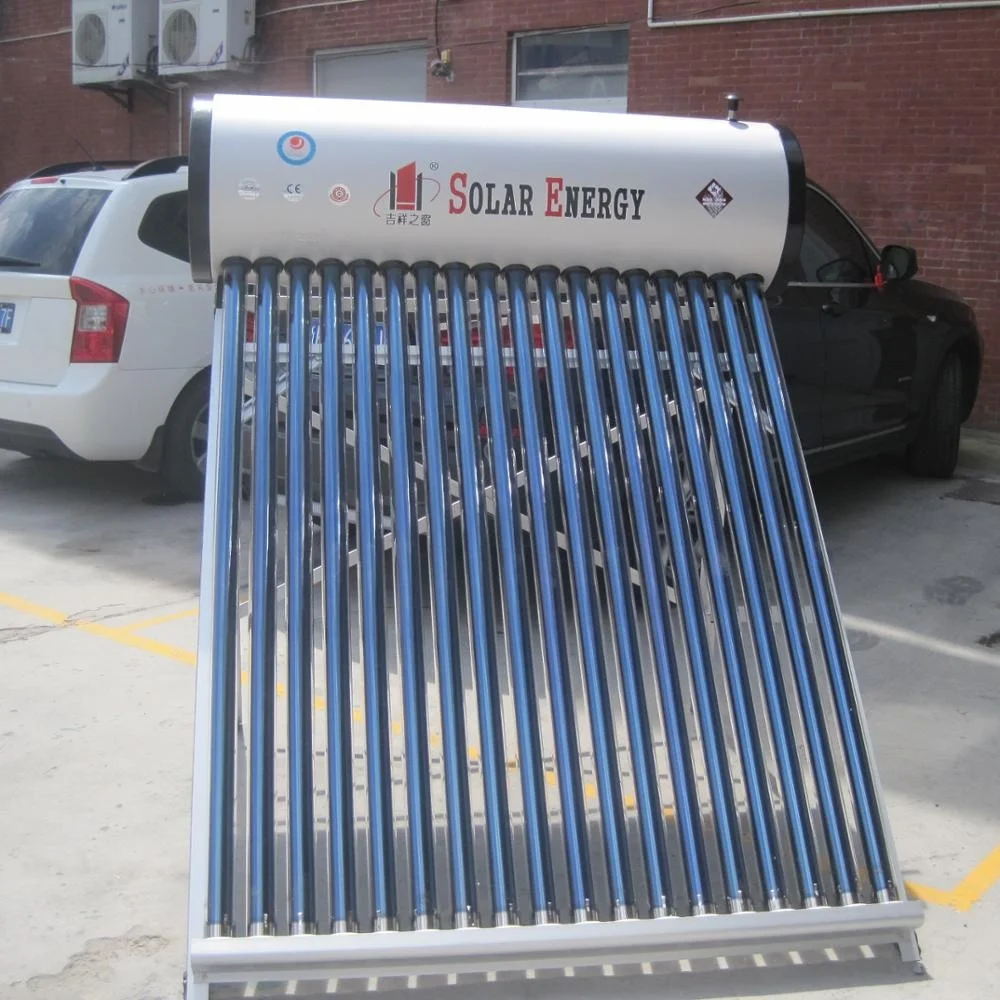

Detailed Images
Packing & Delivery
Related Products

Integrated Pressurized Type

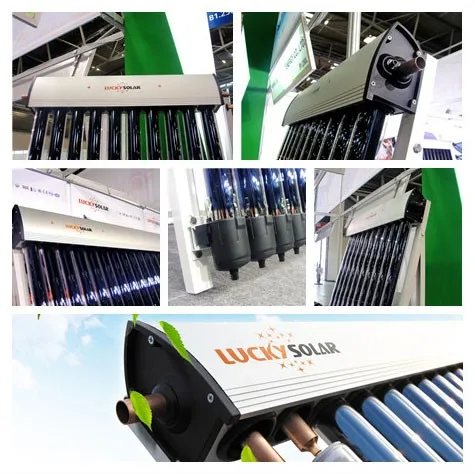

Heat Pipe Solar Collector

Preheated Copper Coil Type

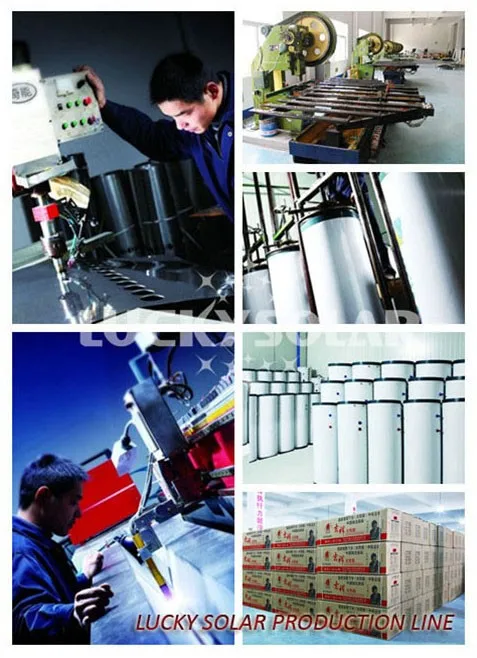

Our Company

HAINING JIXIANG SOLAR ENERGY CO., LTD.

Haining Jixiang Solar Energy Co., Ltd. (Lucky) is a high-tech company specialized in the utilization of solar energy. Located in Haining City, our company has high-quality technique staff. With strong integration capability and global resources, our company is moving forward to establish an international brand.



WHO ARE WE:

LUCKYSOLAR specialized in SOLAR WATER HEATER.SOLAR PROJECT.

We have engineering staff with experience in more complex MODEL for the best advice.

We have been in business for over 10 years. We export 70% of our products to the overseas market.

WHY LUCKY SOLAR

PRIMARY COMPETITIVE ADVANTAGES:
1.Standards:CE, SOLAR KEYMARK, SRCC,ISO:9001-2000.,SGS,"Chinese Famous Brand", "China Well-know Trademark"
2. Quality first, price first, customer foremost.
3. International quality warranty:Complete system :5 years, vacuum tubes:15 years

Contact


We will warmly welcome you up at TONGXIANG/JIAXING SOUTH RAILWAY STAION.
We will arrange everything else here(HOTEL,CATERING,MEETING), plz rest assured that.
Welcome to CHINA. Welcome to HAINING! Wish you a nice, pleasant and memorable journey!
