200W 24VDC Professional Peltier Thermoelectric Air Conditioner for Cabinet/ Enclosure

  • 1-199 Pieces
    $135.00
  • >=200 Pieces
    $118.00
Model Number:
FD-200W
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
1 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Peltier Air Conditioner
Mounting:
Optional
Place of Origin:
Guangdong, China
Brand Name:
FuDi
Certification:
CE
Operating Voltage:
DC12V/24V/48V
Condition:
New
Cooling Capacity:
200W
Voltage:
DC12V /24V/48V
Operating Temp:
-10℃--+70℃
Weight::
1.1-9.5 Kg
Life-Span:
80,000 working hours
Cooling area:
1.5㎡
Weight:
4.6kg
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
33X17X15 cm
Single gross weight:
6.5 kg
Package Type:
packed by carton, the carton box dimension can be customized by client
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 300 >300
Est. Time(days) 1 To be negotiated

                                 PRODUCT DESCRIPTION



Product Characteristic



  Thermoelectric air conditioner operate by the Peltier effect(which also goes by the more general name thermoelectric effect).The device has two sides,and when DC current flows through the device,it brings heat from one side to the other,so that one side gets cooler while the other gets hotter.The ' hot' side is attached to a heat sink so that it remains at ambient temperature,while the cool side goes below room temperature.In some applictions,multiple coolers can be cascaded together for lower temperature.



Product Specification



Proudct Feature

 1 Using semiconductor electronic cooling, small volume, light weight.

 2 No compressor, no Freon, no pollution, no vibration, no leak.

 3.Using no pollution material, compliance CE.

 4.Free mounting, applicable to a variety of places.

 5.Working ambient temperature: -10C~+50℃.

 6.Dense fin extrusion heat sink, high efficiency.

 7.High-dense foam insulation between heat sink and cooled heat sink.
 8.Hot-side heat sink overheat protection temperature setting +75℃± 5℃.
 9.Applied in sealing, vibration or rotation places such as compressors do not work.

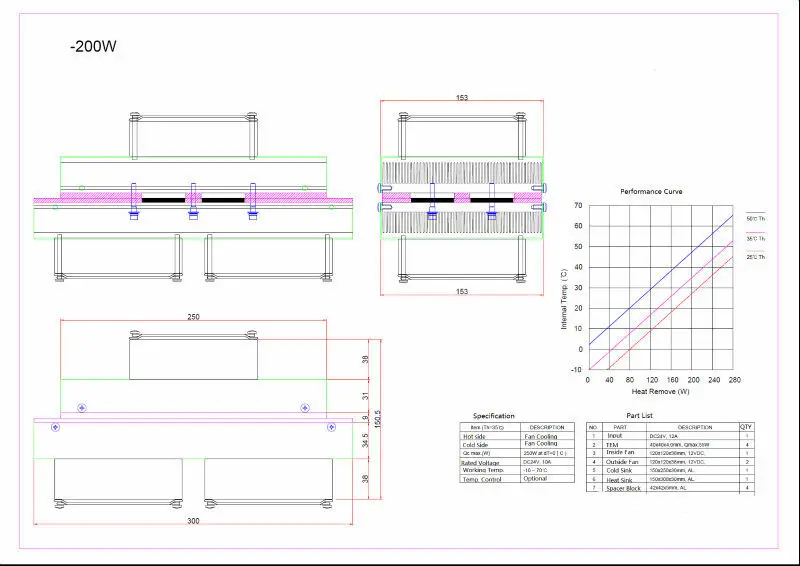

Performance Curve



FD-200W



NOTES WITH USE

1. Please use 12/24VDC switching power, and the ripple factor is less than 10%

2. Dont drop from than 30cm height, the Bi2Te3 will be damaged

3. Not waterproof, only aplied in indoor or outdoor of rainscreen (Except IPgS)

4. Please keep away from wall or other objects more than 10cm when install it.

5. No starting up, when the ambient temperature and the heat sink over 70C, or it will be damaged

6. Please read the specification and other accessories carefull



                                 PRODUCT SHOW

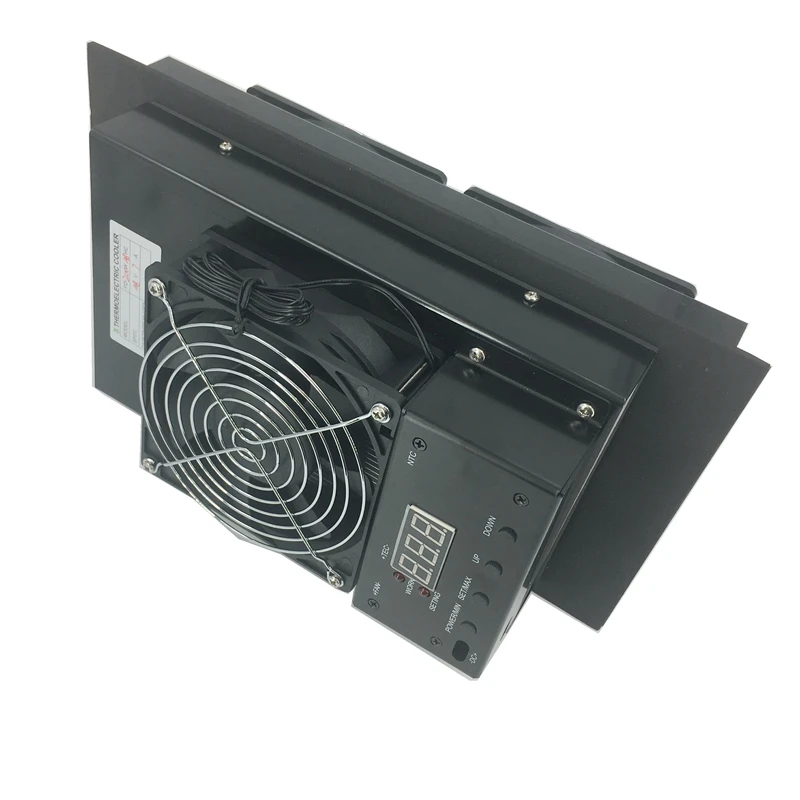

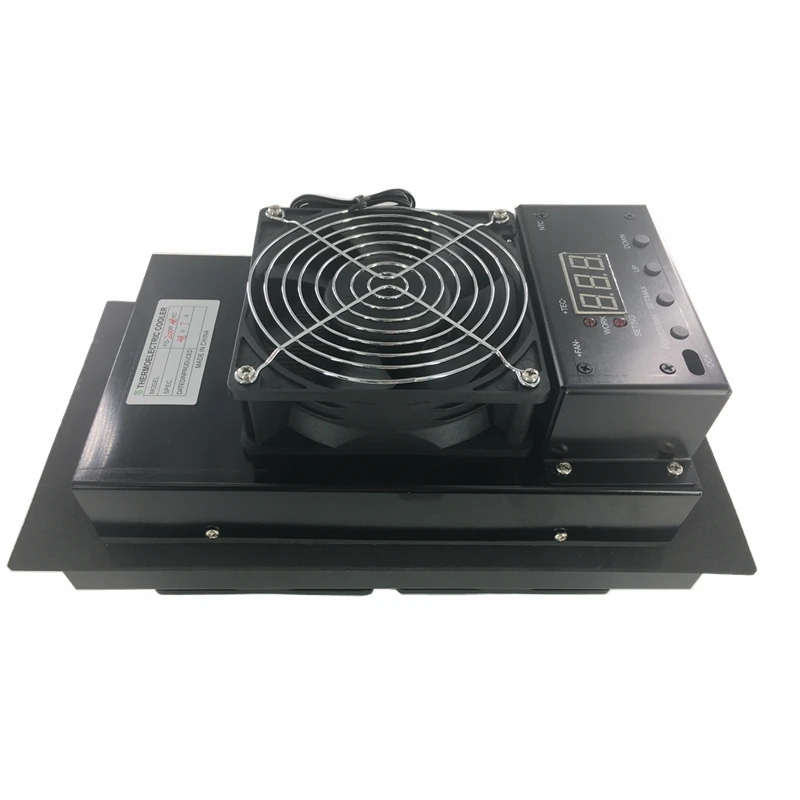

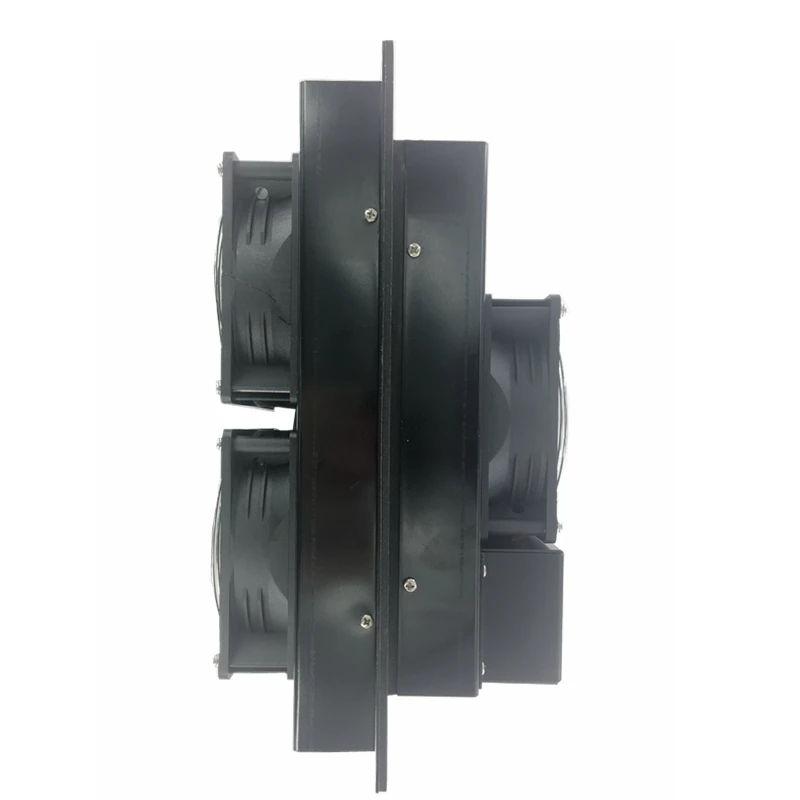

Product Picture

364



Product Application





                          Product mounting                              2.png1.png4.jpg



About mounting


Mounting hole & Product mensions
