We produce MODULE ! CUSTOM-MADE module is OK!

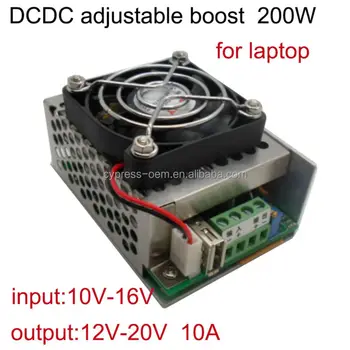

200W DC DC boost converter 12V to 19V 5A 8A 10
Product features
DC12V to 19V/20V vehicle notebook adjustable step-up circuit board power supply module high power and the external power supply 200W
Large power notebook computer external power supply special
Application:
Easy to drive the 65W 90W 120W or above from high-power multiple nuclear notebook computer
A DIY output adjustable vehicle power supply, only need to input your access to 12V power supply, the output voltage can be in the DC12-20V range of continuous adjustment of freedom
The on-board laptop power supply, input in the 12V power supply you, adjust the output to your laptop's voltage can work normally;
Power electronic equipment, adjust to the voltage needed equipment, and current does not exceed the rated current, can work normally;
High power boost, system level power supply;
The basic attribute:
Module properties: non isolated step-up module of non synchronous rectifier
Input voltage: 10V-16V
Output voltage: 12V-20V
The maximum output current: 10A
The conversion efficiency of the highest: 95%
Power: Max 200W
The switching frequency: 65Hz
Output ripple: 150mV (20M bandwidth)
Load adjustment rate: +/-0.5%
Voltage regulation rate: +/-2.5%
Stable operation: -40 degrees to +85 degrees
USB interface: 5V charging or power supply interface, can give a current less than 2A USB charging equipment or power supply (with flow over pressure protection circuit, complete protection for the power or charging equipment safety)
Short circuit protection:
Over temperature protection: (over temperature automatic shutdown output)
The input connection reverse protection: (can be a long time to reverse, do not burn module)
The output of the overpressure protection: (output voltage exceeds 20V, the protection circuit to start, the lock output voltage up to 20V, because there is a 20V power supply part of the notebook)
Fan temperature:
Fan: (high-quality silent fan)
Product size: 86*59*51mm (height contains fan)
Module using imported control chip, external expansion of ultra low on resistance of the MOS tube, high conversion rate, the highest 95%, output power is 200W, easily with high power laptop.
This module shipments, the output voltage is 19V by default, you need other output voltage, please adjust board blue adjustable resistance to change the output voltage, output voltage adjustment range DC12-20V, please do not exceed the adjust voltage range and output voltage is more than 20V, the module will enter the output voltage locking in the protection of the state of the 20V output.
The use of:
A voltage boosting module can output voltage is changed by adjusting the module above the blue adjustable resistor, the output voltage adjustment range DC12-20V;
Module: IN- (marked with the negative input), IN+ (input positive), OUT- (negative input), OUT+ (input positive); please correct wiring and use, take the wrong or improper use, the existence of the risk of damage to the module.
