200kHz high speed ladder logic mochuan heat pump automation plc ethernet

Feedback Ratings
  • 1-49 Pieces
    US $356.10
  • 50-99 Pieces
    US $349.15
  • 100-149 Pieces
    US $338.95
  • >=150 Pieces
    US $332.30
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Mochuan
Model Number:
MU2V-2828MT
Input/Output point:
28/28
Program CPU:
32K
Built-in Pulse Output:
8x200KHz
Processing Speed:
0.050μs/step
Programming Cable:
FREE rs232

Packaging & Delivery

Selling Units:
Single item
Single package size:
26X10X9 cm
Single gross weight:
2.0 kg
Package Type:
Inner plastic box + outer hardness box.7days refund in case of bad quality
Lead Time :
Quantity(Piece) 1 - 1 2 - 50 51 - 100 >100
Est. Time(day) 5 10 14 To be negotiated
Video Description
Pay Attention
Certificate
Certificate Number
1105217
Origanization
EC DECLARATION OF CONFORMITY
Declare the product
PLC Programmable logic controller
Date & Time
02/06/2011
Test Standard
EN60950-1:2006+A11:2009
Certificate for
EC Low Voltage

WORLD-WIDE CUSTOMERS COMMENT&FEEDBACK. You can check all the comments from "Rating&Reviews-Company Profile" from www.mochuan.en.alibaba.com. TRUST YOU WILL LIKE OUR SERVICE, QUALITY AND PRICE

Alibaba.com suppliers platform show that:

1. No complication!
2. Around 5000 Business Cards!
3. Star supplier with more than 10000 points!

Our Advantage
Product Description
200kHz high speed ladder logic mochuan heat pump automation plc ethernet
MU2V
MU2H
MU1H
I/O Point
16/16, 28/28
16/16, 32/32
08/06, 12/08, 16/10, 16/14, 36/24
Max Logical I/O
512
512
512
Max Special Function Module
8
8
2 I/O and analog module
Program Capacity
32K
24K
12K
Pulse output
8x200KHz
4differential output
3x100KHz( transistor output)
2x100KHz( transistor output, relay input)
One-phase Counting Channel
8x200KHz
2*50KHz, 4x10KHz
Two-phase Counting Channel
4x200KHz
1x25KHz, 2x5KHz
1x20KHz, 2x10KHz
Sum of Counter Frequency
800KHz
100KHz
80KHz
PLC N:N
support
RTC
support(power down keeping at least 3years)
Constant Sanning Mode
support
Digital Filter
0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable
Feature
Description
Programming Software
Free MCprogrammer
Program Security
download, upload, program password
Programming Language
ladder, instruction, SFC
Communication Protocol
programming protocol, Modbus, CAN and free port, MXLink
Expansion Module
I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et
For more details data sheet of them, just contact us.
MU2V Models:
Model
I/O
Serial Port
CAN
Output
Type
Integrated Pulse
Dimension
/mm
MU2V-1616MT
16I/16O
port0: rs232
port1: rs485
(extendable)
-
transistor
8x200kHz output
158x90x83
MU2V-1616MT-CAN
Y
MU2V-1616MT1
-
4x200kHz output
MU2V-1616MT1-CAN
Y
MU2V-2828MT
28I/280
-
8x200kHz (4xdifferential input, 4xdifferential output)
226x90x83
MU2V-2828MT-CAN
Y
Support special functional module:  analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight..
Feature

Multi Axis Control: MU2V series plc controller programmable logic controller supports totally 8*200KHz pulse input and outptut, without any the other separate extended I/O module and speial function module.

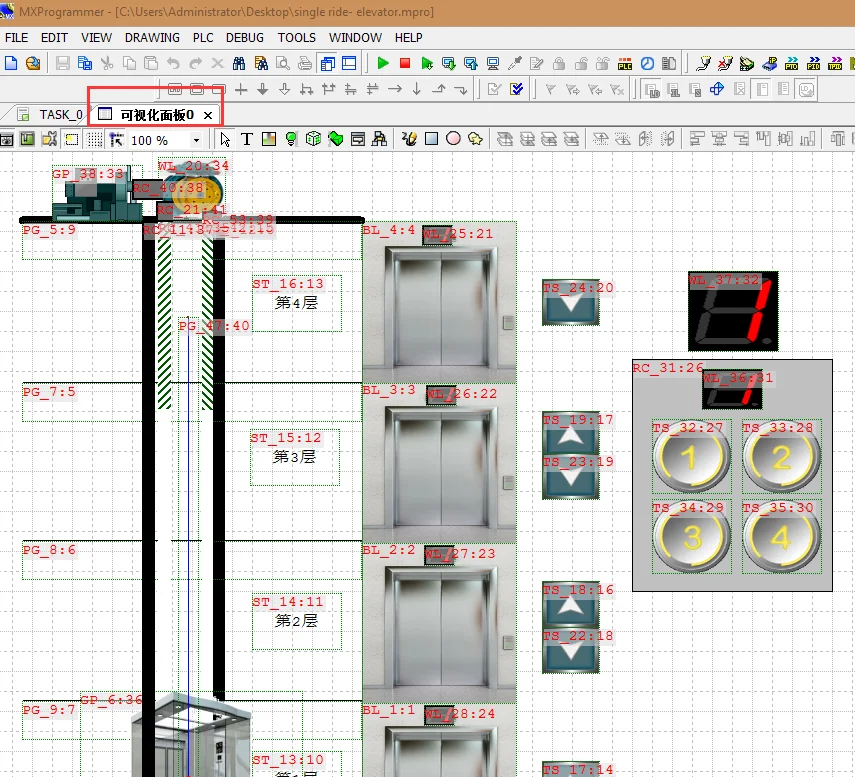

Visual Panel and Oscilliscope: visual panel makes monitoring online Demo more vivid; oscilliscope makes fault easier found in debugging process.

Integrates PID function: MU2H series main module integrates temperature control function, matched with MU2H series TC, PT module, Max 32road TPID could not made supporting the self-determining function of TPID parameter.

Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.

What&How Mochuan is

With more than 15-years domestic market development since 2002 and around 3-years foreign business  since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.


Mochuan  Drives have been integrated manufacturer and engineering company in 200kHz high speed ladder logic mochuan heat pump automation plc ethernet, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.


Our value message is QUALITY IS OUR CULTURE.

90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.


"With us your MONEY in safe, your BUSINESS in safe".

WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.

WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."
