2017 best selling 4-wire Analog Resistive industrial touch screen panel

FOB Reference Price:Get Latest Price
$3.00 - $40.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
ET-RTP-110
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Products Status:
Used
Screen Size:
Customized
Type:
Resistive
Interface Type:
Serial, USB, IIC, Serial
Resolution:
1024 x 768, 1024 x 768
Brand Name:
ETOUCH
Place of Origin:
Guangdong, China (Mainland)
Product name:
Resistive Touch Screen
Lifetime for Single Point:
1 Million
Proportion of the screen:
16:9/4:3
Size:
Customizd
Operating System:
Android
Application:

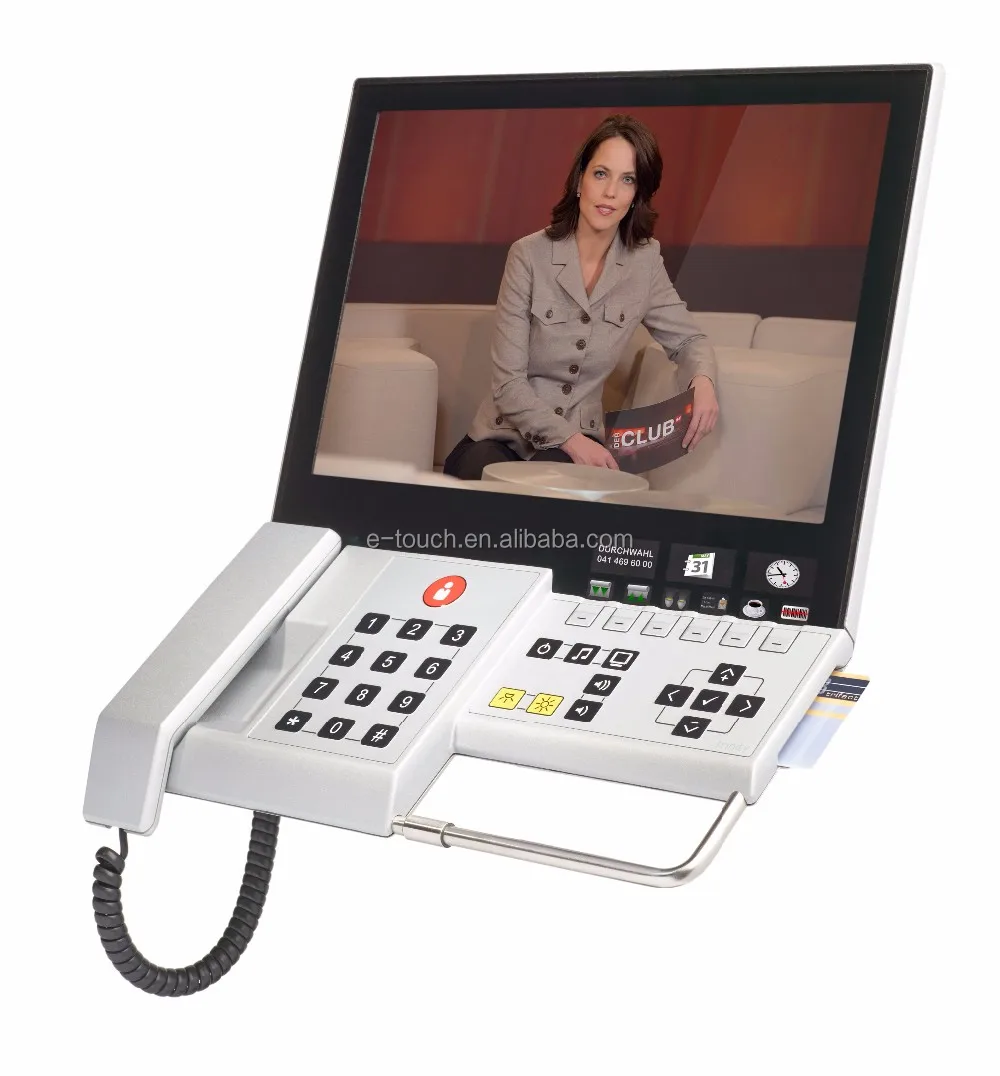

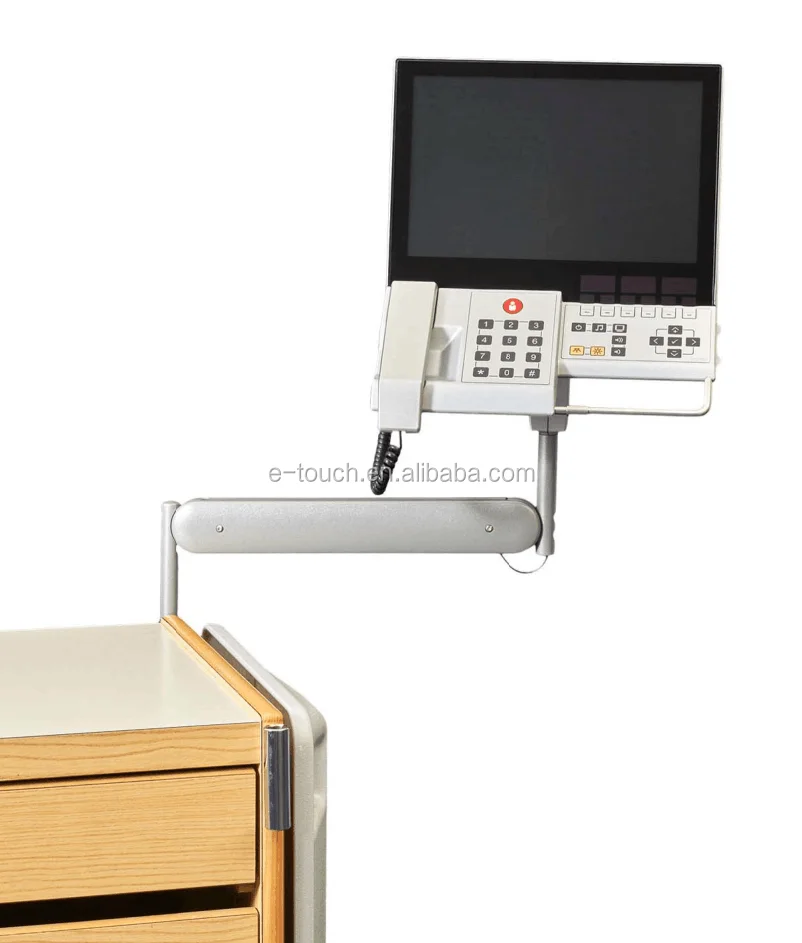

ATM.POS.Open Frame Machine ...etc
Transparency:
83 ± 3% @550nm wave length
hardness:
3H
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

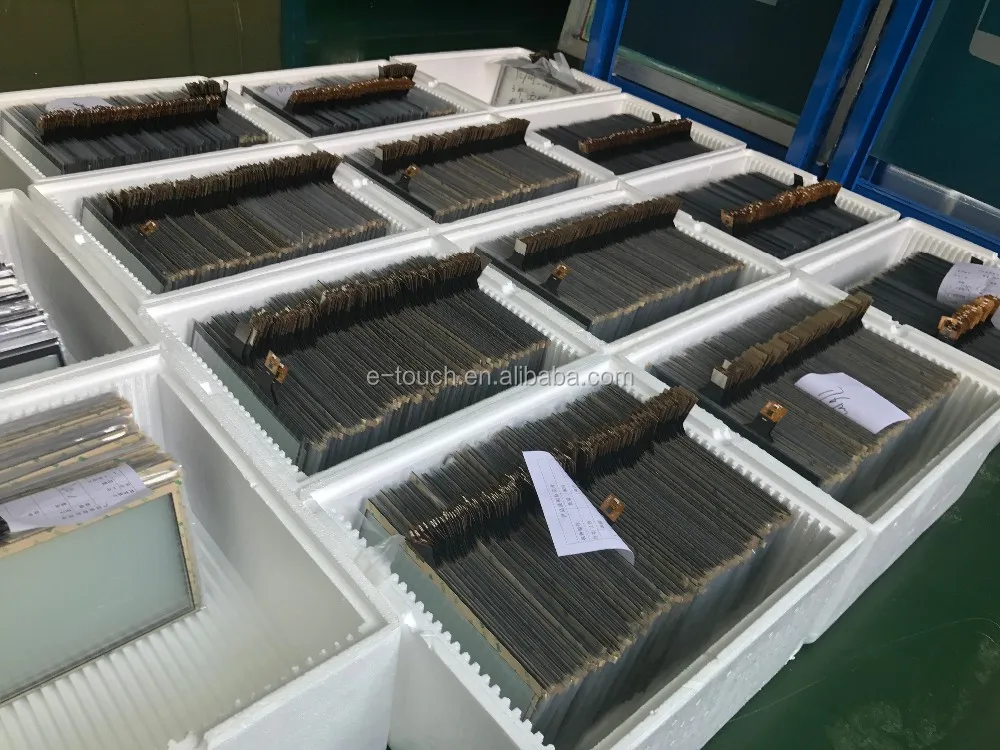

First put into a polybag per 50 pcs usually, seperated by foam, then paked into a 5-layer carton.
According to clients' special requirements.
Port
Shenzhen
Product Description
4-wire Analog Resistive industrial touch screen panel
Specification:
Item
Resistive Touch Screen
Dimensions
From 2'' to 23.6''
Thickness
1.8mm or customize
Conductive Glass Thickness
ITO 0.7mm, 1.1mm or 1.8mm, 2.0mm
Conductive Film
188 μm
Structure
Conductive film, ITO film
Insulation Distance
3 * 3mm
Connector
FPC, flexible printed circuit
Electrical Performance
Loop Resistance
50~300Ω
Linearity
≤1.5%
Insulation Resistance
≥10MΩ, @25V (DC)
Maximum Operation Voltage
5V (DC), 1mA
Chattering Time
≤15ms
Response Time
≤20ms (from the touch moment to response)
Mechanical Behavior
Input Method
Pen or Finger
Operation Force
OD 2mm pen within 60g~150g pressure
Surface Hardness
3H
Transparency
83 ± 3% @550nm wave length
Environmental
Operation Temp
-10~60°C
Storage Temp
-20~70°C
Resistive Lifetime for Single Point
> 1,000,000 times

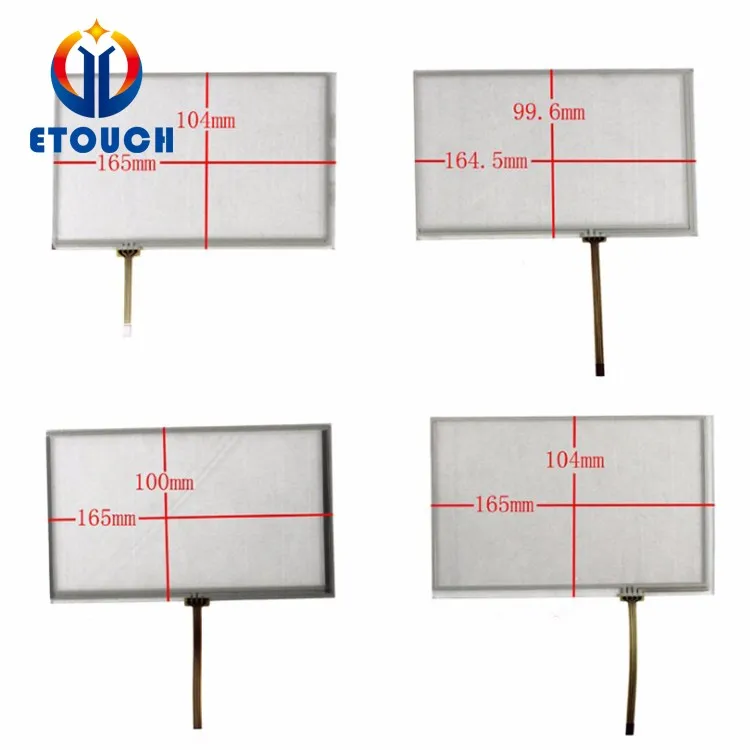

7"9.7"10.1"10.4"12.1"13.3"15"15.6"17"18.5"19"21.5"22"4 wire Resistive touch screen for touch screen monitor

Size
Ratio
Outline Area (mm)
View Area (mm)
Active Area (mm)
Thickness
9.7
4:03
210.0 x 164.0
200.9 x 152.5
196.6 x 147.5
1.4mm
10.1
10.4
4:03
175.7 x 225.3
162.9 x 216.1
160.1 x 213.2
2.3mm
10.4
10.4
4:03
223.0 x 174.0
211.5 x 159.0
209.5 x 157.0
2.3mm
10.4
12.1
4:03
260.0 x 200.0
252.0 x 190.0
248.0 x 186.0
2.3mm
12.1
13.3
16:09
177.7 x 306.3
168.8 x 297.2
165.0 x 293.4
2.3mm
13.3
15
4:03
322.0 x 247.0
310.5 x 236.0
304.0 x 228.0
2.3mm
15.6
17
4:03
355.0 x 288.0
341.5 x 275.0
337.0 x 269.0
2.3mm
18.5
16:09
429.4 x 253.6
413.4 x 234.0
409.8 x 230.4
2.3mm
19
19
16:10
426.0 x 276.0
410.2 x 259.1
407.4 x 254.0
2.3mm
21.5
21.5"
16:09
490.0 x 285.0
480.0 x 270.0
476.0 x 266.0
2.3mm
21.5"
16:10
488.0 x 310.0
473.0 x 298.0
469.0 x 294.0
2.3mm

4 wire resistive touch panel product advantages

1) high precision, fast response
2) HD resolution
3) USB port, touch a correction, high stability, and never drift
4) Touch intensity, high sensitivity, touch-free drift
5) can withstand more than 1 million times touch Click
6) You can use a pen, finger, gloved hand, and many other media touch touch
7) can be adapted to harsh environments, such as splashing drops of water flow down, etc.
8) supports single touch point, one-time calibration

Customer Feedback
Our Company

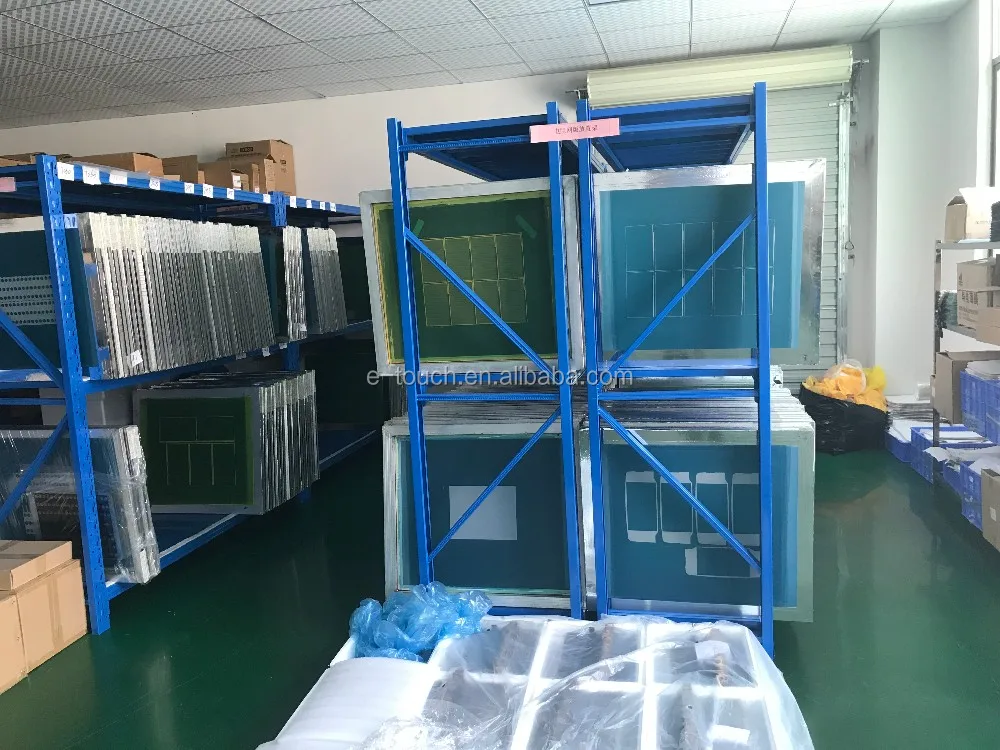

ETouch Technology Co., Ltd (ETouch) was established in 2008, is a professional manufacturer on design, production and sales of capacitive and resistive touch screen , LCD lamination, membrane switch, PCB keypad, rubber keypad, FPC keypad, acrylic lens, overlays and other technology products . We mainly for industrial control, car navigation, household appliances, medical equipment , human-machine-Interface system, POS , bank system, gaming, etc . Our factory is near by the beautiful scenery of the Songshan Lake, and the existing plant area is more over 7000 square meters.

We have two factories, have office in Shenzhen and HK , because of the business growing, we are ready to build a new big factory in Yunnan province, it is about 17000 square meters for touch screens. ETouch make determined efforts to improve quality by developing new products and technologies , so that to win the domestic and foreign customer's trust and praise.

Main Products

LCD&LCM Display: Design, Manufacturing LCD&LCM (TN, STN, CSTN, TFT); OEM Service for COG, TAB & COB LCD Modules.

Electronic & Mechanical Design : MCU Software & Hardware Design and Manufacturing ; Mechanical Parts Design & Manufacturing , Molding, Plastic Injection; FPC/PCB Design & Manufacturing , Product Development

IC Stocking : Supply Brand Name IC; Specialized on Supply Obsolete, Hard to find, Shortage, Military, Industrial, Commercial IC; Connectors and Various Electronic Components.
