2018 New discount common rail injector stroke measuring tools kits

Feedback Ratings
US $190.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
6 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Engine Analyzer
Voltage:
none
Power:
none
Certification:
ISO CE
Applicable Models:
all diesel vehicle
Place of Origin:
Shandong, China (Mainland)
Brand Name:
XINGZHOU
Model Number:
BJ04
Warranty:
3 Months
weight:
3kg
material:
steel
armature measure:
yes

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X25X15 cm
Single gross weight:
4.0 KG
Package Type:
carton
Lead Time :
6

2018 Discounting New Common Rail Injector Measurement Tools Set

>>>Description:

Common rail injector measurement tools is used to test the travel range for shims or valve adjusting. It is the helpful tools for you to check injector inside parts. used on CRIN1,CRIN2,CRI, and densso G2 injectors.



>>>Functions:

1.Test nozzle pin valve lift, which decides nozzle pin valve shim thickness (Horsepower different)



2.Test armature total range, which decides circlip thickness



3.Test armature range, which decides the hexagonal shim thickness below.



4.Test remaining air gap, which decides the hexagonal shim thickness above.



5.If VE is not proper, pls debug solenoid valve spring force adjusting shim.



6.If LL is not proper, pls debug nozzle pin valve spring force shim.



>>>Technical Parameters:

Armature lift test 45-50um
Cross lift test 30-50um
Remainin air gap test 35-55um
Armature total range 50-70um
Test injector common rail solenoid injector bos/ch  dens/o
weight 3kg

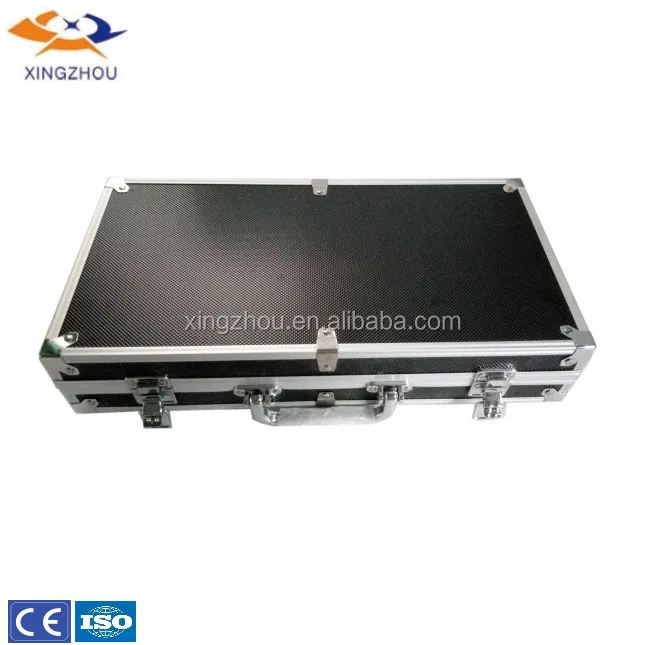

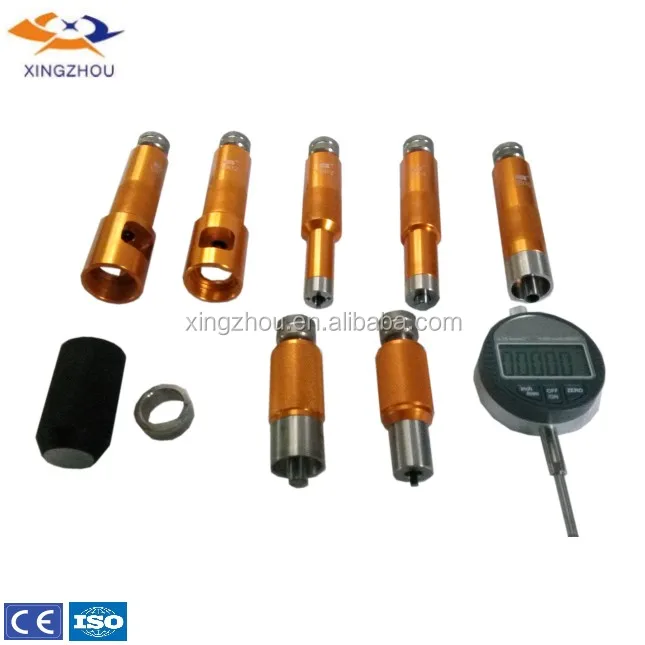

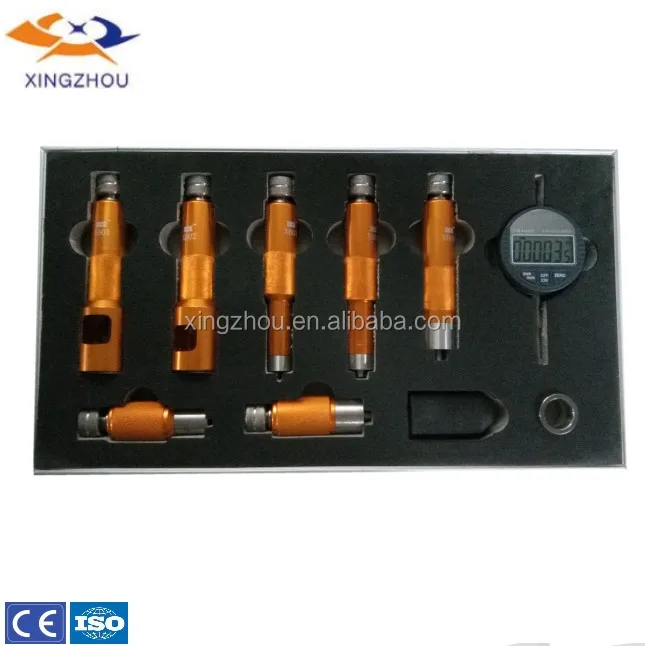

>>>Product Show:

cr injector tools.jpgcr injector tools (1).jpgcr injector tools (2).jpg







>>>Our Advantages:



1.About 15 year production experience, mature technological design and developing ensure us to offer customers high quality products of CE,ISO certificate



2.Factory manufacturer, save much middle deal cost, can offer you good service with competitive price.



3.Products has exported to many countries over the sea, enough business experience for customer on details such as payment and transportation!!!
