2019 Newest stereo In Ear Monitor Wireless System 782TX Monitoring Professional For Musicians

  • 2-99 Sets
    $208.00
  • 100-199 Sets
    $198.00
  • >=200 Sets
    $188.00
Color:
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
OKMIC
Model Number:
OK-782TX+7102R
Style:
tour guide
Communication:
Wireless
Use:
tour guide
Place of Origin:
Guangdong, China
Color:
Black
Material:
Metal
Feature:
Protable
Function:
Talk
Output Power:
5mW/10mW
Size:
48*25*4.5cm
Effect distance:
80-100m
Frequency:
500-980MHz
OEM:
Yes
Item name:
uhf wireless stereo in ear monitor system

Packaging & Delivery

Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
7.0 kg
Package Type:
2019 Newest stereo In Ear Monitor Wireless System 782TX Monitoring Professional For Musicians
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(days) 15 To be negotiated

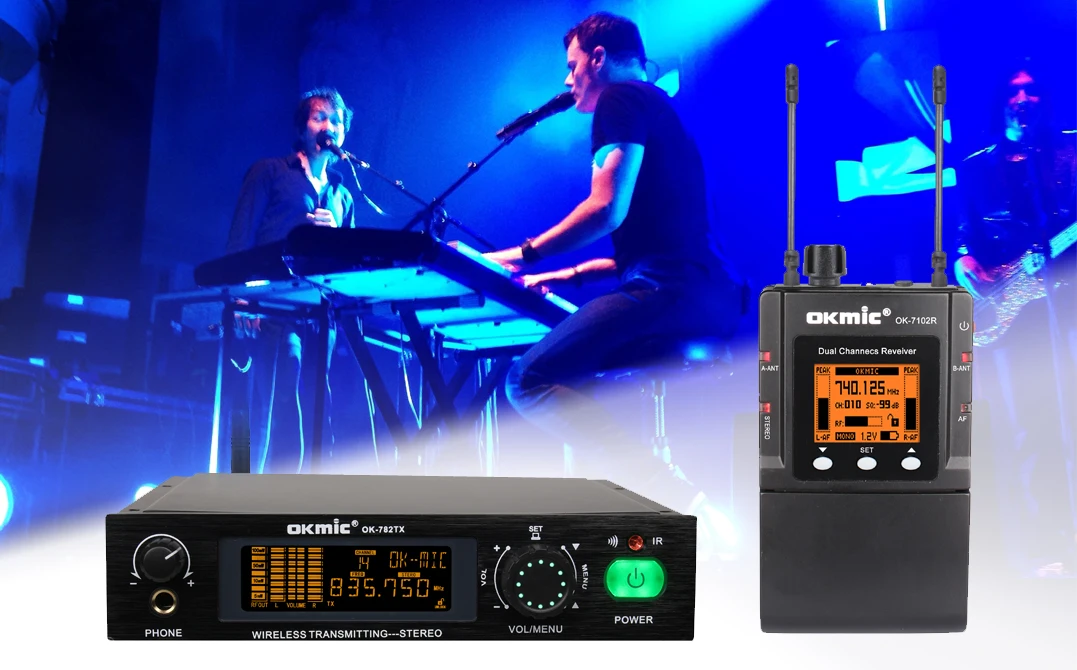

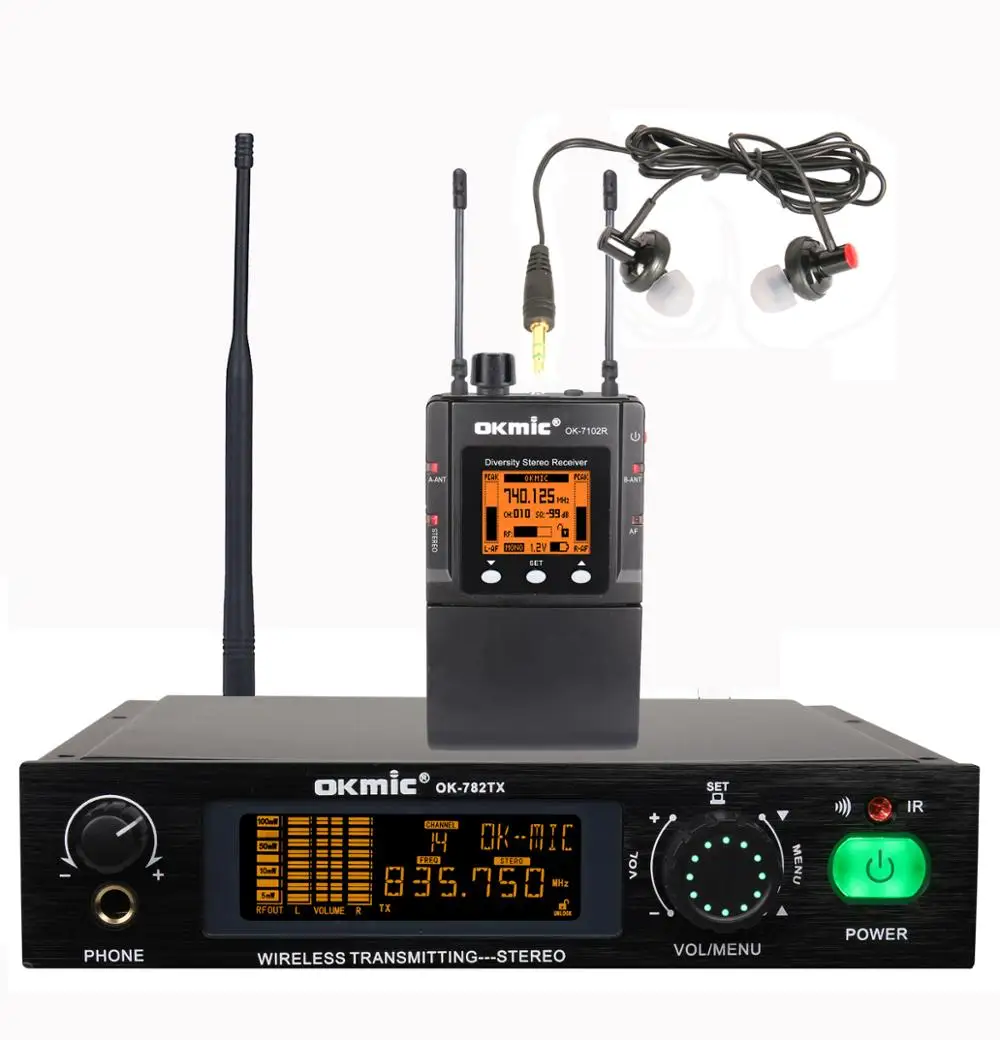

 2019 Newest stereo In Ear Monitor Wireless System 782TX Monitoring Professional For Musicians



This system is used to stage performance,sound broadcasting

wireless monitoring system,and large conference wireless

language distribution system..High-fidelity sound.With advanced

electronic processing technology to replace the heavy and complex

monitoring devices, avoid the echo noise from monitoring devices,

make the performance to be perfect.

Product Description









System Feature (scan function and will IR sync)

1.EIA-standard 1/2 U metal case
 2.Exquisite & concise panel with multi-function LCD display
 3.UHF receiver with CPU control diversity circuit, reduce frequency blind spots
 4.16MHz bandwidth,32 channels for selection
 5.Stereo & Mono function for selection
6.Stable PLL oscillation circuit, with “noise detection" mute control function, could effectively

obstruct RF interference from the environment
 7.with output ear-monitor headphone socket
 8.With long distance transmission, suitable for various occasions

UsageCommunicationOutput Power10mW/50mW/100mw
ColorBlackSize48*25*4.5cm
StyleTour guide MicrophoneEffect distance80-100m
MaterialMetalFrequency500-980MHz
FeaturePortableOEMYes
FunctionTalkKeywordnoise cancelling electret



Receiver

Channel Group:single channel
Frequency Stability:±0.005% (-10~50℃)
Carrier Frequency:UHF500~980MHz
Modulation Method:FM
Working Distance:about 60m (open place)
Oscillation mode:PLL Synthesized
Sensitivity:drift rate is 25KHz,input 6dBμV,S/N>60dB
Frequency Bandwidth:12~24MHz
Max Drift Rate:±45KHz
S/N ratio:>97dB
T.H.D.:≤1%@1KHz
Frequency Response:50Hz-15KHz±3dB
Stereo Isolation:≥45dB@1KHz
Output Socket:φ3.5mm stereo earphone socket
Output Power:2x75mW@1KHz(T.H.D.:3%)
Battery:AAx2
Current Consumption:150mA
Battery Life:about 8 hours
Dimension(mm):108(H)x63(W)x25(D)



Stereo Transmitter

Chasis Size:1/2 EIA standard 1U
Channel:Single Channel
Frequency Stability:±0.005% (-10~50℃)
Carrier Frequency Band:500--980MHz
Modulation System:FM
Output Power:10mW-100mW
Oscillation Mode:PLL Synthesized
Frequency Bandwidth:12~24MHz
Harmonic Radiation:<-60dB
Maximum Deviation:±45KHz
S/N Ratio:>97dB
T.H.D.:≤1%@1KHz
Frequency Response:50Hz-15KHz±3dB
Audio Input:Line level x 2,XLRφ6.3mm
Audio Output:φ6.3mm unbalanced socketx2
Measure(mm):205(W)x44(H)x203(D)








It can match with numerous receivers

Use occasion

 ( Tour guide, simultaneous translattion, stage on performance)





Optional Transmitters ( plastic panel, the same parameters with OK-782TX)





Optional Receivers ( stereo true diversity type)





Accessories

1. Stereo Transmitter....................................................1
2. Stereo In-Ear Monitor................................................1
3. Power Adaptor...........................................................1
4. Rack Mount Kit(optional)...........................................1
5. AA Alkaline Battery.....................................................2
6. φ6.5/φ6.5mm Audio Cable..........................................2
7. Earphone....................................................................1
8. Screwφ4x10.......................3; φ4x6..............................2
9. Manual.........................................................................1

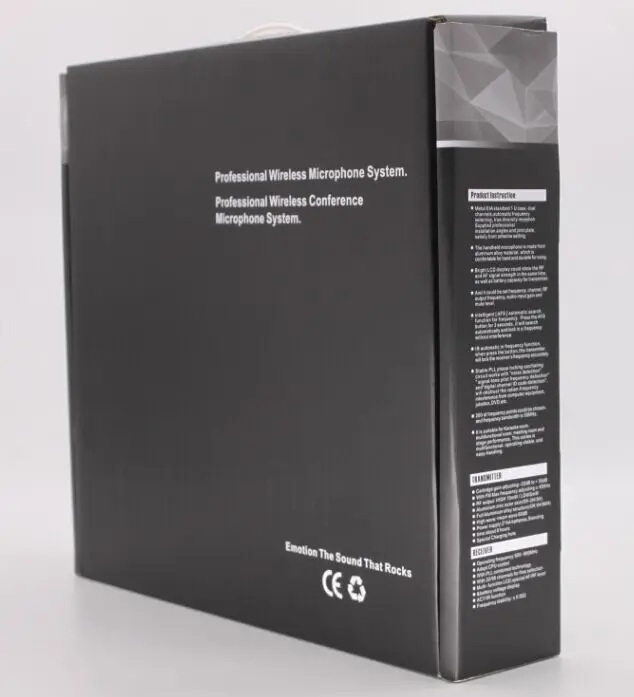

Package
