22mm Push Button Switch with Wiring LED

Feedback Ratings
  • 40-999 Pieces
    US $16.00
  • >=1000 Pieces
    US $14.50
20 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Daier
Model Number:
PZ22C-10E
Protection Level:
IP67
Max. Current:
5A
Max. Voltage:
250VAC
Item:
22mm Push Button Switch with Wiring LED
Function:
Momentary(Latching is available)
Led color:
Red Yellow White Blue Green
Mounting hole:
22mm
Terminal:
Wired leads
Front head:
Concave
Material:
Stainless Steel
Housing color:
Silver.Black.Red.Yellow.Blue.Green
Operating Temperature:
-20°C ~+55°C
Electric life:
50,000 cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
22X13X6 cm
Gross weight per batch:
1.0 KG
Package Type:
PZ22C-10E 22mm Push Button Switch with Wiring LED is 20pcs/box
Lead Time :
Quantity(Piece) 1 - 4000 >4000
Est. Time(day) 7 To be negotiated
Product Description
Model
22mm Push Button Switch with Wiring LED
Rating
5A 250VAC
Function
Momentary(Latching is available)
IP Degree
IP67
Wire Size
24AWG 30mm

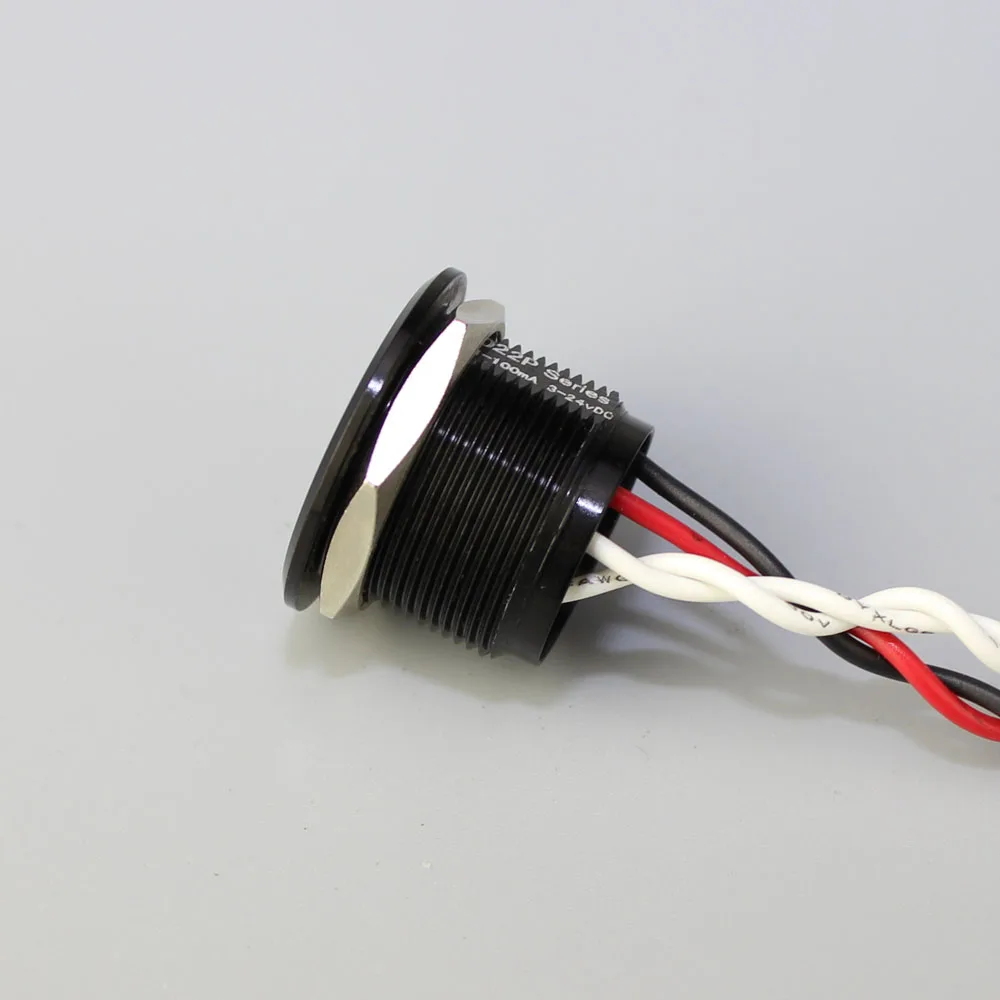

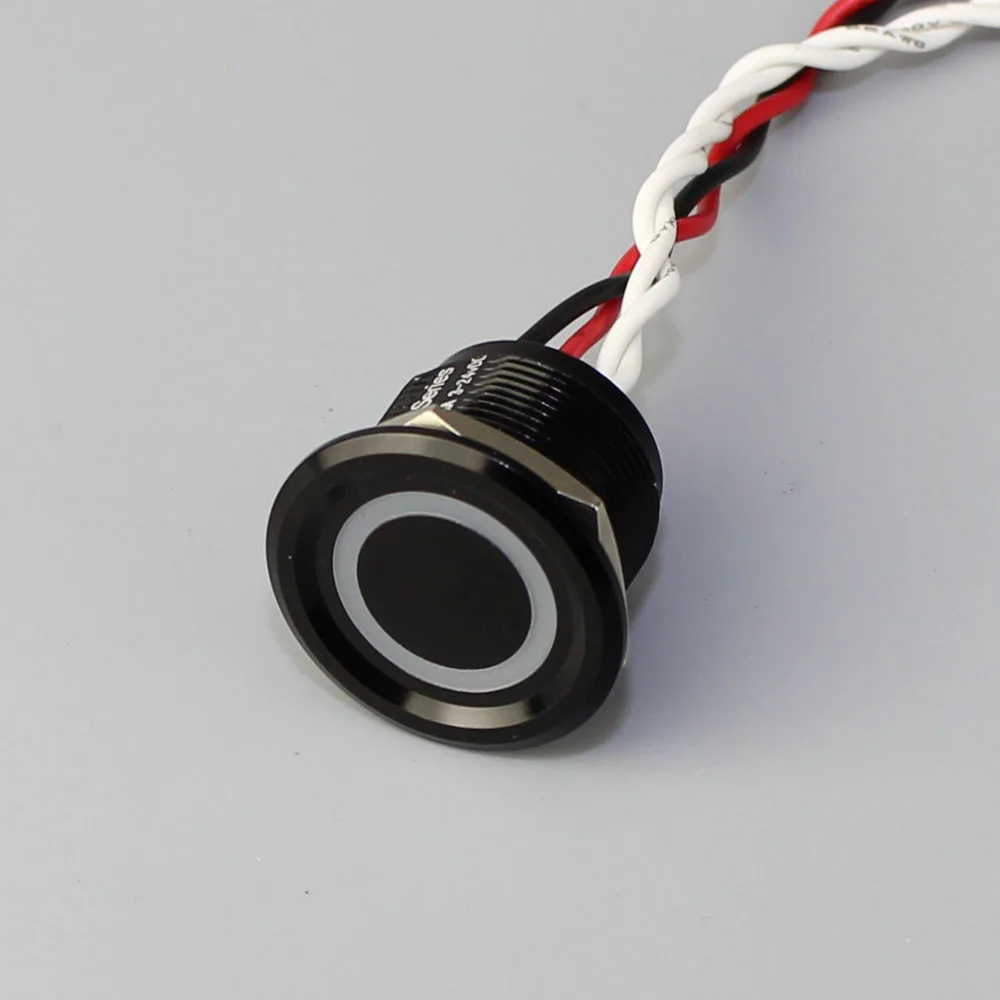

Product Show

PZ22C-10E

Specifications:
1. Rating: 5A 250VaC
2. Function: Latching/Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 5.5N


Piezo switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
