230/400 v and ac three phase soundproof board biodiesel generator 125 kva/100kw

Feedback Ratings
  • 1-2 Sets
    US $6269.00
  • >=3 Sets
    US $5917.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
VLAIS
Model Number:
KDE-125T
Output Type:
AC Three Phase
Speed:
1500/1800rpm
Frequency:
50/60HZ
Rated Power:
100kw
Rated Voltage:
120V/230V/400V
Rated Current:
144A
Engine Model:
6105AZLD
Cylinder number:
6
Starting system:
Electric strater
Exicitation mode:
Self-excitation and cinstant voltage
Bore*Stroke:
105*130mm
Fuel consumption at full load:
209(g/kw.h)
Certificate:
CE
Fuel tank Capacity(L):
120L
Dimension(L*W*H):
3000*1230*1780mm
Net weight(KG):
2500

Packaging & Delivery

Selling Units:
Single item
Single package size:
2.5X1.23X1.53 cm
Single gross weight:
1900.0 KG
Package Type:
plywood package
Lead Time :
Quantity(Set) 1 - 5 >5
Est. Time(day) 10 To be negotiated
Product Description

Product Application

VLAIS CE Approved generator features with high-quality engine core, strong and stable output performance, lower fuel comsumption, silently working condition, Smart and automatic controller as operating protection. It is applied to all industrial and life such as hospital, school,hotel and production plant. necessary and fond. Have vlais have future.

VLAIS 125Kva super silent diesel generator with Weifang engine features with high-quality engine core, strong and stable output performance, lower fuel comsumption, silently working condition, Smart and automatic controller as operating protection.
                                                            SPECIFICATIONS FOR 100KVA DIESEL GENERATOR

Engine
Engine model
Kw/rpm
100/1500
No. of cylinders
Number
6
Rated Power
kw
100

Main performance parameters
Max.Output
kva
125
Rated Voltage/Frequency
v/hz
230/400V/50HZ/60HZ
Bore*Stroke
mm
105*130

Hydraulic system
Fuel consumption at full load
g/kw.h
209
Dimension(L*W*H)
mm
3000*1230*1780
Net Weight
Kg
2500

Main Features

1) Stable and stronge power outlet-AVR and Original weifang engine
2) Lower fuel consumption-210g/kw.h Fuel consumption(g/kw.h) at full load
3) Silently working condition-100-105 DB at 7m
4) Professional operating manual and maintainance direction.
5) The quality have completely assurance-CE certificate

Certifications

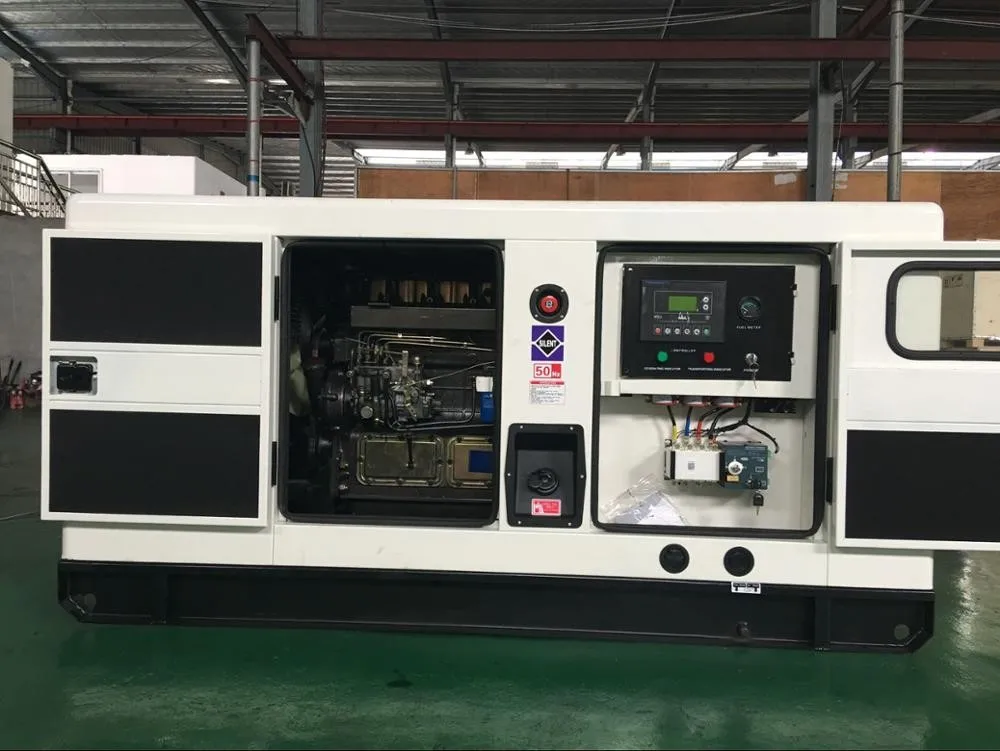

Detailed Images

Smart Controller

Name: Smartgen

Brand:

Original: China

In VLAIS Power, we are using generator controllers Integrating digital, Intelligent and network techniques are used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.

ATS(Automatic Transfer Switch)

Name:Aisikai or Socomec

Original:Germany

As on-an automatic equipment for main/standby transfer power supply. ATS and diesel generator Composed to be emergency power system when the main Failure occurred. It is widely used in bank, hospital, telecommunication,hotel etc.

Brushless All Copper Alternator

Name:ST Alternator
Original: China
Brushless All Copper alternator allow our generators to have more effective output, Lower noise, longer lifespan and cheaper maintaining cost.

Main Features

Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
The set is designed for easy and convenient transportation and move.Round pulley is made by Z-iron differing from other pulley.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.


Inspect generator and data analysis.
Inspect and data analysis 10 pieces of 25kva silent diesel generator for Clients from Turks and Caicos Islands.

Inspect generator and data analysis before leaving factory.
Inspect and data analysis 15kva silent diesel generator for Clients from Middle East.


Packing & Delivery
Packaging and Sea delivery
Size
3000(L)*1230(W)*1780(H)
Weight
2.5T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
