25m communication aluminum mobile unlocking pneumatic telescopic mast

FOB Reference Price:Get Latest Price
$5,500.00 - $6,000.00 / Units | 1 Unit/Units antenna telescopic mast (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
bost
Model Number:
QGF9/270-25000
Retracted Height:
3.8m
Extended Height:
25m
Outerdiameter:
284mm
Maximum Operating Pressure:
35psi
Section number:
9
Surface treatment process:
Hard oxidation
Product weight:
280kgs
Material:
Anodized Aluminum Pipes Materials AL6063/T5
Top load:
100kgs
wall thickness:
7mm
Supply Ability
Supply Ability:
3000 Unit/Units per Month mobile lifting mast
Packaging & Delivery
Packaging Details
WOODEN CASE,SUITABLE FOR SEA TRAN SPORTATION
Port
SHANGHAI
Lead Time :
30DAYS
Specification
Technical Parameters
Retracted Height
3.8m
Extended Height
25m
Outerdiameter
284mm
Maximum Operating
Pressure
35psi
Material
Anodized Aluminum Pipes Materials AL6063/T5
Section number
9
Surface treatment
process
Hard oxidation
Top load
100kgs
Product weight
280kgs
Working Temperature
 -400C to +750C
Wall thickness
7MM
Product Description

Product Details

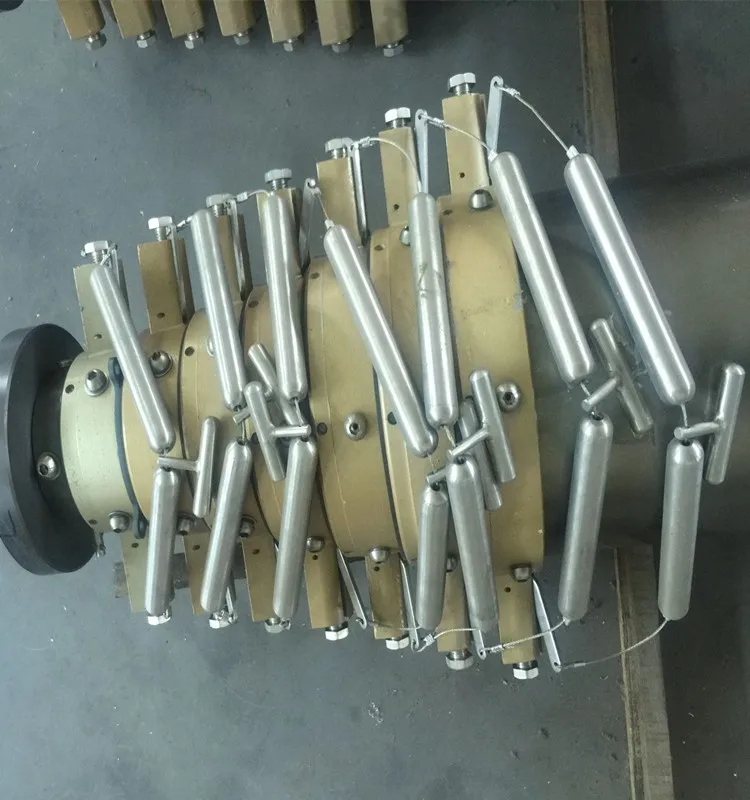

Mast with lock, this innovation, we have invention patents. The mast without locking will gradually decline in a few hours or days. After we have the lock, the moving lever can keep a certain height.

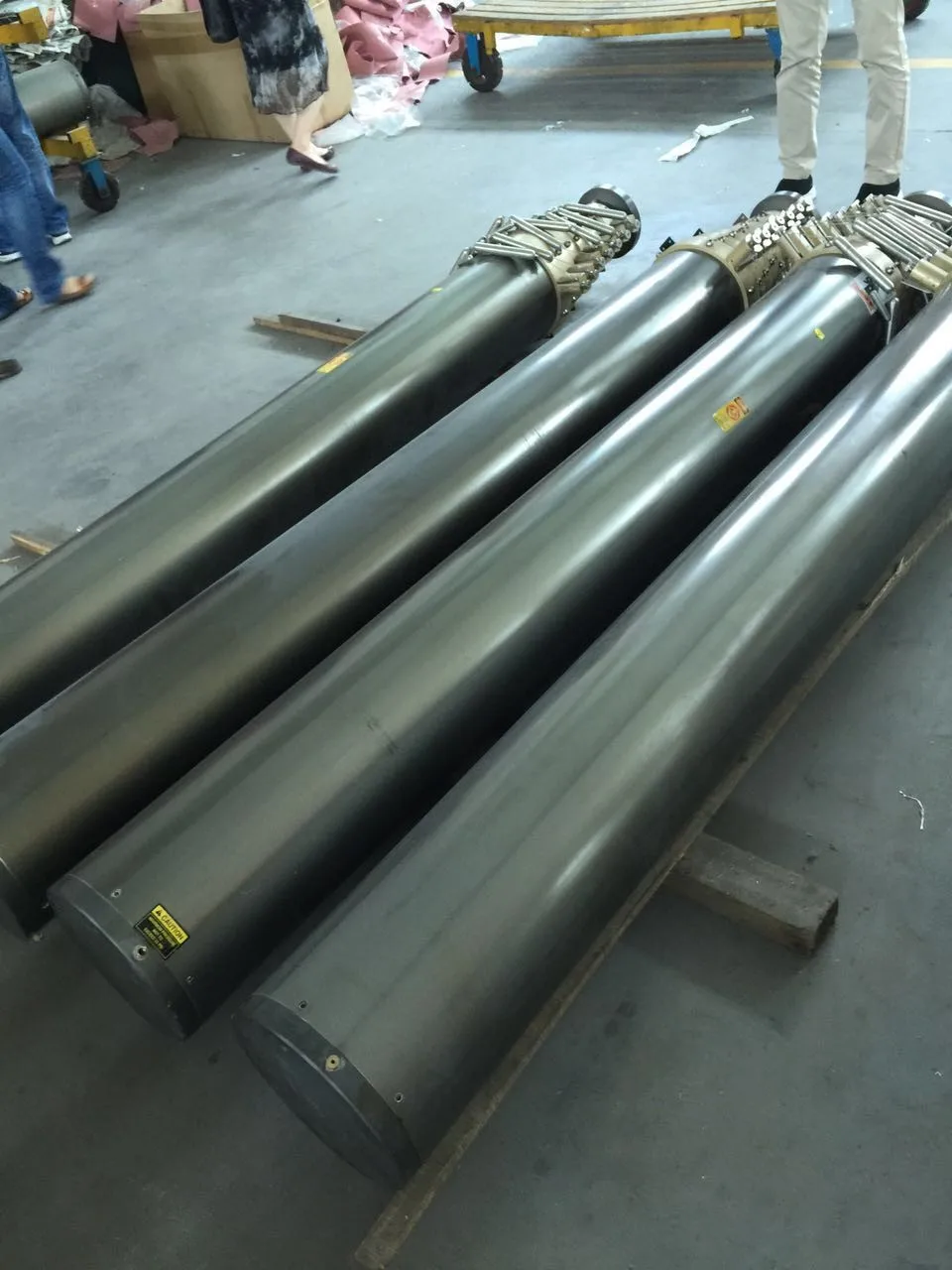

Product Details

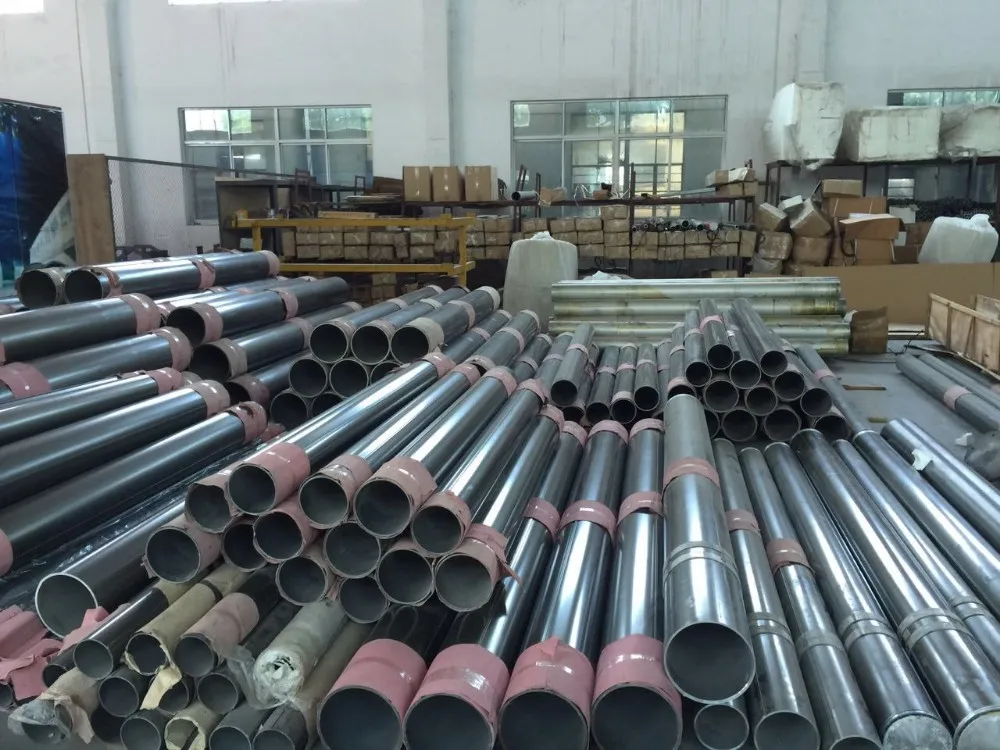

The surface is treated by hard oxidation. Improve the performance of aluminum and aluminum alloy, including corrosion resistance, wear resistance, weather resistance, insulation and adsorption, etc.. Copper or silver color.

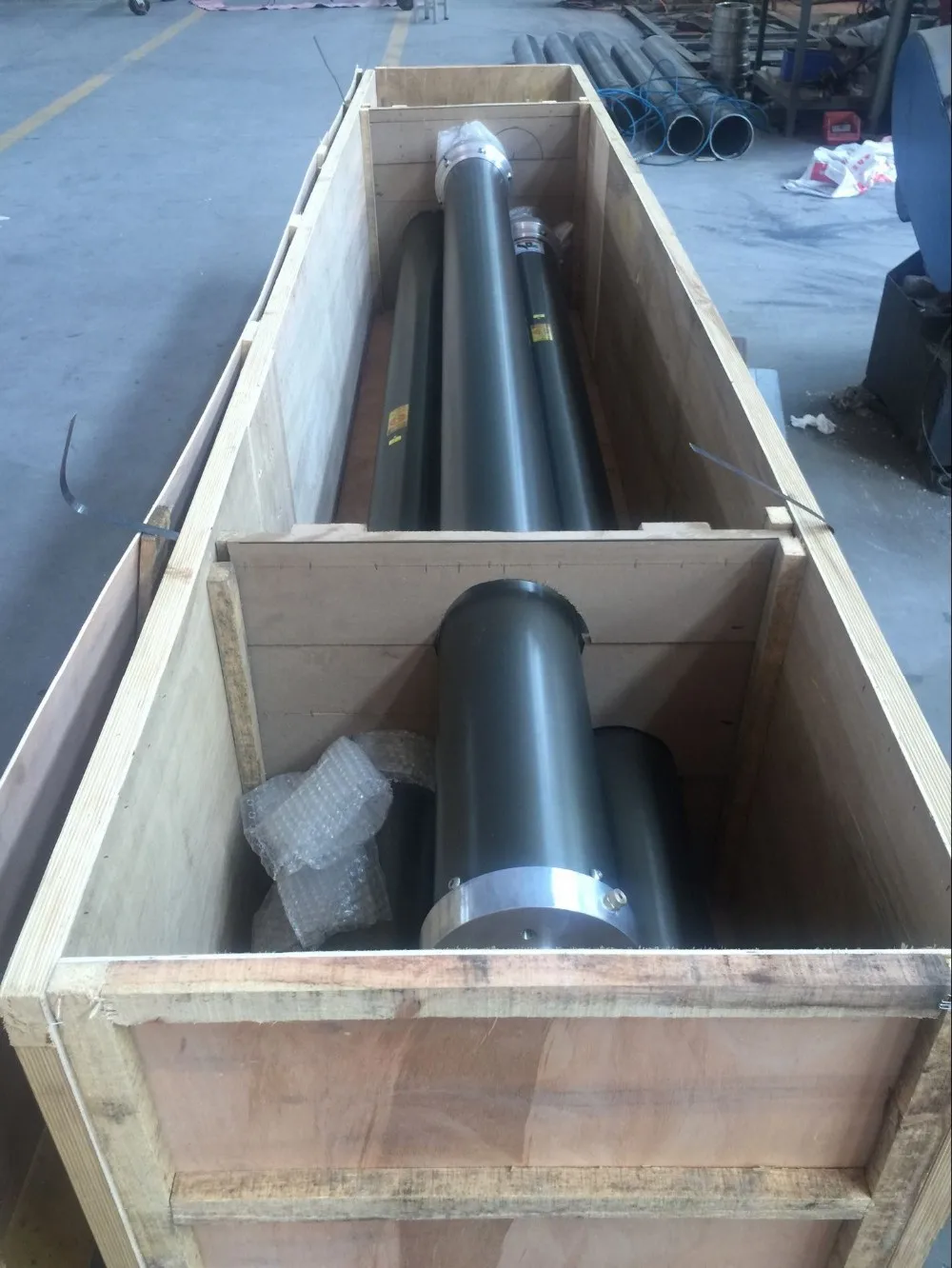

Packing

Packing

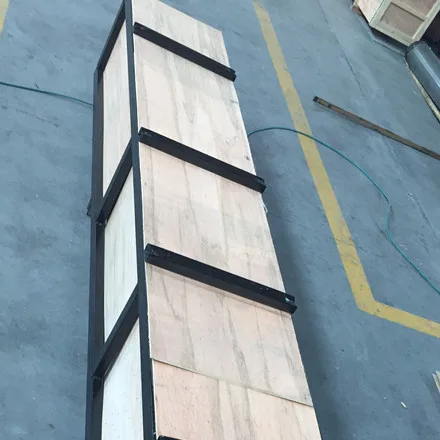

For light moving poles, we use wooden cases for packing. Heavy use of iron case packing. Our packing is in conformity with the export marine requirements.

Applications

BSTmast Solutions for everything from mobile communications to media broadcasting, cellular and specific custom applications.

1> Military Applications
UAV Tracking or Detection,Defense Communications,Surveillance Camera Elevation,Soldier Training Activities,Emergency Communications,Base&Facility Security,Intelligence Gathering,Sensor Elevation,Elevated Antennas

2> Homeland Security
Surveillance Camera Elevation,Communication Antenna Towers,Mobile Hydird-Power Generation,Mobile Data Centers,Sensor Elevation,Data Gathering

3> Law Enforcement Applications
Surveillance Camera Elevations,Communications Antenna Towers,Mobile Hybird-Power Generation,Mobile Data Center

4> Emergency Management Applications

5> Intelligence Gathering Applications
Surveillance Camera Elevation,Communications Antenna Towers,Mobile Power Generation,Mobile Data Centers,Sensor Elevation

6> Research & Scientific Applications
Atmospheric Measurement,Airfield Weather Stations,Lighting,Underground Observation,Oil-field,Exploration,Temporary Marine Mast Date Sensor

7> Security & Surveillance Applications
Data gathering,Camera elevation,Sensor Elevation,Lighting,Elevated Antennas

8> Border Security Applications
Surveillance camera elevation,Communications Antenna Towers,Mobile Lighting Tower Generations,Mobile Data Centers,Sensor Elevation

9> Commercial Applications
Temporary Cellular Towers,Mobile Telecommunications,Underground Search,Mine Security,Utility Company Underground Observation,Oil-field Security,Installation fo Singage,Lighting,Camera Elevation,Sports Metting Elevations

10> Data Collection/Sensors
Camera Elevation,Sensor Elevation,Defence Intelligency,Homeland Security,Underground Obervation

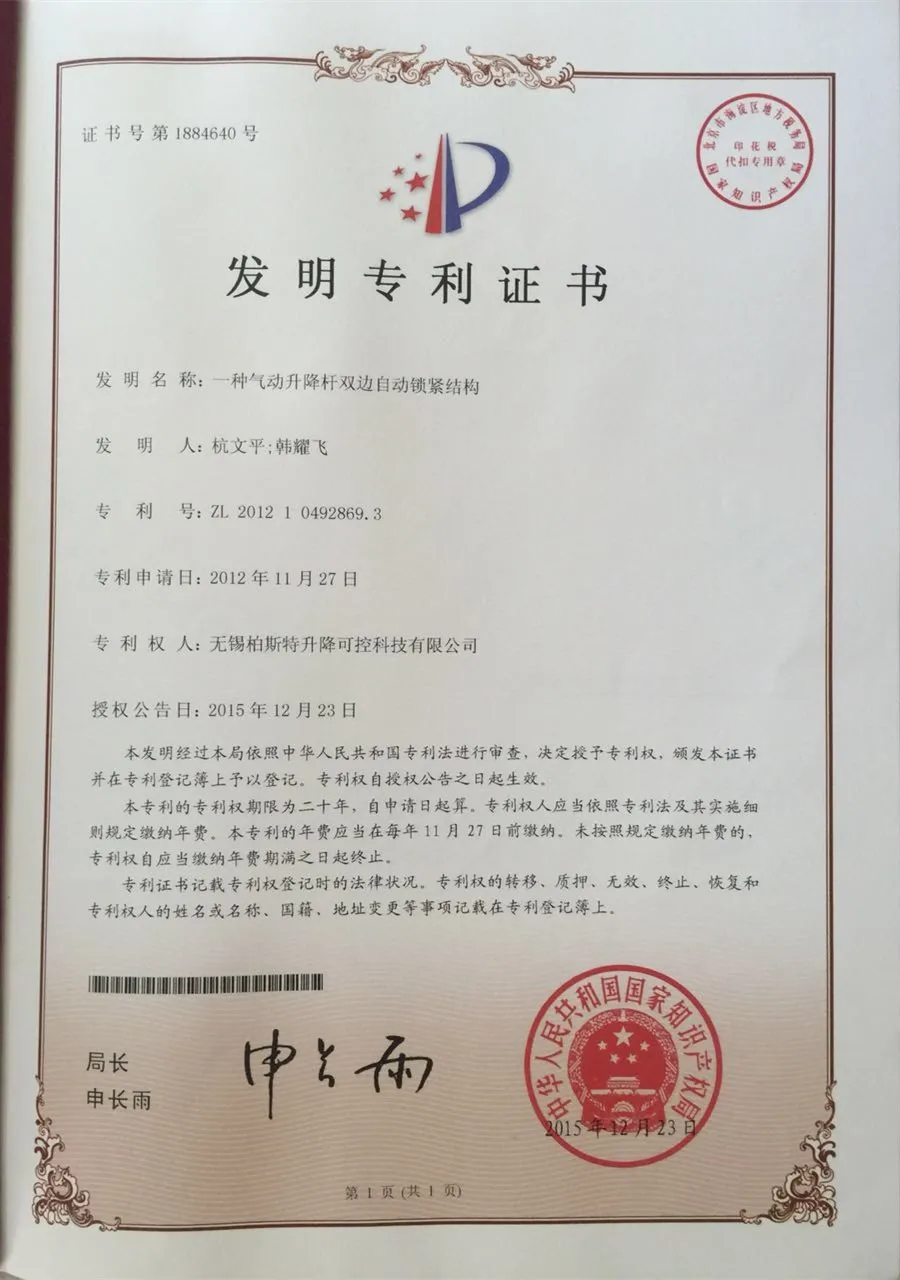

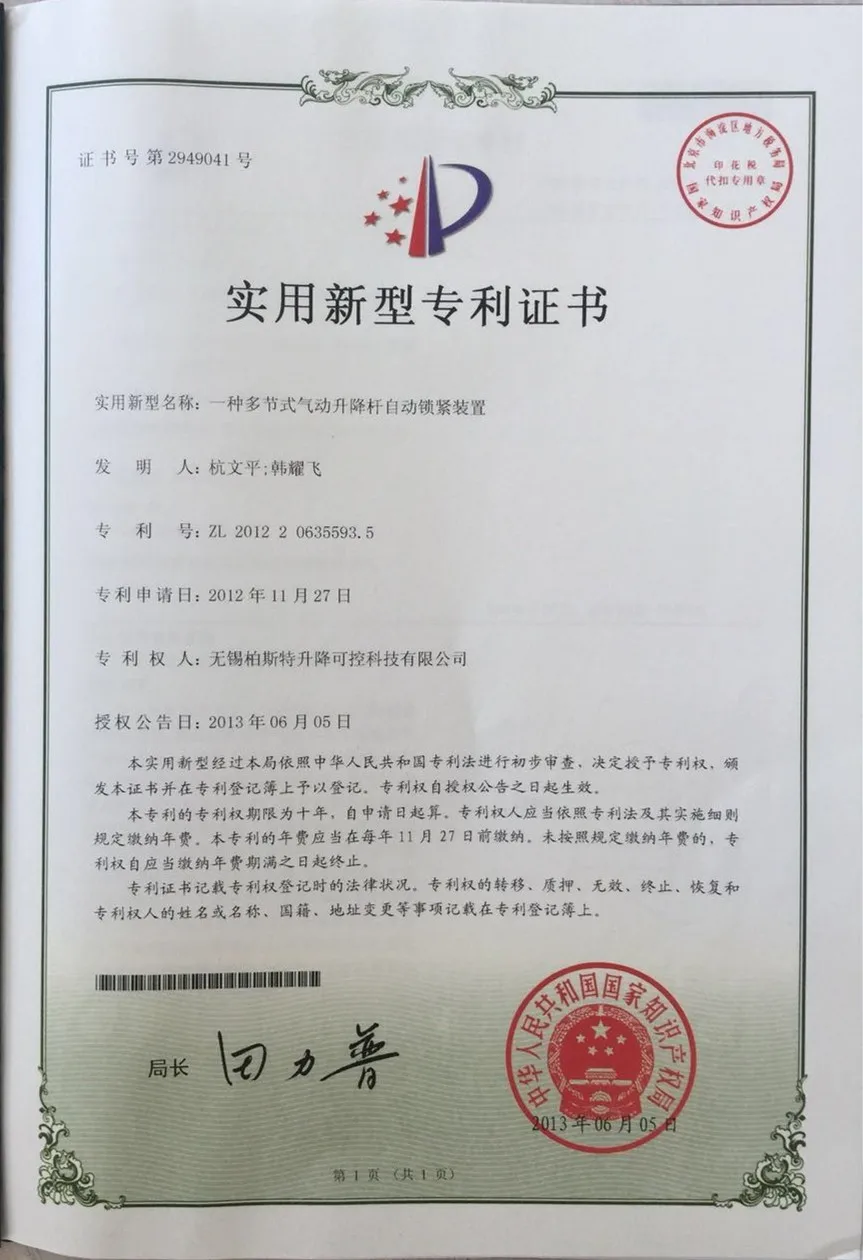

Certifications

We have 4 invention patents and 2 utility model patent.All promulgated and approved by state intellectual property office of the people's republic china.

Company Information

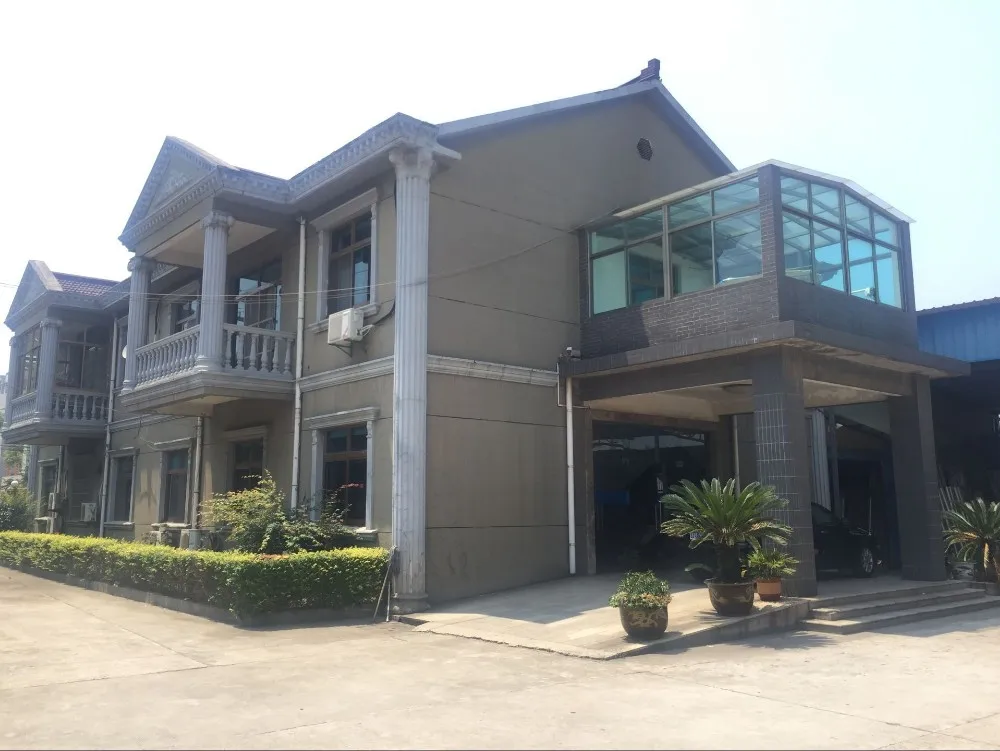

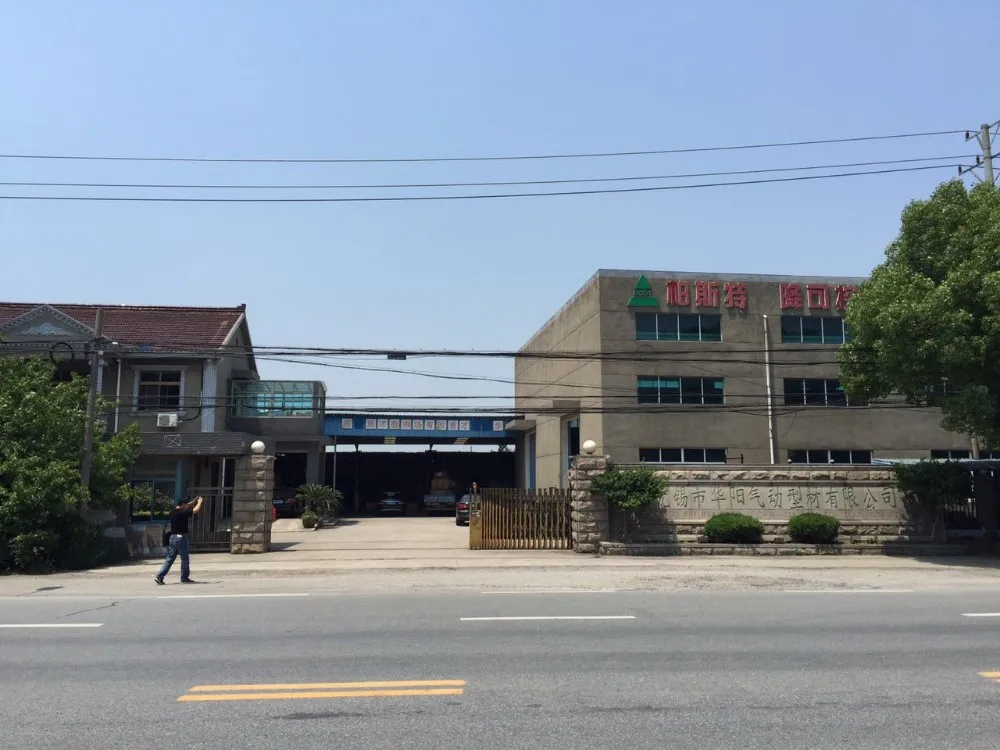

Our Factory:Wuxi Perths Lifting Controlled Technology Co.,Ltd.

Wuxi Perths Lifting Controlled Technology Co.,Ltd.(BST Manufacture Inc.) is a manufacturer based in China.

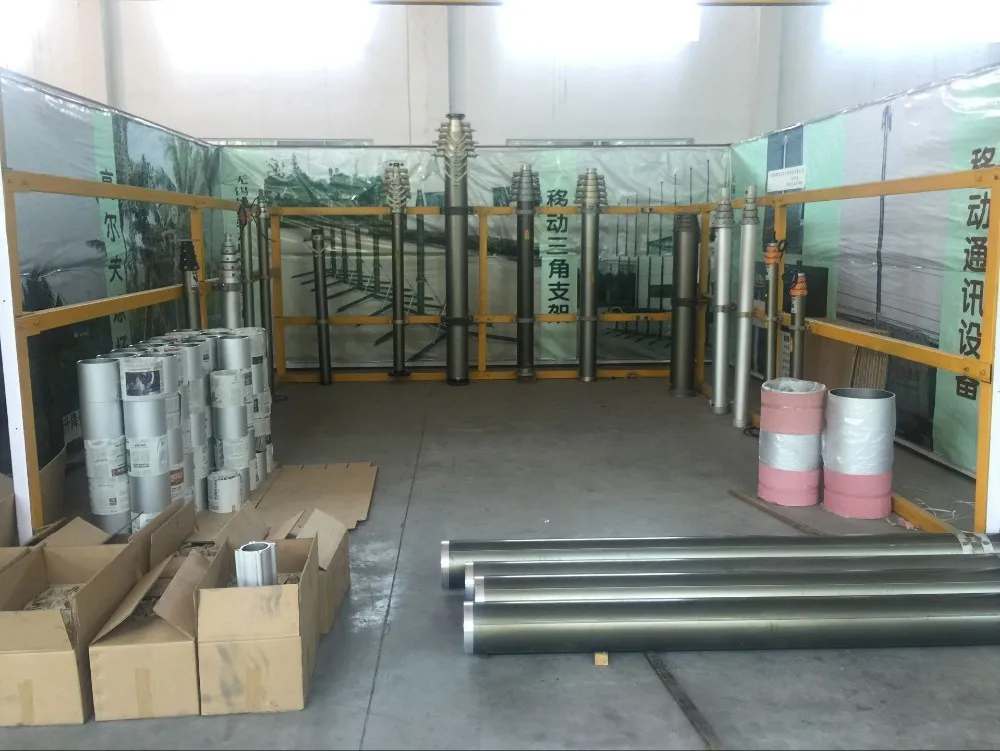

We are specialists in production of Pneumatic Telescopic Masts and Mobile Lighting Towers.Pneumatic Telescopic Masts are made from High Tensile aluminum materials, the maximum extended heightcan be up to 30m and the maximum for the head payload can be up to 500kgs. These products are widely used in Military, Emergency, Illumination, Photography,Meteorologic Measurement, etc. Mobile Light Towers come with ether diesel generator or gasoline generator, with pneumatic telescopic mast with lamps mounted on the top. Mobile Light Towers can be used for various types of applications like Construction, Emergency, Industrial, Mining, Oil and Gas Sector, Civil engineering, Road Construction, and Event lighting.Adequately illuminated areas enhances workers visibility, speed of work and minimizes the risk of accidents.

With many years production and export experience, our products are widely accepted by customers all over the world, in places such as Australia, South Africa, Brazil, Chile, UK, Germany, Netherlands, Spain and more......

We welcome your inquiry and thank you for visiting our company.....


Experience

Abroad:

America

Turkey

Middle East countries

Egypt

Jordan

Domestic:

China Unicom
