2600mm spindle face veneer rotary peeling machine/chuck wood lathe for face veneer peeling

Feedback Ratings
US $16000.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
peeling machine
Place of Origin:
Shandong, China (Mainland)
Brand Name:
GEELONG
Model Number:
GL2700
Voltage:
Customized
Power(W):
22KW
Dimension(L*W*H):
6500x2350x2600MM
Weight:
7500KG
Certification:
ISO9001/CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
spindle veneer peeling machine
Max slicing diameter:
1700mm
Pressure gauge length:
2730mm
Slicer length:
2700mm
Max.wood diameter:
1700mm
Main spindle speed:
40rpm
blade carrier moving peed:
1120mm/min
Veneer size:
0.8-2.6mm
steel:
Q235
Main power:
22kw

Packaging & Delivery

Selling Units:
Single item
Single volume:
33 cm 3
Single gross weight:
7500.0 kg
Lead Time :
30
Product Description

Product Application-spindle  face veneer peeling machine

this kind of spindle veneer rotary peeling machine mainly peel big diameter log,the daimeter can up to 1700mm.it can peel 0.8-2.6mm thickness veneer.the machine can be designed according to the thickness of the veneer

Face veneer/back veneer is mostly produced by 8ft spindle peeling machine. Spindle peeling lathe is often used to
peel big diameter(usually bigger than 360mm) logs into 0.8~2.6mm rotary veneer and the log is fixed by two shaft clamps.

please confirm other details before you buy it

specification spindle veneer peeling machine
Max peeling wood log diameter
1500
Pressure gauge length
2730mm
Slicer length
2700mm
Max.wood length
2600mm
Max.wood diameter
1700mm
Main spindle speed
40rpm
blade carrier moving peed
1120mm/min
Veneer size
0.8-2.6mm
steel
Q235
Main power
22kw
Speed up power
4kw
Gross weight
7500kg

spindle veneer peeling machine Main Features

1)the Electrical components is SCHNEIDER,DELTA

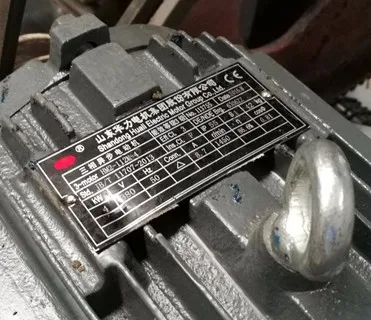

2) motor is HUALI ,CHIAN FAMOUS BRAND or can change it into other brand according to client's requirement.

3)the veneer thickness can be adjustable according to the Practical need

Certifications

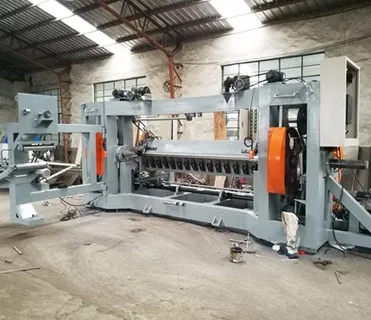

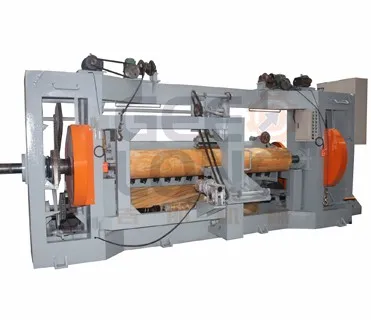

Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

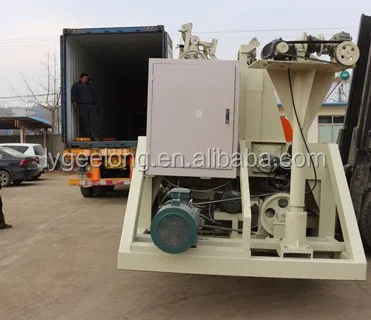

Packing & Delivery
8ft need 1 piece of 20GP container, one 40HQ can load two 8ft spindle face veneer peeling machine, another way, if u want to order one set spindle peeling machine, and swing stacker, mechnical cutter and stacker, one 40HQ is ok, not need extra containers, if you want more details of this machine, please feel free to contact with us.
