2D barcode embedded scanner module for kiosk

FOB Reference Price:Get Latest Price
$33.00 - $42.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
HW-1800
Lead Time:
Quantity(Pieces) 1 - 20 21 - 200 >200
Est. Time(days) 3 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CMOS
Colour Depth:
32 Bit
Interface Type:
USB, COM, TTL UART
Max Paper Size:
400mm
Optical Resolution:
≥4mil
Scan Speed:
20cm/sec for UPC 13mil
Brand Name:
HONWAY
Place of Origin:
Guangdong, China (Mainland)
Product Name:
2D barcode embedded scanner module for kiosk
Light Source:
LED white light
Pixel resolution:
640*480
Scanning Angle:
Rotation 360°,Tilt 65°, Deflection 65°
Support 2D code:
QR, PDF417 , DataMatrix code
Certificate:
CE,FCC,ROHS
Depth of Scan Field:
0-300mm
Size:
65*61*37.5mm
Contrast:
25%

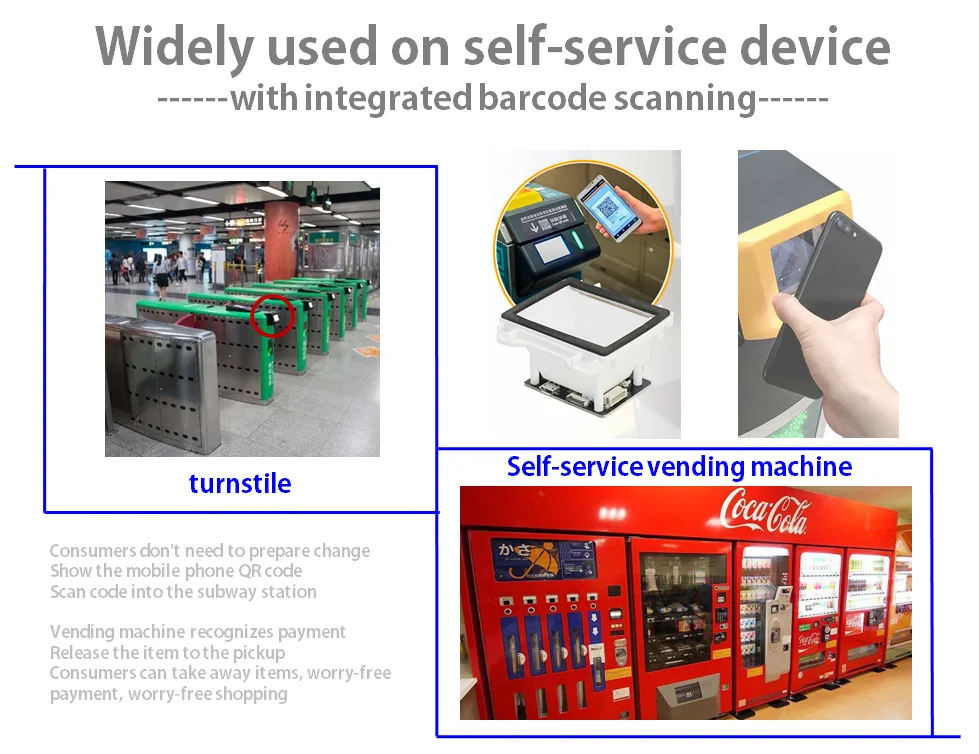

Application:
turnstile,subway,Bus,Vending etc.
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month 2D barcode embedded scanner module for kiosk
Packaging & Delivery
Packaging Details
Single packege size:L100mm*W80mm*H50mm
Single packege weight: 25g
Packege standard list: scanner*1,cable*1,box*1,manual(Electronic file)*1
Packege type: 250pcs/carton(thin plastic partition) 7kg
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 20 21 - 200 >200
Est. Time(days) 3 5 To be negotiated
Product Description
2D QR Code Responsive High Scan Speed Rich Interface Barcode Scanner Engine
 Feature

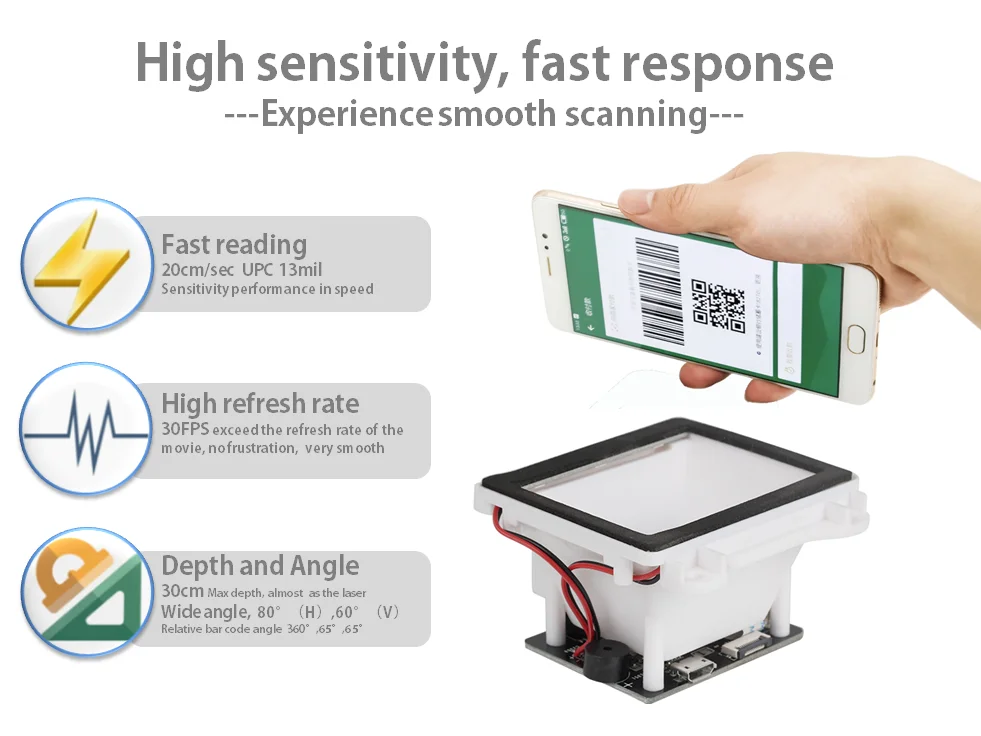

1. Support 2D/1D barcode and support screen barcode
2.Responsive,high scan speed
3.Large Scanning Angle,Easy to aim at
4.Small size structure and rich interface for secondary development
5. Factory directly sale,Cost-effective

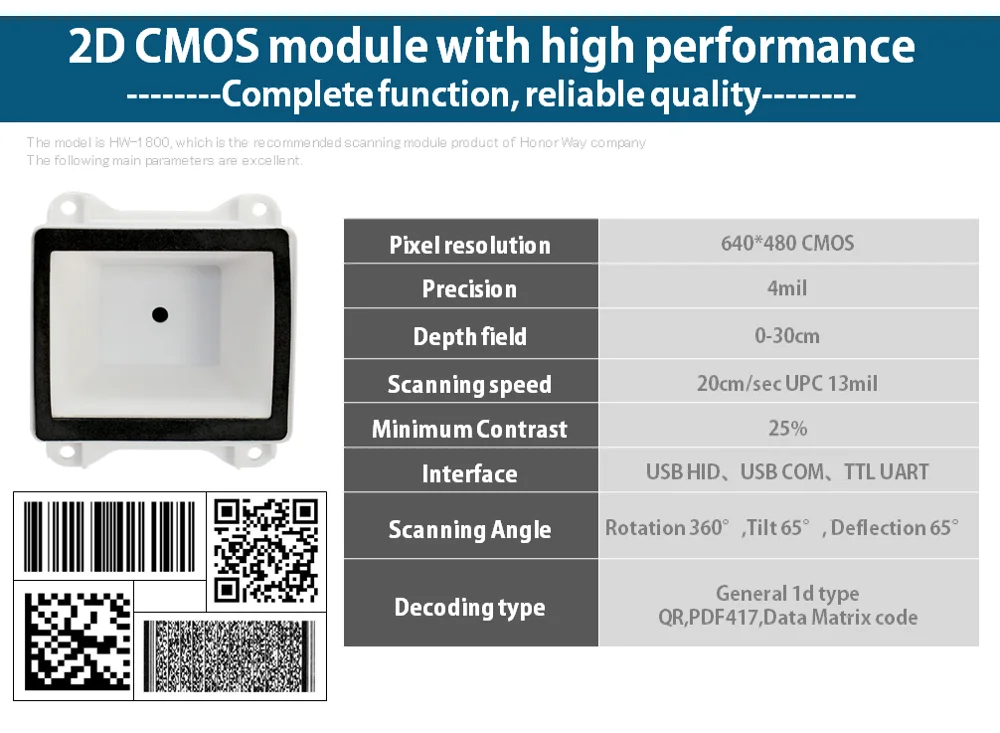

Parameter
PerformanceLight sourceLED white light
Imaging SensorCMOS pixel:640*480 30fps
pixel resolution≥4mil
Depth of scanning field0-30cm
Scanning speedUp to 20cm per second for 13mil UPC

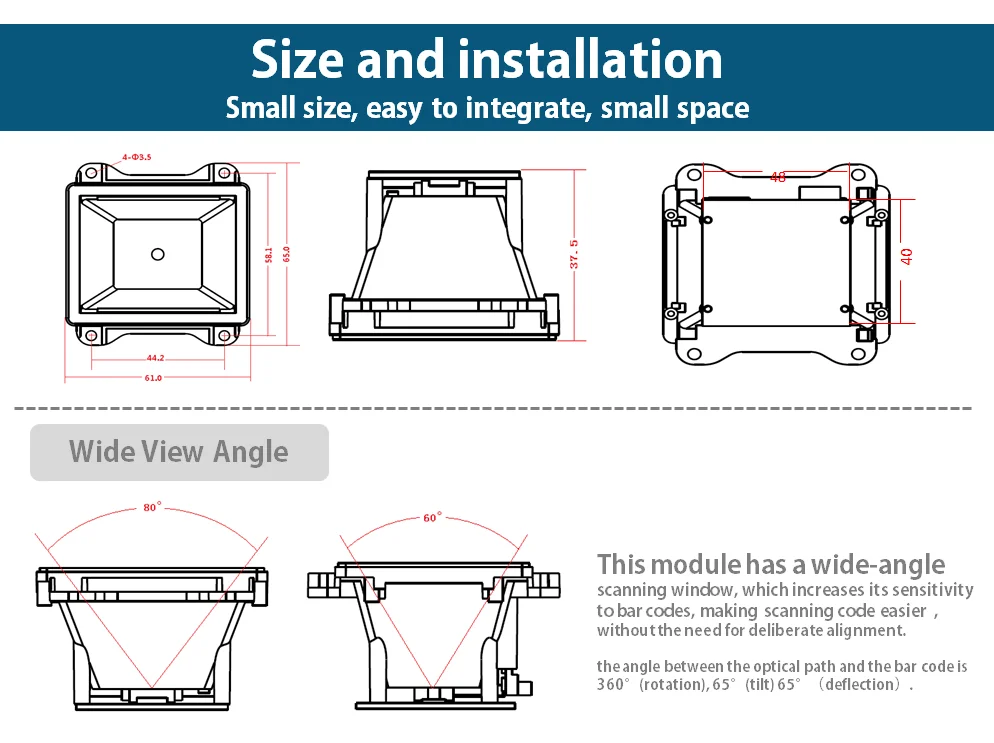

Scanning View Angle Level 80°,Vertical 60°
Scanning AngleRotation 360°,Tilt 65°, Deflection 65°
Minimum Contrast25%
Trigger modeAuto mode
IndicatorBuzzer and LED light
Supported interfaceUSB HID,USB COM,TTL UART

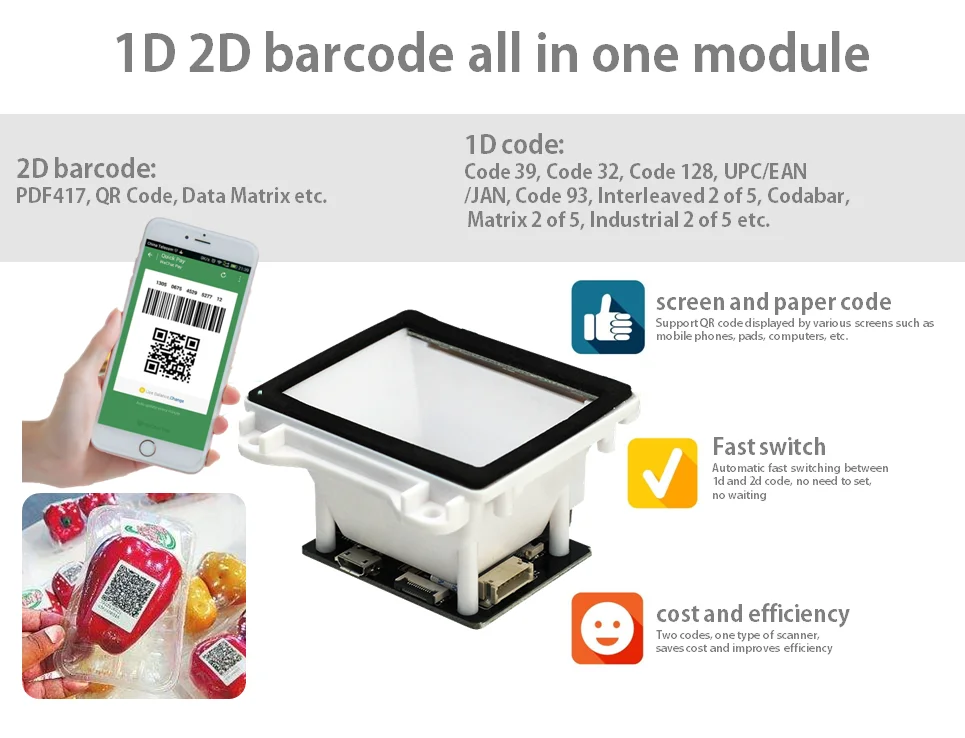

Barcode type1D:Code 39, Code 32, Code 128, UPC/EAN/JAN, Code 93, Interleaved 2 of 5,
Codabar, Matrix 2 of 5, Industrial 2 of 5 etc.
2D:QR Code, Data Matrix, PDF417 etc.
Language Support multi-languages

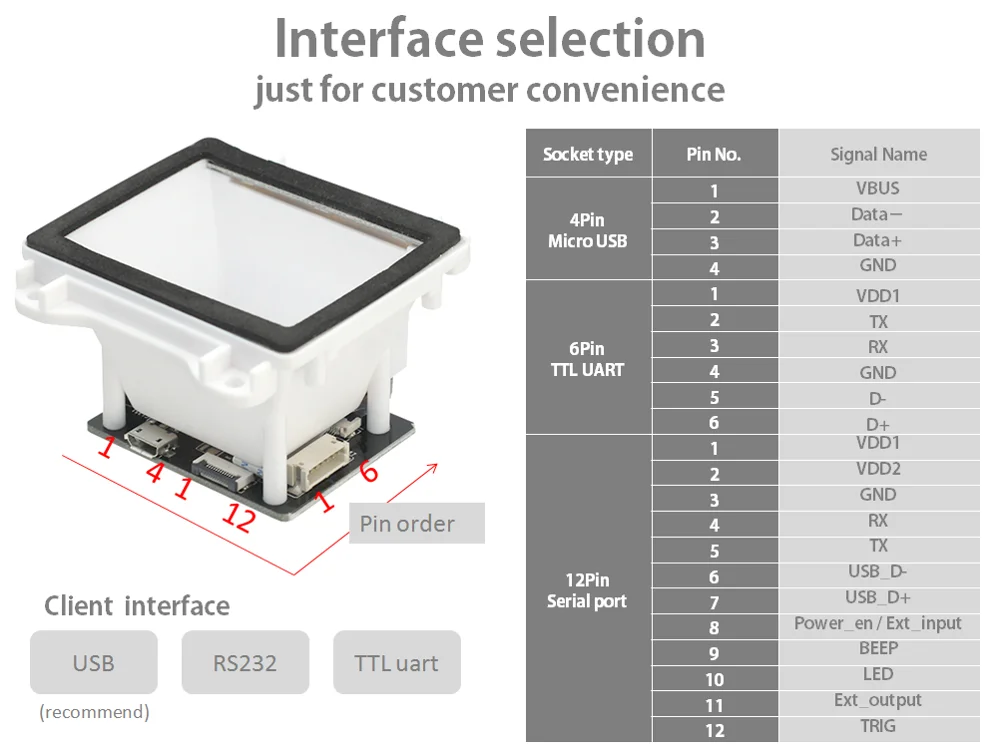

ElectronicSocket12pin FPC socket 0.5mm pitch
6pin socket 1.5mm pitch
4pin MicroUSB
Input voltage12pin--3.3V or 4V to 5.5VDC, the typical is 5VDC
4pin/6pin 4V to 5.5VDC, the typical is 5VDC
Operating current100mA
Max Current120mA
StructureScanner size65*61*37.5mm
weight15g
cable length1M
ReliabilityShock resistance1.8M
Operating temperature-20℃~60℃
Storage temperature-40℃~85℃
Operating humidity5%~95%(non-condensing)
Storage humidity5%~95%(non-condensing)



   Recommend to you



2D CMOS embedded barcode reader module                    2D CMOS wall mounted barcode scanner module

Company Information









Packaging & Shipping



Our Services

Our Services

1. MOQ--We can accept 1 set

2. Product warranty—12months

3. OEM-- customize logo, label, packaging, etc.

4.ODM--customize hardware and appearance structure according to customer requirements

5.If you encounter any problems during the use of the product, you can directly contact us by email or telephone.
