2kw Grid Tie inverter For Wind Generator AC Output

Feedback Ratings
  • 1-9 Pieces
    US $330.00
  • >=10 Pieces
    US $270.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
R&X
Model Number:
SUN-2000G2-WAL-LCD
Output Power:
1 - 200KW
Output Type:
Triple
Size:
434x196x88mm
Weight:
7.0kG
Input Voltage:
45-90vdc
Output Voltage:
185-265v
Type:
DC/AC Inverters
Output Frequency:
50Hz/60Hz
Output Waveform:
pure sine wave

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X32X18 cm
Single gross weight:
8.0 kg
Package Type:
One piece per carton
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(day) 5 To be negotiated



Product Description

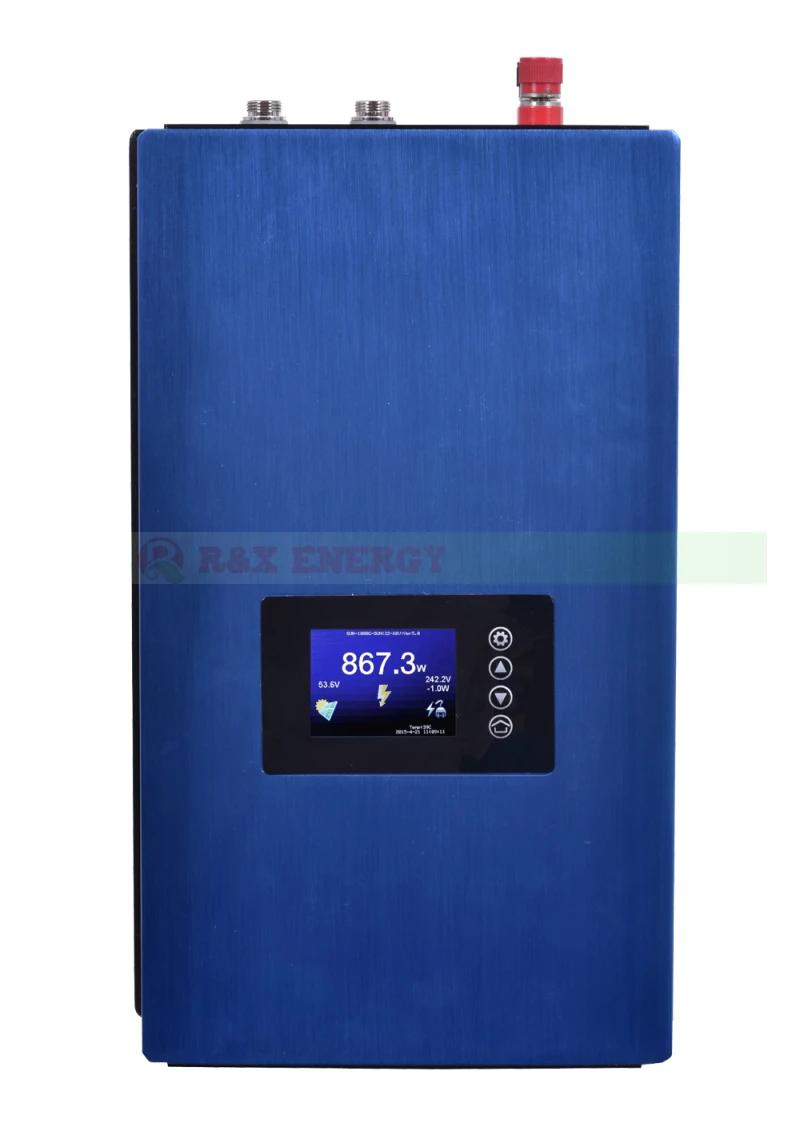

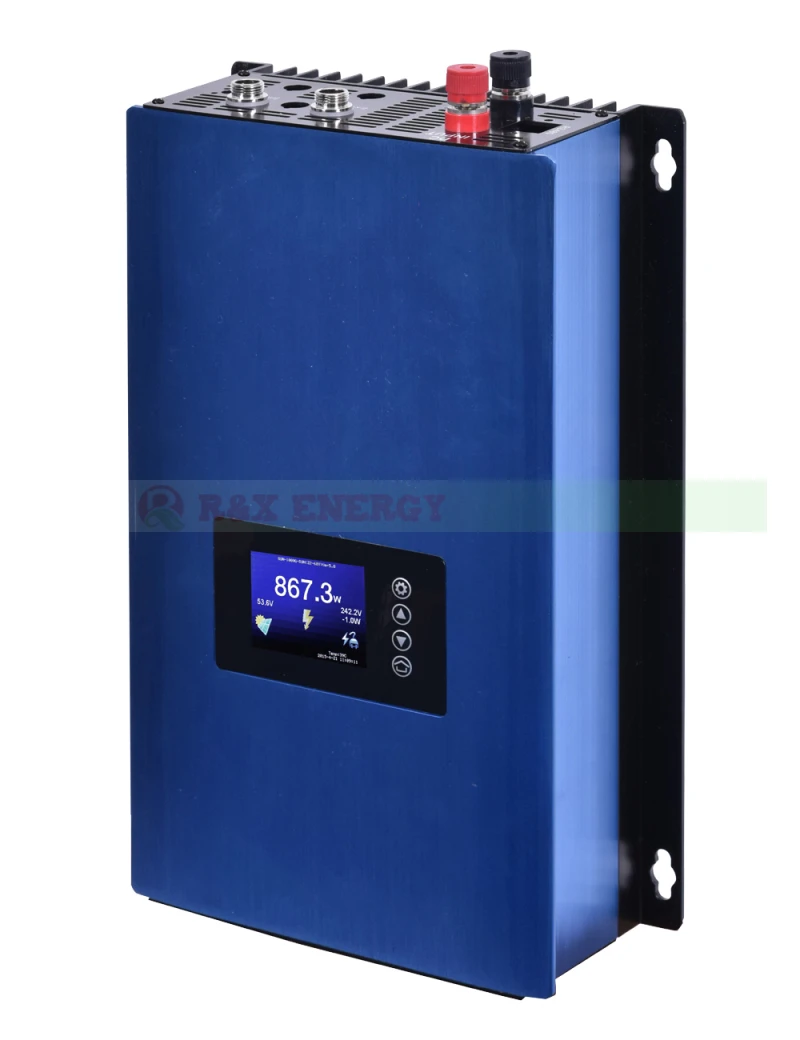

 NEW 2000W Wind Power Grid Tie Inverter

--With dump load controller and resistor / limiter sensor clamp

--Max Efficiency:>92%

--MPPT Efficiency:99%

--DC/AC  45V-90V ( optional )

--AC   220V 230V 240V  50hz 60hz

-- Power Limit sensor/clamp



.jpg



Advantage  Features  of the 2G Wind Power Grid Tie Inverter

•The 2nd Generation grid tie inverter,  new technical , Higher efficiency

•Higher MPPT efficiency , Max 99%

Multiple intelligent protection to ensure safe use.

Directly connect to three phase wind turbine, without regulator

Easy to install and easy to operate.

UL1741, IEEE1547, VDE4105 standards .

Two years Warranty , life time technical support .

Pure Sine Wave output

Build in dump load function

Two years Warranty , life time technical support .

Power Limit Function






R&X Grid Tie Power Inverter is the world’s most technologically advanced inverter for use in utility-interactive applications.

This manual details the safe installation and operation of the R&X Grid Tie Inverter.


This integrated system maximizes energy harvest, increases system reliability, and implifies design, installation and management.


The small type wind grid tie power inverter can obtain the wind energy from wind turbine, and can tie to the grid through its output cables with no extra equipment. The installation is very convenient and reliable.


We call the system combining with small grid tie inverter and wind turbine as ‘SGWT’. The system includes wind turbine and small grid tie inverter and installation kit, and some “SGWT” also will include controller, dump load resistor.


The inverter can be connected to any outlets of utility grid at house. The small grid tie inverter monitors the volume, frequency and phase of the home utility grid, then produce pure sine wave AC power that the frequency and phase are as same as the grid's, and the volume is a bit higher than the grid's, then according to the current controlled PWM, to control the output power to the grid.

The small grid tie inverter just puts out power when the home grid is on.


When the wind turbine is rotating, and the output of the voltage is in the range of the rated input voltage of the inverter, the wind turbine will produces power, and the grid tie inverter will change the power from wind turbine to the home grid. When the total power of electric apparatus that are using in the house is larger than the output power of the inverters, these power from the inverters will be consumed in the house, this will slow down the power meter, otherwise, the difference of the output power of the inverter between the total used power of the apparatus will go out from the house to the out grid







Technical Data



Input Voltage Range

45-90vdc  (test point is at the output of the inside rectifier)

Max input DC voltage

90v

Peak power tracking voltage

50-90v

Max output power

2000w

Nominal output Voltage

230v

Nominal Voltage Range

185-265v

Frequency Range

47.5-51.5 for 50hz,59.3-60.5 for 60hz

Power Factor

>0.95

Output Waveform

pure sine wave

Max Efficiency

>92%

MPPT Efficiency

99%

Product size

434x196x88mm

Carton size

4535x325x360 mm

Display

LCD

 Packaging

Carton

Net weight

6.5kg

Gross weight

7.0kg

Approval /Cerficate

UL1741,IEEE1547,VDE4105/CE

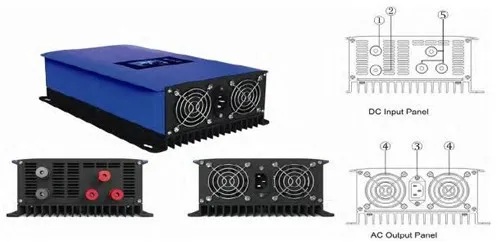

(1) (2) Dump load resistor connection Terminal. This terminals will connect to the dump load resistor.

(3) AC socket,This socket will connect the inverter to the public grid via the AC cable.

(4) Cooling fans.

(5) Input Terminals. This terminals will connect to the wind turbine.




1000GTIL2--3 .jpg1000GTIL2--1 .jpg1000GTIL2--2 .jpg

HTB19Zs

Selecting correct model of Grid Tie Inverter.

 If the wind turbine is DC output type, then you should choose WDL model inverters, and the input DC voltage range of the inverter should fit the DC output voltage of the wind turbine, the rated power of the inverter should also fit the max. power of the wind turbine, and the AC output of the inverter should fit the standard of AC utility grid.

If the wind turbine is AC output type, then you should choose WAL model inverters. Most factories don’t supply the AC rated voltage, just supply DC rated voltage, so our WAL also supply the DC input range, please check the DC rated voltage of wind turbine should fit the DC input range of the grid tie inverter.



For 48v - 90v wind turbines ,we suggest 45V-90V inverters .


WAL model of  grid tie invereter connected with AC output type of wind turbine.


Connecting two  2000G2-WAL with a max. power is 4KW wind turbine

Inverter LCD Display :







About Limit Model  :




Limit Model :

External limiter and Internal limiter are settable,

Limit mode+External limiter both selected means work under external limiter mode.  (external limter needed )

Limit mode+Internal limiter both selected means work under external limiter mode.

About External Limiter (no included in this item ):

The limiter sensor/clamp cable is 2mters for internal limiter .

If the distance of inverter and main braker is longer than 2m , the user will need external type limiter .  the distance can be extend to Max 30meters .
