3-10KW High Frequency Melamine Tableware Preheating Machine

$2,799.00 - $6,999.00 / Unit | 1 Unit (Min. Order)
Model Number:
ZY-330
$2,799.00
- +
available
ZY-520
$3,299.00
- +
available
ZY-720
$4,399.00
- +
available
All 4 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Infrared Heater
Power Source:
Electric
Place of Origin:
Guangdong, China
Brand Name:
ZEUYA
Dimension(L*W*H):
800*1280*1520MM
Weight:
320KG
Certification:
CE ISO
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Online support, No after-sales service
Working Temperature Range:
100 ℃
Key Selling Points:
Long Service Life
Machine Type:
Tableware Preheating Machine
Manufacturer:
Yes
OEM:
Accept
Brand:
ZEUYA
Model:
Tableware Preheating Machine ZY-520
Function:
Melamine Preheating
Operation Way:
Manual
ODM:
Accept
Cetificate:
CE Approved
Voltage:
380V/220V

Packaging & Delivery

Selling Units:
Single item
Single package size:
70X80X90 cm
Single gross weight:
350.000 kg
Package Type:
Strong Wooden Case
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 2 To be negotiated
Video Description

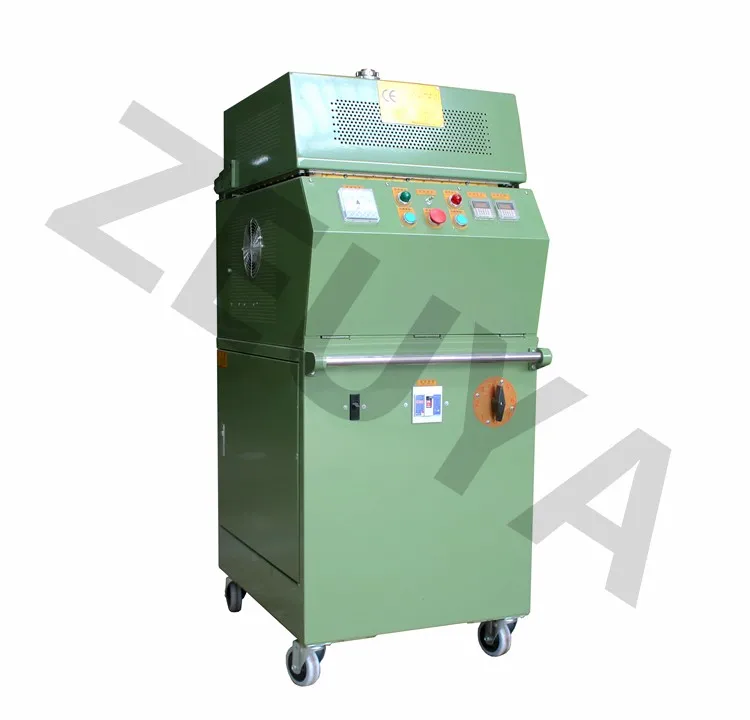

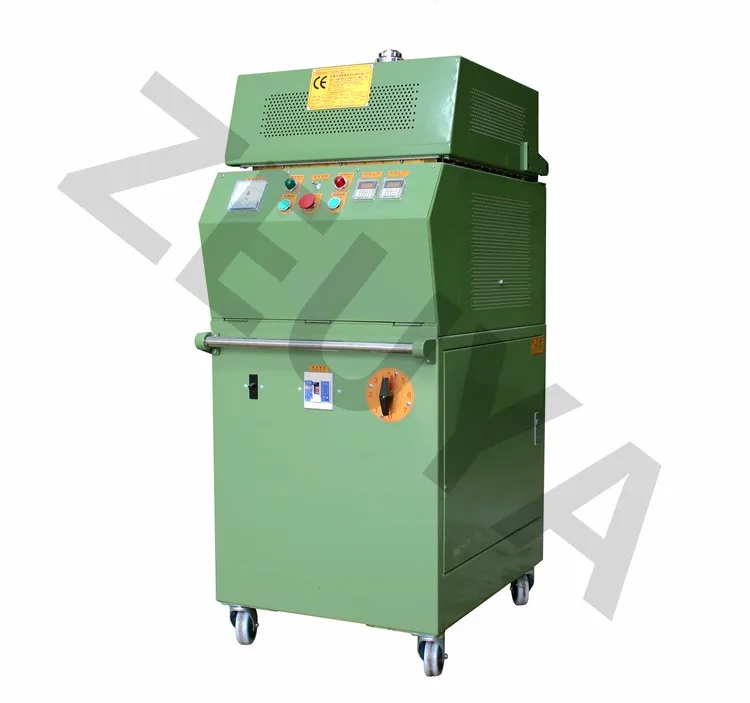

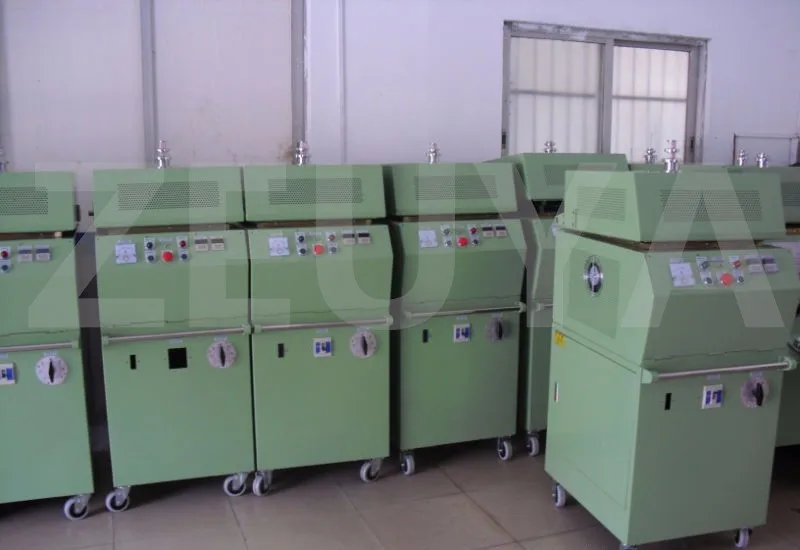

Machine Photos

Principle:
Heated material was Uniformly and quickly heated under the high frequency electric field due to the dielectric loss fast.

Function:
After high frequency preheating machine heating material, can increase the strong liquidity, shorten the casting time, eliminate stress in materials, eliminating water lines and improve the finished product is bright and clean degree, save material dosage, extend the die life.

Standard Machine Model:

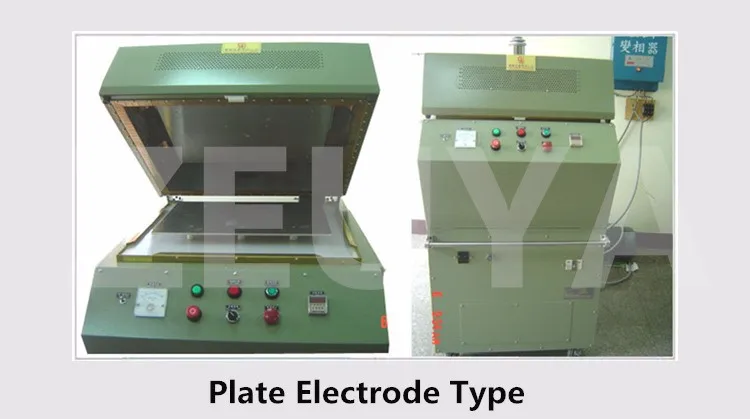

(1). 3KW, 5KW, 10KW Plate electrode type.

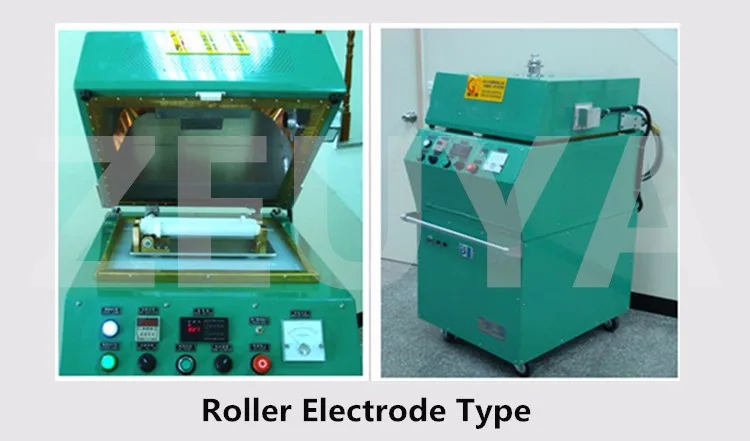

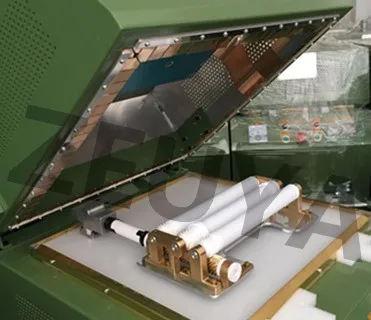

(2). 7KW Roller electrode type.

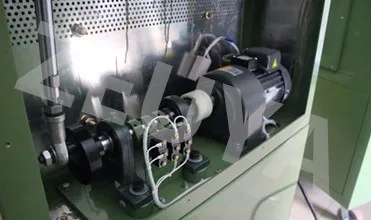

* Motor Driven for Machine Cap


Worker only need to put the material, machine cap will be automatically opening according to machine parameter setting.

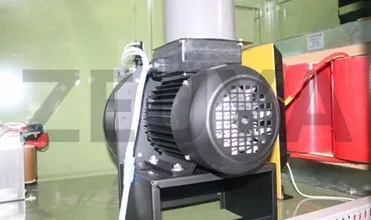

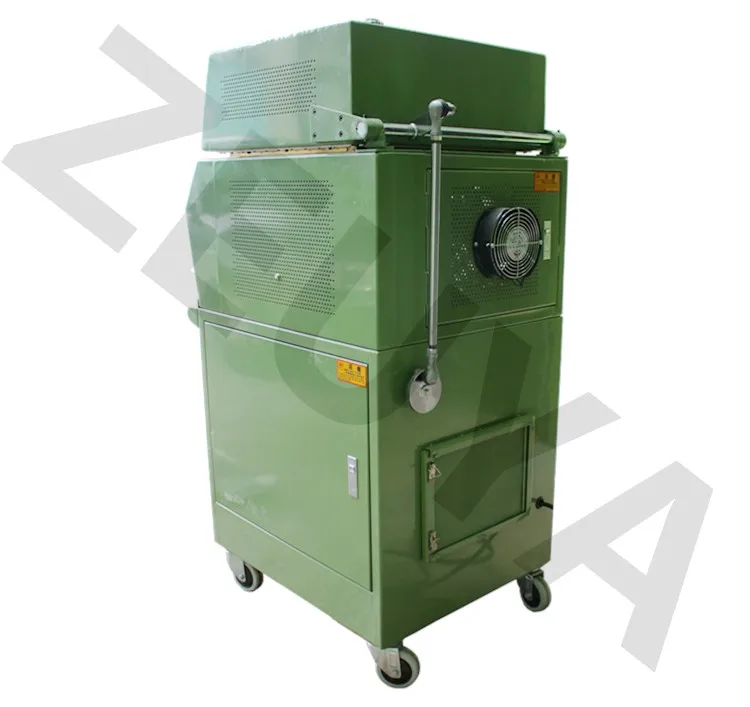

*Independt High Power Cooling Fan


Machine using a special designed independt high power cooling fan, which make sure the machine can be constant work and machine will not overload caseu over heat.

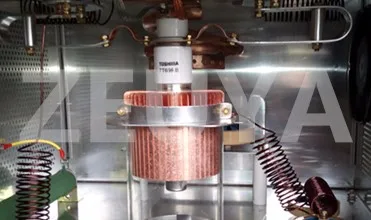

* TOSHIBA Oscillation Tube


Using TOSHIBA original imported oscillation tube, more powerful output power, stable and durable than other brand.

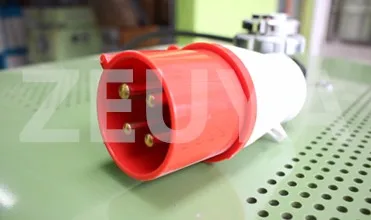

* Waterproof Plug

We are equipped with a waterproof plug on the machine. After receiving the machine, we only need to connect your wire to the mother plug that we send with machine.

The plug is waterproof and not easy to release, which greatly improves the safety and stability of the machine.

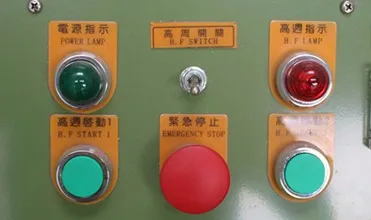

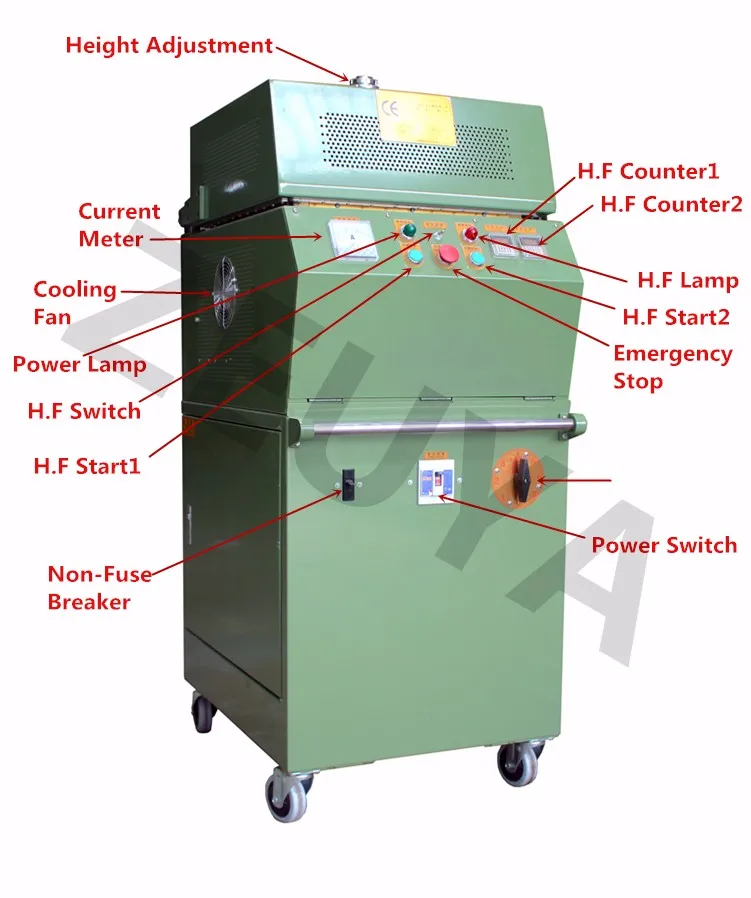

* Chinese and English Mark on Control Pannel


This preheater control is simple and all button have Chinese and English mark on it, we also will send you manual and video to learn it how to work on this machine and your mateiral you want to preheat.

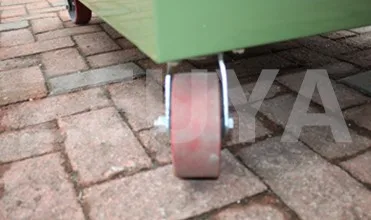

* Lockable Universal Wheel


The machine is equipped with a lockable universal wheel that allows the machine to move and moves to a suitable location, which can be fixed by locking the caster to fix the location of the machine.

Main Spare Parts
AIR SWITCH
Taiwan SHIHLIN
Time Relay
Taiwan CKC
Contactor
Japan FUJI
Relay
Taiwan OMRON
Button
Taiwan TIANDE
Oscillation Tube
Japan TOSHIBA
Indicator
Taiwan TIANDE
Micro Switch
Taiwan TIANDE
Machine Type
Plate Electrode Type
Roller Electrode Type
Model
ZY-330
ZY-520
ZY-1020
ZY-720
Voltage
220V/380V 3P 50/60Hz
Output Power
3KW
5KW
10KW
7KW
Input Power
6.5KVA
11KVA
20KVA
13KVA
Oscillation Frequency
62Mhz
62Mhz
27Mhz
72Mhz
Oscillation Tube
TOSHIBA 7T85RB
TOSHIBA 7T69RB
TOSHIBA 8T25RB
TOSHIBA 7T69RB
Electrode Size
240*280MM
310*340MM
450*560MM
/
Gap of Electrode
110MM
110MM
120MM
110MM
Bakelite Compounds
500G
1200G
2500G
/
Melaimine
500G
1000G
2800G
/
Urea Compounds
500G
1500G
2500G
/
Machine Dimension
500*775*1280MM
600*850*1500MM
800*1280*1520MM
600*850*1540MM
Machine Net Weight
180KG
260KG
320KG
320KG
Application

Application:
High frequency preheating machine widely used in the molding industry, such as semiconductor discrete electronic components, integrated circuits, microelectronics packaging, and other motor commutator, melamine imitation porcelain tableware, plastic electric appliance, etc.

Material:
Phenolic resin, urea, plastic, melamine, epoxy resin and thermosetting molding compound.

Packing & Delivery

Packing:

Machine packing inside is plastic films and outside is fumigation wooden case.


Our wooden case is very strong,it can bear long time shipping on the sea.


And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.

Delivery:

For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.

The price show on our website just the machine EXW price, please contact us to confirm shipping cost before you place order.
