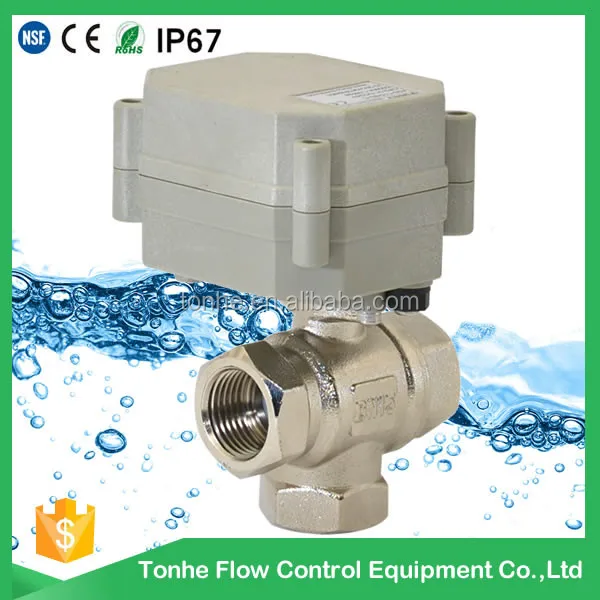

3-way motorized valve electric ball valve for under flowwr heating systems

Feedback Ratings
  • 1-9 Pieces
    US $20.50
  • 10-99 Pieces
    US $20.00
  • 100-999 Pieces
    US $19.80
  • >=1000 Pieces
    US $19.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tonhe or OEM
Model Number:
3 way valve
Application:
General
Material:
neckel plated brass
Temperature of Media:
Normal Temperature
Pressure:
Medium Pressure
Power:
Manual
Media:
Water
Port Size:
1/2"
Structure:
Ball
Type:
Normal Colse
Product name:
1" 12V/24V 3 way type Brass electric ball valve CR202 2 Wires
Certificate:
CE, NSF61,Rohs, IP67
Body material:
neckel plated brass
Color:
Customer's Request
Torque:
2N.M
Voltage:
DC5V, DC12V, DC24, DC/AC9-35V(Optional)
Working current:
≤500MA
Open/close time:
≤5 Sec
Seal Material:
EPDM & PTFE
Standard or Nonstandard:
Standard

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X9X8 cm
Single gross weight:
0.5 kg
Package Type:
carton
Lead Time :
2
Product Description



Description of   3-way motorized valve electric ball valve for under flowwr heating systems





Technical Parameters:


Product size

NPT/BSP 1/2'', NPT/BSP 3/4", NPT/BSP 1'' (Optional)

Maximum working pressure1.0MPa
Circulation mediumFluid, Air
Rated voltageDC5V, DC12V, DC24V,  AC/DC9-35V(Optional)
Wiring control methods

CR201

Working current≤500MA
Open/close time≤5 Sec
Life time70000 times
Valve Body materialNickel plated Brass
Actuator materialEngineering Plastics
Sealing materialEPDM & PTFE
Actuator rotation90°
Max. torque force2 N.M
Cable Length0.5m,1.5m (Optional)
Environment temperature-15℃~50℃
Liquid temperature2℃~90℃
Manual overrideNo
IndicatorNo
Protection classIP67


Specifications:





ModelWiring controlWorking voltageMax. torque
T20-B3-CCR2 01DC5V, DC12V, DC24V2N.m
T20-B3-CCR2 02DC/AC9-35V, AC110V-230V2N.m
T20-B3-CCR3 01

DC5V, DC12V, DC24V, AC/DC9-35V

2Nm
T20-B3-CCR3 02

 DC9-35V

2N.m
T20-B3-CCR3 03

AC/DC9-35V

2N.m
T20-B3-CCR3 04

DC5V, DC12V, DC24V, AC/DC9-35V

2N.m
T20-B3-CCR5 01DC5V, DC12V, DC24V2N.M
T20-B3-CCR5 02AC/DC9-24, AC/DC9-35V2N.M
T20-B3-CCR7 01

DC9V-35V

2N.M
T20-B3-CCR7 02

DC5V, DC12V, DC24V, AC/DC9-35V

2Nm
T20-B3-CCR7 03

DC12V, DC24V

2Nm

















Application

Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length


Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.




TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .











Packaging & Shipping





FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
