300L Steam Jacket Steam Heating Complete Beer Brewing Equipment

FOB Reference Price:Get Latest Price
$12,100.00 - $34,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
zhuoda-300L
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
zhuoda
Processing Types:
beer
Voltage:
220v/330v
Power(W):
15kw-50kw
Dimension(L*W*H):
capacity
Weight:
200KG-1000KG
Certification:
CE
Warranty:
5 years
Material:
Stainless steel 304/316 red copper
Capacity:
100-5000L
Heating method:
Steam Heating
Control system:
PLC/digital display type
Insulation:
PU
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
1. Main tanks, vessels and machines will be packaged with painted steel frames.
2. All spare parts, accessories and fittings will be packaged with painted steel box.
3. All items wrapped with soft package for protection.
4. Standard shipping containers will be used for general purpose.
5. All equipments will be loaded into containers according to exact container layout drawings.
6. After loaded into containers, all equipments will be well fixed to the containers
Port
Qingdao Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

300L Steam Jacket Steam Heating Complete Beer Brewing Equipment

  Brewhouse system

The brewhouse system is composed of mash tun/ lauter tank, kettle,/whirlpool, , hot water tank, hops back,

plate heat exchanger with oxygenation device, wort pump etc.

The water and wort step heating is controlled by Digital Display program and completed automatically.

Two ways of plate heat exchanger cooling: single stage cooling & two stage cooling.

Items

 Technical Parameters

Working capacity

 300L per batch

Brewhouse type

 MLT+KWT,  M+L+KWT,  M+L+K+W, Customized.

Raw Material

 Food grade stainless steel or red copper cladding.

Heating way

  Electric heating,  Steam heating,  Direct fire.

Insulation

 Rock wool / 80-100mm

Tank wall

Outer wall 2mm / inner wall 3mm

Plate gap

Milling sieve plate ≤0.6mm; Material is SUS 304. (false bottom)

Polishing

Polishing precision up to mirror polish; better than Ra0.4µm

Platform

Food grade Stainless steel 201

       Cooling System

The Cooling system is composed of Ice water tank, Brazing chiller and ice water pump,

The water step cooling is controlled by Digital Display program and completed automatically.

Cooling structure is dimple plate jacket.

Items

 Technical Parameters

Capacity

600L

Composed

Ice water tank + Chiller + Ice water pump.

Raw Material

Food grade stainless steel or red copper cladding.

Insulation

  PU/ 80-100mm

 Tank wall

 Outer wall 2mm / inner wall 3mm

Chiller

 Brazing Chiller, 3HP

Pump

3T/h

Plate gap

 Milling sieve plate ≤0.6mm; Material is SUS 304. (false bottom)

Polishing

Polishing precision up to mirror polish; better than Ra0.4µm

Fermenter system

Fermenter system is composed of fermenter tank, bright beer tank, yeast added tank, etc.

The tradtional design of the fermenter’s cylinder and cone is double-jacket, the seal head is single-jacket, based on the original design,

NO.

Items

 Introduction

01

FV   Volume

 300L/600L or customized

02

FV   Volume

 300L/600L or customized

03

Raw Material

 Food grade stainless steel or red copper cladding

04

 Tank Wall

 Outer 2mm / inner 3mm.

05

 Insulation

 Polyurethane, TH: 80-100mm

06

 Glycol jacket

 Dimple jacket on the cone and side

07

 Polishing

 Inside is Mirror polish

Control system

Digital Display semi-automatic controller: Simple operation, easy maintenance.

Cabinet material: stainless steel ;

Function: Show brewhouse tanks temperature, turn on/off all motors and pumps by button, control all fermenters/BBTs

/glycol tanks temperature, chillers soft start, supply power for CIP cleaning system and so on.

Packaging & Shipping

We have two ways for customer's equipment packages.

1. Standard export wooden box packing the 2-4 tanks for customer.

2. 200L used electric heating way brewery equipment for sale package in one 20ft container:

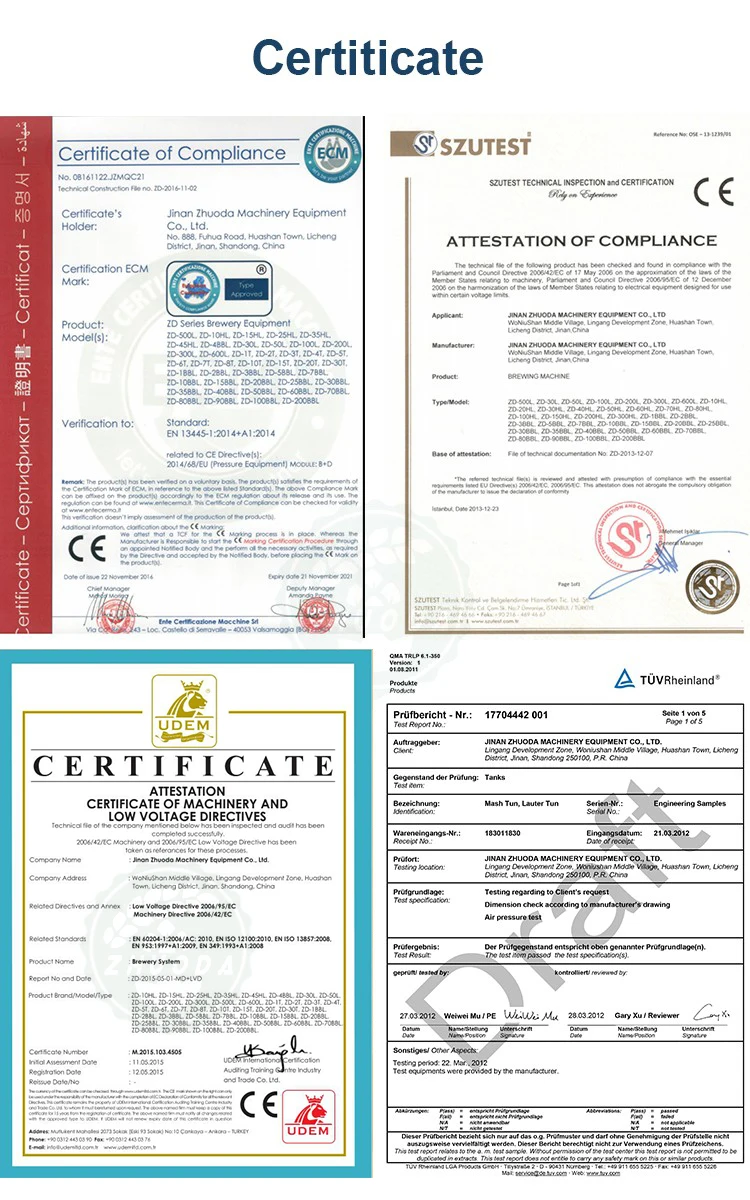

CE Certification
All our items will be strictly according to CE / ISO / TUV regulation.




Success Project
Domestic Project and  international success project
