300w 400w Wind solar hybrid power system of led street light new design

FOB Reference Price:Get Latest Price
US $69-165 / Pieces | 5 Piece/Pieces can order one sample (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Hebei Green
Model Number:
Wind solar hybrid power system
Type:
Wind Power Generator
Name:
300w 400w Wind solar hybrid power system
Input Voltage:
AC84V-264V DC9V-30V
Colour:
white black gray blue
Illuminance uniformity:
>0.6
Power efficiency:
e92%
Facula Shape:
zonal facula
Color Temperature:
Warm white cold white
Illuminance(LUX):
Vertical 6m 20.52328 8m1113.216
Supply Ability
Supply Ability:
6000 Piece/Pieces per Month due
Packaging & Delivery
Packaging Details
Standard export boxes
300w 400w Wind solar hybrid power system
Port
Xingang
Lead Time :
Within 7 days after confirmation of order

300w 400w Wind solar hybrid power system of led street light new design

chinachinachina

Hebei Green Photoelectric Technology Co., Ltd. is a large professional

producing LED street lamps manufacture.

1.Specification

 E40,28W

 GLC- LD01,28W,40W,48W,56W,

 GLC- LD02,80W,96W,112W,

 GLC- LD03,120W,144W,168W,

 GLC- LD04,192W.

2.Features

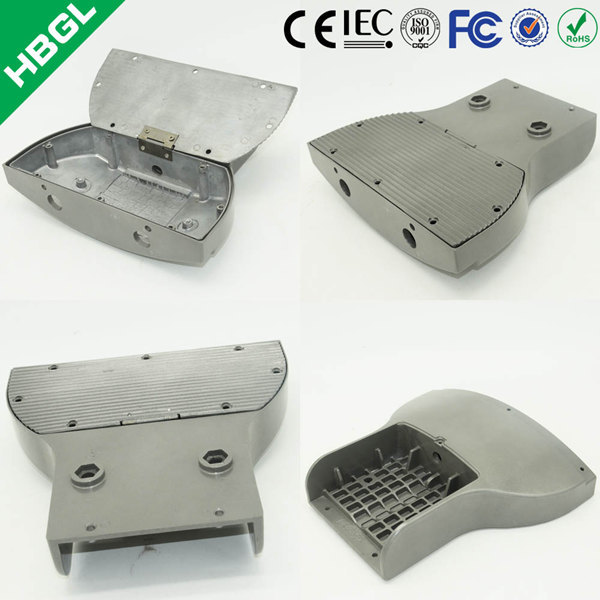

Air Convection Integrated Cavity Style Aluminum Radiator for working temperature

safely under 50.

Metal Bolt High Power LED Light Source make sure 60000h life.

Many kinds of color temperatures to choose.

Secondary optical lens module and zonal facula reduce the light loss.

Output accurate constant current be harmless to human.

Customized the appearance of different colors.

All kinds of different power light depending on the width of the road.

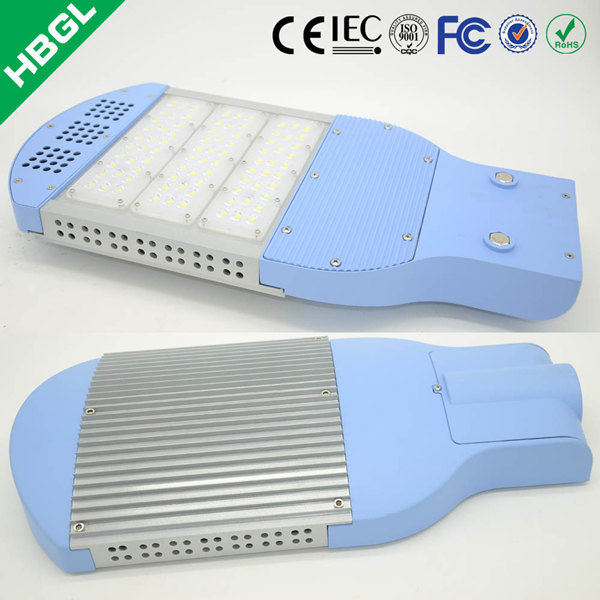

3.LED street lamp

High efficacy, waterproof,long lifetime, good color rendering, stable output, low loss etc.

4.Applications

 Freeway, highway, paking lots, public entrances, off street areas.



Product Specifications
ModelGLC-LD01GLC-LD02
Specifications558×285×80(mm)709×285×80(mm)
Net Weight6.9kg9kg
LED Total Power40W48W56W80W96W112W
Input Total Power44W52W64W92W110W131W
Illuminance(LUX) Vertical6m20.5232842.652
8m1113.21623.52634
10m77.51114.51622
12m   1214.315
14m     13
Luminous Flux(lm)323238804525621874618705
Illuminated Area             6 meters26×12  8meters36×14           10meters42×16
Input VoltageAC84V-264VDC9V-30V
Illuminance uniformity>0.6
Power efficiency≥92%
CurrentSingle 325mA
LEDSingle Power1W
Color Temperature3000K4500KWarm white,5500K-6500K(white)
LEDSingle efficiency≥90LM/W
Lamp Temperature<50
Idemitsu PerspectiveHorizontal140Vertical77
Efficiency>90%
Power Factor0.99
Protection GradeIP65
Facula ShapeZosterFacula

HBGL Wind/Solar Hybrid Power System CE,RoHS

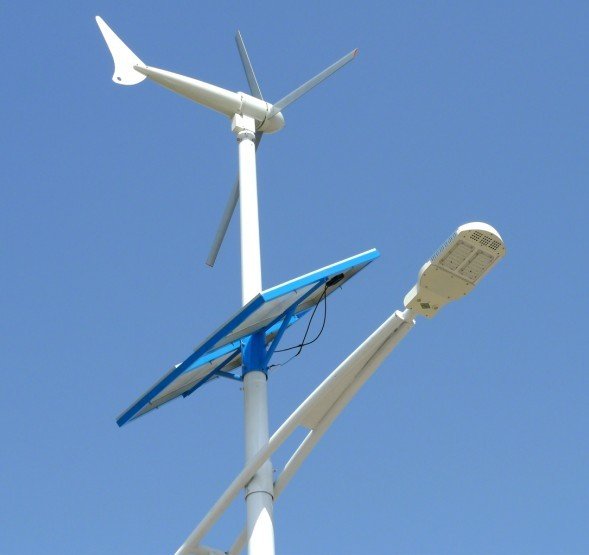

The solar-wind hybrid system is composed of solar panel, wind turbine, hybrid control

system, battery bank, inverter, etc.This system will take advantage of both wind and solar

power (the two clean energy source)at the same time, it will be a popular option in the near

future.

Advantage

As the wind resource and solar resource is mutually complementary(the hybrid will be

specially designed based on the individual consumption and local resource condition)

it can make the using of wind and solar power more balanced and stable. Meanwhile

the hybrid system can serve both as an off-grid independent power source or feed the

grid through an on-grid inverter, it will not only improve the reliability of electricity supply

but also reduce the power production cost. Moreover, the unique shape of this hybrid

system will also make its surrounding area more beautiful and attractive.
