31.2W per 5meters 12V 78leds/m led motorbike decoration light well suited for accent lighting

FOB Price: US $2.99 - 3.49 / Meter Get Latest Price
Min.Order Quantity: 5 Meter/Meters
Supply Ability: 80000 Meter/Meters per Week
Port: Shenzhen China
Payment Terms: T/T,Western Union,Paypal
Add to My Favorites

Quick Details

Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD3528
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Lamp Power:
31.2W
Lamp Luminous Flux(lm):
2730lm
CRI (Ra>):
75
Color Temperature(CCT):
2000-10000K
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PCB + SMD3528
Certification:
CE,EMC,FCC,LVD,RoHS,UL
Emitting Color:
Blue
Place of Origin:
Guangdong China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-EB3528W-12-78
Color:
Amber,Red,Green,Blue,Yellow,Warm White
Voltage:
DC12V / DC24V
Length:
5 Meters/Roll
Power:
6.24watt/meter
Warranty:
2 years
IP Protection:
IP20 IP65 IP67 IP68

Packaging & Delivery

Packaging Detail: Package: 5Meters/Roll, 1 Roll into anti-static bag 50Rolls/Carton, Carton Size: 50x40x30cm / 19.69x15.75x11.81"
Delivery Detail: Within 3-5 days after receiving the payment.

Specifications

led motorbike decoration light
78LEDs/Meter DC12V, 6.24W/Meter
Amber Red,Green,Blue,Yellow,Warm White
Waterproof CE RoHS IP68

ramadan decorations led lights

waterproof design IP65 Rating



Model:AH-EB3528R-12-78







LED Type:  3528SMD, 3.5 x 2.8mm


LED QTY: 78LEDs/Meter, 5Meters/Roll, 390LEDs/Roll, 390LEDs/16.40Ft





Max Lumens per LED:
3lm(Red),3lm(Yellow),5lm(Green),3.5lm(Blue),7lm(White),6lm(Warm White)

Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

6.24W/Meter, 0.52A/M(12VDC) 31.2W/Roll


Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-3528R-12-78

Red

156

78

12V

6.24

AH-3528Y-12-78

Yellow

156

AH-3528B-12-78

Blue

195

AH-3528G-12-78

Green

312

AH-3528W-12-78

White

546

AH-3528WW-12-78

Warm White

468


Super Bright Warm White: 546Lm/Meter

Super Bright Cool White: 624Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional.


Welcome to visit our website:  www.anyhopetech.com

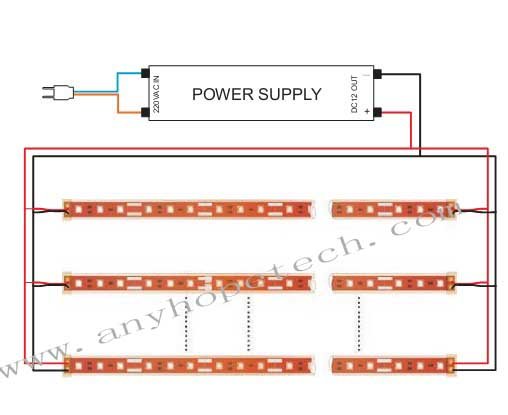

Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.

Operating driver: LED Transformer with DC12V/DC24V output

Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer




LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

8 x 2.2mm

0.31 x 0.08"

AH-3528-12-78

Epoxy / Silicone series

IP65

8 x 2.5mm

0.31 x 0.09"

AH-E3528-12-78

Silicone tube series

IP67

10 x 4mm

0.39 x 0.16"

AH-F3528-12-78

U-shape silicone series

IP67

10 x 5mm

0.39 x 0.19"

AH-U3528-12-78

PVC Tube + Epoxy series

IP68

10 x 4mm

0.39 x 0.16"

AH-G3528-12-78

All silicone series

IP68

10 x 5mm

0.39 x 0.19"

AH-S3528-12-78








Pitch: 12.8mm / 0.50"



DC12V (Every 3 LEDs cut at 38.5mm / 1.52")




PCB Color: Brown, White, Black (Optional)


View angle: 120 degree


CRI: 78~80 (White), 70~75 (Warm White)



CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%


Average life time: 50,000hrs


Storage temperature: -30°C~80°C / (-22ºF ~  176ºF)


Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)





Warranty: 2 years


Certification: CE RoHS WEEE








Package:
