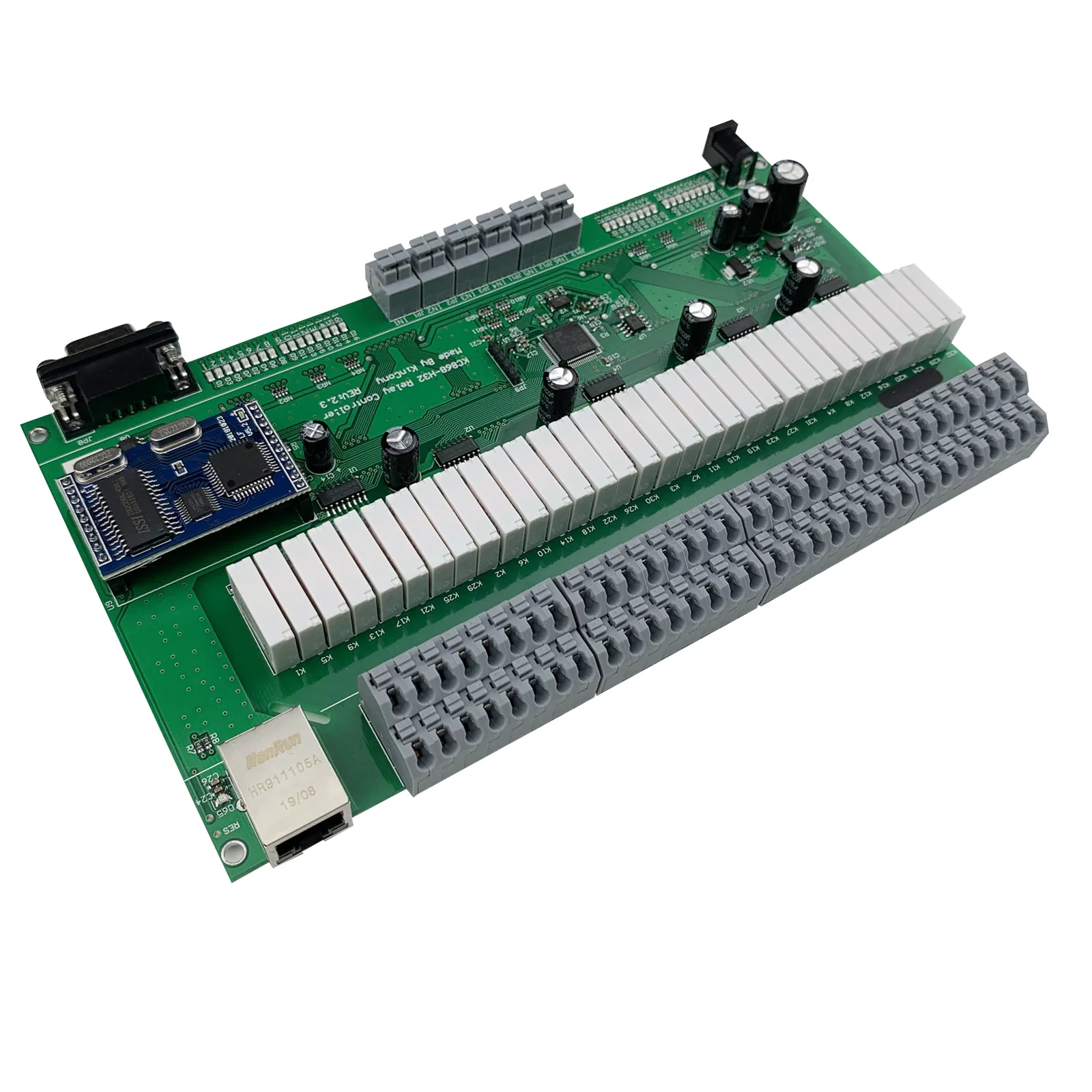

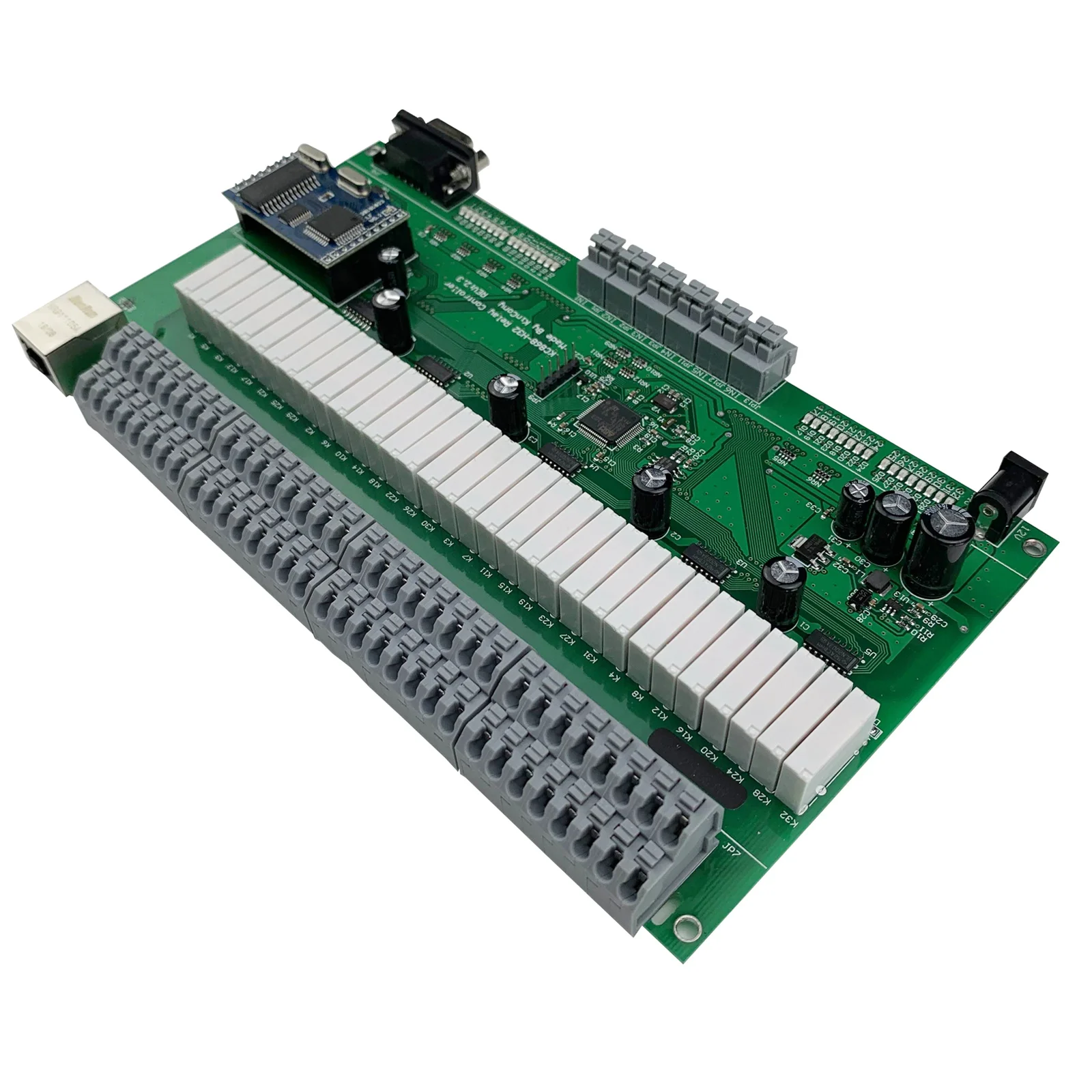

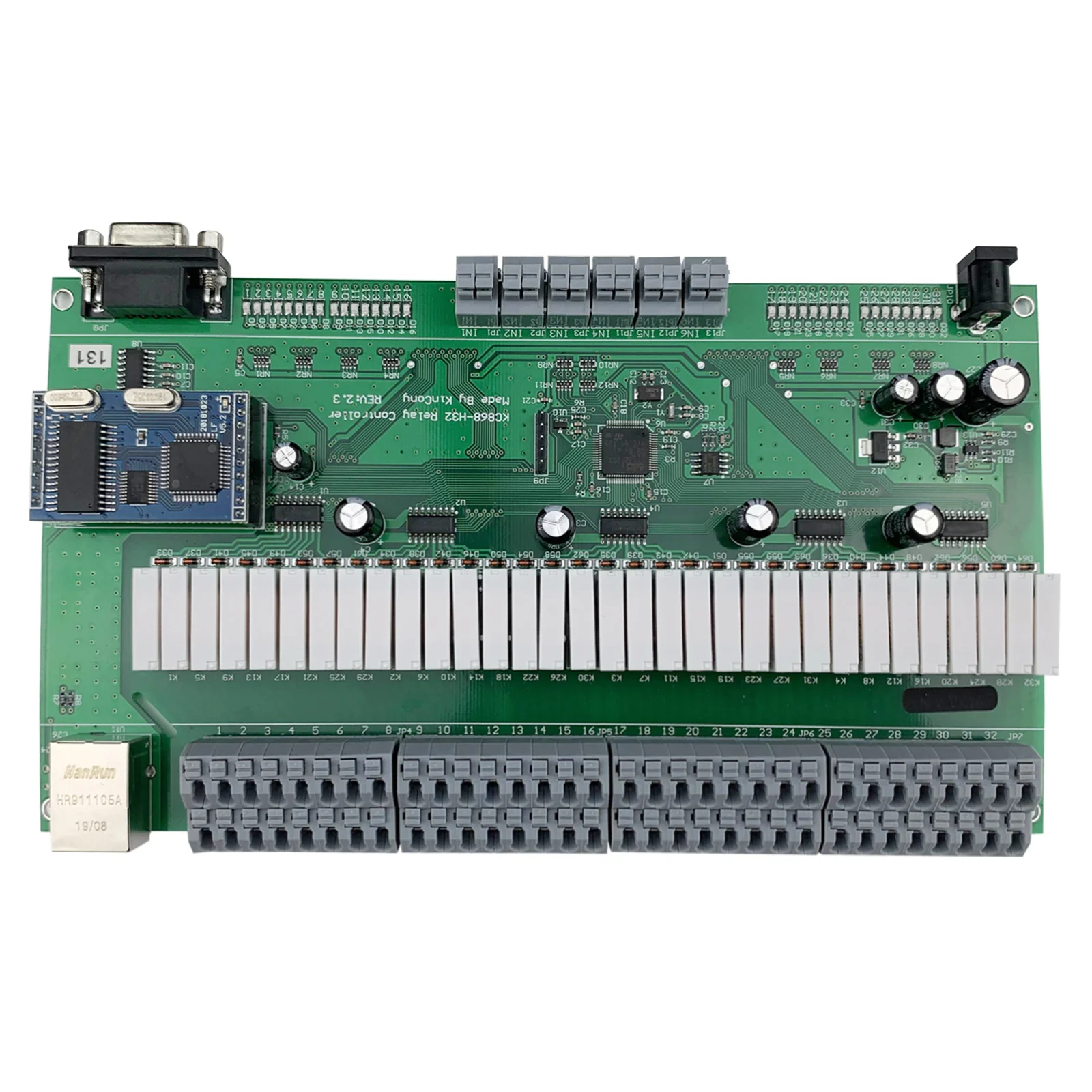

This KC868-H32's without shell versoin. This PCB board's function as same as KC868-H32.
1. KC868-H32 is a 32-gang switch and 6-gang security alarm smart home system with DIN rail mounting. 32-gang switch supports to connect and control 32 electrical appliances. Which can be turn ON/OFF separately by extended manual control panel or iOS/Andorid APP or PC software.
2. You can check real-time devices status for each device on App. If you need a specific number of channels, you can use some KC868-H32 and KC868-H8 together. Such as KC868-H32:1pcs + KC868-H8:1pcs that control channel is 32+8=40. All controller in one APP window.
3. A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks.
4. KC868-H32,KC868-H32W,KC868-H8,KC868-H8W,KC868-G,KC868-S Controller belongs to KC868 family by KinCony , These controller all use the same software. The difference is that different number of security channels , control channels and ways of networking
5. These product have CE/FCC/RoHS Certified.
Program Development Board
1.Remote ON/OFF – Turn electrical devices ON/OFF from anywhere
2.APP/PC Support– Free iOS and Android mobile App and PC software
3.Independent control - Control each gang separately
4.DIN Rail Mounted – Great for industrial control
5.Sync Status –Real-time device status provided to App
6.Share Control – Share your account with your family to control your smart home
7.Timing – Set scheduled to turn ON/OFF at specified regular time
8.Scene – Turn ON/OFF some specific switch of devices with one tap
9.Smart Scene – Can be triggered ON/OFF by kinds of sensor (Need support by sensor)
10.Supporting secondary development for programmer.
11.Network control methods for KC868-H32 controller:
a. Mobile phone APP remote control, PC local or remote control
b. Local Control: PC software; Control by yourself for programmer(For engineers:use controller communication protocol)
c. Remote Control: PC software;Mobile APP; Control by yourself for programmer(For engineers:Mode A: http www web command Mode B:coding by yourself according your app account to login)
Ethernet Relay Module
1. Using ARM processor,industrial stability and good anti-jamming.
2. Control channel up to 32 and sensor channel up to 6.
3. Support LAN and Internet, It can also be used without internet.
4. Free Mobile app and PC software.
5. Support multilingual customization.
6. Each device name supports self-modification.
7. Each device icon supports supports self-modification.
8. Software Title Name Information supports self-modification.
9. For Engineer: Provide the controller's communication protocol, which can be redeveloped.
Fire resistance ABS、metal shell
20%RH ~ 80%RH
Input port qty
Output port qty
Ethernet Relay Module
Hangzhou Kincony Electronics Co., Ltd. has engaged in intelligent and smart products since 2005.We are devoting our mission to provide high quality products and more efficient services.
We focus on research and development of intelligent controlling products and home furnishing intelligent controlling system.
Based on the continuously developing IOT techniques, we hope to supply more intelligent and more humanized electronic products to our customers for better convenient life.
Program Development Board
The newest Andorid Software , Download form our webpage(not in Google Play): https://www.kincony.com/download/Smart-Home_Eng.apk
This is KC868-H32's PC software of remote control version, It support rename and change ICO file by yourself. Also support kinds of languages of different countries.
This is Config window. Set device name and ON ICO and OFF ICO file.This is main window. All device can be controled.
new software support CCTV (only use for KinCony's ipcamera product). When you see the video control the relay switch. 2 cctv screen.
4 cctv screen.
If you connect with "KC868 Voice Assistant" module, controller can control voice control by Amazon Alexa or Google Home Speaker or Amazon Alexa or Google Home phone APP.
KC868-G/KC868-S/KC868-H8/KC868-H32 Mobile Phone APP download :
KC868-H32 Interface Definition Diagram
KC868-H32 Application Solution -- Smart Lighting Control
If the load is larger than 700W, the power expansion can be achieved by using solid state relay. Its working principle is as follows:
Security and Intelligent Linkage Control Solution
Intelligent Remote Pumping & Irrigation Solution
Servers Restart Remote Controlling Solution
Power Strip Intelligent Controlling Solution
Cameras Restart Remote Controlling Solution
Remote Access Controlling Solution
Intelligent Power Distribution Box Solution
Every KC868-Hx's input can remote control every KC868-Hx's output
Products Usage Instructions
Wiring and Installation
1. Connecting network line or RS232 serial port
2. Connecting the lamp and power into the corresponding output pole, according to below diagram.
3. When need to control one group or groups lights, connecting the line into the corresponding output poles.
4. Connecting the 12V power adapter to charge
5. When the detection sensors are available, connecting them into the input port.
Follows are our demo video on youtube can help you :
KC868-H32 Control Building Model by PC's video:https://youtu.be/wuxG8v1XXPU
Following is the introduction and solutions of KC868-H8/KC868-H32 controller which we plan to introduce in January-December 2019 on "Radio Magazine" in China. There are only Chinese language,but some of them will be translated into English language. You can visit our website www.kincony.com for viewing.We will continue to update.
This is a sample code for Turn ON/Off 's Hello World demo.
This is anlysis KC868-H32&KC868-H8 Controller's communication protocol
how to remote control relay by http string
This is smart lighting control system implementation case
We also writed some kinds of Smart Home DIY books to help people learn IOTknowledge.
Software Operation (For Engineer Development)
1. Opening the network debugging tool to detect the IP address and port of the device (see below figure)
2. Clicking【Device】, see below figure
3. Double clicking 【the Name】, set up the network parameter of the device
4. Choosing the working mode, TCP is for local area network setting or secondary development; UDP is for APP controlling.
We supply complete source program Toolkit of VS2005(Microsoft Visual Studio 2005) , and we give the controlling examples through RS232 serial port and Ethernet socket,to help customers carrying on the secondary development.
The PC software can control the relay switch and also show the input state.Details showed from below screenshots.
We can supply the DEMO code of C++Builder, Delphi, VB.Net, Python and iOS versoins.
Q1. How many applications can the device KC868-H32 control?
Answer: 32 ways applications
Q2. How many inputs are there in the device KC868-H32?
Answer: 6-way input
Q3. How many inputs are there in the device KC868-H32?
Answer: You can add 2pcs kc868-h32 in app. Then you can control 64 relays. Also if you add 3pcs of kc868-h32, then you can control 96 relays.and so on. All controllers will be add in one app account , not need to change app account to login and control device.
Q4.what is the maximum load per channel for the device kc868-h32?
Answer: 250V/5A each channel
Q5.What if the load power is greater than the rated power?
Answer: if it is overloaded, the external high power AC relay can be connected to crease the total load power
Q6.What type of equipment can be connected to the input of the kc868-h32 control box?
Answer: the equipments with switching value signal output
Q7.What is the size of the kc868-h32 control box? What are the fixed installation methods?
Answer: 272x117x40mm; to fix by hanging on the rail directly or to fix by screw
Q8.What is the interfaces the kc868-h32 control box supports?
Answer: support RS232 and Ethernet interface
Q9. Is there the version of Wi-Fi?
Answer: Yes. It’s the KC868-H32W.
Q10. What are the network control methods for KC868-H32 control boxes?
Answer: Mobile phone APP remote control, PC local or remote control
Local Control: PC software; Control by yourself(use controller communication protocol)
Remote Control: PC software;Mobile APP; Control by yourself(Mode A: http www web command Mode B:coding by yourself according your app account to login)
Q11.What kind of software and user manuals can be provided?
Answer: Network configuration tool, Demo software, Or Instructions and Secondary development protocol etc. For more details, pls visit www.kincony.com/document to download
Q12. When there is no internet, how to remote control the device KC868-H32?
Answer: under local network, using the PC to achieve local remote control; or using the wireless internet router to provide wired network or Wi-Fi signals to achieve controlling.
Q13. Where the mobile phone APP software can be easily downloaded from?
Answer: For IOS, log in to Apple app store, searches 【Kincony smart home】 to download; for Android, log in Google app store, searches【Kincony smart home】 to download or visit the official website to scan the QR for downloading
B. Development By Yourself
Q1. Is it supporting the users to write their own programs to control the device?
Answer: Yes, supporting. And the related program example is avialble.
Q2. Is it supporting to control the device through a browser?
Answer: Yes, supporting. And one relevant case can be provided.
Q3. What are the ways to remote control the device when the users program themselves?
Answer: the PC software, the browser for controlling.
Q4. Is it provided the source code of the secondary development package example?
Answer: Yes, providing the detail information.
C. After sale service
Q1. Where to download the relevant information after purchasing?
Answer: From the Chinese website www.hificat.com/services/
And the English websitewww.kincony.com/document
Q2. How to get technical support download?
Answer: email supporting
And Skype: leo-zhang2008
Q3. Where can the product or software update information be available?
Answer: from the English website https://www.kincony.com
Q4. Is it supporting OEM or ODM customization service?
