3G GPS WiFi Bluetooth battery mini SD card recording 2ch 1080p manual hd dual camera car dvr

$329.00 / Piece | 100 Pieces (Min. Order)
Memory Capacity:
128GB
Color:
$329.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Certification:
CE
Brand Name:
KOPDA
Model Number:
KD-BK6M/W2
Warranty:
12 Months
Resolution:
1080P 1920x1080@30fps
Recording:
Max. 128GB
battery:
600MAH
support:
3g
Night Vision:
yes
Functions:
3g gps wifi bluetooth

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
0.72 kg
Package Type:
one piece per box
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 5 To be negotiated
Video Description
Product Description

3G GPS WiFi buletooth battery mini SD card recording 2ch 1080p manual hd dual camera car dvr

 Real-time HD Video Recording, 1080P/720P/D1/HD1/CIF for Optional,Adjustable Frame Rate Quality.

 HIS Solution, H.264 Compression Mode, Many stream recording, Maximum support 2CH 2MP High Definition Monitoring/Recording /Playback (2CH real-time 1080P megapixel high definition input), support million pixels HD video resolution.

 Professional Power Design for all kinds of Vehicles, 8-36V DC; Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse Protection,Suitable for all kinds of vehicles.

 Support DC 12V output, it can offer power for cameras,mini monitor and some peripheral device.

 Dual SD card Data record storage (maximum support 128GB SD card ) It can be completely resist car Vibration,Dust and others cause data corruption;

 Watchdog Abnormal will trigger Restart Protection Function . It can better protect Device and Video.

 Exclusive Pre-Allocate DVR Special File System Technology, Solving repeatedly wipe cause file fragmentation, and ensure the integrity of the data.

 By accidents power-off protection function.Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-11s.

 Flame out Time-lapse Video Recording Function ( Highest support long delay time 24 hours.)

 Auto Recording,Time Recording,Alarming Recording Modes for Different Request.

 Display vehicle traffic status, Vehicle numbers ,Route, Super-low speed vehicle Information, Convenient management.

 Support GPS and G-sensor Modules Extension. 3G/4G SIM CARD Module and WIFI Module, Wireless AP Module.

 1channel-RS232 and 1channel-RS485.

 Support 3.7V/600mAh Build-in Backup Battery (Update to 1200mAh Optional).

 Support Video&Audio monitoring, 2-way Intercom, PTZ control, manually Alarm, Over-speed, Geo Fence etc through remote control platform.

 1 channel I/O alarm inputs (Doors, lights, steering, braking, reversing and all types can be configured), Can support kinds of response linkages.

 Fluent system interface is intuitive and perfect.

 Gorgeous powerful client program, providing real-time monitoring, listening intercom, playback, video, high-definition screenshots and other functions;

 Support SD card Remote Software Upgrade/OTA remote upgrade automatically, partition backup technology upgrade don't crash.

 Support mobile phone remote monitoring, and 3G call function

 Support TTS Voice Function

 Bulk Functions can be customized according to Customers' requirement

 Work Temperature: -30°C to 70°C (-20 °C to + 70 °C with printer and battery)

OS
Linux
Language
Chinese/English/Others (can be customized)
Video Compression
H.264 Compression Mode
OSD
Overlays information such as date time and vehicle ID
Graphical User Interface
Can connect to external LED screen. Setup system parameters with the remote control.
Video Input
2 channel,1 channel built-in, 1 channel expansion; 1080P AHD HD / SD / Mixed Video Input
Video Output
1 composite video output
Preview
Support 1/2/4 channels full screen preview
Resolution
Support 1080P/720P/D1/CIF, MAX:4channels 1080P
Video Quality
0-7 levels, 0 is the highest level, 7 is the lowest level.
Video Standard
PAL: 100f/s, CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional;

HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional;

D1: 800Kbps ~ 3Mbps, multi levels video quality optional;

720P: 1Mbps~4Mbps, multi levels video quality optional;

1080P: multi levels video quality optional;

Record Mode
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
Audio Input
2CH ,1 channels built-in , 1 channel expansion
Audio Output
1 channel
Compression
G.711a compression
Alarm Input
1CH level Alarm Input
Alarm Output
1CH level Signal Output
Communication Interface
1CH RS232 &1 channel RS485
Wireless transfer
Support Built-in 3G network, WCDMA, CDMA2000, TD-SCDMA compatible with GPRS, EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE
Position
Support Built GPS/BD Module, can make playback analysis of vehicle routing
G-Sensor
Support G-sensor
Storage
Max support 1x128GB SD and 1x128GB TF Card
Upgrade
Support USB flash disk updating, SD card upgrade , OTA remote upgrade automatically
File Format
.264
File System
Special Car system File System
USB
Support Two USB Port: 2.0 - Front panel supports USB port, support USB flash disk upgrade to backup; hard disk box USB port, can back up video data
Video Search
Search video by Record Time/Record Type etc.
Playback
Max support 4CH Replay /Stop/Fast Forward/Fast Reverse at same time
Support x 2, x4,x8,x16. fast forward or fast backward play
Safety Management
User/Admin 2 Levels Different Passwords, support screen lock
TTS Voice Broadcasting
Support TTS voice broadcasting
Power Management
Adaptive wide power input, with overload, undervoltage, short circuit, reverse connection and other protection functions; Support the timer switch machine, delay shutdown function.
Voltage Input
DC: +8V ~ +36V
Voltage Output
12V @1.2A 4 channels, with IR
12V @0.9A 2 channels, with IR
Power-off Protection
UPS Technology, all video information can be saved automatically when the power is cut off, and make sure that all the files cannot be damaged.
Power Consumption
Normal Working <10W, Standby state <0.5W
Temperature
-40℃ to +70℃
Humidity
20% to 80%
Size
125mm*130mm*150mm
Net Weight
0.5Kg

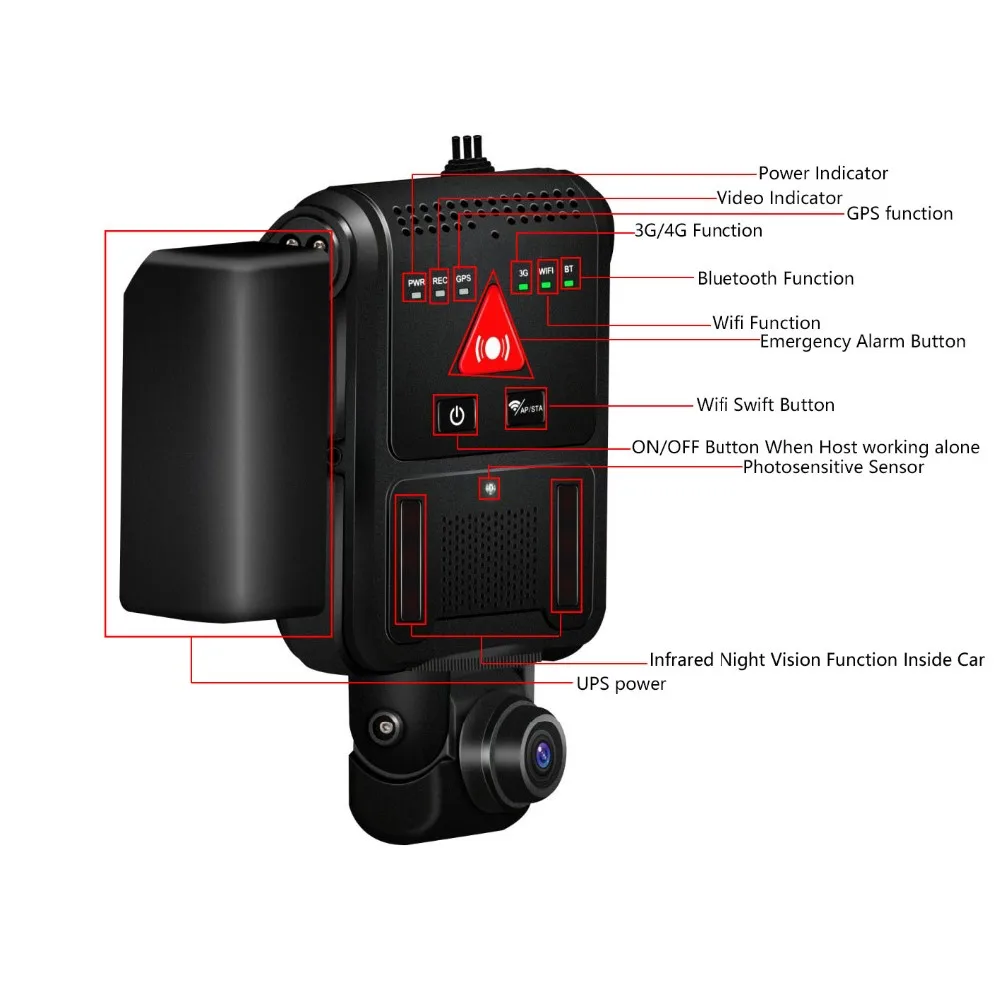

Detailed Images
Main products

SD card recording

720P/960P/1080P

720P/960P/1080P

2.1mm lens wide angle

7inch and 9inch optional

Use for public bus
