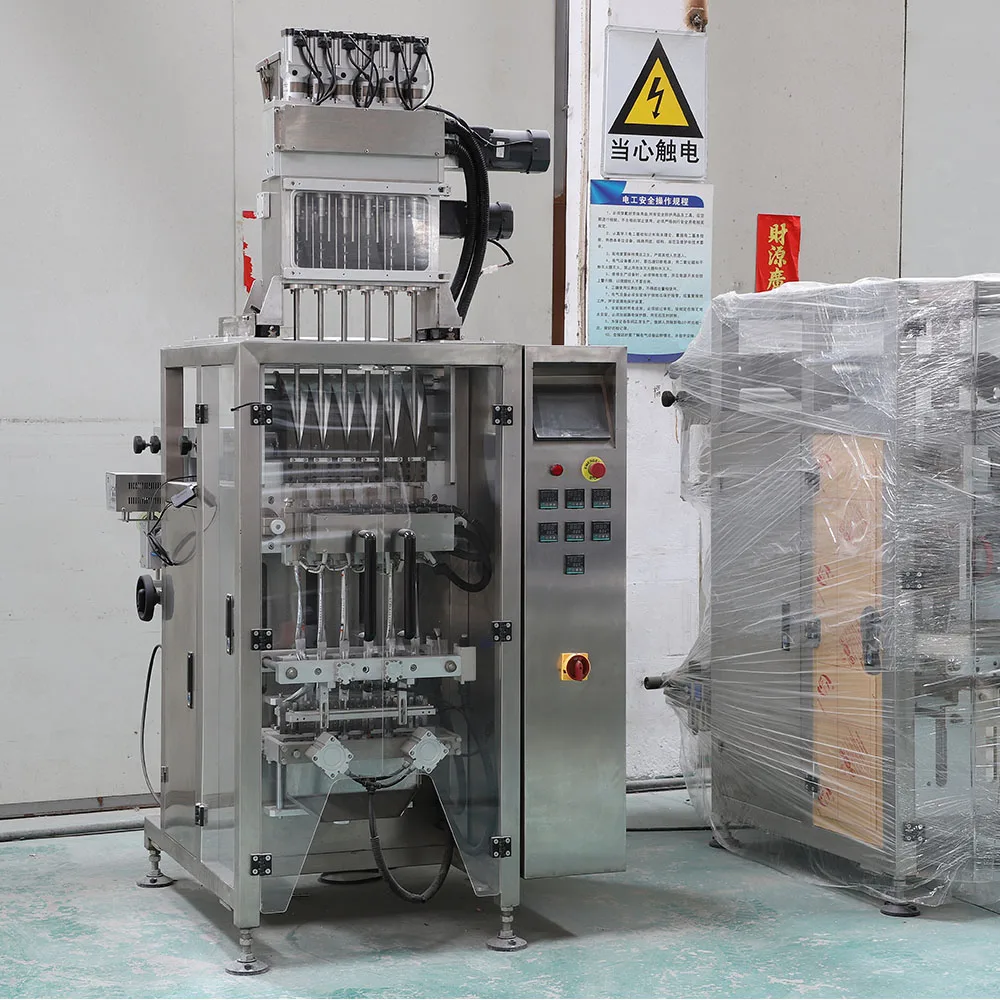

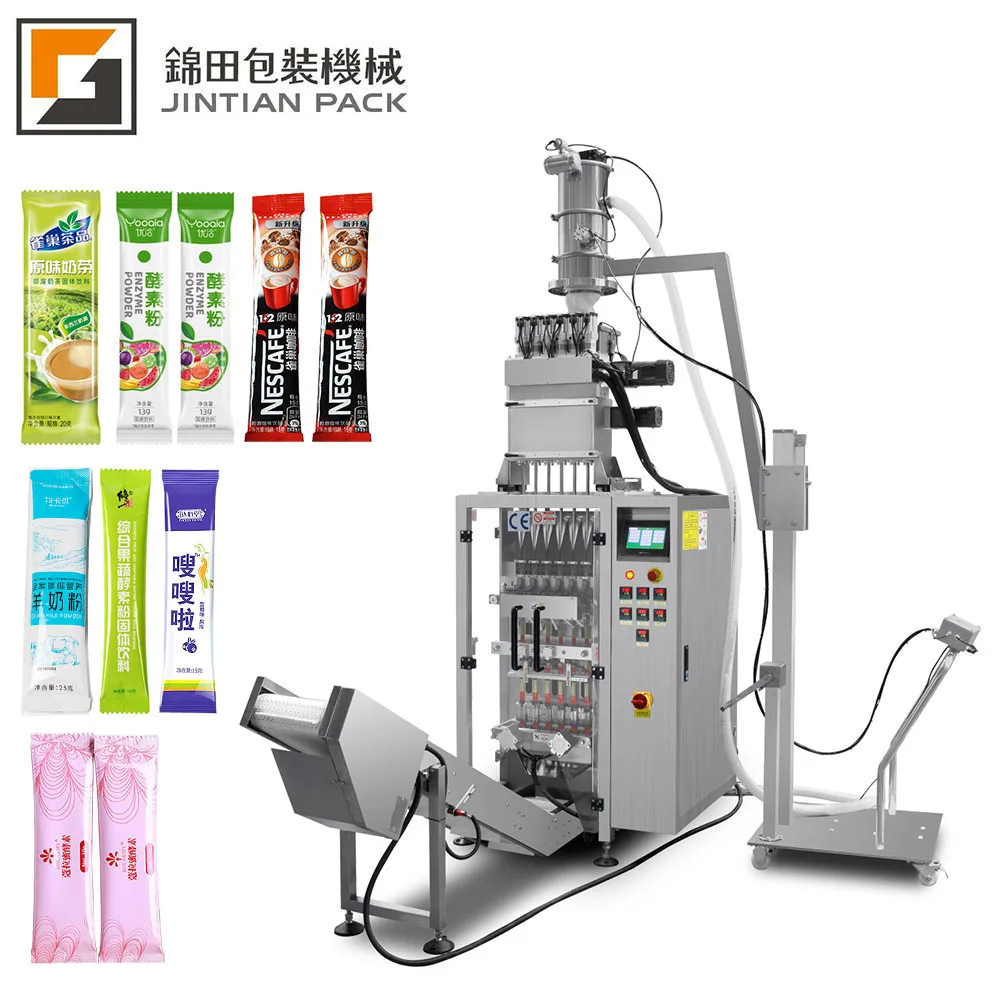

4 lanes 6 lanes sugar salt automatic sachet filling packing machine

  • 1 Sets
    $15,000.00
  • >=2 Sets
    $13,000.00
Power:
2.0 KW
Model Number:
JT-420
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
35 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Packaging Material:
plastic, aluminum, PET/ PE( Polyester laminated polyethylene ) OPP/CPP( Oriented polypropylene laminated Cast polypropylene) OPP/ CE (Oriented polypropylene laminated Cellulose)
Packaging Type:
Stand-up Pouch, Bags, Pouch, small sachet bag
Function:
FILLING, Wrapping, Sealing, weighing, date printing, feeding
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Application:
Food, Commodity, MEDICAL, Chemical, Machinery & Hardware
Automatic Grade:
total automatic
Driven Type:
pneumatic
Voltage:
220 V
Place of Origin:
Guangdong, China
Brand Name:
JINTIAN PACK
Dimension(L*W*H):
1100 * 990 * 2100 mm
Certification:
CE
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Warranty:
2 years
Key Selling Points:
multifunctional
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Production Capacity:
20bag/min, 40bag/min, 25bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min
Each bag width:
10--50 mm
Each bag length:
30--140 mm
Max width of roll film:
440 mm
Power:
2.0 kw
Air consumption/:
0.65 mpa
Gas consumption:
0.2 cubic meter
Weight of machine:
400 kg
Packing speed:
30-50 bags/ min/ lane
Power voltage:
220 VAC/ 50HZ
Dimension:
1100(L) * 990(W) * 2100(H) mm
Product Certification certification
CE Certified.
Valid from 2019-02-22 until 2024-02-21

Packaging & Delivery

Selling Units:
Single item
Single package size:
110X99X210 cm
Single gross weight:
400.000 kg
Package Type:
standard export wooden cases
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description
Products Description
Advantage

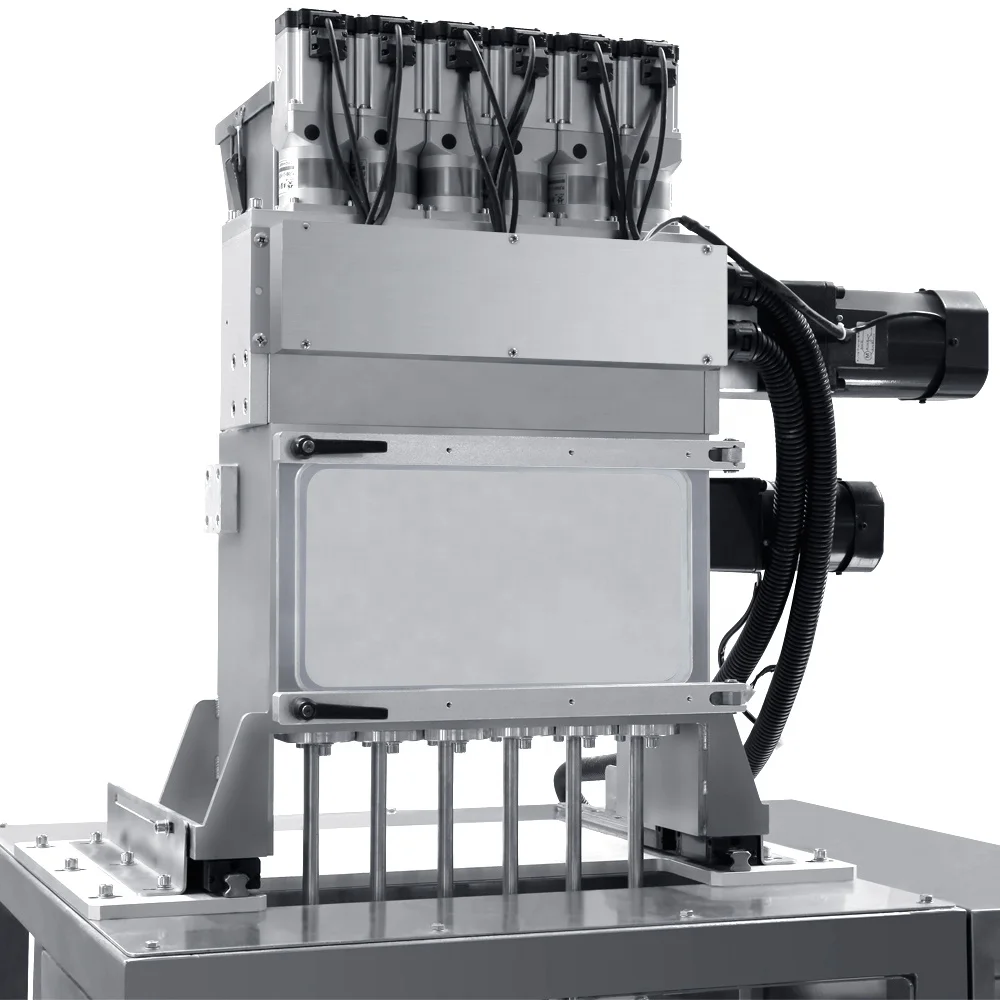

1.Machinery passed Certifications, by ISO, CE,SGS, ROHS, EU Low Voltage, EC Machinery. 2.Use famous brand electric and pneumatic components, stable and long life circle. 3.Specific powder counting system controlled by servo motor. 4.Pneumatic system, double belt pulling film, very stalbe. 5.Separate electricity road, easy to dinstinguish, lower noise. 6.Professional vertical packing machine producer and factory supplier, since 2011. 7.Great workshop team and after-sales services.
Product Parameters
Model
JT-420-4K
JT-420-6K
Bag length
30-140mm
30-140mm
Bag width
10-50mm
10-32mm
Max roll film width
440mm
440mm
Packing speed
30-50bags/min/lane
30-50bags/min/lane
Air pressure
0.65mpa
0.65mpa
Air consumption
0.2m³/min
0.2m³/min
Power supply
220VAC/50Hz
220VAC/50Hz
Power
2.0 KW
2.0 KW
Overall size
1100*990*2100mm
1100*990*2100mm
Net weight
400 kg
450 kg
Application
suitable for powder, such as coffee powder, medicine powder, health powder, and etc.
Company Profile
FOSHAN JINTIAN PACKING MACHINERY CO.,LTD., established in 2011, is specialized in researching, designing, manufacturing and marketing packaging machines which are widely used in different fields such as foods, chemicals, pharmacies, beverage, light industry and etc. JINTIAN series of vertical packaging machines are sold to more than 40 different countries and regions in Europe, America, Mid-East, South Asia and etc. With high quality machines and quick professional service, JINTIAN win a consistently high reputation.
