4G WIFI Android OS based PDA Guard Tour System with Patrol APP

Feedback Ratings
$1,000.00 / Set | 1 Set (Min. Order)
Model Number:
Z-9000
$1,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
1 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 1000 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
ZOOY
Android version:
android 5.1
Battery:
4000mAh rechargeable li-ion battery
Memory:
16g
Color:
Black & yellow
Dimension:
155*72*25mm
Weight:
280g
IP rating:
IP67
Screen:
4.0 inch
Touch screen:
Yes
Physical keyboard:
Yes

Packaging & Delivery

Selling Units:
Single item
Single package size:
33X22X9.5 cm
Single gross weight:
1.0 kg
Lead Time :
Quantity(Set) 1 - 10 >10
Est. Time(days) 1 To be negotiated
Product Description

PDA Guard Tour System Overview

ZOOY Z-9000 is the first Android based guard tour system that adopts 125 KHz proximity reading technology, which is carrying the patrol APP. The speed of reading tag is faster 10 times than NFC, 3 to 5cm read distance. It also supports QR code scanning. With fingerprint recognition, the patrol handheld reader kills the fake guard during patrol. Photo/video offers more details to center in real time.

This series of patrol handheld reader can be widely used for employee control areas, like factory, railways, airports, ports, maintenance, security, cleaning, etc.

Specification For Z-9000 Android Based Guard Tour System
Network supported bands
4G
FDD-LTE:800/1800/2100/2600MHz(B1,B3,B7,B20)
TDB-LTE:2600(B38)/1900/2400/2500MHz(B39,B40,B41)
3G
WCDMA:850/900/1900/2100MHz
CDMA:2000(BC0);TD-SCMA:1880/2010MHz
2G
GSM: 850/900/1800/1900MHz
System & processor information
OS
Android 5.1
SIM card
Micro card
CPU
QUECTEL Quad-core
Memory
RAM/ROM
Standard: 1G/8G;Upgrade: 2G/16G
Supported TF card
32G
Display
Size
4 inch HD IPS screen
Pixels
800*480px
Wireless Communication
WIFI
802.11a/b/g/n
Bluetooth
Bluetooth 4.0
Location
GPS/Beidou
Wired communication
USB
Anti-vandal magnetic USB cable
Camera
Back
8 megapixels, auto focus
Front
2 megapixels
Keyboard
Physical keyboard
18 pcs (10 numerical keys+8 functional keys)
Side key
Power key, Up/Down key
Input method editor
Android/third-party IME
Battery
Capacity
4000mAh rechargeable li-ion battery
Talk time
8-10 hours
Working consumption
300mA
Stand-by
10mA
Charging time
4 hours(5V/2A)
Size
Dimension
155*72*25mm
Weight
280g
Work environment
Humidity
20% to 45%
Temperature
-20 to 55℃

Key Features

· 125KHz RFID proximity reading
· Fingerprint recognition
· Physical & virtual keyboard
· 4.0 inch touch screen
· 8.0 megapixels camera, auto focus
· 10 sets limited dial out number
· Anti-vandal magnetic USB cable
· Online setting update
· Support the external device connection

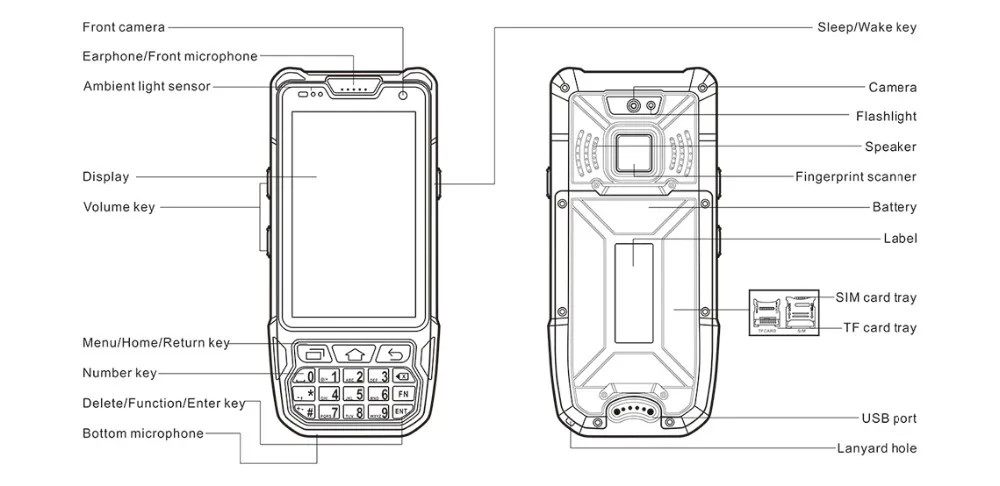

Layout
Detailed Images

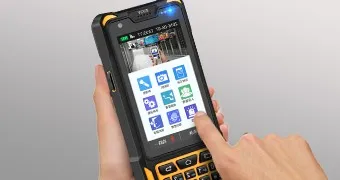

Touch screen

Type: Capacitive touch screen

Size: 4.0 inch

Pixels: 800*480px

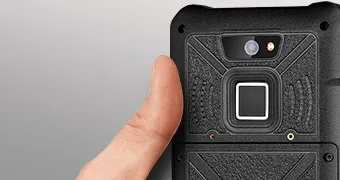

Fingerprint recognition

Type: Semiconductor sensor
Capacity: 1,000pcs


Magnetic USB Connecting

Type: pogo pin contacts
Feature: charge & communication

Physical Keyboard

Type: 10 numerical keys+8 functional keys
Side key: Power key, Up/Down key

Packing & Delivery
Packaging
Size
430(L) * 270 (W) * 360mm(D)
Weight
10 kg



Packaging Details
The normal package is carton box(Size: L*W*H). 1 carton can be packed 6 sets of Z-9000. We can pack it according to customers and carrier special request.
