50-500T High efficiency Energy-saving liquid silicone rubber injection molding machine

FOB Reference Price:Get Latest Price
US $23,000-75,000 / Unit | 1 Unit/Units more (Min. Order)
Supply Ability:
1000 Unit/Units per Year
Port:
Guangzhou
Overview
Quick Details
Condition:
New
Type:
injection molding machine
Style:
Horizontal
Brand Name:
TYM
Model Number:
TYM-W5050
Place of Origin:
Guangdong, China (Mainland)
Plastic Type:
liquid silicone rubber
Automatic:
Yes
Injection Weight:
300g
Injection Rate:
30g/s
Clamping Force:
150T
Opening Stroke:
215-615mm
Power(W):
12.1KW
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
pump pressure:
21Mpa
injection rate:
30g/s
Tie-bars space:
500*500mm
machine weight:
4.1T
Machine dimension(L*W*H):
4100*1600*2300mm
Shot volume:
300g
opening stroke:
150-550mm
clamping force:
150T
ejection force:
4.3T
motor power:
12.1KW
Packaging & Delivery
Packaging Details
wooden case for this plastic moulding machinery
Delivery Time
Shipped in 35 days after payment

50-500T High efficiency Energy-saving liquid silicone rubber injection molding machine

Product Description

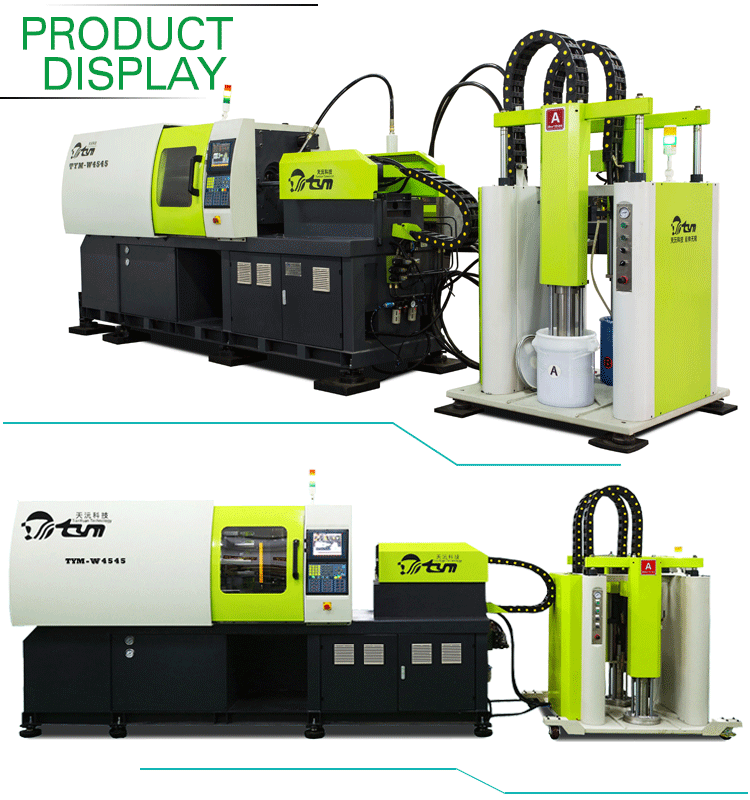

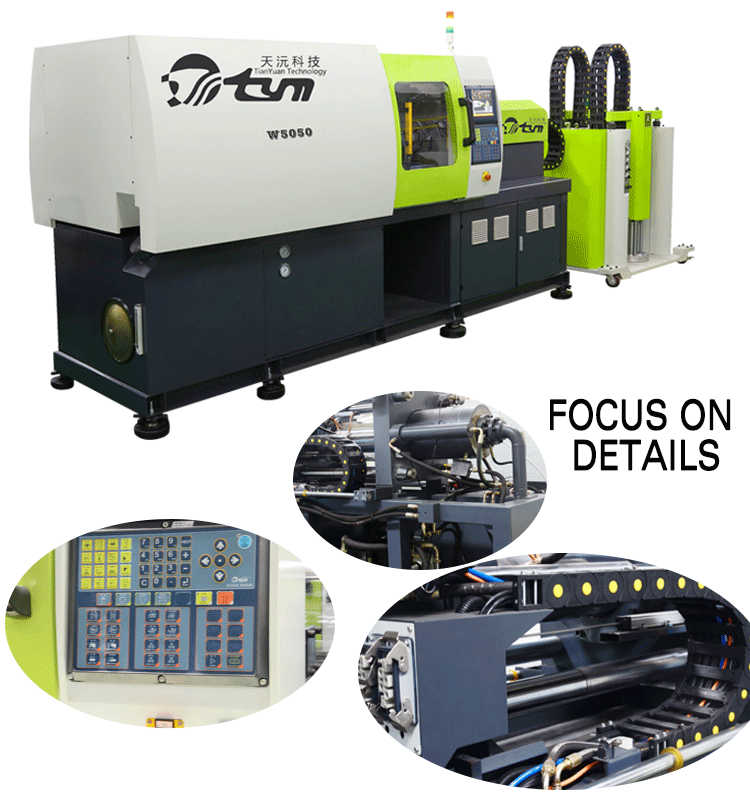

Horizontal Liquid Silicone Rubber (LSR) injection molding machine

Direct pressure mould opening and closing system, horizontal injection structure, it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.



The main feature of the horizontal LSR molding machine:

A.Newly-optimized integrated all-in-one design.

B. Meet multiple requirements on the automatic manufacturing technique for LSR products.

C. Shorter the mould closing and opening time, improve the production efficiency.

D. Remote control function.

E. Multi-section mould closing and opening and injection, speed adjusting stepless.



ITEM

DESCRIPTION

UNIT

TYM-W4040

TYM-W4545

TYM-W5050

TYM-W5555

Injection Unit

Shot Volume

g

165

165

300

300

Injection Rate

g/s

30

30

30

30

Injection Pressure

Kg/cm2

200

200

200

200

Clamping Unit

Clamping Force

T

120

130

150

160

Opening Stroke

mm

215-615

215-615

215-615

215-615

Tie-Bars Space

mm

400*400

450*450

500*500

550*550

Ejection Force

T

4.3

4.3

4.3

4.3

Ejection Stroke

mm

150

150

150

150

Pump Pressure

Mpa

21

21

21

21

Others

Motor Power

KW

12.1

12.1

12.1

12.1

Machine Weight

T

2.8

3.5

4.1

4.9

Machine Dimension

m

4.1*1.5*1.95

4.1*1.6*2.0

4.1*1.6*2.3

4.2*1.6*2.4
