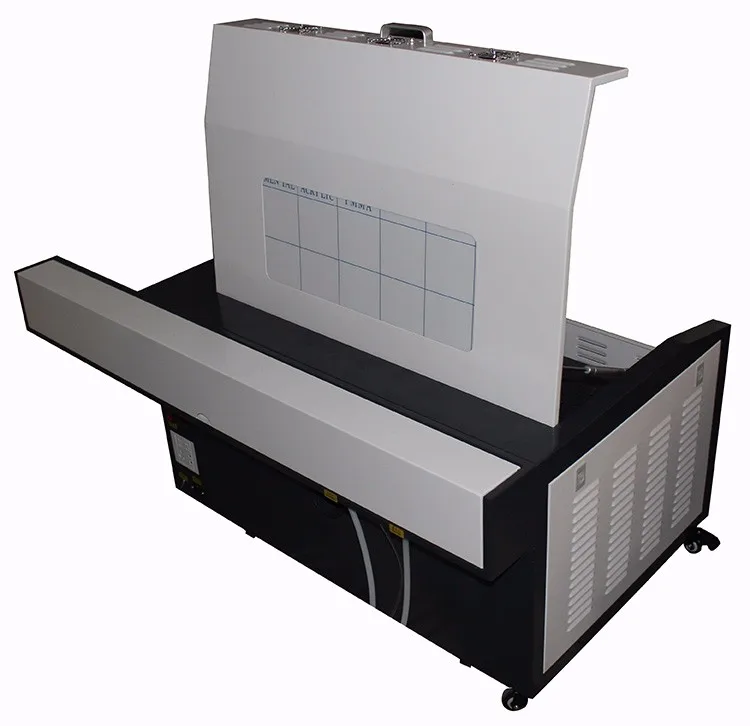

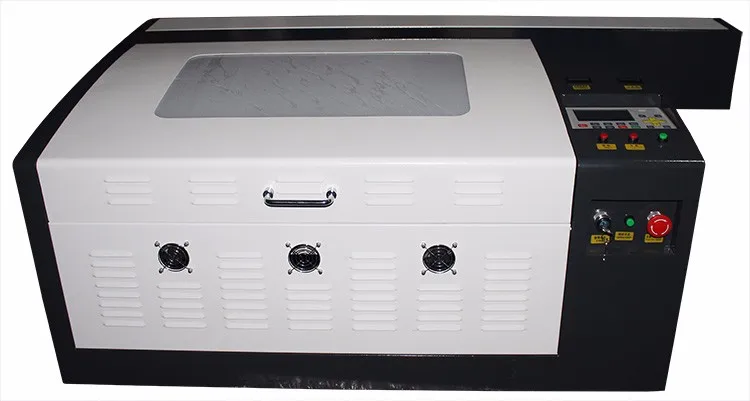

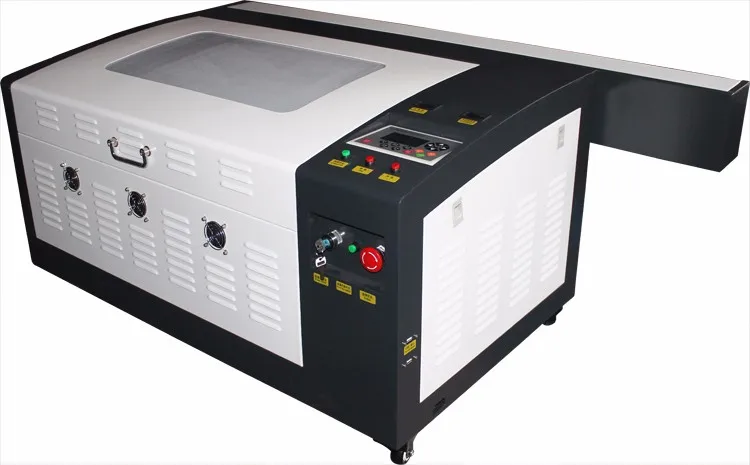

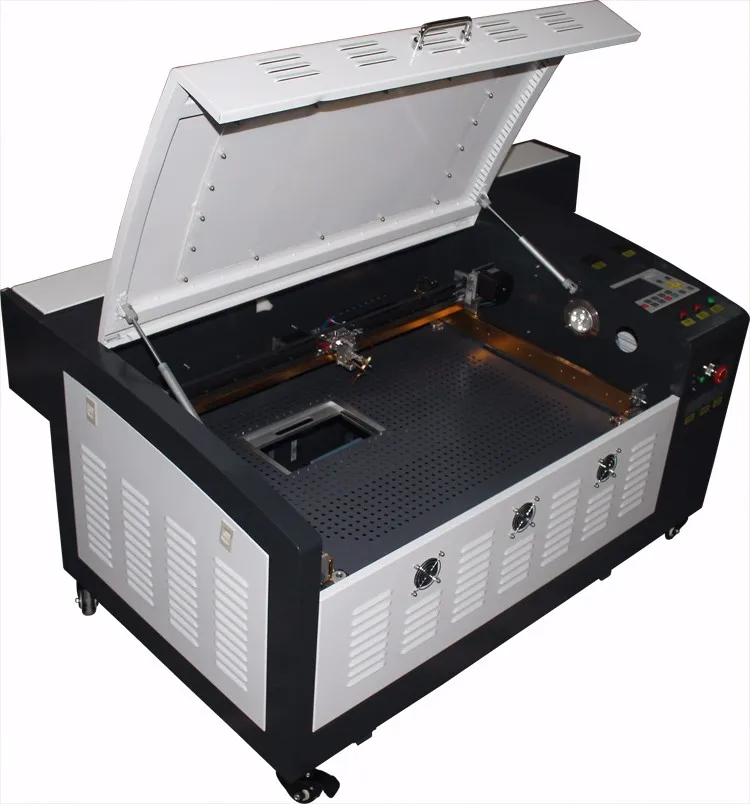

50W 60W 80W 100W JK6040 CO2 Laser Engraving Cutting Machine for Non-metal

FOB Reference Price:Get Latest Price
$760.00 - $2,000.00 / Sets | 1 Set/Sets JK6040 Laser Engraving Cutting Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Fabric
Laser Type:
CO2
Engraving Speed:
1000mm/s
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, PCX
Application:
Laser Engraving
Engraving Area:
600*400mm
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Jingke
Model Number:
JK6040
Dimension(L*W*H):
132*75*65cm
Certification:
CCC, CE, GS, ISO, SGS, UL, FDA
Laser Power:
50W 60W 80W 100W
Cutting Speed:
1000 mm/s
Cutting Area:
600*400mm
Repeated Positioning Accuracy:
±0.01mm
Drive Motor:
42, 57 Stepper Motor
Compatible Software:
CorelDraw, AutoCAD, LaserDraw
Red Dot:
Yes
Operating Temperature:
0-45
Operating Humidity:
5-95%
Water Cut-off Protection Device:
Yes
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
3000 Set/Sets per Month JK6040 Laser Engraving Cutting Machine
Packaging & Delivery
Packaging Details
Exported wooden case or according to your requirements.
Port
QingDao, Shanghai, Ningbo, Shenzhen, Guangzhou, or according to your requirements
Lead Time :
Shipped in 7 days after payment
Product Description

1. Control Panel and Mainboard

-- RuiDa brand. It's famous and popular.

-- It has their own system for engraving and cutting. Don't need to install extra work software.

-- It has multi-language function.

-- It has an ability to choose intelligently a good work path to engrave and cut.

2. Electric Up-down Work Table

-- Work table can be Up and Down freely to put higher objects in this machine.

3. Red Dot

-- Accurate locating.

4. X-Y Plotter

-- Taiwan HIWIN brand.

-- Linear square guideway.
-- High speed and high precision.
-- Long service life.

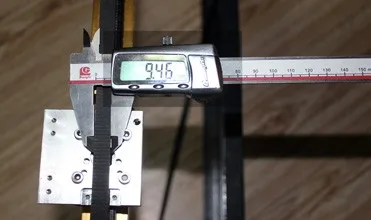

5. Belt

-- Stable transmission.

-- 10mm width.

-- Wear-resisting.

6. Laser Head

-- Laser head can stop focus lens from polluting.

-- Laser head will make effect of engraving and cutting better.

7. Stepper Motor

-- Leadshine brand.

-- High torque.

-- Low heat.

-- Low running noise.

-- Stable operation .

8. Sealed-off Glass CO2 Laser Tube

-- Longer service life.
-- More steady.
-- Higher efficiency.
-- High precision.
-- Small facula.

9. Focus Lens

-- Imported focus lens is with a better focus effect to meet more subtle work need.

10. Stepper Motor Driver

-- Smooth operation.

-- Excellent high-speed performance.

-- Self-adjustment technology, providing optimal performance with different motors

11. LED Light

-- In darker space, it will help you a lot.

12. Honeycomb Work Table

-- It will be given as a present.

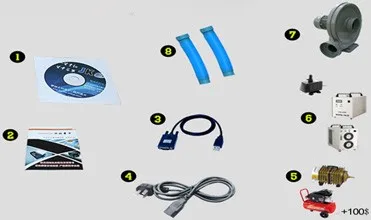

13. Fittings

-- 1. CD, Training Video
-- 2. User Manual
-- 3. Cable
-- 4. Power Cord
-- 5. Air Pump
-- 6. Water Pump

-- 7. Suction Fan
-- 8. Pipe

Technical Parameters
Product
JK6040 Laser Engraving Cutting Machine
Laser Type
Sealed-off CO2 Laser Tube
Laser Wave Length
10.6um
Laser Power
50W 60W 80W 100W
Engraving Area (X-Y)
600*400mm
Engraving Speed
0-1000mm/s
Engraving Thickness
0-20mm
Cutting Area (X-Y)
600*400mm
Cutting Speed
0-1000mm/s
Cutting Thickness
0-30mm
Repeated Positioning Accuracy
±0.01mm
Working Voltage
AC 110-220V ± 10%, 50-60HZ
Working Temperature
0-45°C
Working Humidity
5-95%
Minimum Line Width
0.1mm
Minimum Character
0.5mm
Work Table
Multifunctional work table and honeycomb work table
Electric Up/down Working Table
Yes
Range of Electric Up-down (Z)
0-300mm
Red Dot
Yes
LED Light
Yes
Belt
10mm
Guideway
Taiwan HIWIN Linear Guideway
Motor
Leadshine 42 Stepper Motor, 57 Stepper Motor
Drive Mode
Digital Subdivision Stepper Drive
System Supported
Windows
Compatible Software
CorelDraw, AutoCAD,, Laser CAD, etc
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglas, Plywood, Rubber, Wood, Other non-metal
Cooling Mode
Water Cooling
Auxiliary Device
Exhaust Fan and Exhaust Pipe
Water Pump
Yes
Air Pump
Yes
User Manual
Yes
Tranning Videos
Yes
Network Supported
Yes
Control Software
DSP
Interface
USB 2.0

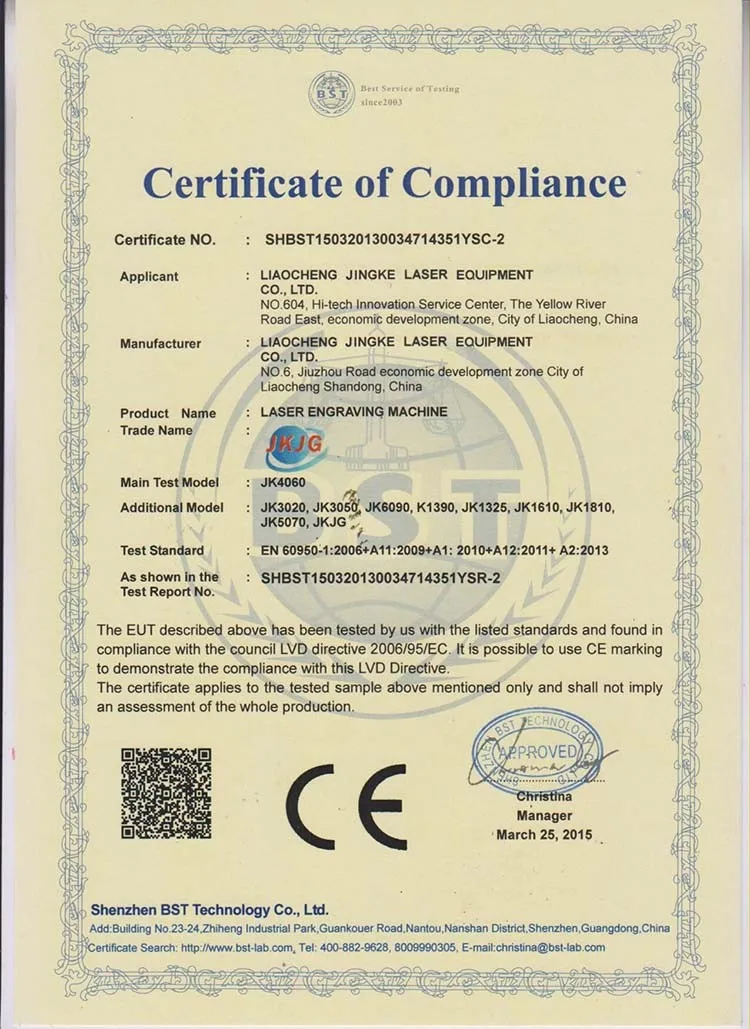

Certificates
PSE, CE, IC, RoHS, EUT, FC
Size (L*W*H)
1320*750*650mm
Weight
120KG
Optional Device
Water Chiller, Chuck Rotary, Non-standard Chuck Rotary

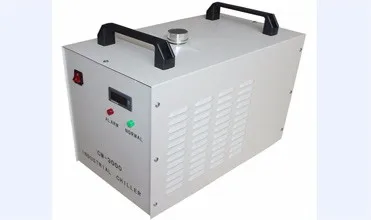

Water chiller has a better cooling effect, which will let machine and laser tube have a longer service life.

Chuck Rotary is for irregular objects, like tapered, etc.
Non-standard Chuck Rotary is for regular objects, like rounded, cylindrical, etc.
Application Show

Applicable Material

♦Acrylic   ♦Crytal   ♦Glass   ♦Leather   ♦MDF   ♦Paper   ♦Plastic   ♦Plexiglass   ♦Plywood   ♦Rubber

♦Stone     ♦Wood   ♦Other non-metal


Some Samples Show

Packaging & Shipping

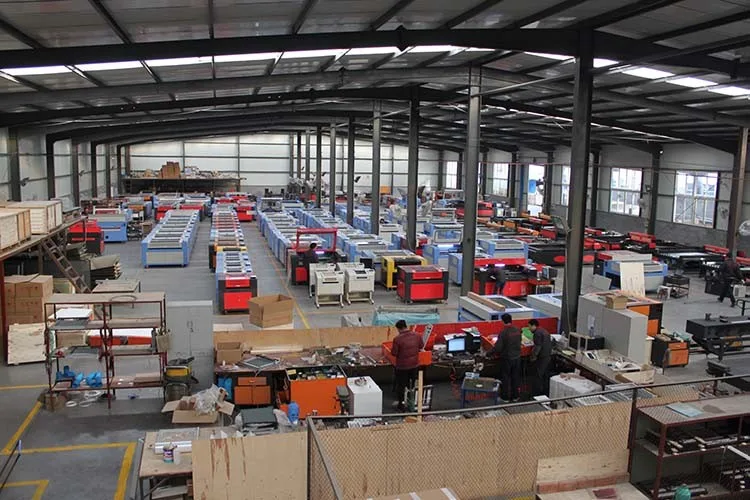

Our Company

Liaocheng Jingke laser equipment Co., Ltd. is established in 1999, located in Liaocheng New Technology Industrial Development Zone. We are specialized in co2 laser engraving and cutting machine, fiber laser marking machine, co2 laser marking machine.

FAQ

1. What's your after-sales service?
♦ 24/7 support by chat online.
♦ 24/7 support by phone.
♦ Lifelong and free technical support.
♦ We are responsible for troubleshooting.
♦ Service overseas: if the questions need to be solved face to face, we will dispatch an engineer to your door. Under warranty, we are responsible all costs. Out of warranty, you are responsible for all costs.

2. What's your guarantee?
♦ Laser tube is 100% genuine and certificate is with it.
♦ Machine is verified and inspection and adjustments is completed as well as verified in writing.
♦ Testing is done and results is verified in writing.

3. What's your warranty?
♦ The complete machine warranty for two years (laser tuber warranty for one year).

4. What's your Payment Terms Supported?
♦ By 100% T/T in advance.
♦ By 30% T/T in advance, 70% balance paid before shipment.
♦ By Alibaba Trade Assurance, PayPal, Western Union, L/C.

5. What's your date of delivery?
♦ Whithin 7 days after receiving payment.

6. What's your packaging?
♦ Exported wooden case or according to your requirements.

7. What watt is suitable for me?
♦ If you are not sure, please tell me what the machine will be used to do? Then I can suggest a suitable and right watt to you.

8. How much is shipping cost?
♦ If you prefer sea transport, please tell me which port you want the machine is shipped to?
♦ If you prefer air transport, please tell me your detailed address.
