5KW Three Phase Permanent Magnet Synchronous Motor

Feedback Ratings
  • 1-4 Pieces
    US $1179.00
  • >=5 Pieces
    US $1169.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
LS
Model Number:
LS-5000LM
Type:
Electric machinery
Max Power:
5000w
Rated Voltage:
96v/120v/220v
Output Current:
AC
Generator:
3 phase permanent magnet synchronous generator
Insulation Class:
F
Service Life::
More than 20 yeats
Bearing:
HRB or for your order
Shaft Material:
Iron
Shell Material:
Carbon Steel
Permanent Magnet Material:
Rare Earth NdFeB

Packaging & Delivery

Selling Units:
Single item
Single package size:
54X40X46 cm
Single gross weight:
89.0 KG
Package Type:
Wooden box packing
Lead Time :
15
Product Details

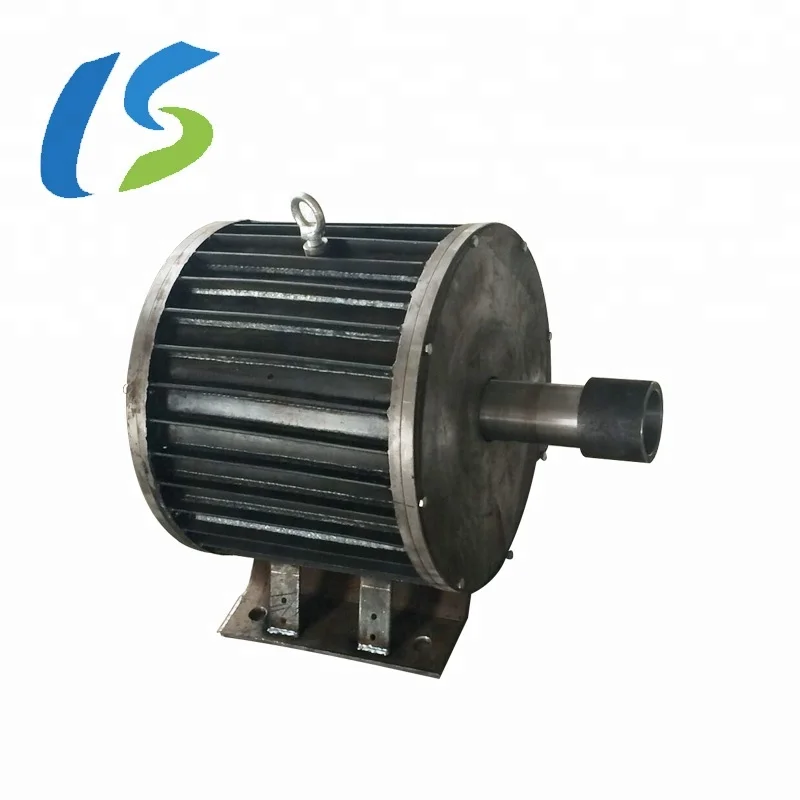

5KW Three Phase Permanent Magnet Synchronous Motor


Features

Low start up speed

Low cogging torque

Suitable for both Horizontal and Vertical Turbines

Gearless, direct drive, low RPM generator

Alternator generator Type permanent magnet generator

For use in all environments

Excellent heat dissipation

Designed for 20-year operation life

Product Parameters
Model
LS-5000LM
Rated Power(w)
5000w
Max Power(w)
7000w
Rated Voltage(v)
96v/120v/220v
Rated rotated speed(r/m)
300r/m
Top net weight(kg)
80kg
Output Current
AC
Start Torque(N*M):
1.1Nm
Rated Torque(N*M):
159.2Nm
generator
3 phase permanent magnet synchronous generator
Insulation Class:
F
Service Life:
More Than 20 years
Bearing
HRB or for your order
Shaft Material
Iron
Shell Material
Aluminum alloy
Permanent Magnet Material
Rare Earth NdFeB
Protection Grade
IP54
Lubrication
Lubrication Grease
Working temperature
-40℃ - 80 ℃
FAQ

1) What are the major components of a standalone wind energy system?
Ans.: A standalone wind energy system usually consists of a small wind turbine and its supporting structure (e.g. pole fixed in position by guywires), a charge controller and a battery bank If the loads demand AC supply, an inverter for converting DC to AC will be necessary
2) Are small wind turbines noisy?

Ans.: Small wind turbines usually have DC generators, and they need to rotate rather fast in order to produce sufficient output This causes a bit of noise when the wind is strong. Depending on the our special design, our turbines are quieter than the others
3)How can I connect small wind turbine to the AC distribution system of a building or a site?
Ans.: A grid-tie inverter with specifications meeting the guidelines given in the technical guidelines on grid connection of small scale renewable energy power systems and the requirements of the power company, is needed for converting DC output of the small wind turbine into AC for grid connection
4)Do I have to lower a small wind turbine when typhoon is approaching?
Ans.: If small wind turbine has a low survival wind speed, you may have to lower it when a typhoon is approaching On other hand, if survival wind speed is high and if the manufacturer suggests that there is no need to lower the turbine, then such kind of procedure will not be necessary

Our company

              Shanghai Laisa New Energy Technology Co., LTD is locating in NO.3568 Caoying Road, Qingpu District, Shanghai city, China. Our company is mainly devoted to 100w-100kw small wind turbine, solar system and some new energy products’ research, design, integration, sales, project construction and services. At present, our products have been sold to the Europe and America, Italy, Saudi, Brazil and other 63 countries. Our products are applied in the wind and solar hybrid street light, yachting, remote villas, farms schools, portable mobile tents and supporting stands and so on. Our products have won a high admiration at home and abroad. What’s more, all products have certificated with ISO and CE.


Why Choose Us






Our Service

1. Provide professional wind turbine technical support

2. Provide on/off grid system design, wind solar hybrid system design service

3. Complete system provider and designer

4. Wind turbine type, model, capacity selection professional support

5. Provide OEM service, customized service




Factory
Product Packing

Contact  Us

Shanghai Laisa New Energy Technology Co., Ltd.

No.3568,Caoying Road, Qingpu District, Shanghai City, China

Tel : +0870 15125356434

Skype : Nancy

Wechat : cysab123456
