6 position Stations Horizontal tool holder Quick Change Tool Post CNC Lathe part turret WD series

  • 1-9 Units
    $730.00
  • >=10 Units
    $700.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Model Number:
WD6-100(0625)
Application:
Turning Tool
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Tool Turret Type:
Horizontal
Machine available:
cnc lathe, cnc turning
Voltage:
3 phase 380V 50Hz
Payment Term::
100% T/T in Advanced
Package:
Plywood Case
Delivery Time:
10 days
Color:
White
Changing time:
1.5(60 degree)
Repeatability accuracy:
<0.005
Indexing accuracy:
7

Packaging & Delivery

Selling Units:
Single item
Single package size:
0.65X0.5X0.50 cm
Single gross weight:
40.0 kg
Package Type:
Plywood Case
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 To be negotiated

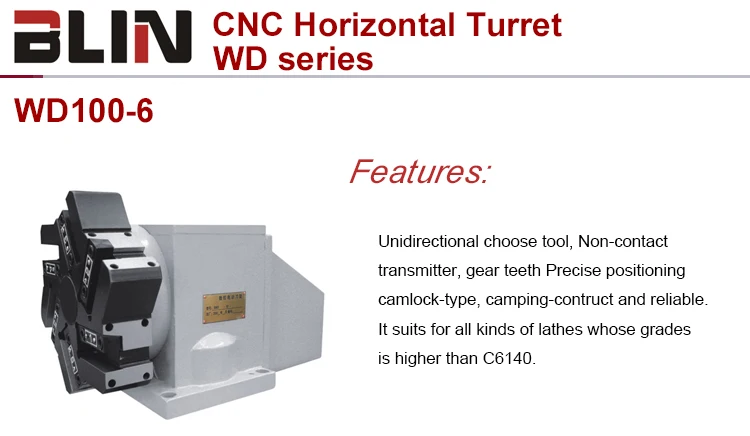

1WD .jpg

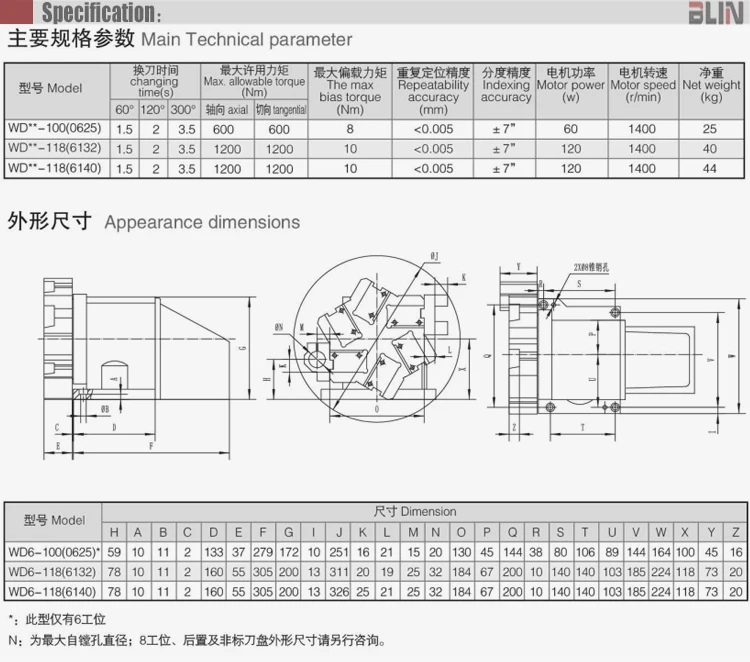

WD  .jpg



ItemParameterItemParameter
Model0625/6132/6140The max bias torque8/10/10
60° changing time1.5/1.5/1.5Repeatability AccuracyLess than 0.005
120° changing time2/2/2Indexing Accuracy7''
300° changing  time3.5/3.5/3.5Motor power60/120/120
Max tangential torque600/1200/1200Motor speed 1400/1400/1400
Max axial torque600/1200/1200Net Weight25/40/44



Our tool turets are CHINA top Brand,with high quality.has stock,the delivery time is very short.



Some introduction is belowing:

The Flat bed cnc lathe mostly mount electric tool turret,rarely mount hydraulic tool turret.
The slant bed cnc lathe mostly mount hydraulic tool turret.sometimes mount electric tool turret.



Electric tool turret have 3 series:BWD,WD,XWD
BWD series is the most expensive in the electric tool turret.suitable to mount in the slat bed cnc lathe,also can mount in the flat bed cnc lathe.
WD series is the cheapest.suitable to mount in the small flat bed cnc lathe.
The price of XWD series is between the BWD and WD.has higher rigidity,lower failure rate.

Hydraulic tool turre is HLT series.
Generally it is 8 station,also have 12 station,is suitable for slant bed cnc lathe.

Servo tool turret is SLT series.
